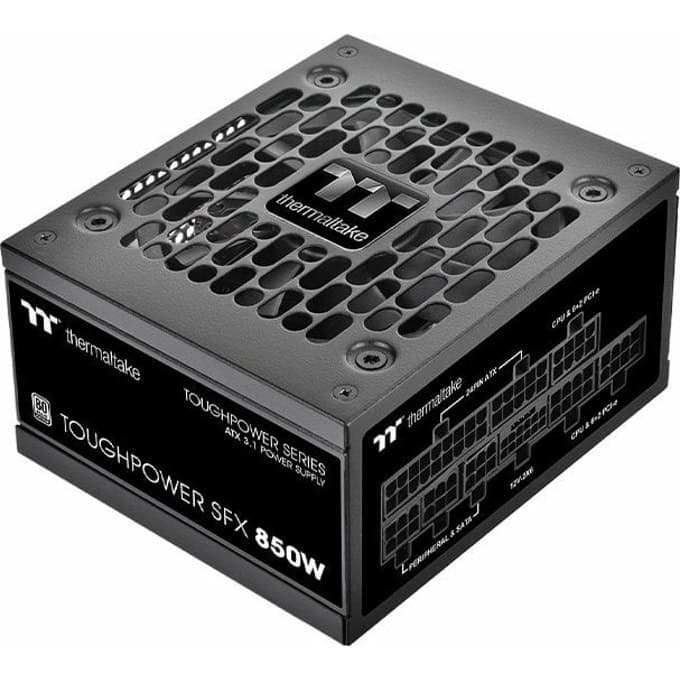

Захранване Thermaltake ToughPower SFX Platinum
Thermaltake

Захранване Thermaltake ToughPower SFX Platinum

Артикул №: 1000007512
Категория: Захранвания Настолни компютри
209,99 €
✓ Налично в централен склад

Toughpower SFX Platinum 850W - TT Premium Edition



Toughpower SFX Platinum series is 80 PLUS Platinum certified and compatible with ATX 3.1 specifications. Designed with a native 12V-2x6 connector.



Compact Power, Limitless Performance

The Toughpower SFX Platinum series is built to support next-gen hardware, meeting the latest Intel SFX 12V 4.1 and ATX 12V 3.1 standards. With its native PCIe 12V-2x6 (12+4pin) modular interface, it efficiently powers PCIe 12+4pin graphics cards. This series not only achieves 80 PLUS Platinum efficiency but also guarantees stability, durability, and reliability.





No Matter the Case Size, We've Got You Covered

The dimensions of the Toughpower SFX Platinum measure 125mm(W) x 63.5mm(H) x 103.8mm(D).
It comes with an SFX to ATX adapter bracket as an accessory which gives users more options when choosing the ideal case for the build.





PCIe Gen 5.1 Ready

Toughpower SFX Platinum series comes with a PCIe 12V-2x6 connector to offer powerful and stable performance allowing the PSU to natively run next-generation GPUs.

The wattage marked on the PCIe 12+4-pin cable connector represents the recommended wattage (Ref. Intel design guideline). The bundled PCIe Gen 5.1 (12+4pin) cable connector of the Toughpower SFX Platinum 850W can deliver up to 450W for PCIe 12+4pin graphics cards.





High Amperage Single +12V
Rail & High-Class Technologies

Powerful single +12V rail can properly deliver the power you need for the best compatibility. The use of LLC and DC to DC circuit design provides very stable operation and enhanced voltage regulation.





JAR Computers може да предложи /смяна/монтаж в наш сервиз или при .



Технически характеристики

watts 850W
Form Factor SFX
Цвят Черен
Dimension ( W / H / D ) 125mm(W)x63.5mm(H)x103.8mm(D)
PFC (Power Factor Correction) Active PFC
Power Good Signal 100-150 msec
Hold Up Time > 17msec at 80% load
Input Current 15A - 8A
Input Frequency Range 50Hz/60Hz
Input Voltage 100-240V~
Работна температура 5°C to + 40°C
Operating Humidity 20% to 85%,non-condensing
Температура на съхранение -40°C to + 55°C
Storage Humidity 10% to 95%, non-condensing
COOLING SYSTEM 9cm FDB Fan
Efficiency Meet 80 PLUS® Platinum at 115Vac input
MTBF 100,000 hrs minimum
Safety Approval CE/UKCA/FCC/ICES/CB/TUV/cTUVus/LVD/CCC/BSMI/ · S-MARK/EAC/RCM
PCI-E 6+2pin 2
PCIe 12+4pin 1(450W)
Smart Zero Fan Fan will not spin until the load exceeds 30% · No physical fan switch
