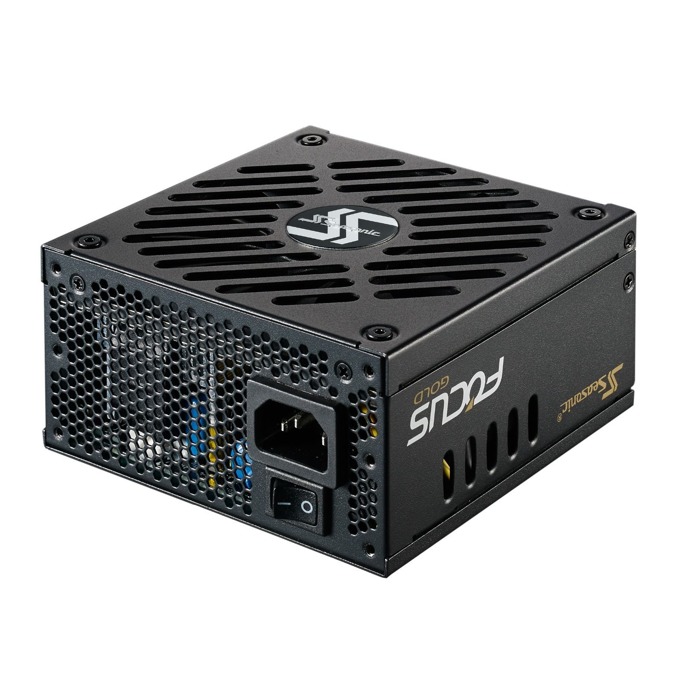

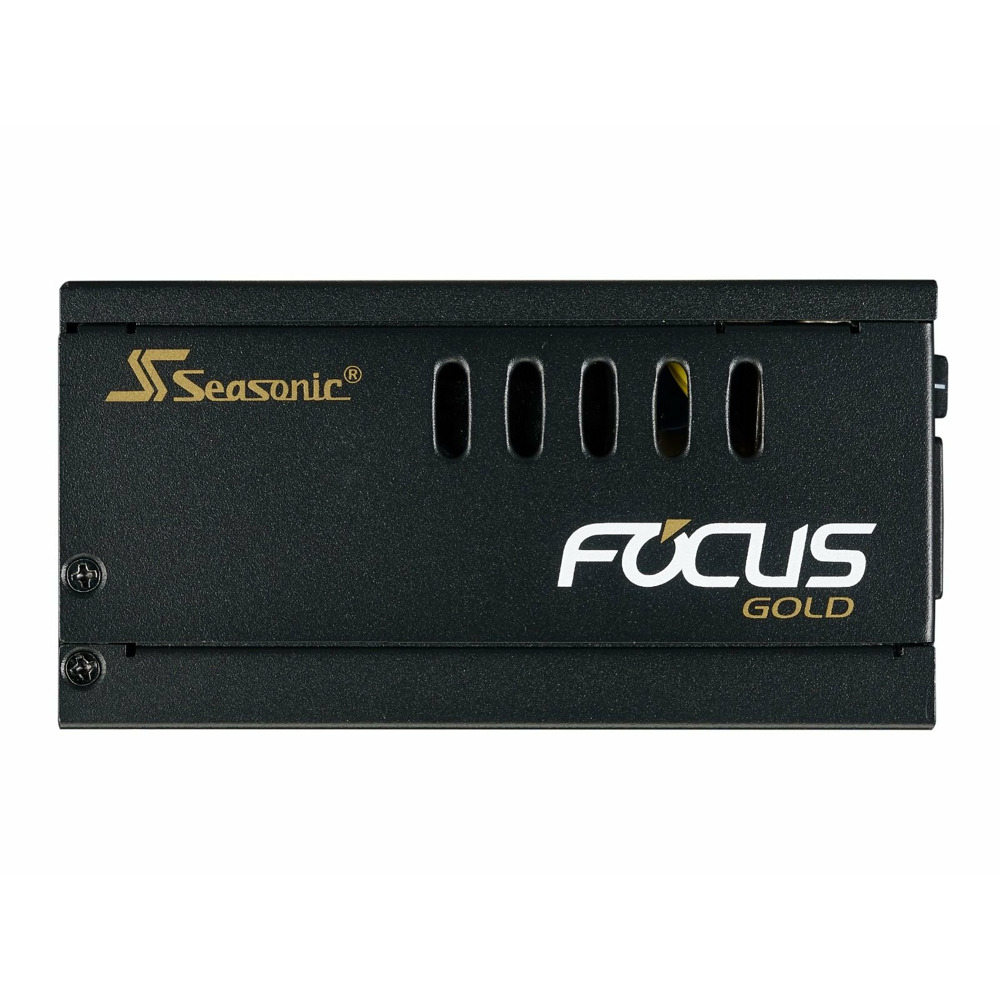

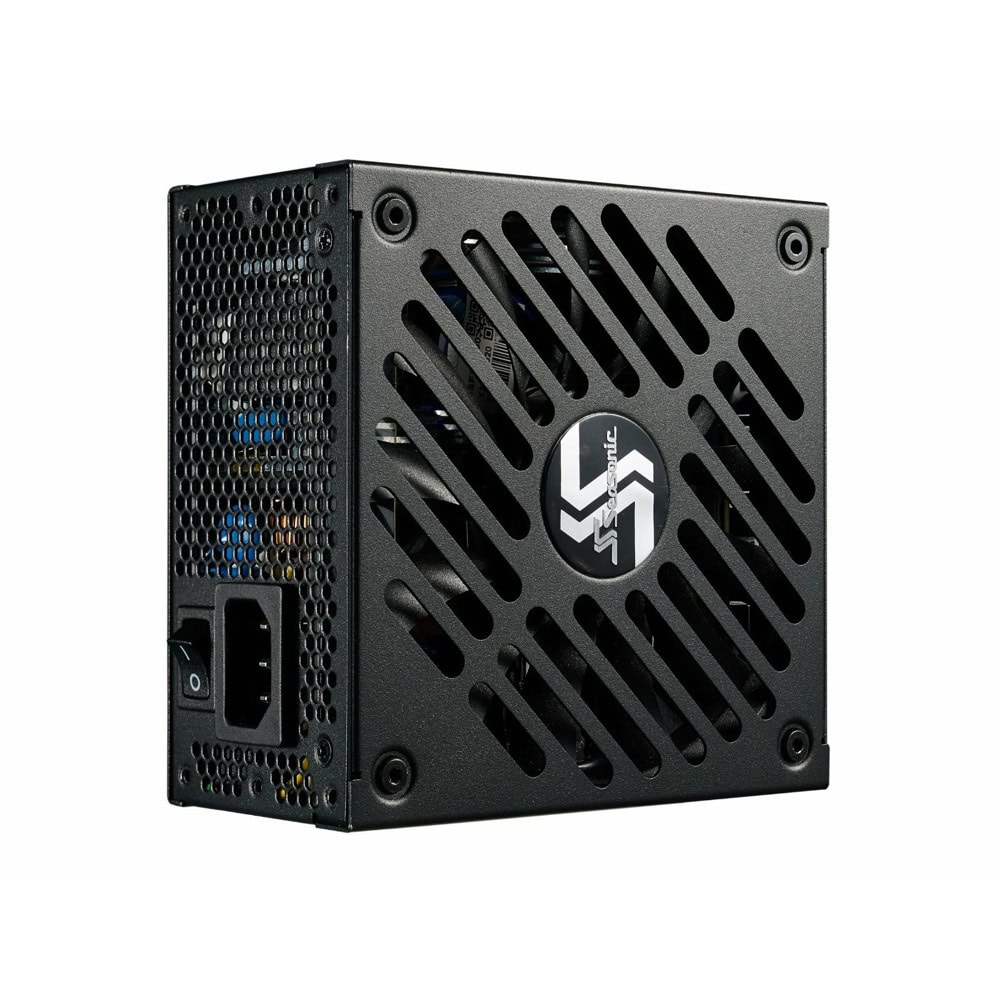

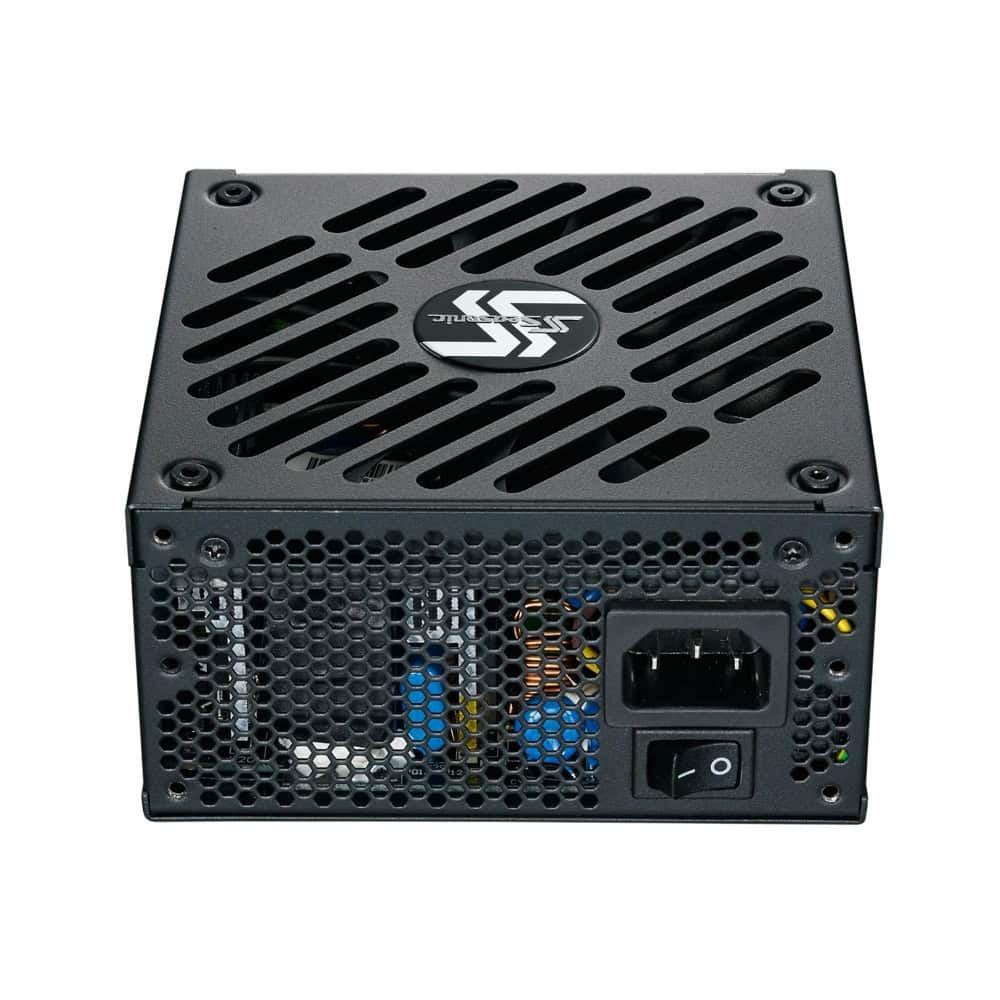

Захранване Seasonic Focus SSR-650SGX
FOCUS SGX

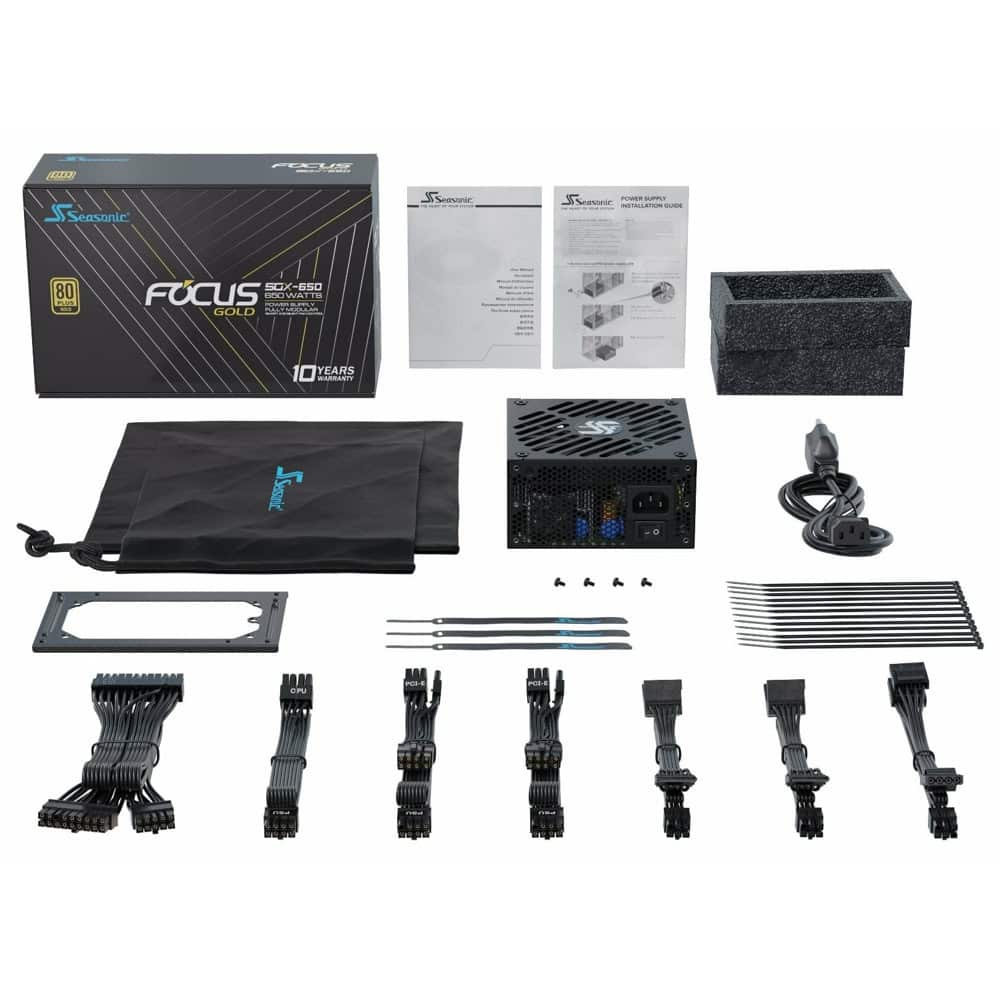

The long-awaited new line of Seasonic’s FOCUS SGX is versatile in its application, and powerful with a small footprint. The FOCUS SGX is shipped with an SFX to ATX adapter bracket in the box, which allows the power supply to be mounted not only in the SFX form factor chassis, but also a standard ATX chassis should the user prefers to reserve more space for airflow inside the PC case. The Seasonic hybrid fan control is always enabled to optimize the cooling according to necessity.
Hybrid Silent Fan Control – Fanless up to about 30 % load
The industry’s first, Seasonic patented, advanced three-phased thermal control achieves optimal balance between silence and cooling. This Hybrid Silent Fan Control functions in three operational stages: Fanless Mode, Silent Mode, and Cooling Mode.
BENEFITS: Reduced noise without increase in temperature; Extended fan life due to the reduced number of fan rotations; Optimized heat dissipation at all times; Unsurpassed silent performance in Fanless Mode.
Характеристики
| 80PLUS® | Gold |
| Cybenetics Efficiency Level | Gold |
| Cybenetics Noise Level | Standard+ |
| Форм фактор | SFX |
| Размери | 125 × 125 × 63.5 mm |
| Fan Information | Да |

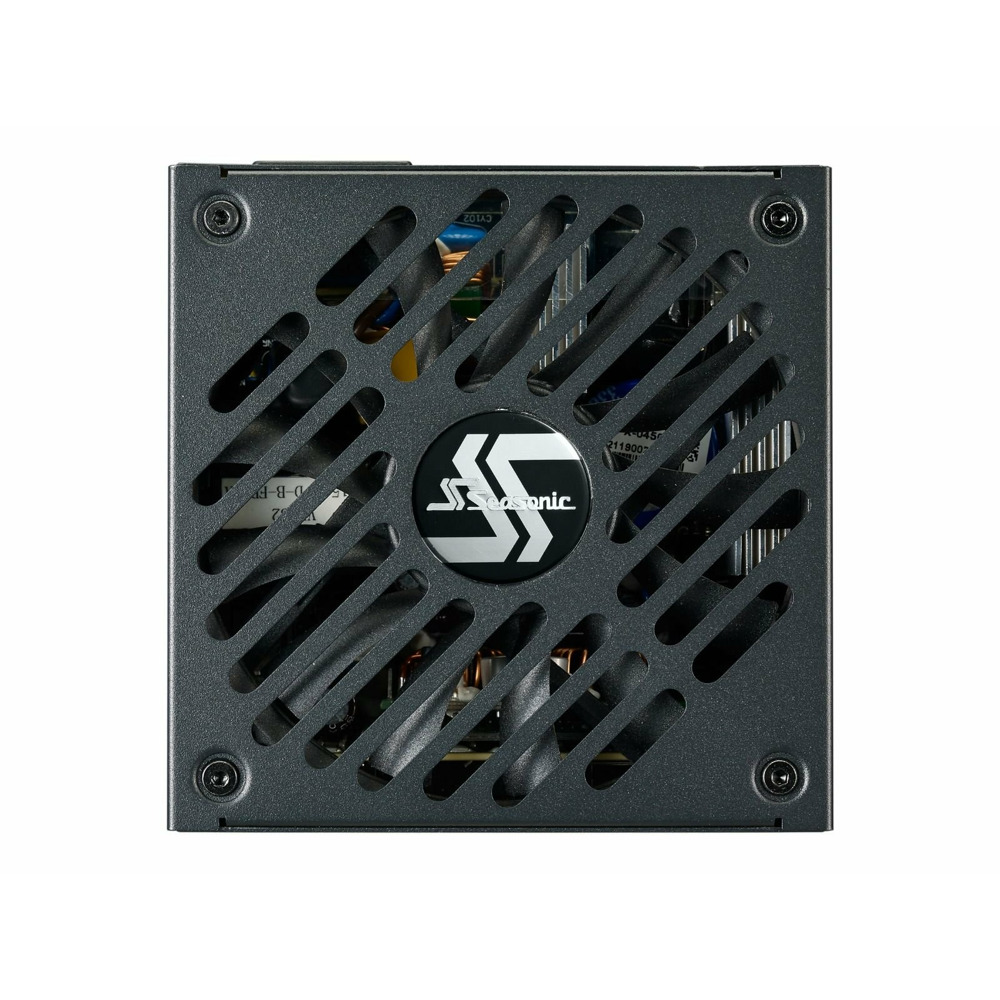

| Fan Size | 120 mm |
| Fan Control | Premium Hybrid Fan Control |
| Fan Bearing | Fluid Dynamic Bearing |
| Life Expectancy | 50,000 hours at 40 °C, 15 % - 65 % RH |
| Cable Information | Да |

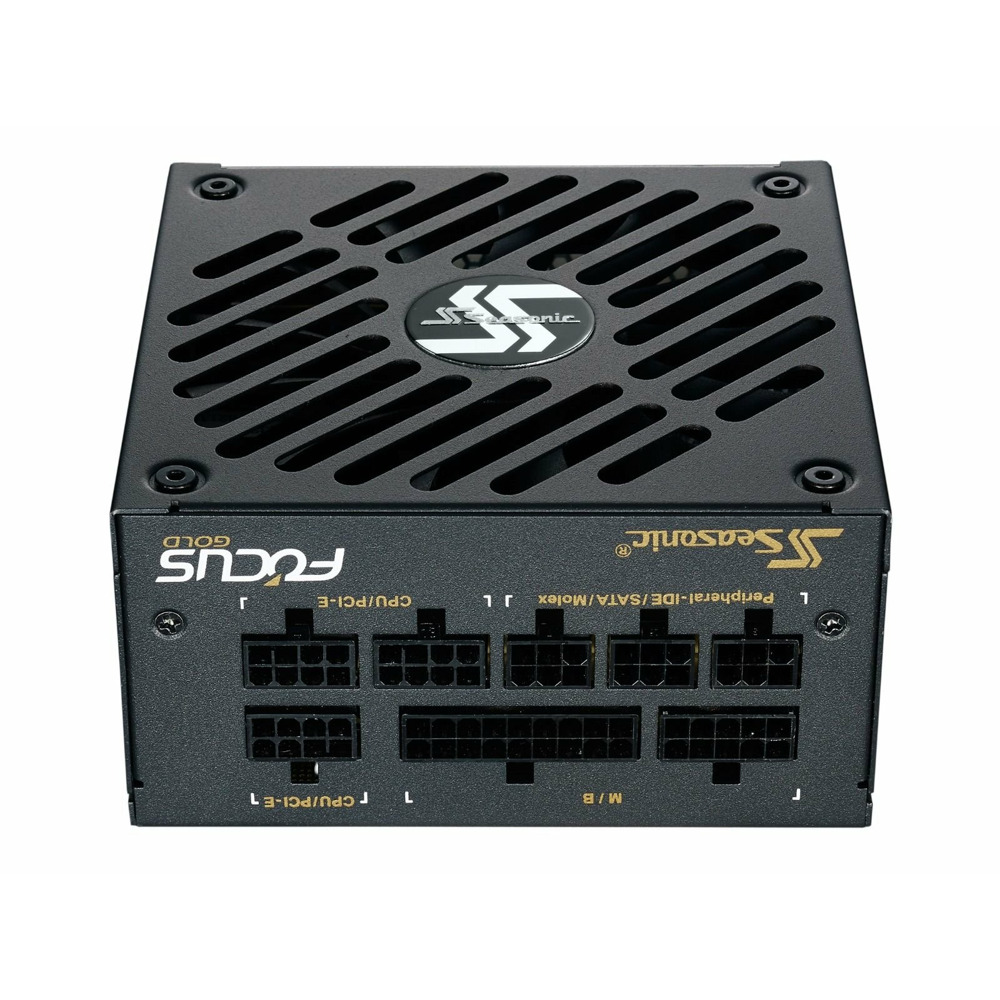

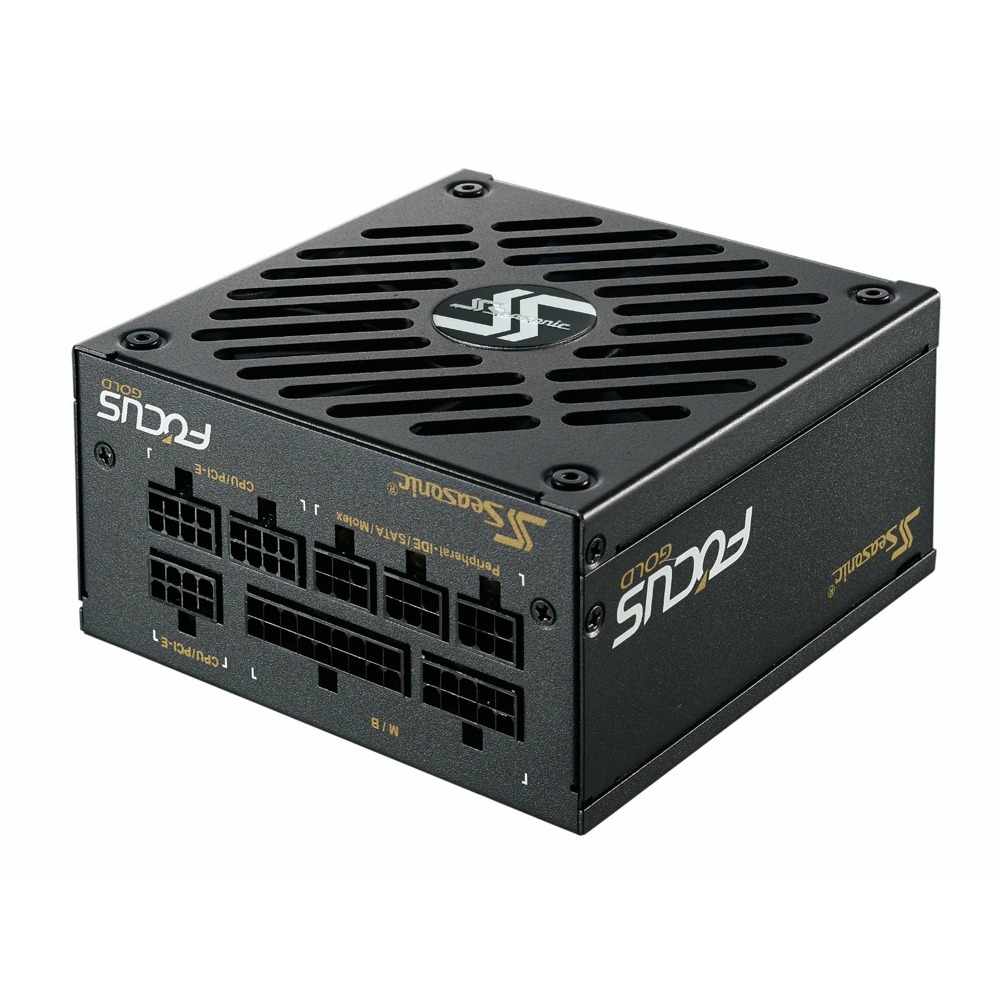

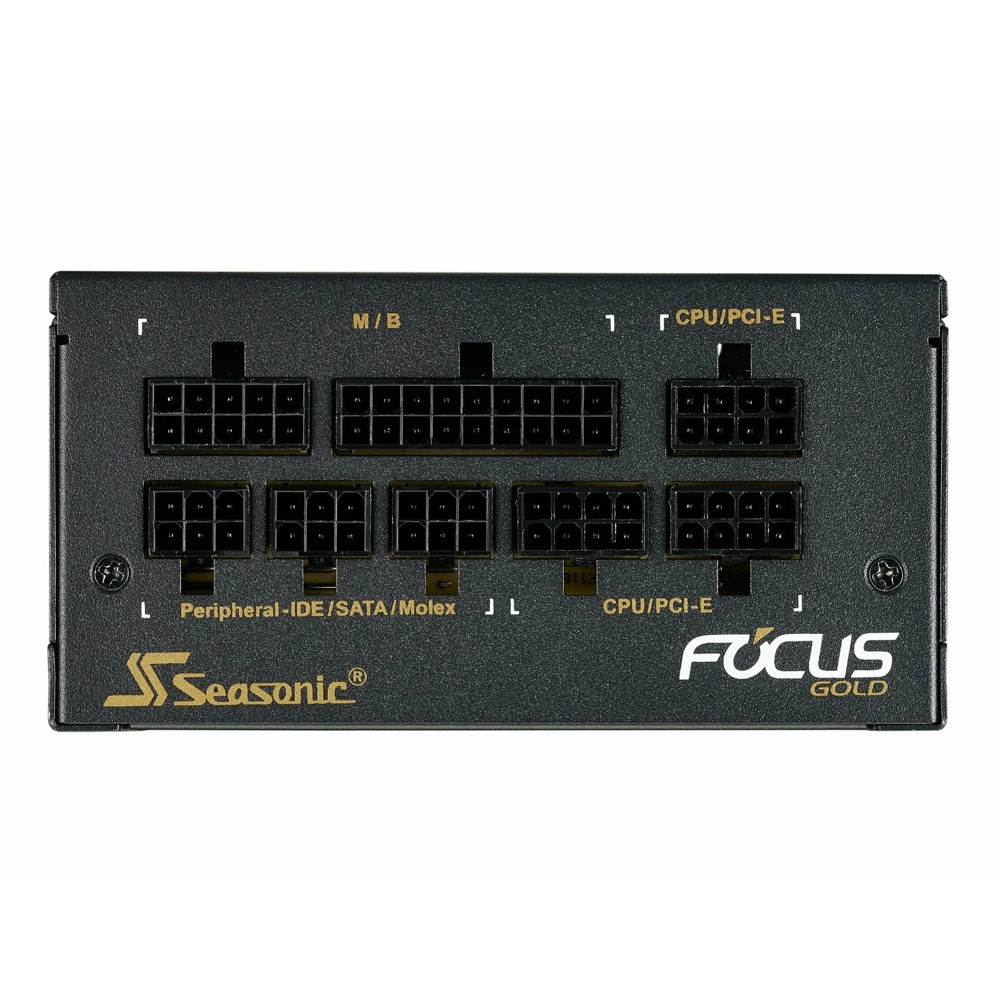

| Modularity | Fully Modular |
| Electrical Features | Да |
| Работна температура | 0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C linearly) |
| MTBF @ 25 °C, excl. fan | 100,000 hours |
| AC Input | Full Range |
| Защита | OPP, OVP, UVP, OCP, OTP, SCP |
| Safety and Environmental | Да |
| Safety and EMC | cTUVus, TUV, CB, CCC, BSMI, EAC, CE |
| Environmental Compliance | Energy Star, RoHS, WEEE, ErP Lot 6, REACH |
