MSI
Захранване MSI Mag A750GL PCIE5
Артикул №: 1000150394
Категория:
Компютърни компоненти
104,99 €
✓ Налично в централен склад

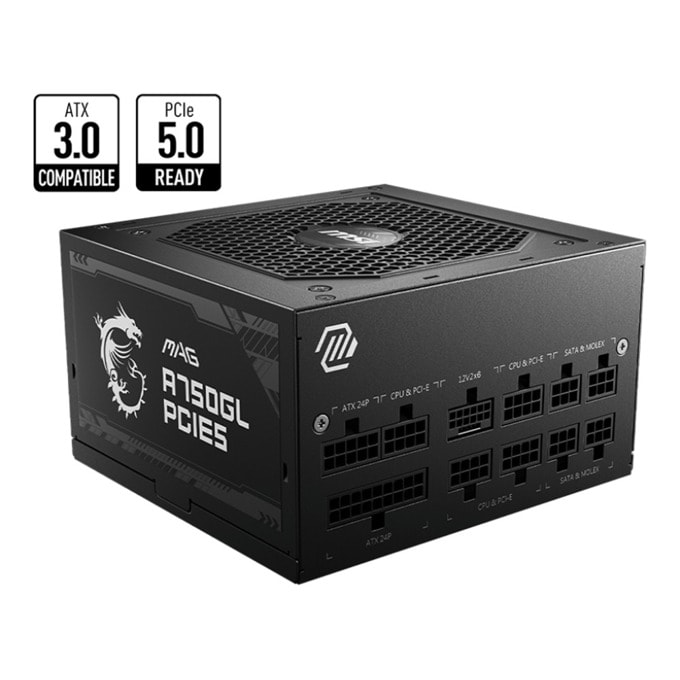

MAG A750GL PCIE5
- ATX 3.0 compatible, native PCIe 5.0 connector
- Supports NVIDIA® GeForce RTXTM 40 Series graphics cards
- Full modular design,Flat cables
- 80 Plus Gold certified for high efficiency
- Active PFC design,Industrial level protection with OVP,OCP,OPP,OTP, SCP,UVP

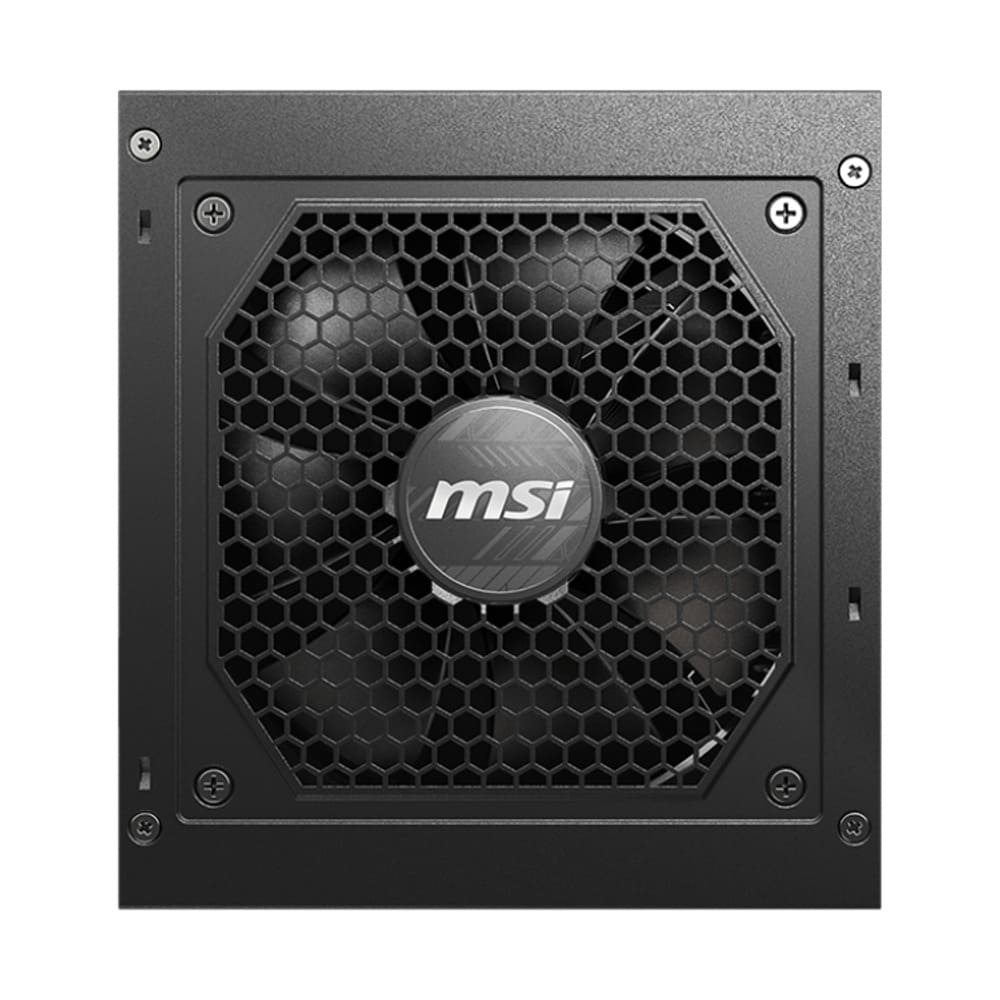

- 120mm Fluid Dynamic Bearing Fan
- LLC Full Bridge Topology with DC-DC module design
80 PLUS GOLD CERTIFIED
The efficiency of your power supply directly influences your system’s performance and your power consumption. The 80 PLUS Gold certification promises lower energy consumption and higher efficiency.
ATX 3.0 compatible
It has an output port that is compliant with PCIe 5.0 and Intel PSDG(Power Supply Design Guide) ATX 3.0, also the MAG A750GL PCIE5 power supply can handle up to 2x total power excursion and 3x GPU power excursion.
Efficiency Rating80 PLUS Gold (up to 90%)
Характеристики
| ModularYes (full modular) | Fan size120 mm |
| Fan BearingFluid Dynamic Bearing | Dimensions (DxWxH)140 x 150 x 86 mm |
| PFC TypeActive PFC | Input Voltage Range100~240 VAC |
| Power Watt750W | Power Excursion1500W (*up to 200% of the PSU's rated power for 100μs) |
| Input Frequency Range47-63Hz | ProtectionOCP / OVP / OPP / OTP / SCP / UVP |
| ATX (24 pin)1 | EPS (4+4 pin)2 |
| PCI-E 5.0 (16 pin)1 (450W) | PCI-E (6+2 pin)3 |
| SATA (15 pin)8 | MOLEX (4 pin)4 |
