Захранване DeepCool PX1300-P

DeepCool PX1300-P

Past, present, and future

With the ability to provide three times the total GPU and twice the total system power for 0.1 ms, random power spikes will never be an issue. The PX1300P will provide stable and consistent power for legacy and next-generation PCs for the foreseeable future.

Pristine platinum

80 Plus and Cybenetics Platinum certified to meet a high level of power efficiency under typical loads.

Premium quality at its finest

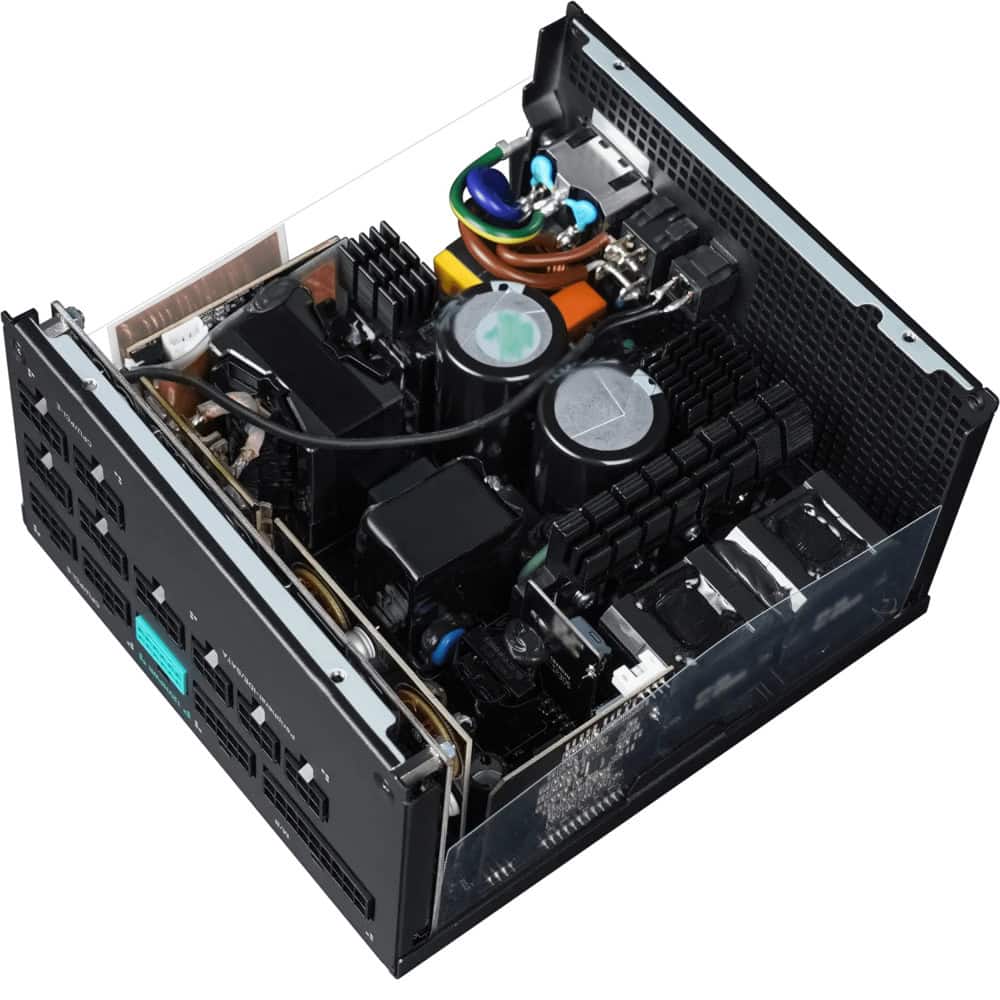

Solid and reliable power is provided through the use of all Japanese Electrolytic 105C capacitors and a dual main capacitor topology. Due to the high quality of the PSU build, the PX1300P will operate at altitudes up to 5000 meters above sea level.

Reliably stableThrough the use of a semi-digital, interleaved PFC, Full-Bridge & LLC, and a DC to DC dual main capacitor topology, the PX1300P can keep the hold-up time to ≥ 16 ms under full load.

PCI-E 5.0 power perfected

Equipped with a high-grade 105C-resistant copper-core PCI-e Gen 5.0 12VHPWR cable, the PX-P provides up to 600W for power-hungry GPUs.

Static to dynamic

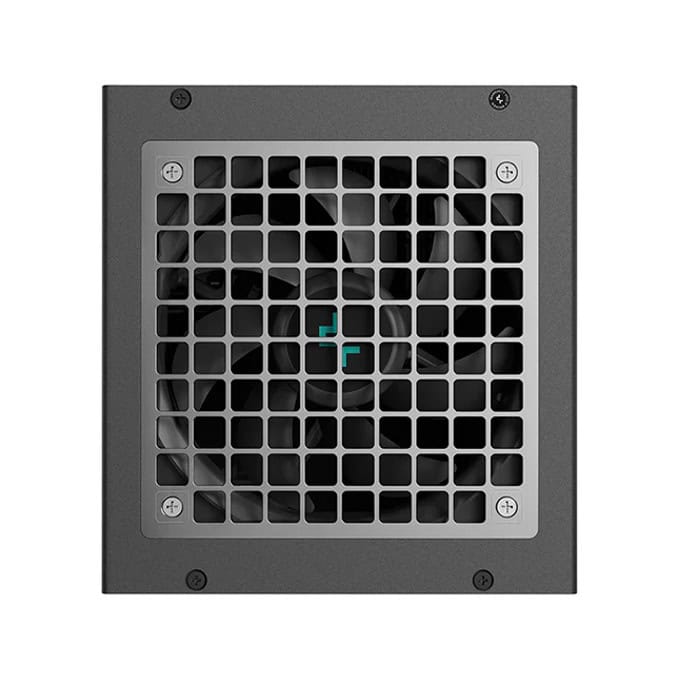

The PX1300P comes equipped with the option to switch into semi-fanless operation. In hybrid mode, the 120mm FDB fan will dynamically adjust out of its zero RPM state once the system load hits a certain threshold.

Peace of mind

The PX1300P includes a slew of well-rounded safeguards, including OPP, OVP, SCP, OTP, OCP, UVP, NLO, and SIP.

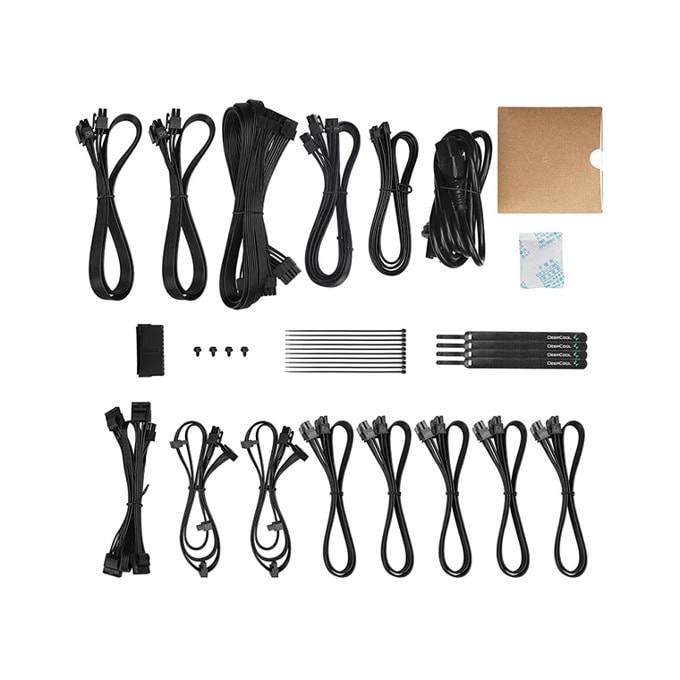

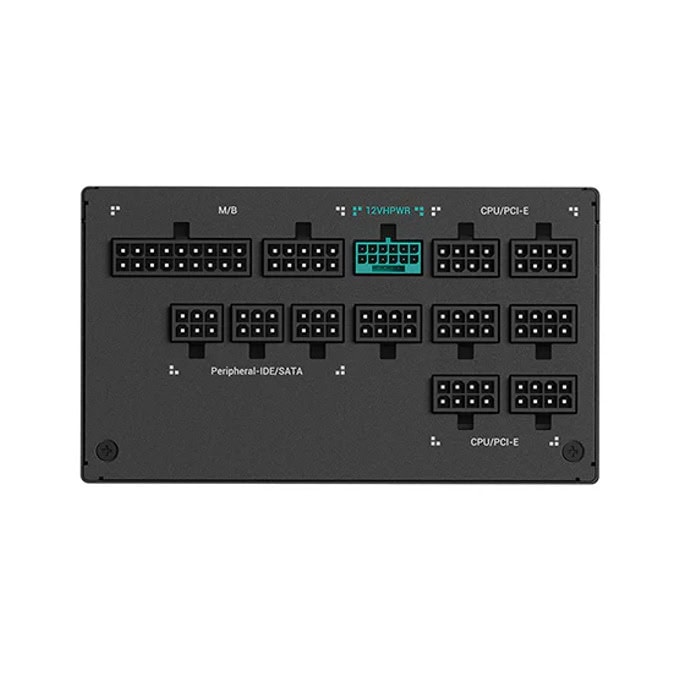

Cables

Main Power Connector 24 (20+4)Pin x1 (600mm)

X1

CPU (4+4)Pin x 1 (700mm)

X2

PCI-E (6+2)Pin x1 (650mm)

X5

SATA x4 (500+150+150+150)

X2

12VHPWR (16Pin) x1 (650mm)

X1

PCI-E8Pin x 2 to 12VHPWR(16Pin) x 1 (650mm)

X1

4Pin Peripheral x4 (500+150+150+150)

X1
