Захранване Corsair RM750x Shift (CP-9020298-EU)

Corsair RM750x Shift

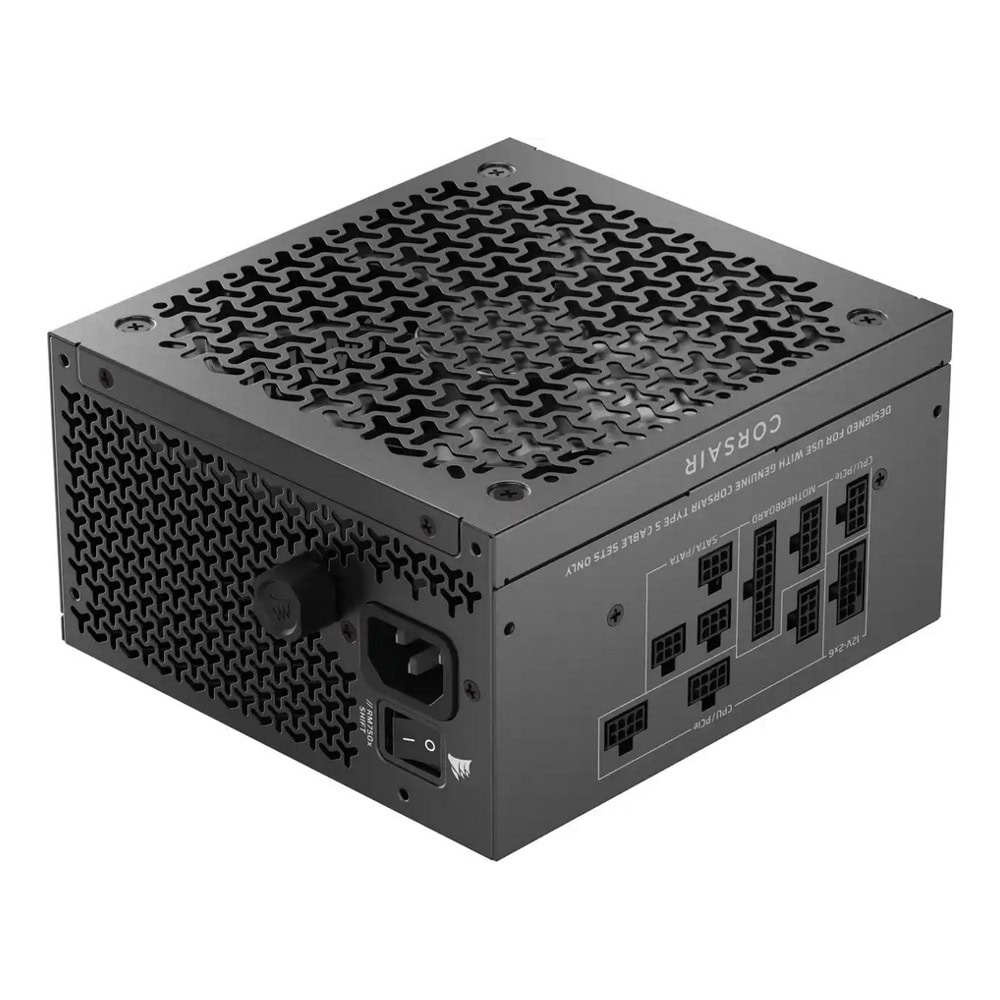

SIDE-MOUNTED CONNECTIONS

A patented PSU panel features modular, compact Type-5 connectors located on the side of the power supply, making it easier to plug in and manage your cables.

*30mm of clearance between the PSU and side panel is required.

NATIVE 12V-2x6 GPU POWER CABLEPower modern graphics cards, such as the NVIDIA GeForce RTX 50 Series, using the included 12V-2x6 cable with a dual-color connector for visual confirmation of a secure GPU-side connection for easy, worry-free power delivery.

ATX 3.1 COMPLIANT and PCIe 5.1 READYThe RMx SHIFT Series features the latest standards for power delivery and connectivity to provide efficient, reliable power. RMx SHIFT Series are built with a robust resonant LLC topology with DC-DC conversion and 105°C-rated Japanese industrial-grade capacitors.

FULLY MODULAR TYPE-5 CONNECTORSCORSAIR Type-5 PSU cables take up less space, which combines with the modular design to allow for easier cable management.

MANUAL FAN SPEED CONTROL KNOBWant to get more air through the PSU or to exhaust heat from your case? Override the Zero RPM Mode and low-noise profile with the manual fan override knob, increasing fan speed and airflow.

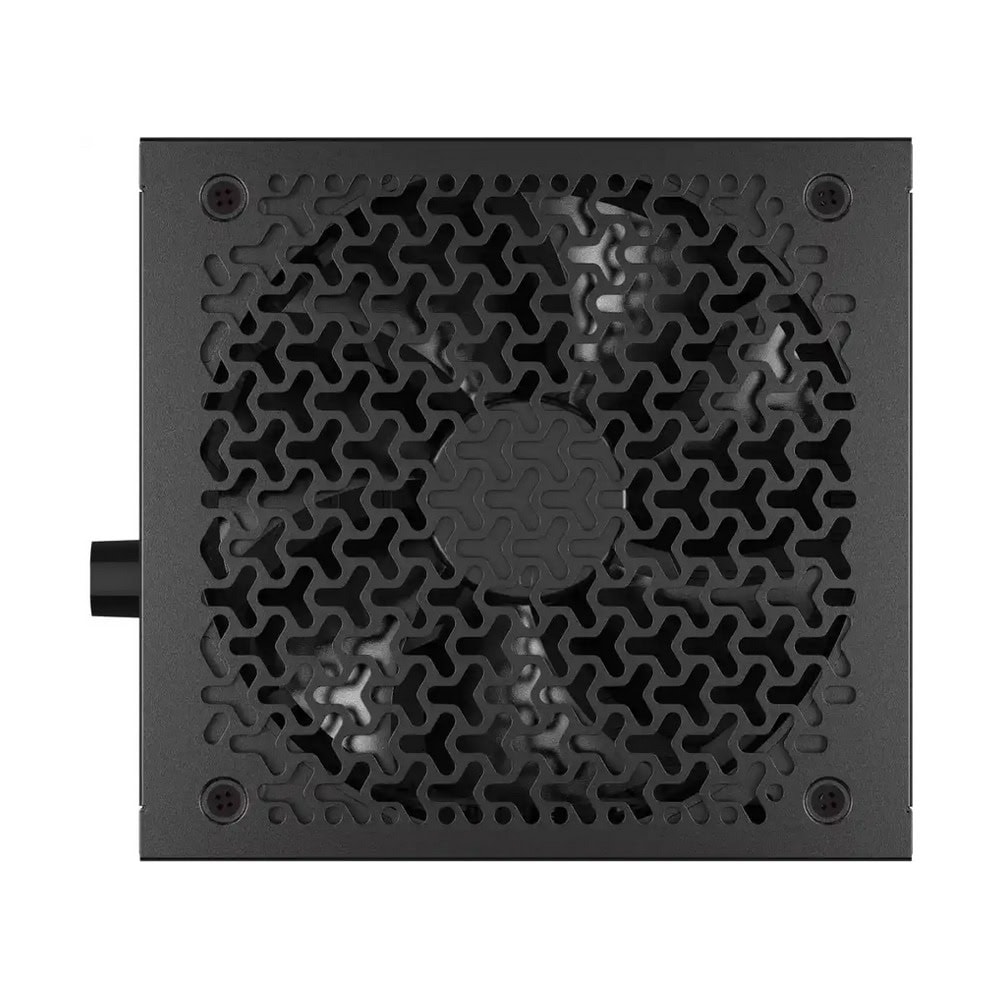

140mm FLUID DYNAMIC BEARING FANA Fluid Dynamic Bearing fan with a magnetic dome structure minimizes noise, while Zero RPM Mode eliminates fan noise entirely at low to medium loads.

105°C-RATED JAPANESE CAPACITORSBuilt with 100% industrial-grade, 105°C-rated Japanese electrolytic capacitors for unwavering power and reliability.

50°C CONTINUOUS OPERATING TEMPERATUREEnsures reliable power even under high-stress conditions.

DEBOSSED-PVC CABLE KIT INCLUDED

The ultra-flexible cable kits make cable management easy and the included low-profile cable combs keep cables tidy for a sophisticated look and an easier build.

RM750x SHIFT POWER TABLE

RM750x SHIFT CABLE LISTING

QTYCABLECONNECTORS PER CABLETOTAL CONNECTORSCONNECTOR SPACINGTOTAL LENGTHCABLE TYPE

1ATX Motherboard (24-pin) - Modular11610mm610mm (± 10mm)Debossed

2ATX12V / EPS12V (4+4-pin) - Modular12650mm650mm (± 10mm)Debossed

28-pin PCIe (6+2-pin) - Modular12650mm650mm (± 10mm)Debossed

190° 12V-2x6 to 600W 12V-2x6 (12+4-pin) - Modular11650mm650mm (± 10mm)Debossed

1600W 90° 12V-2x6 to 2x 8-pin PCIe (6+2-pin)22650mm650mm (± 10mm)Debossed

23 SATA - Modular36500mm, 100mm, 100mm700mm (± 10mm)Debossed

14 PATA - Modular44450mm, 100mm, 100mm, 100mm750mm (± 10mm)Debossed
