Захранване Corsair HX1000i Shift

Corsair HX1000i Shift

Ready to coolIntegrated iCUE Link system hubThe first CORSAIR power supply to feature an iCUE LINK System Hub to give you control of up to 24 iCUE LINK devices for next-level cooling and lighting customization. *HX1500i SHIFT model shown

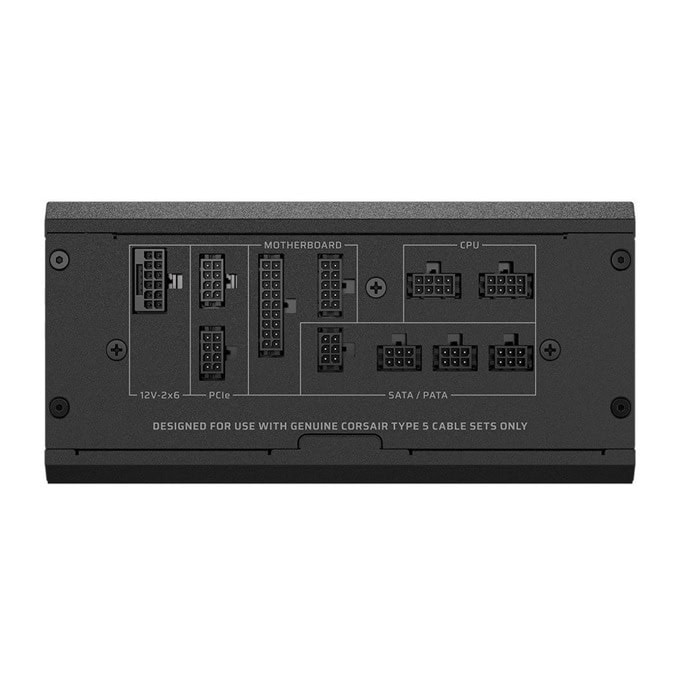

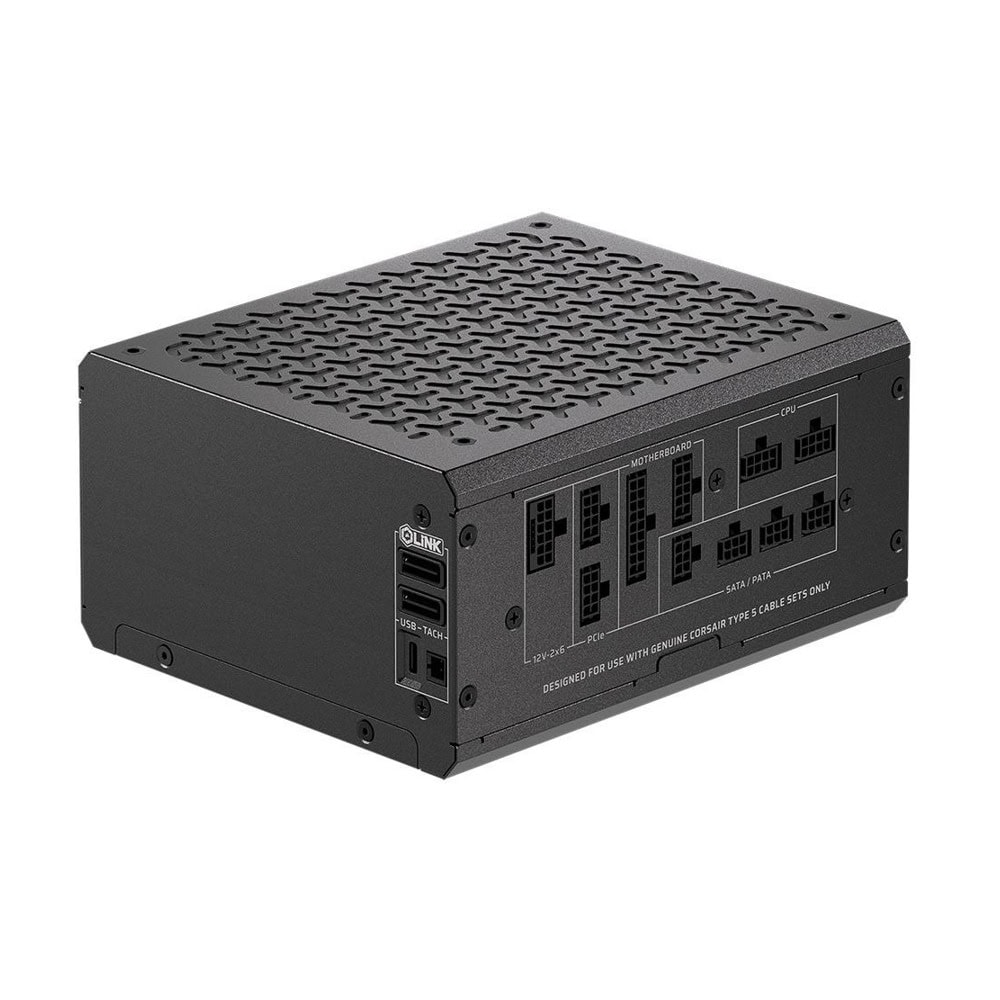

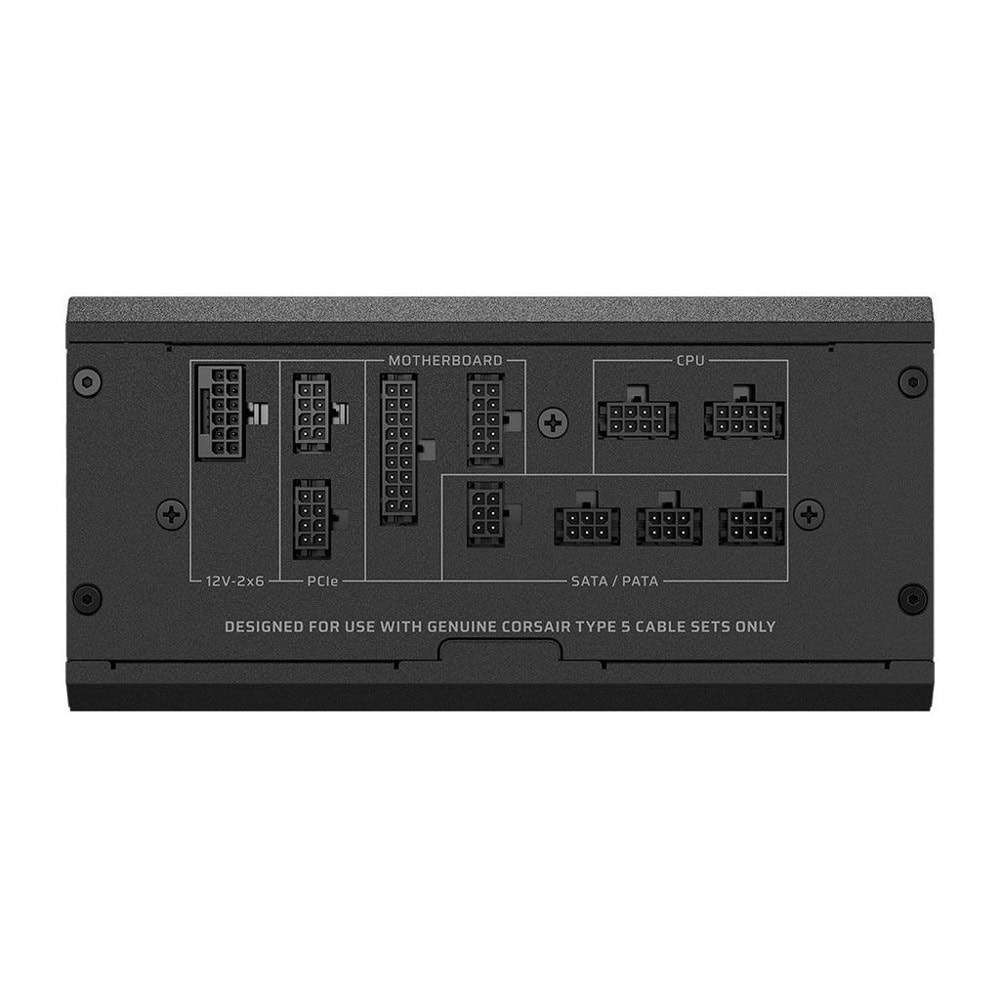

Easy accessSide-mounted connectionsThe fully-modular connections have all been shifted to the side of the PSU, allowing for easy access and simplifying hardware upgrades and cable management. Includes a debossed PVC cable kit with smaller Type-5 connectors for easy cable routing and a premium look. *30mm of clearance between the PSU and side panel is required.

Next-gen readyNative 12V-2x6 GPU Power cableCORSAIR HXi SHIFT power supplies feature all the connections needed to power today’s most demanding PC upgrades now and into the future, including the latest generation of power-hungry graphics cards and CPUs.

Future proofATX 3.1 compliant and PCIe 5.1 readyHXi SHIFT series power supplies feature a fully digital design for tighter electrical power regulation, quick regulation to variable power loads, and the ability to monitor and adjust OCP settings within iCUE. *Illustration for reference only, models may differ.

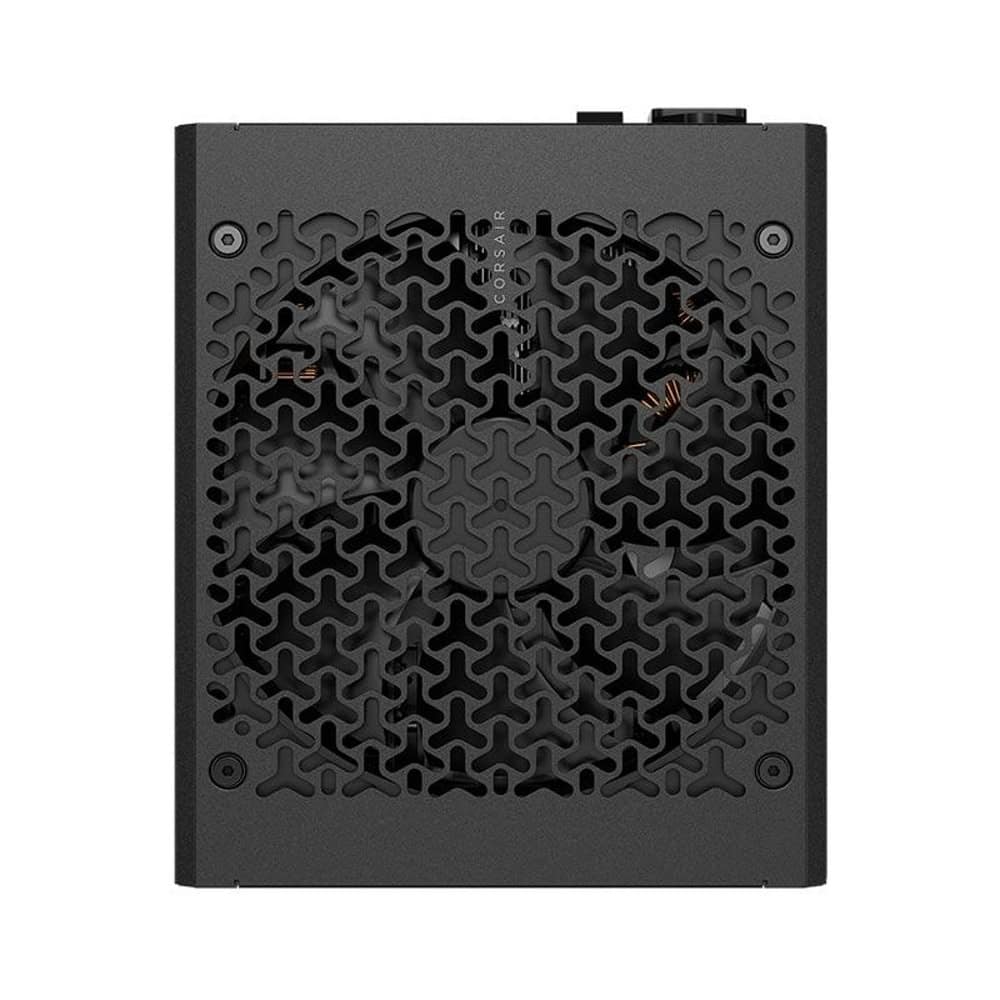

Low noiseQuiet operation with zero RPM modeA fluid dynamic bearing cooling fan keeps noise to a minimum, with Zero RPM mode to eliminate fan noise completely at low to medium loads.

105°C-rated Japanese capacitorsBuilt with 100% industrial-grade, 105°C-rated Japanese electrolytic capacitors for unwavering power and reliability.50°C Continuous operating temperatureEnsures reliable power even under high-stress conditions.

AC INPUT RATING

AC INPUT

100–240V

100V–240V

(Only for Korea and India)

INPUT CURRENT

13A–6.5A

10A

FREQUENCY

47Hz–63Hz

Max LOAD

+3.3V: 25A

+5V: 20A

+12V: 83.3A

+5VSB: 3A

Max OUTPUT

+3.3V ; +5V: 150W

+12V: 1000W

+5VSB: 15W

TOTAL POWER

1000W

QTYCABLECONNECTORS PER CABLETOTAL CONNECTORSCONNECTOR SPACINGTOTAL LENGTHCABLE TYPE

1ATX Motherboard (24-pin) - Modular11610mm610mm (± 10mm)Debossed

2ATX12V / EPS12V (4+4-pin) - Modular12650mm650mm (± 10mm)Debossed

28-pin PCIe (6+2-pin) - Modular12650mm650mm (± 10mm)Debossed

190° 12V-2x6 to 2x 8-pin PCIe (6+2-pin) - Modular22650mm650mm (± 10mm)Debossed

190° 12V-2x6 to 600W 12V-2x6 (12+4-pin) - Modular11650mm650mm (± 10mm)Debossed

24 SATA - Modular48445mm, 155mm, 155mm, 155mm800mm (± 10mm)Debossed

24 PATA - Modular48450mm, 100mm, 100mm, 100mm750mm (± 10mm)Debossed

1USB (Type-C to USB 10-pin Header) - Modular11525mm525mm (± 25mm)Round

1iCUE LINK to 90° iCUE LINK - Modular11200mm200mm (± 25mm)Round

1iCUE LINK to iCUE LINK - Modular11600mm600mm (± 25mm)Round
