Захранване Chieftec Vega M
The CHIEFTEC Vega M Series power supply is built to Intel’s ATX 12V 3.1 standard and supports PCIe GEN5 with 80PLUS Gold certified efficiency. It prioritizes a competitive price-to-performance ratio of up to 1000W while maintaining the trusted Chieftec quality.
The Vega M Series features LLC Half-Bridge converter with DC-to-DC technology to provide enhanced power efficiency and stability. The fully modular design with extra long cables makes it suitable for mainstream gamers to build their system, even in larger PC cases.

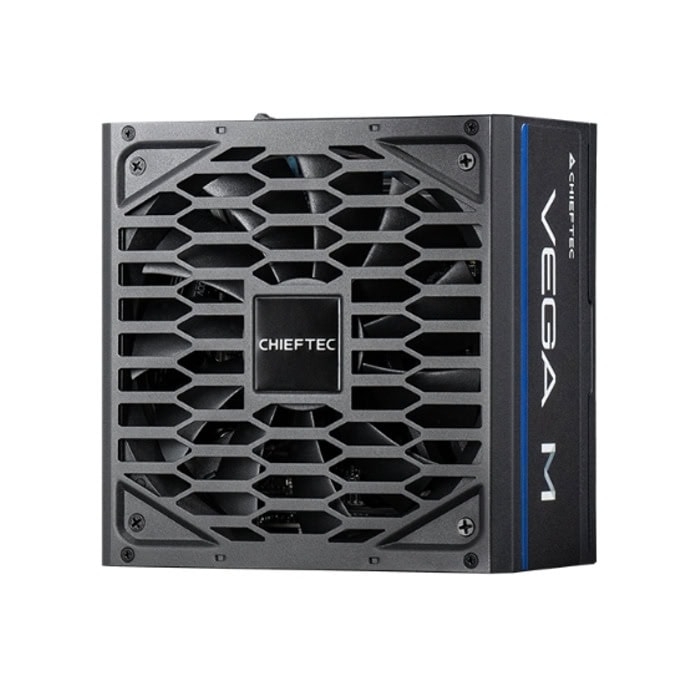

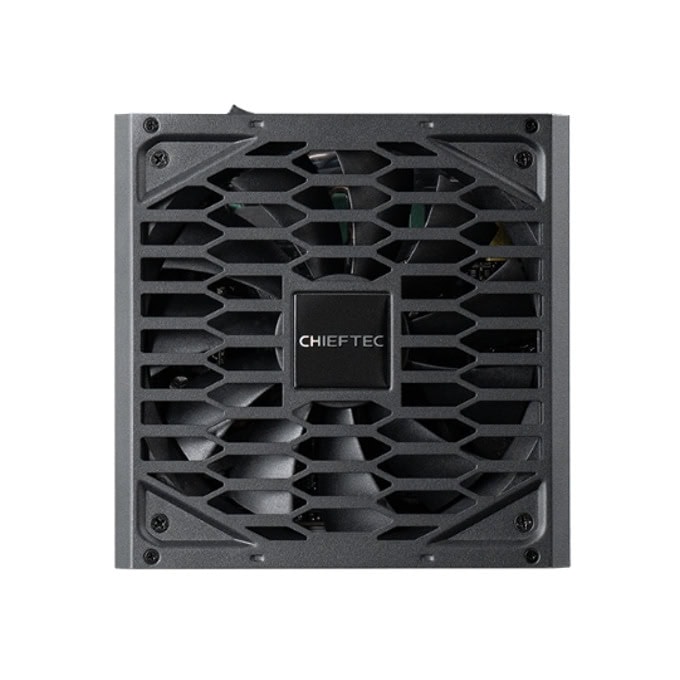

Additionally, its 135mm fluid dynamic bearing (FDB) silent fan optimizes the balance between cooling performance and noise levels. The Vega M Series is your trusted and reliable choice for all computing needs incorporating all necessary modern protection and safety features.
Характеристики
| AC Input | Да |
| 100 - 240V~ / 12A | Да |
| Честота | Да |
| 50 - 60Hz | Да |
| 5V | Да |
| 20A | Да |
| 3,3V | Да |
| 20A | Да |
| 5V & +3,3V combined | Да |
| 100W | Да |
| 12V1 | Да |
| 83.33A | Да |
| 12V2 | Да |
| Да | |
| 12V1, +12V2 combined | Да |
| 1000W | Да |
| P.F | Да |
| 0.9 | Да |
| 12V | Да |
| 0.3A / 3.6W | Да |
| 5VSB | Да |
| 3.0A / 15W | Да |
| Maximum Power | Да |
| 1000W | Да |

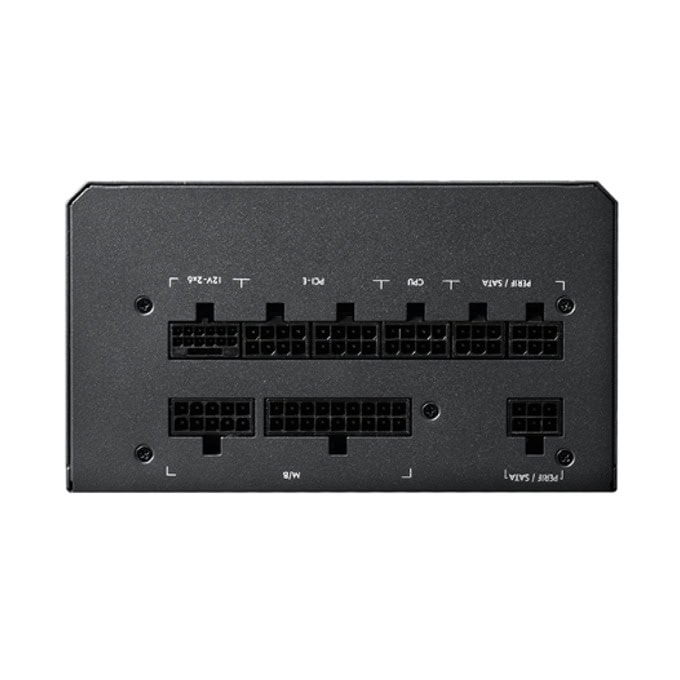

| Конектори | 20+4 PIN ATX 1 8 PIN EPS (8/4+4) 1/1 8 PIN PCIe (6+2) 4 16 PIN 12V - 2 x 6 1 SATA 6 MOLEX 3 |
| Cable length (mm) | 20+4 PIN ATX 600 8 PIN EPS (4+4) 650/150 8 PIN PCIe (6+2) 2 x 600/150 16 PIN 12V - 2 x 6 600 SATA 2 x 400/150/150 MOLEX 400/150/150 |
| Характеристики | ATX12V Version ATX 12V 3.1 Efficiency 80 Plus Gold Dimension (DxWxH) 150 mm x 150 mm x 85 mm PFC Active PFC (0.9) Fan 135mm FDB fan Security AFC (Automatic Fan Speed Control) OPP (Overload Protection) OTP (Over Temperature Protection) OVP (Overvoltage Protection) SCP (Short-Circuit Protection) SIP (Surge & Inrush Protection) UVP (Under Voltage Protection) OCP (Over-Current Protection) |
