Chieftec

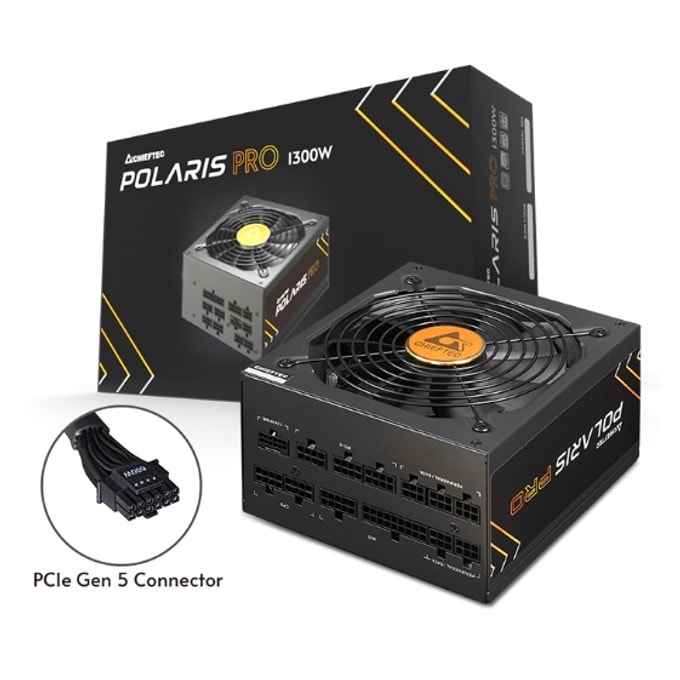

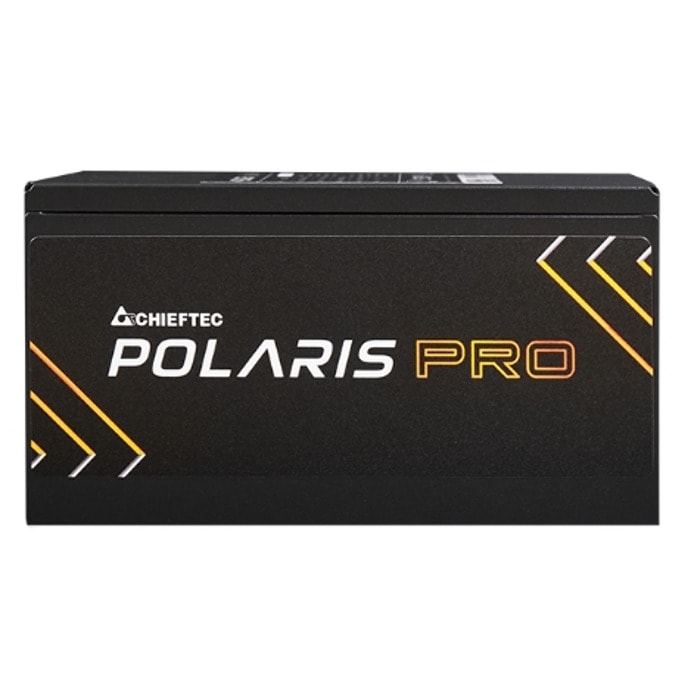

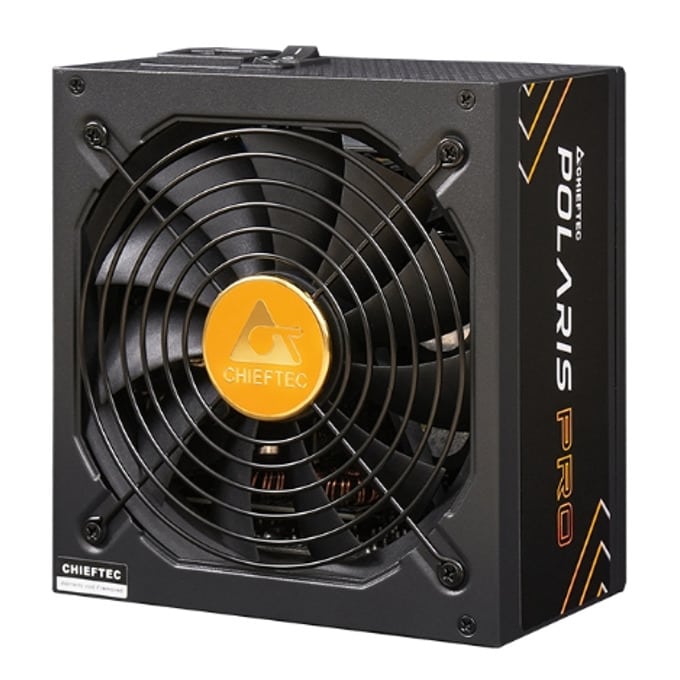

Захранване Chieftec Polaris Pro
Артикул №: 1000026582
Категория:
Захранвания Настолни компютри
235,99 €
✓ Налично във външен склад
Технически характеристики
| Модел | POLARIS PRO 1300W |
| Article no. | PPX-1300FC-A3 |
| EAN code | 0753263078162 |
| Weight (Net/Gross) | 3.13 kg / 3.49 kg |
| AC Input | 100-240V / 15-8A |
| Честота | 50 - 60Hz |
| +5V | 24A |
| +3,3V | 24A |
| +5V & +3,3V combined | 120W |
| +12V1 | 108.3A |
| +12V1, +12V2 combined | 1300W |
| P.F. | >0,9 |
| -12V | 0,3A / 3,6W |
| +5VSB | 3.0A / 15W |
| Maximum Power | 1300W |

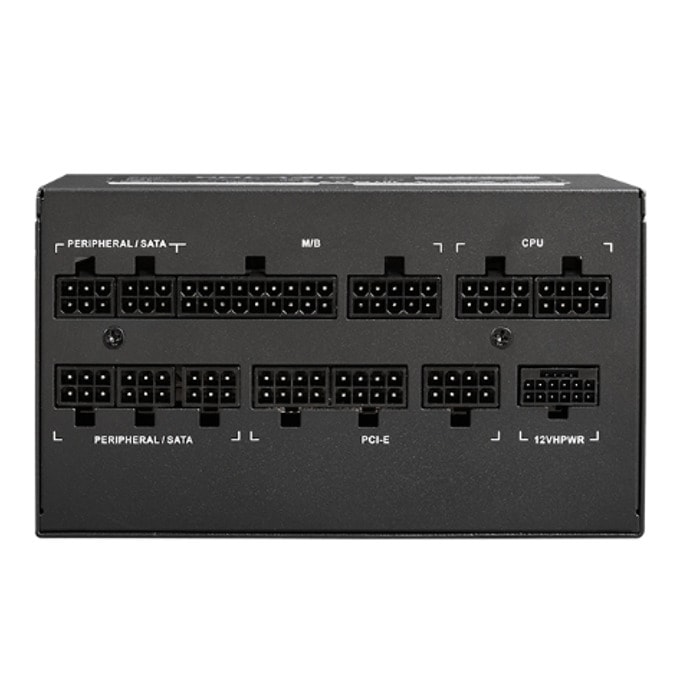

| 16 PIN PCIe Gen5 | 1 |
| 20+4 PIN ATX | 1 |
| 8 PIN EPS (4+4) | 2 |
| 8 PIN PCIe (6+2) | 6 |
| SATA | 12 |
| MOLEX | 4 |
| FLOPPY(adaptor) | 1 |
| 16 PIN PCIe Gen5 | 600 |
| 20+4 PIN ATX | 600 |
| 8 PIN EPS (4+4) | 2 x 700 |
| 8 PIN PCIe (6+2) | 3 x 500/150 |
| SATA | 3 x 550/100/100/100 |
| MOLEX | 500/150/150/150 |
| FLOPPY | 150 |
| ATX12V Version | ATX 12V 3.0 |
| Efficiency | 80+ PLATINUM |
| Dimension (DxWxH) | 160 mm x 150 mm x 86 mm |
| PFC | Active PFC |

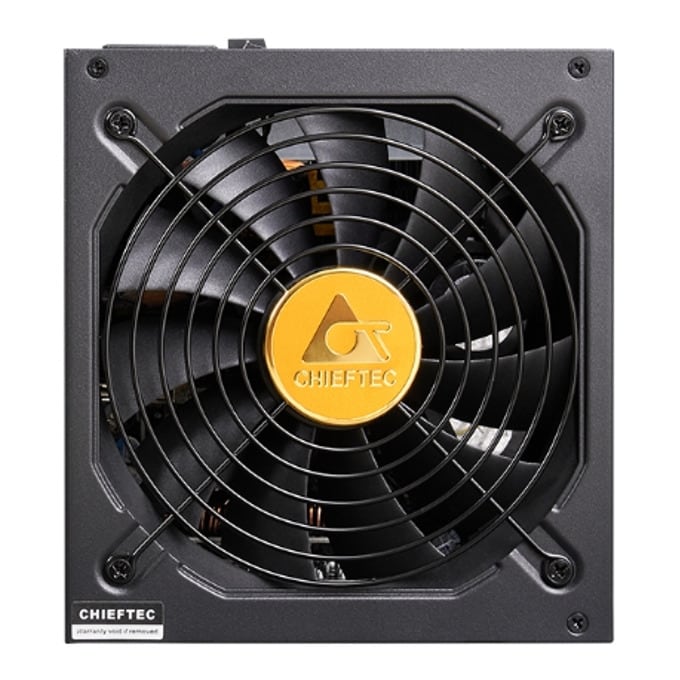

| Fan | 135mm FDB fan |
| Security | AFC (Automatic Fan speed Control) · OCP (Over Current Protection) · OPP (Over Power Protection) · OTP (Over Temperature Protection) · OVP (Over Voltage Protection) · SCP (Short Circuit Protection) · SIP (Surge & Inrush Protection) · UVP (Under Voltage Protection) |
