Захранване be quiet! Dark Power 14
be quiet! Dark Power 14

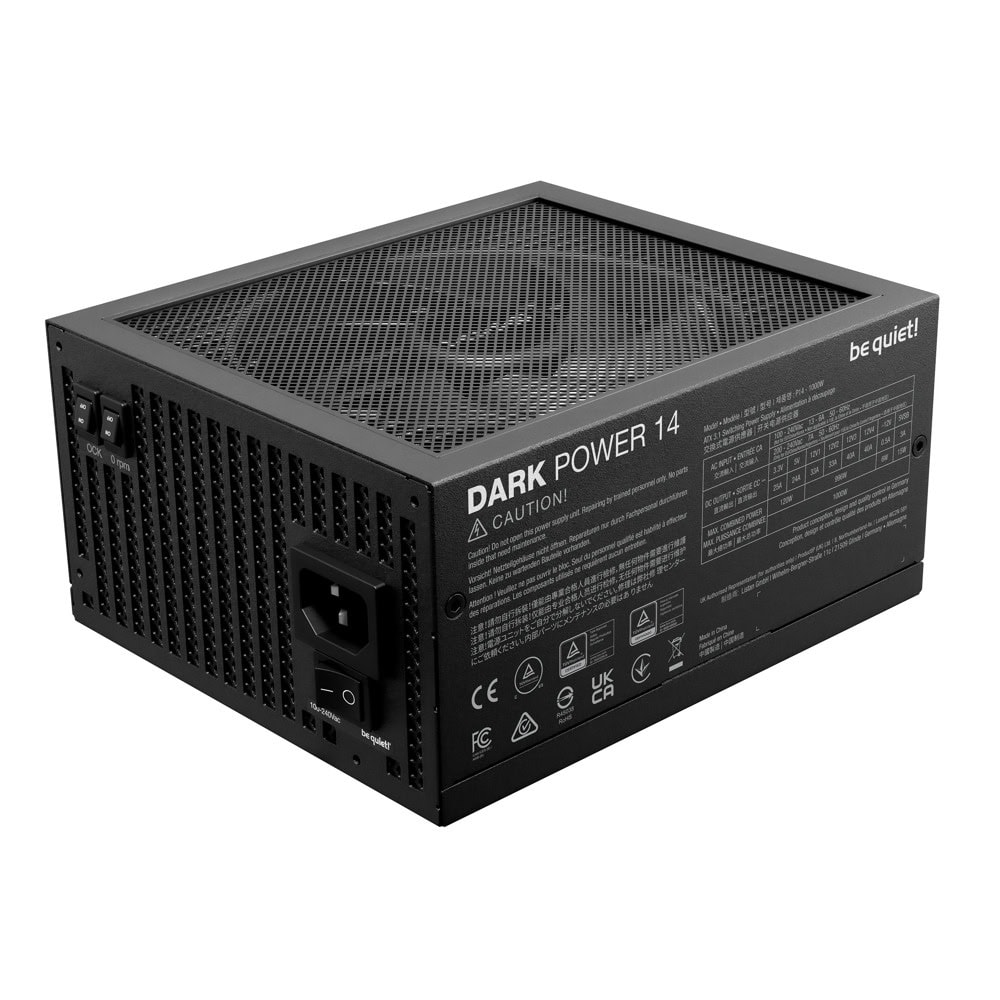

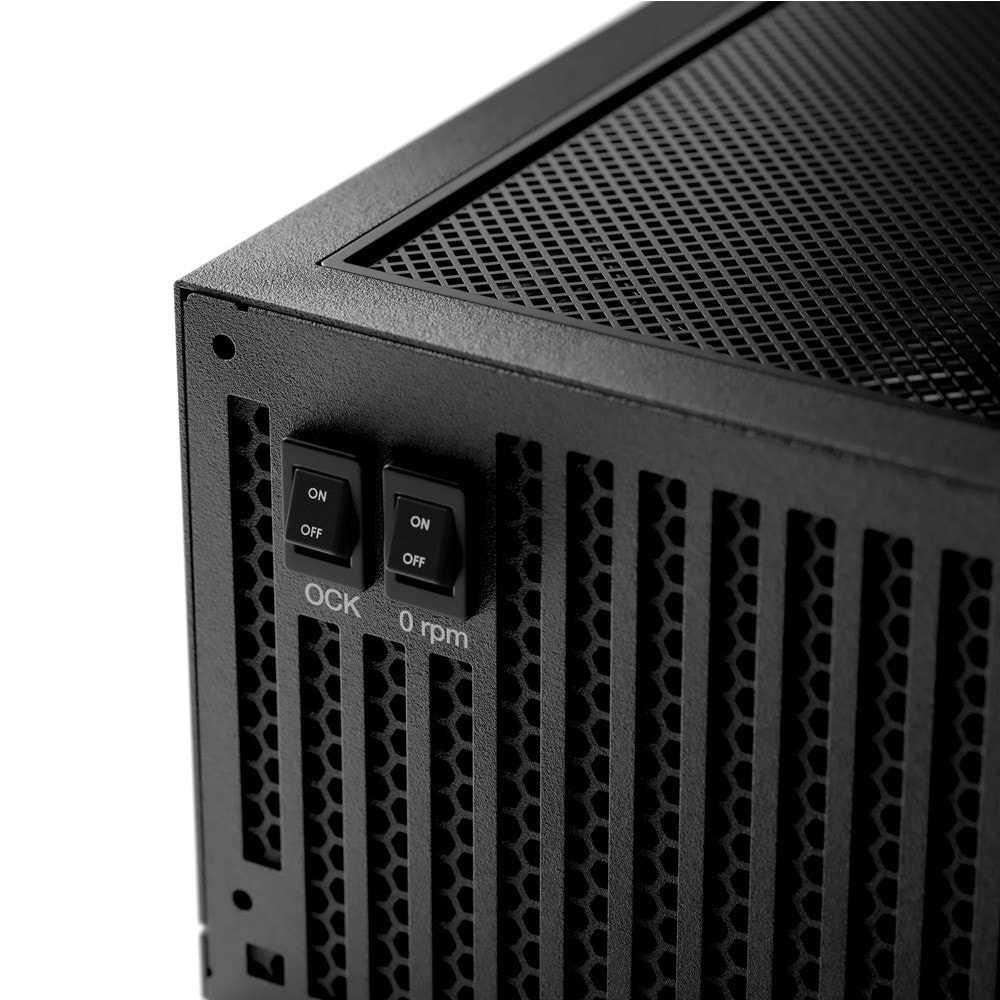

 | PUSH THE BUTTON! Switch effortlessly between active and semi-passive cooling A button on the rear of the power supply allows switching between a balanced active cooling mode, where the Silent Wings fan spins all the time, or a semi-passive mode, where the fan does not spin under low load and only starts when additional cooling is required for more demanding operations. A post-ventilation setting keeps the fan spinning after cooling down for a short period of 2–5 minutes to prevent frequent and noisy starts and stops. |

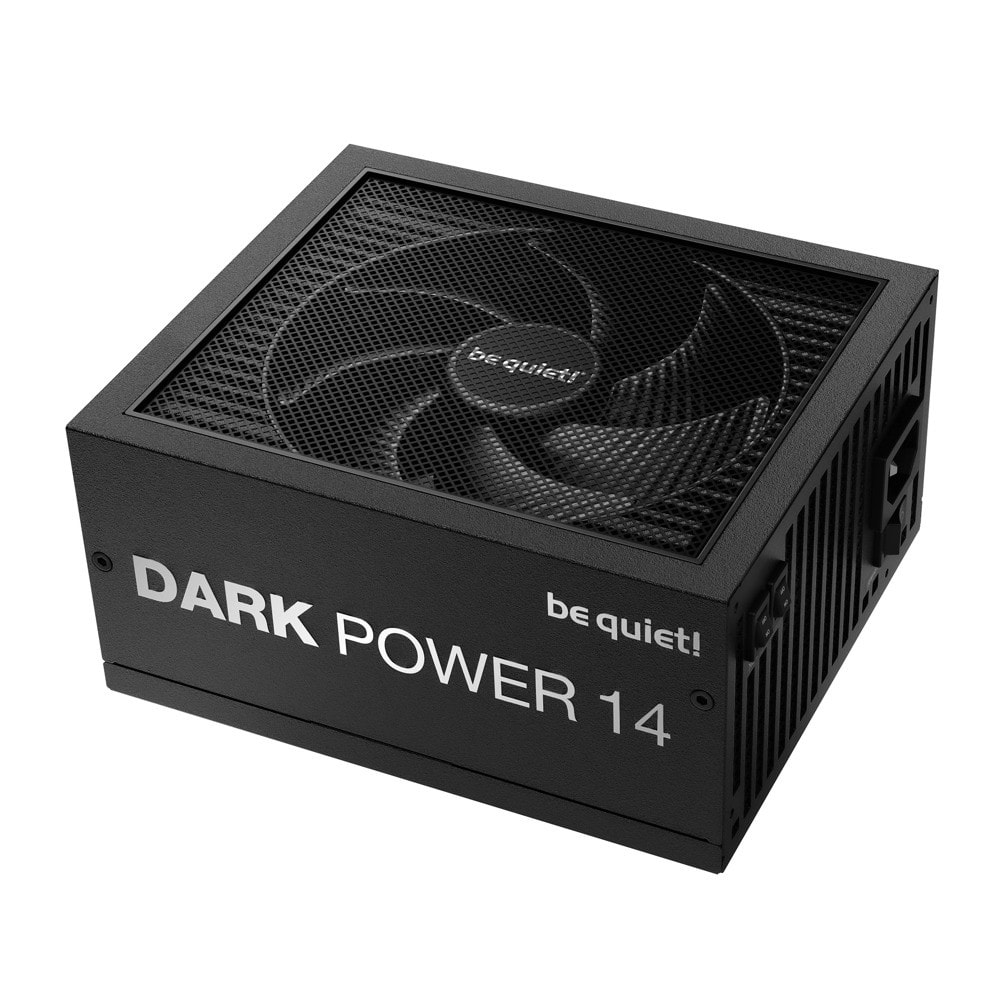

HEAT SINK AND INTEGRATED SILENT WINGS Simply fan-tastic A large heat sink connects to the parts of the power supply that need the most cooling and dissipates a large portion of the heat. Even though a Titanium efficiency power supply does not generate as much heat, active cooling is required to prevent overheating issues under high load. Nothing less than the very best fan of be quiet! cools Dark Power 14 1000W. Being integrated directly into the heat sink, this high-end fan is immune to vibrations and sits unshakably. A 6-pole fan motor and fluid-dynamic bearing ultimately make for exceptionally long lifetime and minimal power consumption. |  |
 | READY FOR OVERCLOCKING Maximum strength Dark Power 14 1000W is particularly suitable for overclocking. With the simple push of a button, it is possible to manually switch between multi-rail and single-rail mode. This gives full overclocking control between the default four 12V-rail mode and the alternative massive single-rail operation. |

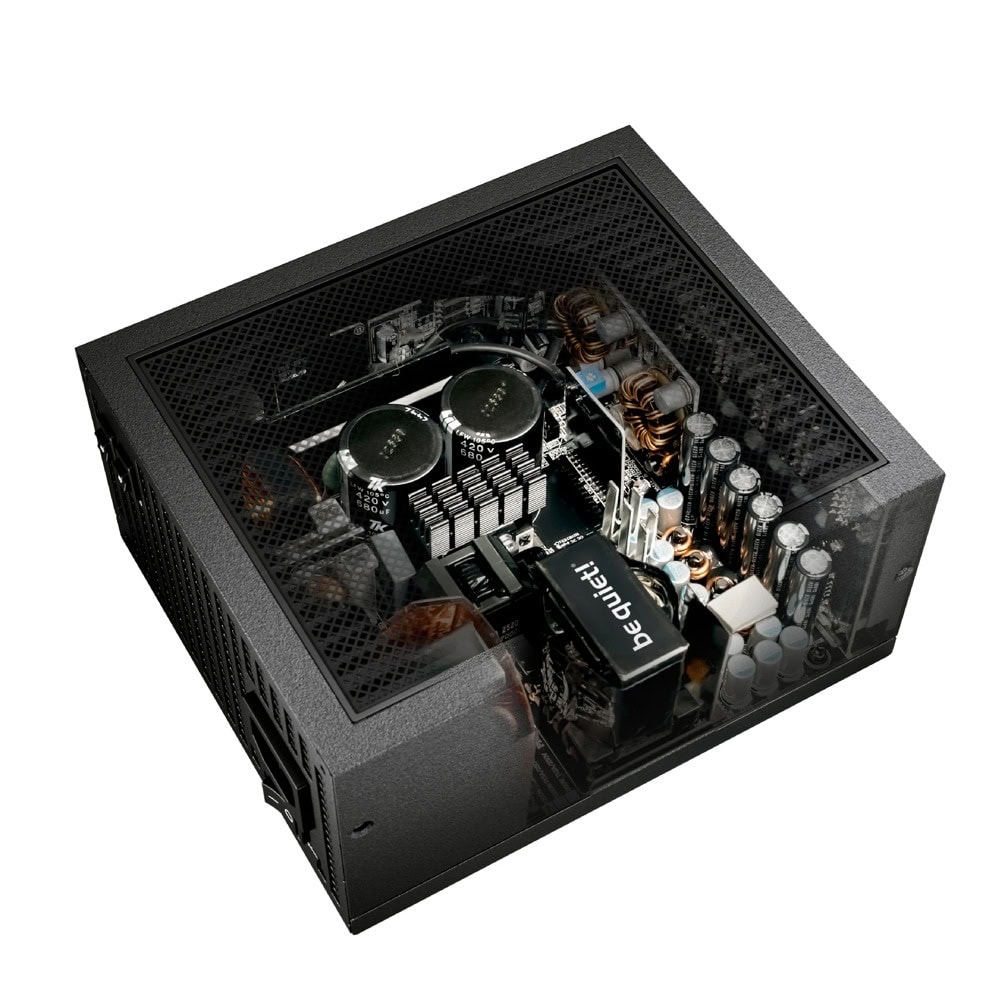

PEAK TECHNOLOGY Higher efficiency and lower ripple noise Dark Power 14 1000W is state-of-the-art technology. With an Active Rectifier and full bridge LLC Technology it offers some of the most advanced technologies available, resulting in higher efficiency, better regulation and lower ripple noise for an incomparably stable operation. |  |
 | 105°C CAPACITORS FROM JAPAN Just the best Each component in Dark Power 14 1000W is carefully selected. That is why we have exclusively used high-quality Japanese capacitors for this PSU. They are rated to 105°C, ensure stability, reliability, and a long operating life. |

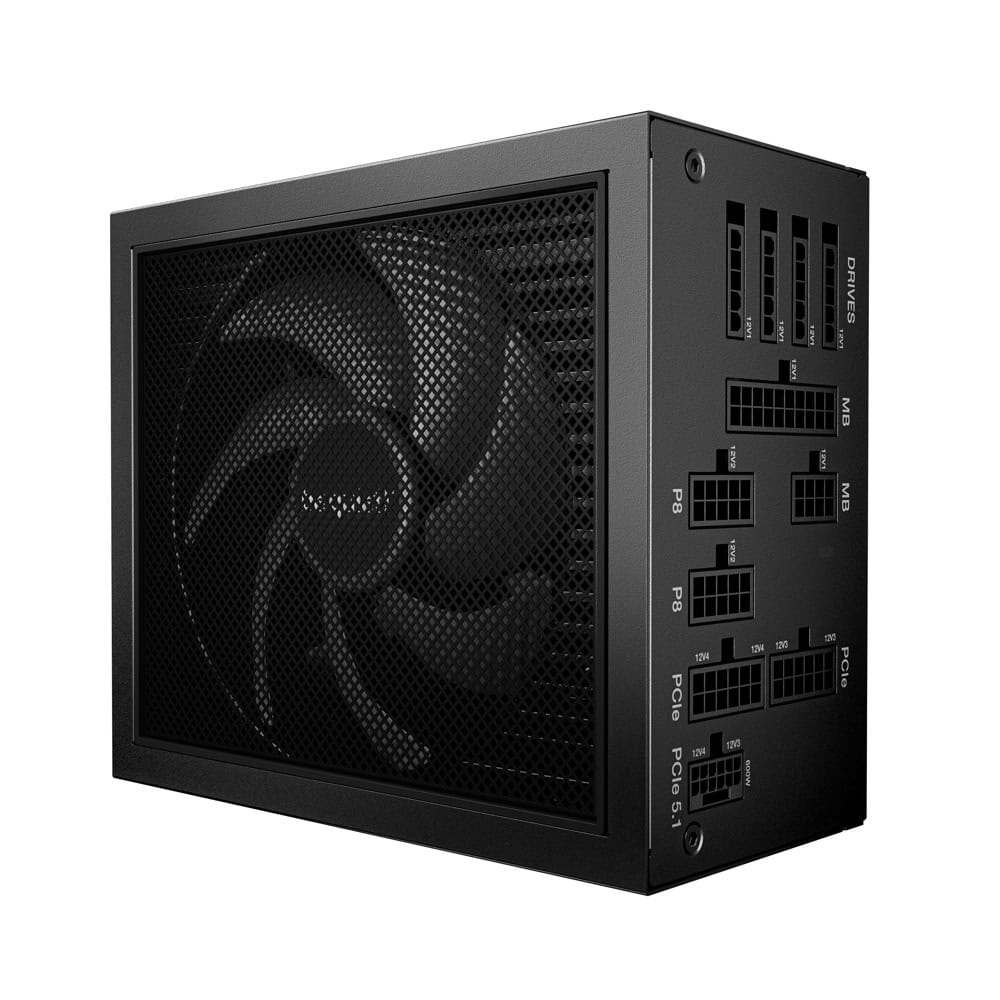

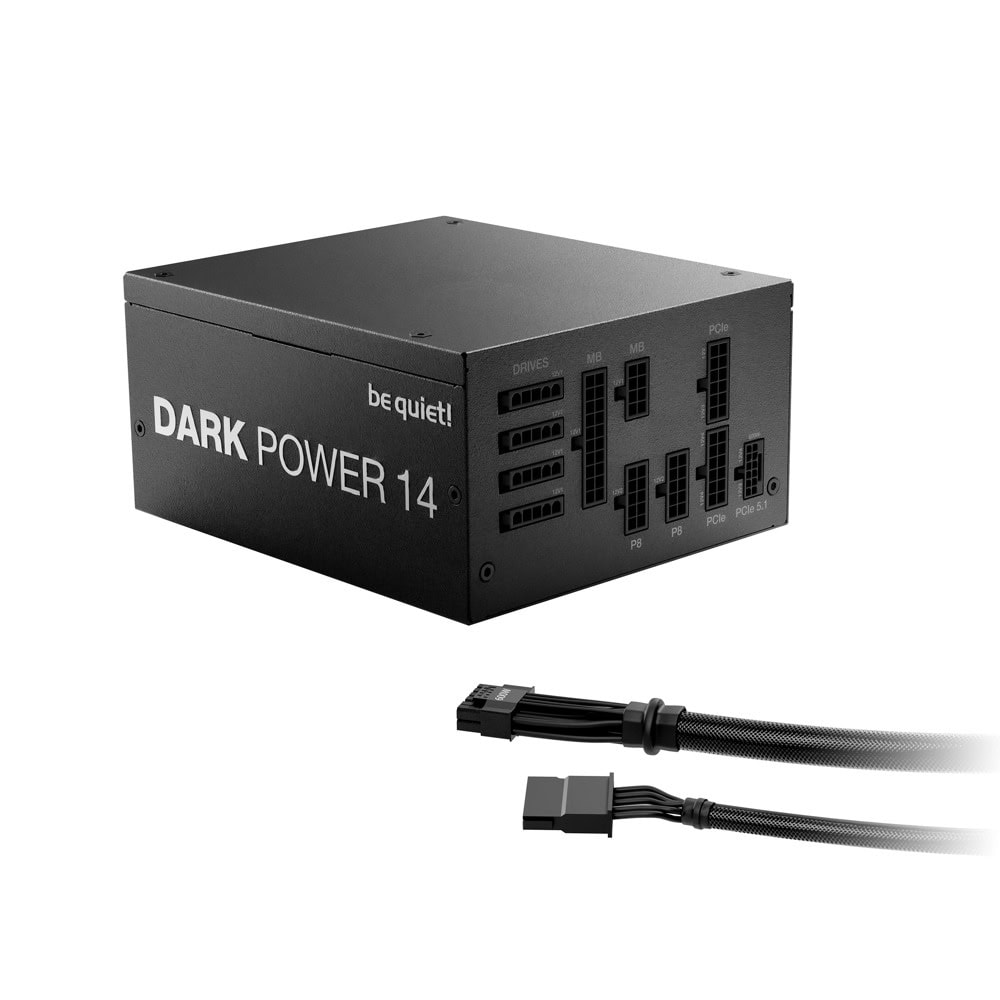

PERFECTLY MODULAR As all things should be Modular, sleeved cables measuring up to 120cm in length simplify component installation and reduce annoying clutter. This results in increased airflow and improved cooling in even the largest PC cases. |  |
Technical data
General data
| Model | DARK POWER 14 | 1000 W |
| Continuous power (W) | 1000 |
| Peak power (W) | 1100 |
| Form factor | ATX 3.1 |
| Form factor EPS 12V | Version 2.92 |
| Topology | Full bridge + LLC + SR + DC/DC |
| Digitally controlled | Yes |
| Voltage (Vac) | 100 - 240 |
| Frequency (Hz) | 50 - 60 |
| Input current (A) | 7 |
| Power factor at 100% load | >0.98 |
| Modern standby | Yes |
| Power consumption in standby (W) | <0.15 |
| Average life time (h / 25°C) | >100,000 |
| Operating temperature up to (°C) | 40 |
Efficiency
| 80 PLUS certification | Titanium |
| Cybenetics ETA | - |
| Efficiency (%) at 230V, 2% load | 73.6 |
| Efficiency (%) at 230V, 10% load | 91.7 |
| Efficiency (%) at 230V, 20% load | 94.6 |
| Efficiency (%) at 230V, 50% load | 95.5 |
| Efficiency (%) at 230V, 100% load | 93.8 |
Fan and cooling technology
| Cybenetics LAMBDA | A+ |
| Fan | Silent Wings |
| Fan size (mm) | 135 |
| Bearing technology | FDB |
| Motor technology | 6-pole fan motor |
| Max. fan speed (rpm) | 2100 |
| dB(A) at 10% load | 8 |
| dB(A) at 20% load | 8 |
| dB(A) at 50% load | 8 |
| dB(A) at 100% load | 18.2 |
Output
| Multi-rail operation (12V rails) | 4 |
| 12V single rail operation | - |
| Overclocking key | Yes |
| +3.3V (A) | 25 |
| +5V (A) | 24 |
| +12V1 (A) | 33 |
| +12V2 (A) | 33 |
| +12V3 (A) | 40 |
| +12V4 (A) | 40 |
| +12V5 (A) | N/A |
| +12V6 (A) | N/A |
| -12V (A) | 0.5 |
| +5Vsb (A) | 3 |
| Max. combined power 12V (W) | 996 |
| Max. combined power 12V-2x6 (W) | 600 |
| Max. combined power 3.3V + 5V (W) | 120 |
| Hold-up time at 100% load (ms) | - |
| Hold-up time at 80% load (ms) | 20.1 |
| Power good signal (ms) | 100 - 150 |
Cables and connectors
| Modular cables | Yes |
| Sleeved cables | Yes |
| Flat cables | Yes |
| Maximum cable length (cm) | 105 |
| Cable length to motherboard (cm) | 60 |
| No. of cables | 10 |
| ATX-Motherboard (20+4-pin) | 1 |
| P4+4 (CPU) | 1 |
| P8 (CPU) | 1 |
| P4 (CPU) | - |
| 12V-2x6 cables | 1 |
| PCI-e 6+2-pin (GPU) | 4 |
| PCI-e 6-pin (GPU) | - |
| SATA | 13 |
| PATA | 2 |
| FDD (Floppy) | - |
Protection
| OTP (over temperature protection) | Yes |
| OCP (over current protection) | Yes |
| OPP (over power protection) | Yes |
| SCP (short circuit protection) | Yes |
| OVP (over Voltage protection) | Yes |
| UVP (under Voltage protection) | Yes |
| SIP (Surge & Inrush protection) | Yes |
Safety certification
| BSMI | - |
| CB | Yes |
| CCC | - |
| CE | Yes |
| cRUus | - |
| cTUVus | Yes |
| CU | Yes |
| FCC | Yes |
| RCM | - |
| TÜV | Yes |
| UKCA | Yes |
| IRAM | - |
Environmental directives
| Energy Star | 9.0 |
| ErP | Yes |
| WEEE | Yes |
| RoHS | Yes |
| Triman | Yes |
Casing
| Dimensions without cable (L x W x H), (mm) | 175 x 150 x 86 |
| Weight (kg) | 2.2 |
| Color | Black |
