Захранване Asus ROG Strix White Edition (90YE00W4-B0NA00)
Asus

Захранване Asus ROG Strix White Edition (90YE00W4-B0NA00)

Артикул №: 1000139951
Категория: Компютърни компоненти
273,99 €
✓ Ограничена наличност

GaN MOSFETThe ROG Strix Platinum White Edition PSU boasts innovative GaN MOSFET that delivers superior power efficiency by up to 30%, resulting in lower energy waste. Plus, the smaller size of GaN MOSFET allows for a more organized internal layout within the PSU. This optimized design provides space for larger heatsinks and enhanced airflow, improving heat dissipation within the PSU.

ROG HeatsinksCool under pressureROG heatsinks facilitate lower temperatures, longer component lifespan, and extended 0dB operation.

Dual Ball Fan Bearings2X longer lifespanDual ball bearings boast a remarkable lifespan of 80,000 hours, lasting twice as long as sleeve bearings and exceeding even fluid dynamic bearings. Ensuring long-lasting, reliable cooling with minimal noise for ROG STRIX Platinum series.

0dB TechnologyQuiet intelligenceTo reduce noise output, the PWM-controlled fan shuts off entirely when the PSU load is 40% or below. In 0dB mode (button pressed), the fan continues to spin when transitioning from high to low loads, ensuring safe temperatures are reached before stopping.

Характеристики

ATX12V Да
PFC Type Да
Active PFC Да
ATX Standard Да
ATX 3.1
Размери Да
160 x 150 x 86 mm
Efficiency Да
80Plus Platinum Да
MTBF Да
Hrs @ 25°C 120,000
Protection Features Да
OPP/OVP/UVP/SCP/OCP/OTP Да
Hazardous Materials Да
ROHS Да
AC Input Range Да
100-240Vac Да
DC Output Voltage Да
3.3V +5V +12V -12V +5Vsb Да
Maximum Load Да
25A 25A 83.3A 0.3A 3A Да
Combined Load Да
130W 130W 1000W 3.6W 15W Да
Total Output Да
1000W Да
Тегло Да
Kg (single PSU) 1.81
Cybenetics Noise Level Certification Да
A+ Да
0dB Technology Да
0dB Fan Button Да

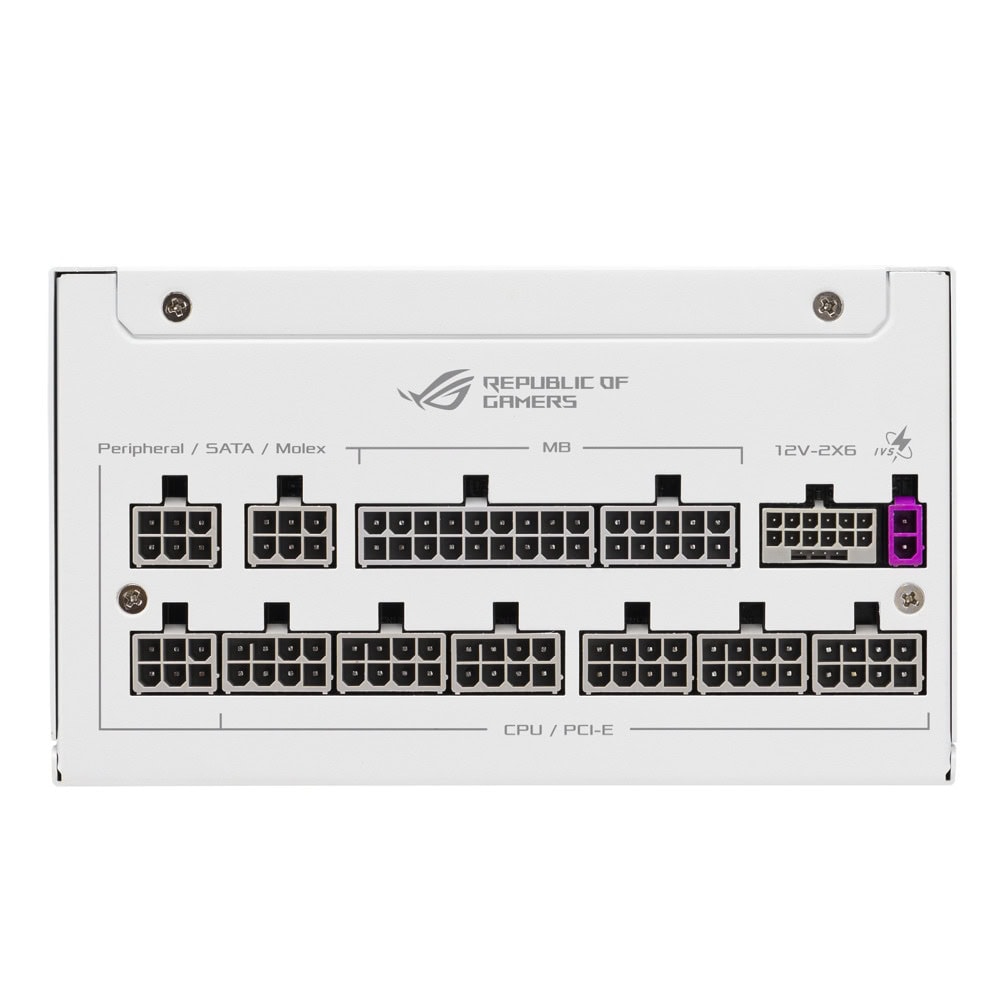

Cable Connectors Да
MB 24/20-pin x 1
CPU 4+4-pin x 2
PCI-E 16-pin x 1 (both PSU & component side)
PCI-E 6+2-pin x 4
SATA x 6
PERIPHERAL x 3
Съдържание на пакета Да
Power Cord x 1
Motherboard Power Cable x 1 (610mm)
CPU Cable x 2 (1000mm)
PCI-E Gen 5.1 (16-pin-to-16-pin) Cable x 1 (750mm)
PCI-E (8-pin-to-6+2pin) Cable x 4 (750mm)
SATA 1-to-3 Cable x 2 (400+120+120mm)
Peripheral 1-to-3 Cabel x 1 (400+150+150mm)
