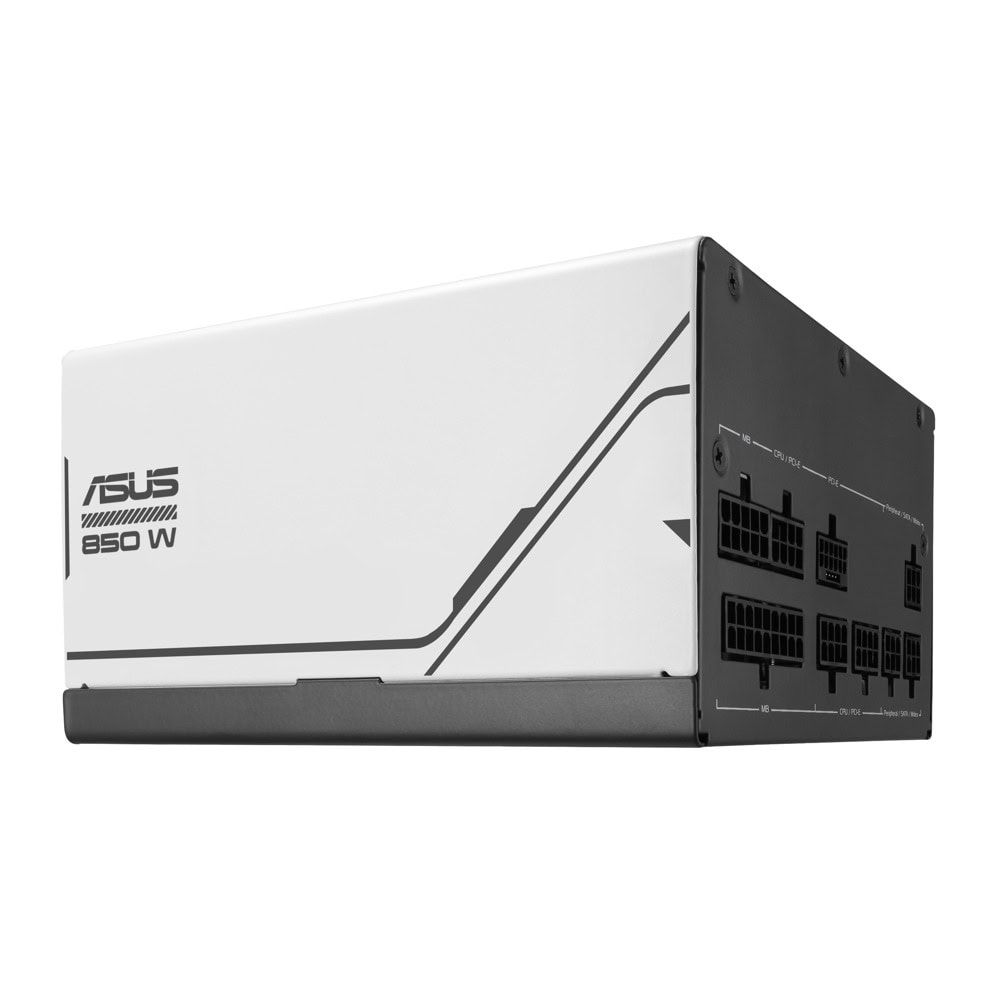

Захранване Asus Prime White
Asus Prime
Prime PerformanceWith 80+ Gold certification, dual ball fan bearings, ASUS Prime series PSU brings efficient and durable power delivery to high-performance workstations, all-round PCs, and gaming rigs.
Dual Ball Fan BearingsDual ball bearings boast a remarkable lifespan of 80,000 hours, lasting twice as long as sleeve bearings and exceeding even fluid dynamic bearings. Ensuring long-lasting, reliable cooling with minimal noise for ASUS Prime Gold series.
ATX 3.1 CompatibleThe latest power specification updates have landed. ATX 3.1 ushers in tighter voltage and current regulation guidelines for next-gen hardware - and ASUS Prime 850W Gold steps ahead of the curve by being fully compliant. A 16-pin PCIe cable that is compatible with PCIe Gen 5.1 graphics cards is bundled with the PSU, bringing large-scale capabilities.
Характеристики
| ATX12V | Да |
| PFC Type | Да |
| Active PFC | Да |
| ATX Standard | Да |
| ATX | 3.1 |
| Размери | Да |
| 150 x 150 | x 86 mm |
| Efficiency | Да |
| 80Plus Gold | Да |
| MTBF | Да |
| Hrs @ 25°C | 120,000 |
| Protection Features | Да |
| OPP/OVP/UVP/SCP/OCP/OTP | Да |
| Hazardous Materials | Да |
| ROHS | Да |
| AC Input Range | Да |
| 100-240Vac | Да |
| DC Output Voltage | Да |
| 3.3V +5V +12V -12V +5Vsb | Да |
| Maximum Load | Да |
| 20A20A70.5A 0.3A 2.5A | Да |
| Combined Load | Да |
| 110W 110W 846W 3.6W 12.5W | Да |
| Total Output | Да |
| 850W | Да |

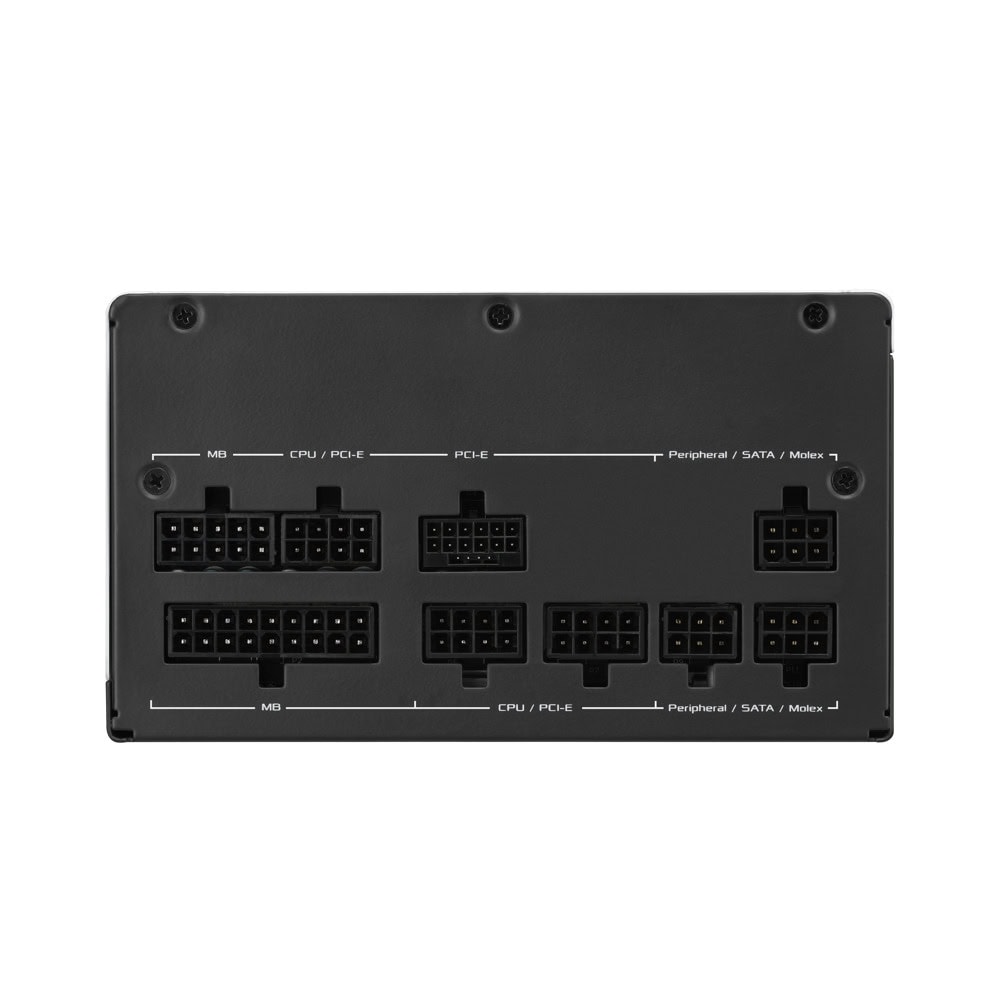

| Cable Connectors | Да |
| MB 24/20-pin | x 1 |
| CPU 4+4-pin | x 2 |
| PCI-E 16-pin | x 1 (both PSU & connector side) |
| PCI-E 8-pin | x 3 |
| SATA | x 5 |
| PERIPHERAL | x 3 |
| Съдържание на пакета | Да |
| Power Cord | x 1 |
| Motherboard Power Cable | x 1 (610mm) |
| CPU Cable | x 2 (650mm) |
| PCI-E Gen 5.1 16-pin Cable | x 1 (675mm) |
| PCI-E (16-pin to 8-pin-8-pin) Cable | x1 (675mm) |
| PCI-E 1-to-1 Cable | x 1 (675mm) |
| SATA 1-to-2 Cable | x 1 (400+120mm) |
| SATA 1-to-3 Cable | x 1 (400+120+120mm) |
| Peripheral 1-to-3 Cable | x 1 (400+150+150mm) |
| Тегло | Да |
| Kg (single PSU) | 1.502 |
| 0dB Technology | Да |
| Не | Да |
| 0dB Fan Button | Да |
| No, this product is without | 0dB technology |
