Shelly
WiFi релета Shelly 2PM Gen3
Артикул №: 1000042421
Категория:
Смарт автоматизация
22,99 €
✓ Налично във външен склад

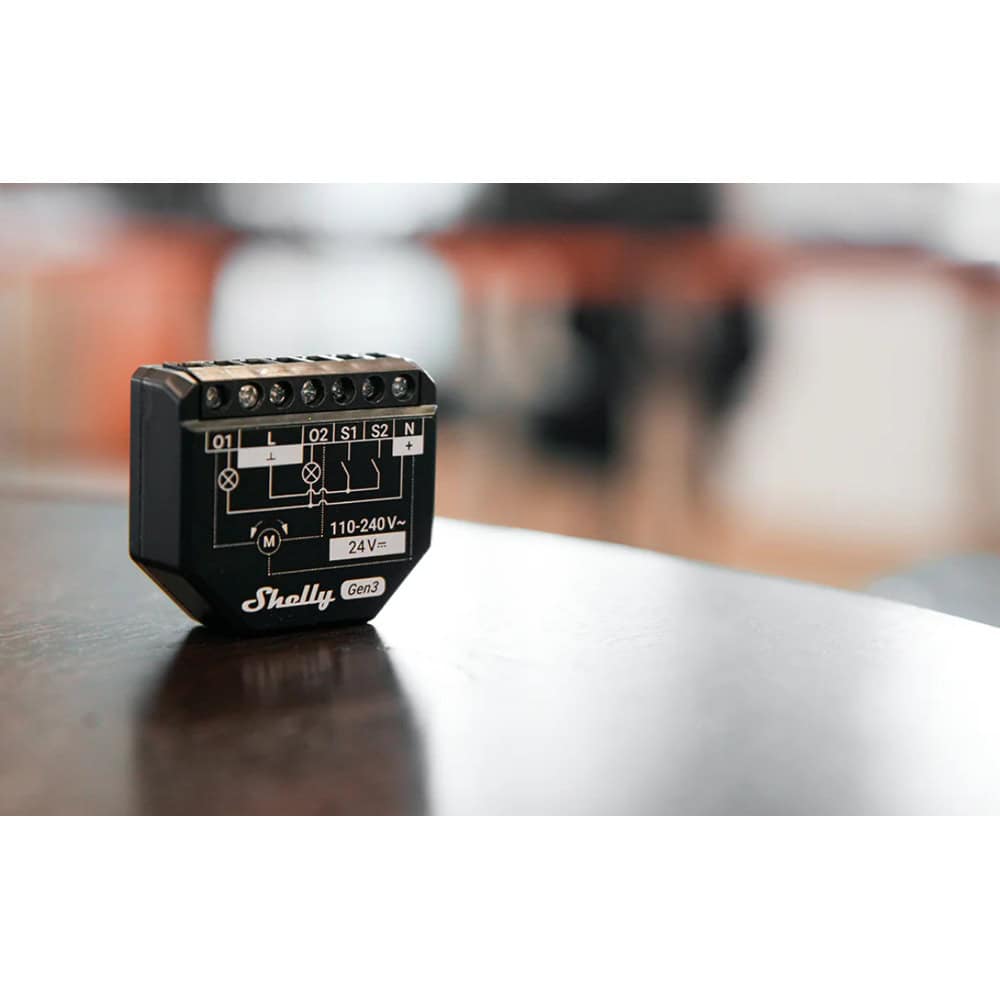

Shelly 2PM Gen3
One Device, Different possibilities
2-Channel Smart Switch
Automate your lights and track their real-time power usage.
Cover (Roller) Control
Automate and control the positioning of roller shutters, curtains, blinds, awnings, gates, pool covers, and other bi-directional AC motors.
Характеристики
| Ambient working temperature | -20°C to 40°C / -5°F to 105°F |
| Влажност | 30% to 70% RH |
| Max. altitude | 2000 m / 6562 ft |
| Screw terminals max torque | 0.4 Nm / 3.5 lbin |
| Conductor cross section | 0.5 to 4 mm² / 20 to 11 AWG (solid, stranded, and bootlace ferrules) |
| Conductor stripped length | 6 to 7 mm / 0.24 to 0.28 in |
| Монтаж | Wall box |
| Shell material | Plastic |
| Захранване | 110 - 240 V~ / 24 V ±10% |
| Консумация на енергия | Output circuits ratings Max. switching voltage:240 V~30 V Max. switching current AC:10 A (per channel), 16 A (total), 18 A (total peak) Max. switching current DC:10 A Sensors, meters Voltmeter (AC):Yes Ammeter (AC):Yes Internal-temperature sensor:Yes Radio Wi-Fi Protocol:802.11 b/g/n RF band:2412 - 2472 МHz |
| Max. RF power | Bluetooth Protocol:4.2 RF band:2402 - 2480 MHz |
| Max. RF power | Microcontroller unit CPU:ESP-Shelly-C38F Flash:8MB |
