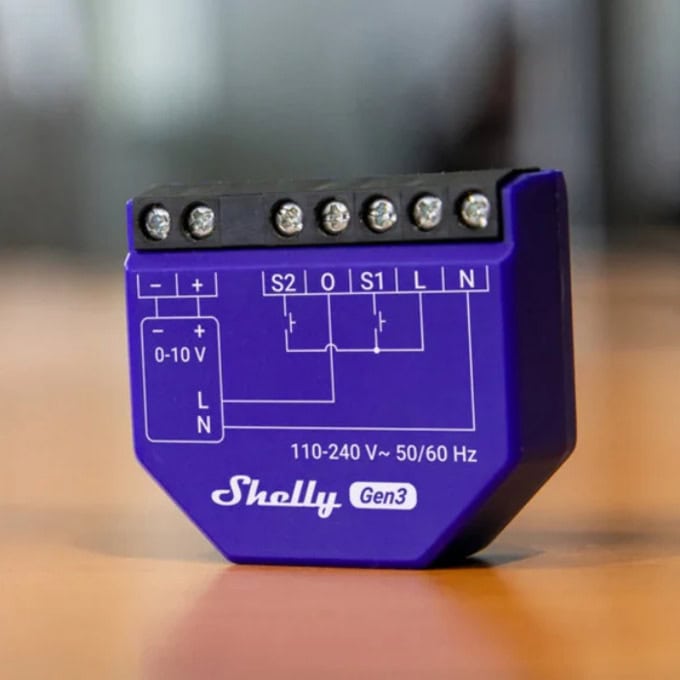

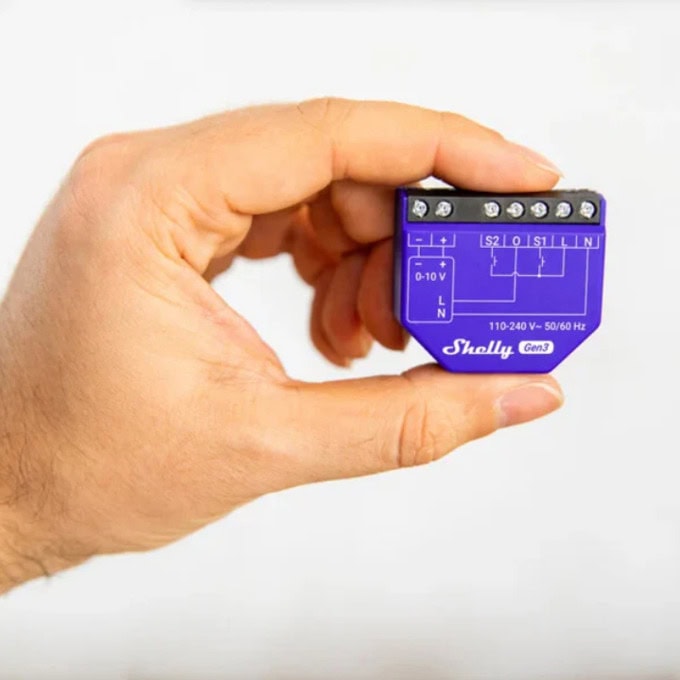

WiFi реле Shelly Dimmer 0/1-10V PM Gen3
Brightness that suits your activitiesDepending on your activities and the time of day, different types of light and luminosity are suitable. With Shelly Dimmer 0/1-10V PM Gen3 you can align the minimum and maximum brightness levels with your driver's range for exact precision when adjusting your lights. Whether you want to set the ambiance for a relaxing evening or ensure the best brightness for focused tasks, it grants you fine-tuned control to match every moment. No need to navigate through the app - just use your voice!
Track your power consumption and save moneyShelly Dimmer 0/10V PM Gen3 has an integrated precise power meter. By continuously monitoring and reporting real-time power consumption, it helps you identify which lighting setups are the most energy-efficient, enabling you to make informed decisions that optimize energy use. Over time, this can lead to substantial energy savings and a noticeable reduction in your utility costs. Whether you're automating your lights to dim when not needed or scheduling them to adjust according to natural light conditions, Shelly Dimmer 0/10V PM Gen3 is your key to a smarter, greener home.
Personalized light schedulesShelly Dimmer 0/1-10V PM Gen3 can effortlessly blend with your daily routine. Consider bedtime: Many kids prefer to fall asleep with the lights turned on. You can set schedules that, over an hour, gently dim the room before switching the lights off completely. That way, the little one will be comfortably asleep, and no energy will go to waste!
Set the mood instantlyShelly Dimmers doesn't stop at schedules- it embraces moments too. With its pre-set lighting scenes, a simple voice command can transform your room. Feel like watching a movie? Just tell Alexa, "Movie night," and your space instantly adapts, casting the perfect ambiance for your cinematic experience.
Use it with your existing switches!
Use your favorite style and brand of switches and seamlessly integrate dimming capabilities into your current setup.
Wi-Fi operated
Connect Shelly Dimmer 0/1-10V PM Gen3 to your Wi-Fi network. No HUB required!
Bluetooth
Quick inclusion via Bluetooth or use it as a Bluetooth gateway.
Power monitoring
Provides precise monitoring of power consumption and free data storage.
Flexible input control
Use it with your existing switches, no matter if they're single or dual button.
Smart scenes
Set custom scenes by combining Shelly Dimmer 0/1-10V PM Gen3 with your other Shelly devices.
Smart schedules
Set custom schedules based on your daily agenda, or follow the sunrise/sunset and control your lighting accordingly.
Характеристики
| Ambient working temperature | -20 °C to 40 °C / -5 °F to 105 °F |
| Влажност | 30 % to 70 % RH |
| Max. altitude | 2000 m / 6562 ft |
| Screw terminals max torque | 0.4 Nm / 3.5 lbin |
| Conductor cross section | 0.5 to 4 mm² / 20 to 11 AWG (solid, stranded, and bootlace ferrules) |
| Conductor stripped length | 5 to 6 mm / 0.20 to 0.24 in |
| Монтаж | Wall console/behind wall/ceiling construction |
| Shell material | Пластмаса |
| Electrical | Да |
| Захранване | 110-240 V~ 50/60 Hz |
| Консумация на енергия | Output circuits ratings Max. switching voltage:240 V~ Max. switching current:13 A Max. control current:35 mA Sensors, meters Voltmeter (AC):110 V - 240 V Voltmeter accuracy:±10 % Ammeter (AC):50 mA - 16 A Ammeter accuracy:±10 % Power and energy meters:Active and apparent powerActive and apparent energyPower factor Measurement data storage:No Internal-temperature sensor:Yes Radio Wi-Fi Protocol:802.11 b/g/n RF band:2401 - 2495 МHz |
| Max. RF power | Bluetooth Protocol:4.2 RF band:2400 - 2483.5 MHz |
| Max. RF power | Microcontroller unit CPU:Shelly ESP32 C3 Clock frequency:40 Mhz Flash:8 MB Firmware capabilities Schedules:20 Webhooks (URL actions):20 with 5 URLs per hook Scripting:Yes MQTT:Yes Advanced schedules:Yes KVS (Key-Value Store):Yes |
