Shelly

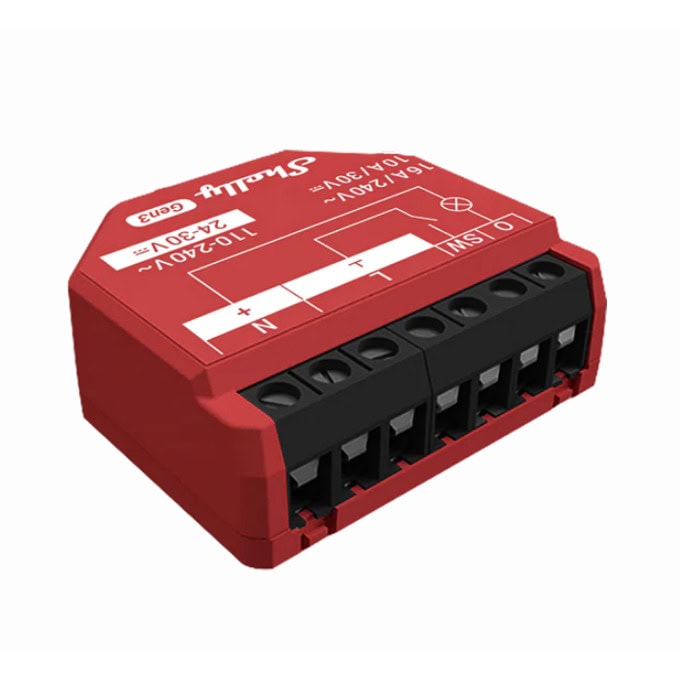

WiFi реле Shelly 1PM Gen3
Артикул №: 1000042104
Категория:
Смарт автоматизация
17,99 €
✓ Налично в централен склад
Shelly 1PM Gen3
Control and Monitor
Shelly 1PM Gen3 – the smart switch for efficient appliance control and energy savings, now even more powerful with the new Shelly chip. Perfect for automating lighting, controlling space heaters, and monitoring appliances, Shelly 1PM features precise power metering and free data storage for detailed analysis of your energy consumption.
Характеристики
| Ambient working temperature | -20 °C to 40 °C / -5 °F to 105 °F |
| Влажност | 30 % to 70 % RH |
| Max. altitude | 2000 m / 6562 ft |
| Screw terminals max torque | 0.4 Nm / 3.5 lbin |
| Conductor cross section | 0.5 to 4 mm² / 20 to 11 AWG (solid, stranded, and bootlace ferrules) |
| Conductor stripped length | 6 to 7 mm / 0.24 to 0.28 in |
| Монтаж | Wall console |
| Shell material | Plastic |
| Electrical | Да |
| Захранване | 110-240 V~24-30 V |
| Консумация на енергия | Output circuits ratings Max. switching voltage:240 V~30 V Max. switching current:16A (240 V~)10A (30 V) Sensors, meters Internal-temperature sensor:Yes Voltmeter (AC):Yes Ammeter (AC):Yes Radio Wi-Fi Protocol:802.11 b/g/n RF band:2401 - 2483 МHz |
| Max. RF power | Bluetooth Protocol:4.2 with BLE RF band:2400 - 2483.5 MHz |
| Max. RF power | Microcontroller unit CPU:ESP-Shelly-C38F Flash:8MB Firmware capabilities Schedules:20 Webhooks (URL actions):20 with 5 URLs per hook Scripting:Yes MQTT:Yes |
