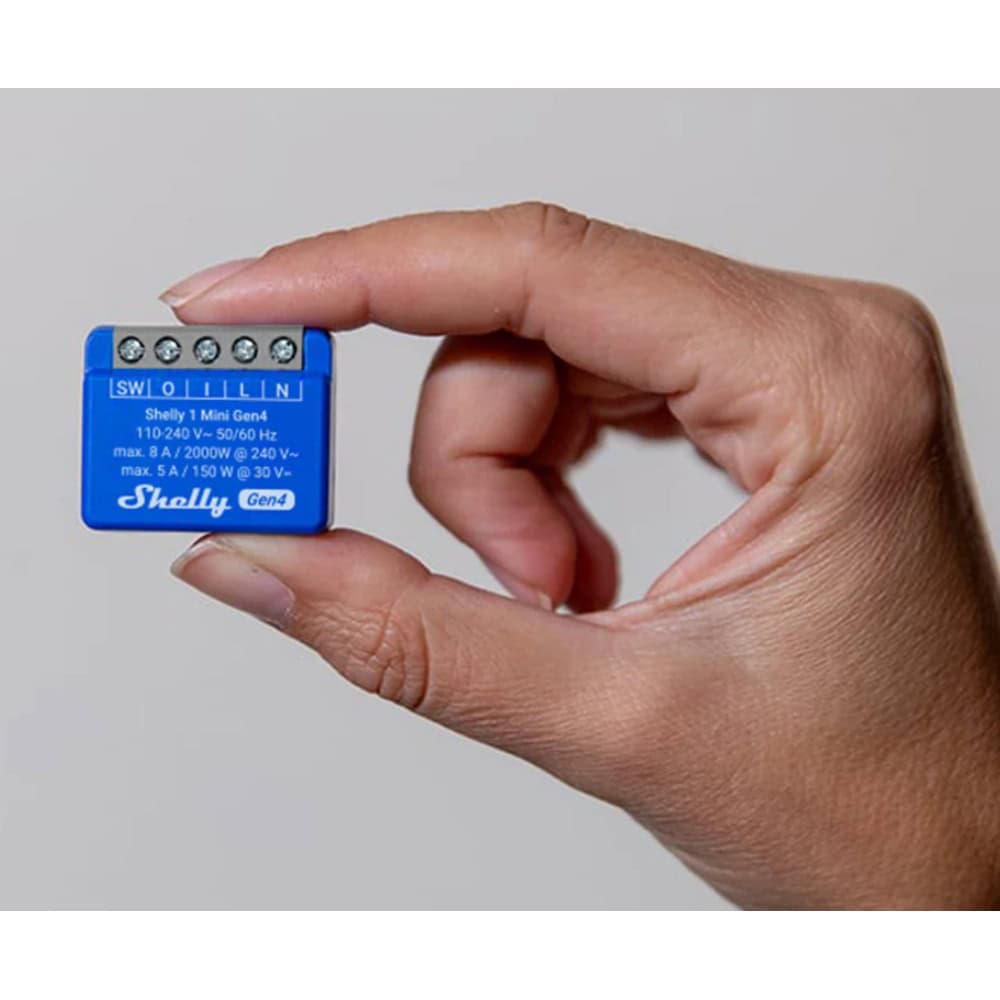

WiFi реле Shelly 1 Mini Gen4
Shelly 1 Mini Gen4
Control your garage door
Shelly 1 Mini Gen4's compact design allows for flexible placement options, enabling you to install it directly within the garage door opener's housing or even near the motor. Its 8 A power handling capability ensures reliable garage door control, allowing you to conveniently operate your garage door remotely without the need for bulky external modules.
Make any small electrical appliance smart
Transforming old electrical appliances into smart devices becomes even more accessible with Shelly 1 Mini Gen4. Its 8 A limit is perfect for transforming small to medium-sized appliances into smart devices, such as lamps, coffee makers, and others. Place it in the socket or fit it discreetly inside the appliance's casing, avoiding the need for additional external wiring.
Lighting Control Wherever You Need It

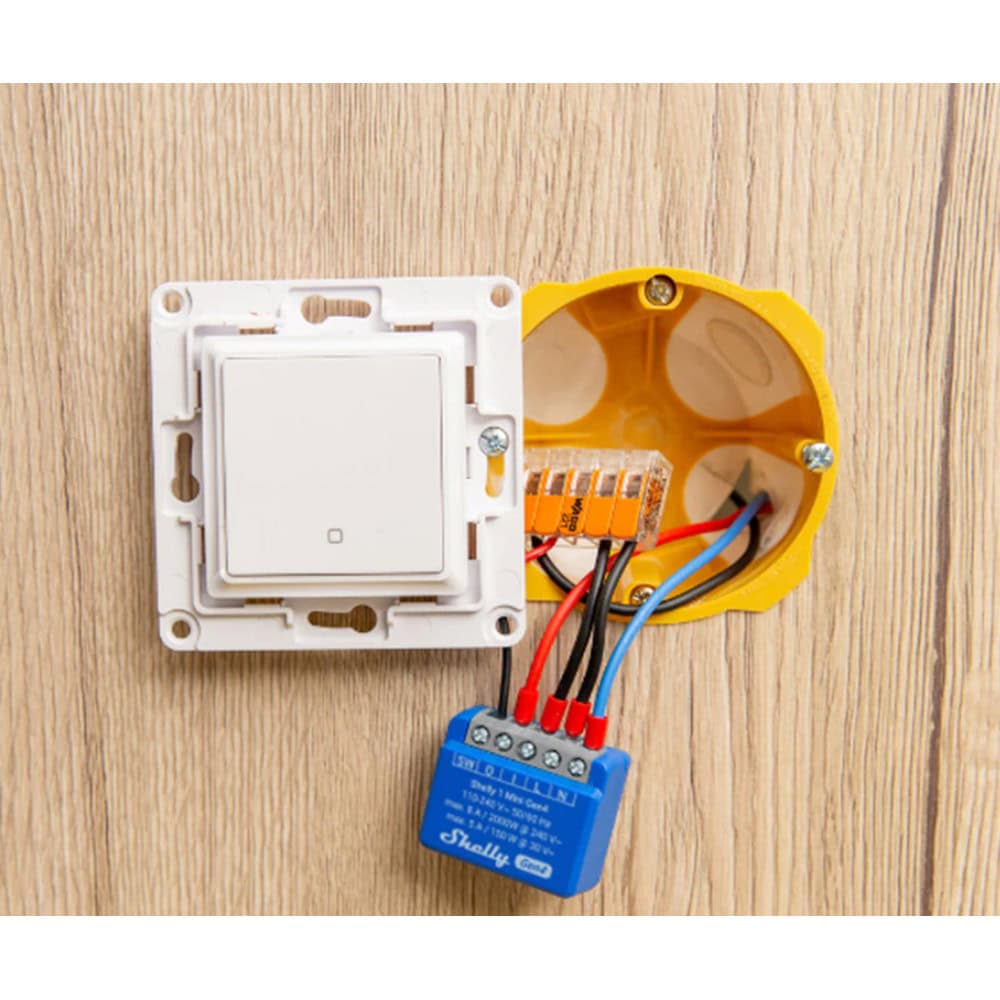

Thanks to its compact size, Shelly Mini 1 Gen4 can discreetly fit within the ceiling rose of your lamp or in jammed wall boxes. Once installed, Shelly Mini 1 Gen4 enables you to effortlessly control your lights or other appliances using the Smart Control App, your preferred platform, or voice assistant. Easily customize your lights according to your daily routine with personalized schedules and save on energy. Set your hallway lights to automatically switch off past your family's bedtime, ensuring a peaceful night's sleep. And don't worry - you can still use your light switches manually to suit the needs of everyone in your home.
Small size, big impact!
Designed with convenience in mind, these mini devices have all the capabilities of Shelly's standard smart devices fit into a compact form factor.
With an improved processor and 8 MB of memory, the devices deliver enhanced efficiency, responsiveness, and seamless operation.
Each Mini Gen4 device is Matter-certified and supports multi-protocol connectivity, allowing greater flexibility within your smart home setup.
Multiprotocol connectivity
Highly compatible! Choose the best protocol for your smart home—Zigbee, Wi-Fi, or Bluetooth
Matter certified
Integrates into any Matter ecosystem
Low and high voltage support
Use a wide range of output voltage levels. Supports up to 8 A at 240 VAC and 5 A at 30 VDC
Dry contacts
Use it to control a wide range of devices and appliances
Smart schedules
Set custom schedules based on your daily agenda
Smart scenes
Set custom scenes by combining Shelly 1 Mini Gen4 with your other devices
Характеристики
| Ambient working temperature | -20 °C to 40 °C / -5 °F to 105 °F |
| Влажност | 30 % to 70 % RH |
| Max. altitude | 2000 m / 6562 ft |
| Screw terminals max torque | 0.4 Nm / 3.5 lbin |
| Conductor cross section | 0.5 to 4 mm² / 20 to 11 AWG (solid, stranded, and bootlace ferrules) |
| Conductor stripped length | 6 to 7 mm / 0.24 to 0.28 in |
| Монтаж | Wall box |
| Shell material | Пластмаса |
| Electrical | Да |
| Захранване | 110 - 240 V~ |
| Relay | Dry, NO contact, 1-pole, µ contact |
| Консумация на енергия | Output circuits ratings Max. switching voltage:240 V~30 V Max. switching current:8 A/240 V~5 A/30 V Max. output power:2000 W/240 V~150 W/30 V Voltage protection / Cutoff:No Current protection / Cutoff:No Max power protection / Cutoff:No Sensors, meters Internal-temperature sensor:Yes Radio Wi-Fi Protocol:802.11 b/g/n/ax RF band:2412 - 2472 МHz |
| Max. RF power | Bluetooth Protocol:5.0 RF band:2402 - 2480 MHz |
| Max. RF power | Zigbee Protocol:802.15.4 RF bands:2400 to 2483.5 MHz |
| Max. RF power | Microcontroller unit CPU:ESP-Shelly-C68F Flash:8 MB Firmware capabilities Schedules:20 Webhooks (URL actions):20 with 5 URLs per hook Scripting:Yes MQTT:Yes |
