Wi-Fi релета Shelly 2PM Gen3
Shelly 2PM Gen3
Automated Bedroom Curtains or ShuttersSet Shelly 2PM Gen3 to open your bedroom curtains or shutters at a specific time each morning using “Schedules”. Wake up naturally with gradual light as the curtains open to your desired position, starting your day with ease.
Control Two Lights with One DeviceShelly 2PM Gen3 lets you control and monitor two different lights on the same phase using a single device. Each light's power consumption is tracked separately, making your lighting setup more efficient. Use the manual switch, app, preferred home automation system, or your voice!
Energy ManagementTake charge of your energy usage with the power metering feature on each channel. Monitor and analyze the power consumption of connected devices in real-time, and use this data to make informed decisions to reduce energy costs.
Smart BlindsIntegrate Shelly 2PM Gen3 with your blinds for an energy-efficient home. Automatically adjust the blinds based on the time of day or the weather conditions. For instance, close the blinds during the hottest part of the day to keep your home cool, and open them in the morning to let in natural light and reduce the need for artificial lighting.

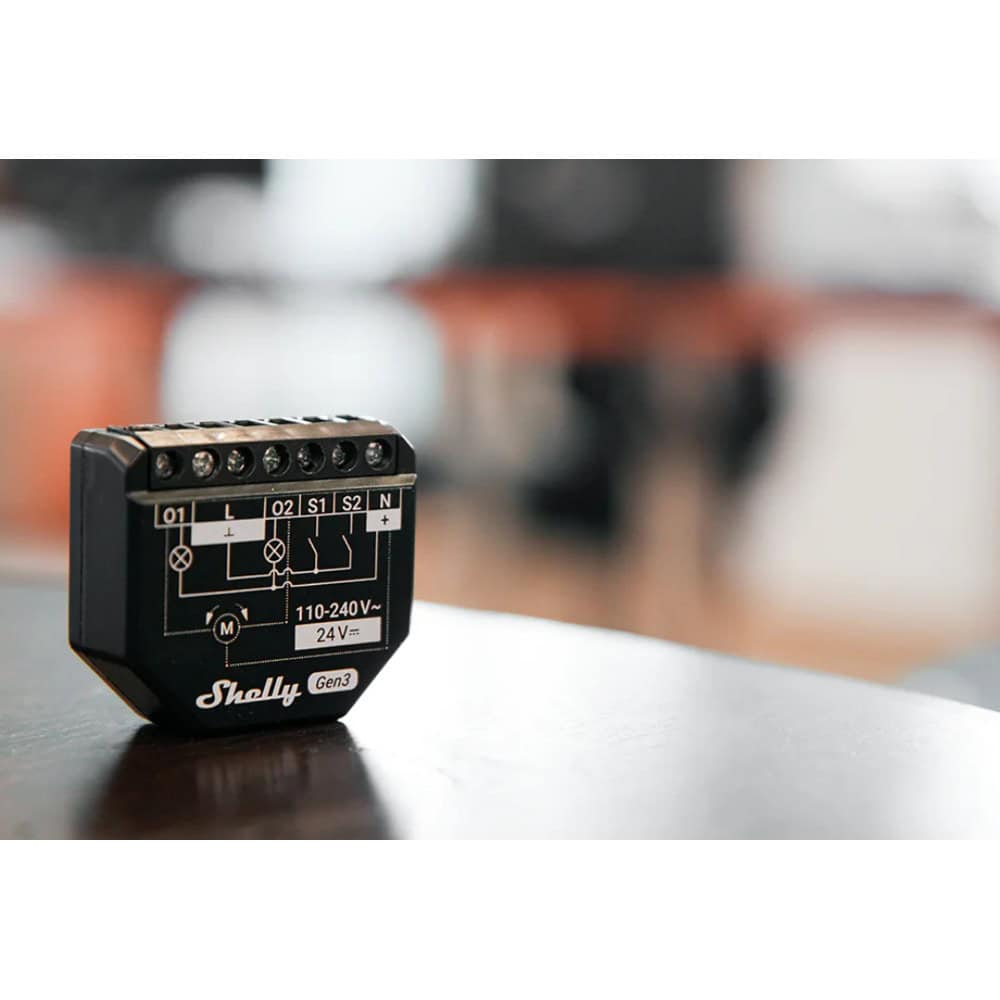

Shelly 2PM Gen3 is a small form factor 2-channel smart switch with power measurement and cover control, which allows remote control of electric appliances through a mobile phone, tablet, PC, or home automation system. It can work standalone in a local Wi-Fi network or it can also be operated through cloud home automation services. The device also has improved processor and increased memory compared to its predecessor. The device supports Venetian blinds.
Shelly 2PM Gen3 can be accessed, controlled and monitored remotely from any place where the User has internet connectivity, as long as the device is connected to a Wi-Fi router and the Internet.

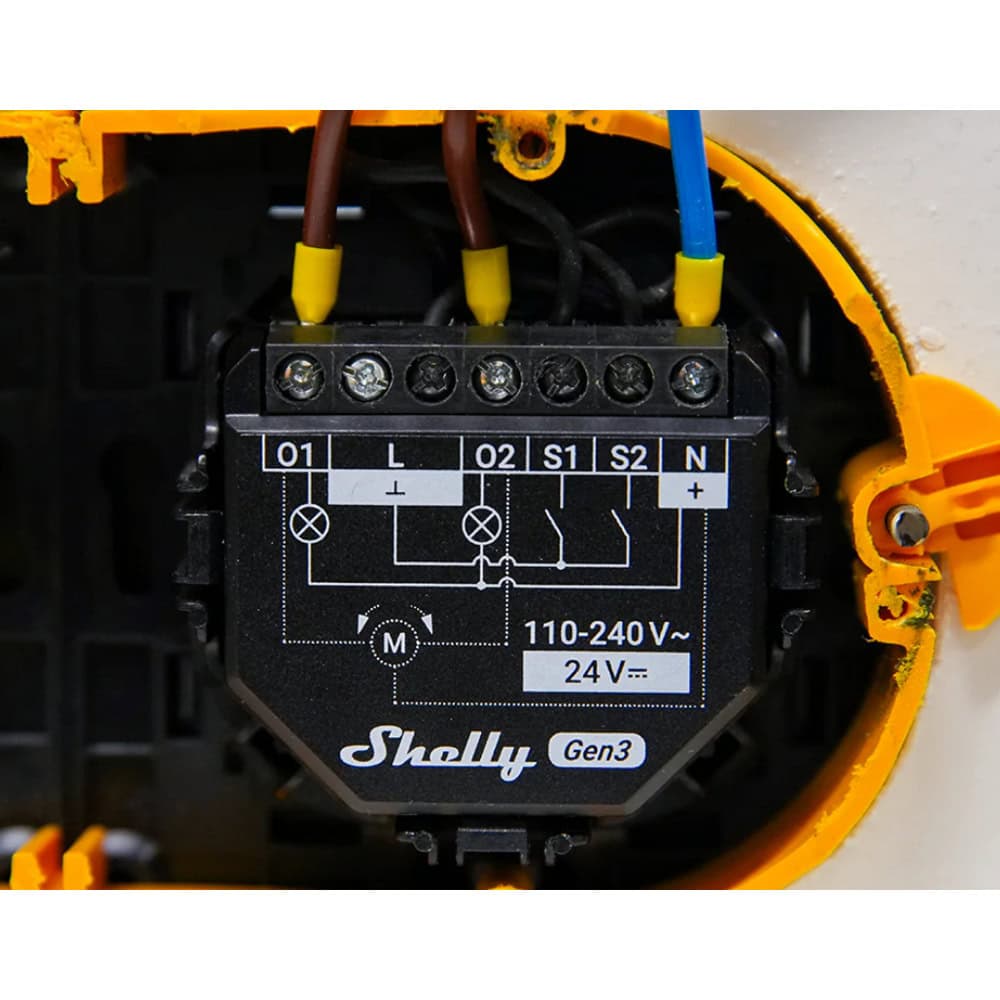

It can be retrofitted into standard electrical wall boxes, behind power sockets and light switches or other places with limited space.
Shelly 2PM Gen3 has embedded Web Interface which can be used to monitor and control the device, as well as adjust its settings.
Характеристики
| Size (HxWxD) | 37x42x16 ±0.5 mm / 1.46x1.65x0.63 ±0.02 in |
| Тегло | 30 g / 1.06 oz |
| Screw terminals max torque | 0.4 Nm / 3.5 lbin |
| Conductor cross section | 0.2 to 2.5 mm² / 24 to 14 AWG (solid, stranded, and bootlace ferrules) |
| Conductor stripped length | 6 to 7 mm / 0.24 to 0.28 in |
| Монтаж | Wall box |
| Shell material | Пластмаса |
| Shell color | Черен |
| Terminals color | Черен |
| Environmental | Да |
| Ambient working temperature | -20°C to 40°C / -5°F to 105°F |
| Влажност | 30% to 70% RH |
| Max. altitude | 2000 m / 6562 ft |
| Electrical | Да |
| Захранване | 110 - 240 V~ / 24 V ±10% |
| Консумация на енергия | Output circuits ratings Max. switching voltage:240 V~30 V Max. switching current AC:10 A (per channel), 16 A (total), 18 A (total peak) Max. switching current DC:10 A Sensors, meters Voltmeter (AC):Yes Ammeter (AC):Yes Internal-temperature sensor:Yes Radio Wi-Fi Protocol:802.11 b/g/n RF band:2412 - 2472 МHz |
| Max. RF power | Bluetooth Protocol:4.2 RF band:2402 - 2480 MHz |
| Max. RF power | Microcontroller unit CPU:ESP-Shelly-C38F Flash:8MB Firmware capabilities Schedules:20 Webhooks (URL actions):20 with 5 URLs per hook Scripting:Yes MQTT:Yes |
