VPN рутер TP-Link Omada ER7406

Артикул №: 1000035591

Категория: Рутери Жични

131,99 €

✓ Ограничена наличност

ER7406

Omada Gigabit Rackmount/Desktop VPN Gateway

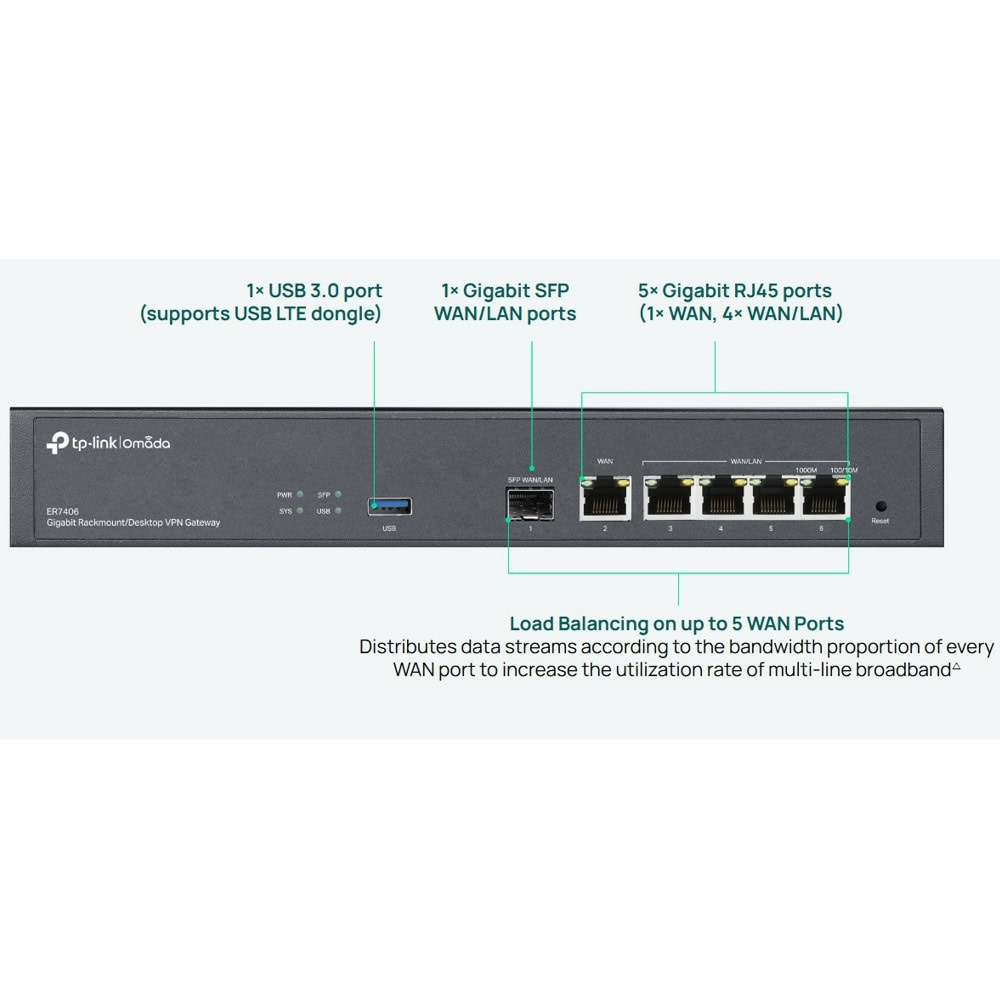

1× Gigabit SFP WAN/LAN port
5× Gigabit RJ45 ports (1× WAN, 4× WAN/LAN)
1× USB 3.0 port (Supports USB storage, and LTE backup with LTE dongle)
Load Balancing on up to 5 WAN ports raises the utilization rate of multi-line broadband
High-security SSL/ IPSec / GRE§ / WireGuard / PPTP / L2TP VPN & OpenVPN
Centralized cloud management via the web or the Omada app*
DoS defense, IP/MAC/URL filtering, DPI, and IPS/IDS for enhanced security.
Rackmount/Desktop

Up to 5 WAN Ports & One USB WAN for Mobile Broadband

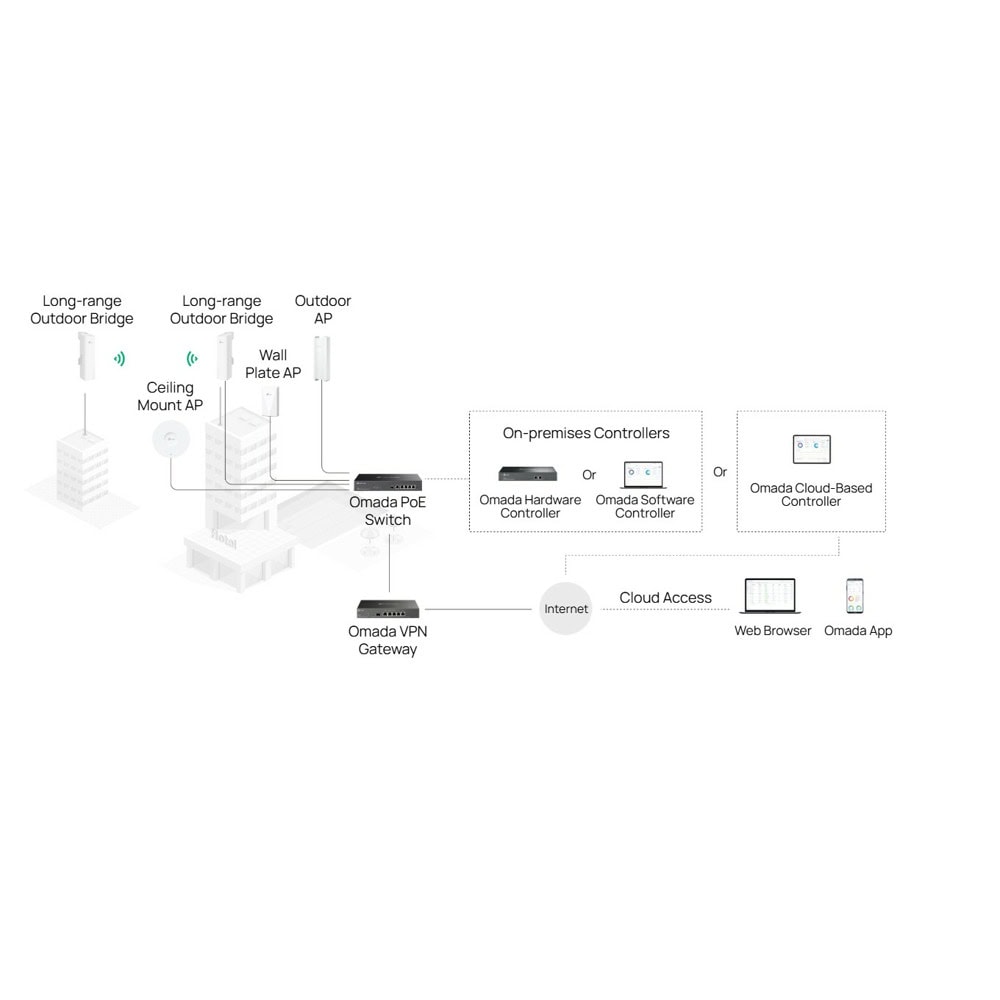

Software Defined Networking (SDN) with Cloud Access

Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.

SECURITY

Access Control	Source/Destination IP Based Access Control
Filtering	• WEB Group Filtering§ · • URL Filtering · • Web Security§
ARP Inspection	• Sending GARP Packets · • ARP Scanning§ · • IP-MAC Binding
Attack Defense	• TCP/UDP/ICMP Flood Defense · • Block TCP Scan (Stealth FIN/Xmas/Null) · • Block Ping from WAN

HARDWARE FEATURES

Standards and Protocols	• IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q · • TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, WireGuard VPN, GRE VPN, SNMP
Интерфейс	• 1 Gigabit SFP WAN/LAN Port · • 1 Gigabit WAN Port · • 4 Gigabit LAN/WAN Ports · • 1 USB 3.0 Port (supports USB LTE dongle and USB storage)
Network Media	• 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) · • 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) · • 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
Fan Quantity	Fanless
Button	Reset Button
Захранване	100-240VAC, 50/60Hz
Flash	128 MB NAND
DRAM	512 MB DDR4
LED	PWR, SYS, SFP, USB, WAN(1000M Link/Act, 100/10M Link/Act), WAN/LAN (1000M Link/Act, 100/10M Link/Act)
Dimensions ( W x D x H )	11.6 × 5.5 × 1.7 in (294 × 140 × 44 mm)
Защита	4 kV surge protection
Enclosure	Steel
Монтаж	• Desktop · • Rackmountable
Max Power Consumption	• 7.5 W (with USB 3.0 connected) · • 4.5 W (without USB 3.0 connected)

PERFORMANCE

IPS Throughput	TCP: 229 Mbps; · UDP: 188 Mbps
DPI Throughput	TCP: 933 Mbps; · UDP: 927 Mbps
GRE	• Unencrypted: 611.9 Mbps · • Encrypted: 325.0 Mbps
WireGuard VPN	341.3 Mbps
Concurrent Session	150,000
New Sessions /Second	5,300
NAT (Static IP)	945.3 Mbps / 940.5 Mbps
NAT(DHCP)	939.6 Mbps / 940.9 Mbps
NAT(PPPoE)	943.6 Mbps / 940.9 Mbps
NAT (L2TP)	880.1 Mbps / 859.0 Mbps
NAT (PPTP)	855.0 Mbps / 907.2 Mbps
IPsec VPN Throughput	• ESP-SHA1-AES256: 617.1 Mbps · • ESP-SHA256-AES256: 592.8 Mbps · • ESP-SHA384-AES256: 592.4 Mbps · • ESP-SHA512-AES256: 604.5 Mbps
OpenVPN	139.1 Mbps
L2TP VPN Throughput	• Unencrypted: 977.4 Mbps · • Encrypted: 334.6 Mbps
PPTP VPN Throughput	• Unencrypted: 1064.1 Mbps · • Encrypted: 206.8 Mbps
SSL VPN Throughput	131.6 Mbps
66 Byte Packet forwarding rate	1,453,489 pps / 1,453,488 pps
1,518 Byte Packet forwarding rate	81,279 pps / 81,275 pps

BASIC FUNCTIONS

WAN Connection Type	• Static IP · • Dynamic IP · • PPPoE(supports MRU Configuration) · • PPTP · • L2TP
MAC Clone	Modify WAN/LAN MAC Address (LAN MAC Address can be modified only in Standalone Mode)
DHCP	• DHCP Server · • DHCPv6 PD Server (only in Standalone Mode) · • DHCP Options Customization · • DHCP Address Reservation · • Multi-IP Interfaces · • Multi-Net DHCP
IPv6	StaticIP/SLAAC/DHCPv6/PPPoE/6to4Tunnel/PassThrough/Non-Address mode
VLAN	802.1Q VLAN
IPTV	IGMP v2/v3 Proxy, Custom Mode, Bridge Mode

ADVANCED FUNCTIONS

Advanced Routing	• Static Routing · • Policy Routing · • RIP (available in Standalone Mode) · • OSPF (available in Standalone Mode)
Bandwidth Control	IP-based Bandwidth Control
Load Balance	• Intelligent Load Balance · • Application Optimized Routing · • Link Backup (Timing, Failover) · • Online Detection
NAT	• One-to-One NAT · • Multi-Net NAT · • Port Forwarding · • Port Triggering§ · • NAT-DMZ · • FTP/H.323/SIP/IPSec/PPTP ALG · • UPnP
Session Limit	IP-based Session Limit

VPN

GRE	√ (Only in Standalone Mode)
SSL VPN	50 Tunnels
IPsec VPN	• 100 IPSec VPN Tunnels · • LAN-to-LAN, Client-to-LAN · • Main, Aggressive Negotiation Mode · • DES, 3DES, AES128, AES192, AES256 Encryption Algorithm · • IPsec Failover · • IKE v1/v2 · • MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm · • NAT Traversal (NAT-T) · • Dead Peer Detection (DPD) · • Perfect Forward Secrecy (PFS)
PPTP VPN	• PPTP VPN Server · • PPTP VPN Client (10)** · • 50 Tunnels · • PPTP with MPPE Encryption
L2TP VPN	• L2TP VPN Server · • L2TP VPN Client (10)** · • 50 Tunnels · • L2TP over IPSec
OpenVPN	• OpenVPN Server · • OpenVPN Client (5)** · • 55 OpenVPN Tunnels · • "Certificate + Account" Mode · • Full Mode
WireGuard VPN	• 20 Tunnels

AUTHENTICATION

Web Authentication

• No Authentication · • Simple Password* · • Hotspot (Local User /Voucher*/ SMS/Radius*) · • External Radius Server · • External Portal Sever<* · • LDAP§

MANAGEMENT

Omada App	Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller
Centralized Management	• Omada Cloud-Based Controller · • Omada Hardware Controller · • Omada Software Controller
Cloud Access	Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller
Service	Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)
Maintenance	• Web Management Interface · • Remote Management · • Export & Import Configuration · • SNMP v1/v2c/v3 · • Diagnostics (Ping & Traceroute) (only in Standalone Mode) · • NTP Synchronize (only in Standalone Mode) · • Port Mirroring · • CLI (only in Standalone Mode) · • Syslog Support
Zero-Touch Provisioning	Yes. Requires the use of Omada Cloud-Based Controller
Management Features	• Automatic Device Discovery* · • Batch Configuration* · • Batch Firmware Upgrading* · • Intelligent Network Monitoring* · • Abnormal Event Warnings* · • Unified Configuration* · • Reboot Schedule*
