Водно охлаждане за процесор MSI MAG Coreliquid A13 240 Black

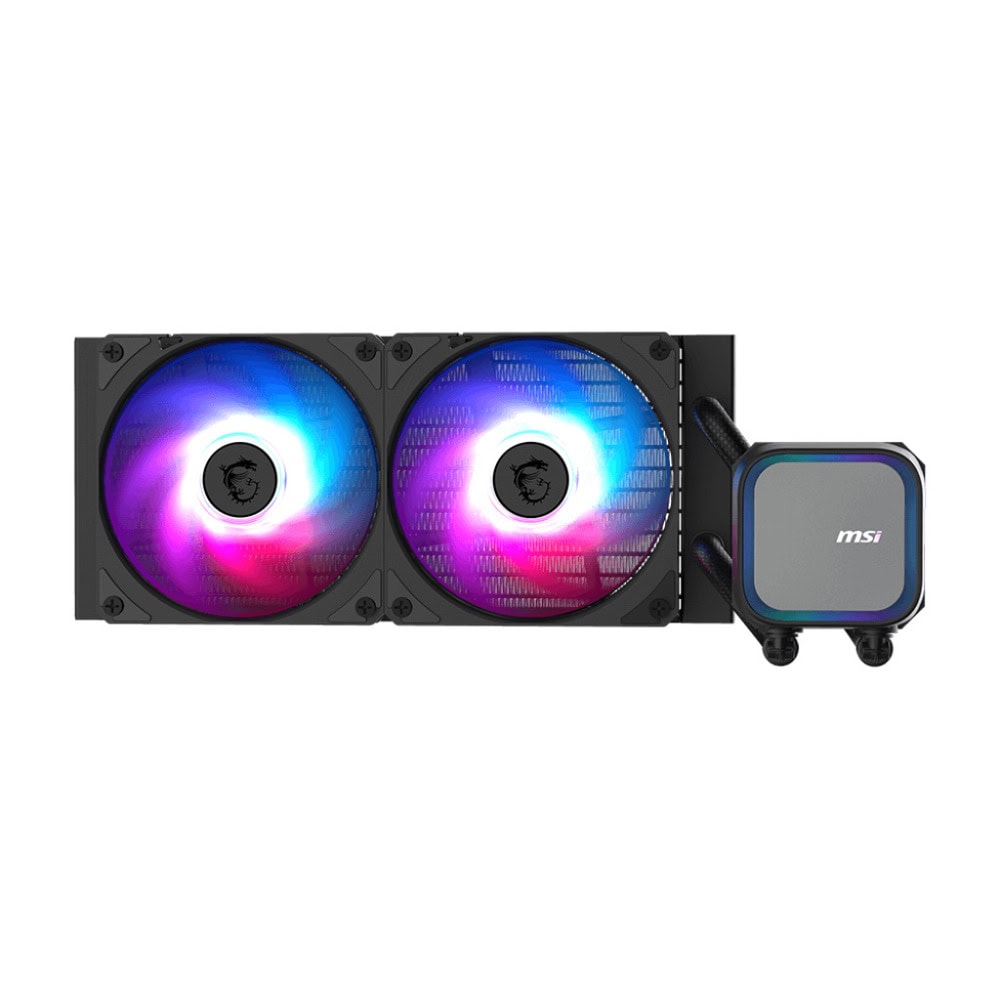

MSI MAG Coreliquid A13 240 Black
Design ConceptMSI's newly launched MAG CORELIQUID A13 Series cooler draws its design inspiration from the harmonious balance between square and round elements. The design seamlessly combines soft rounded edges with sharp, clean lines, reflecting the perfect blend of performance and silence. The ARGB indirect lighting effect is subtly integrated into the curved design, highlighting intricate line details. Beneath its unpretentious appearance lies a rich variety of lighting effects, making the minimalist design a perfect match for the modern pursuit of minimalistic living aesthetics.
Simply RadiantThe minimalist design integrates various surface finishing techniques to subtly showcase product details. Indirect lighting creates a vibrant spectrum of colors, offering a stunning yet understated illumination that perfectly highlights the product's refined texture.
Full Copper BaseThe new generation full copper base eliminates the traditional screw perforation design, significantly enhancing water-tightness and ensuring more reliable system operation. Equipped with a precise 0.1mm micro-channel design, it efficiently absorbs CPU heat and works in tandem with the high-performance pump to quickly dissipate heat, delivering exceptional cooling performance.
High Efficiency PumpThe CORELIQUID A13 series is equipped with a high-performance pump that operates at speeds up to 3800 RPM. Combined with high-quality ceramic bearings, it achieves a perfect balance between performance and quiet operation.
Water Channel DesignThe new water channel design works seamlessly with the high-flow pump, efficiently dissipating the heat absorbed by the copper base. This ensures excellent cooling performance, keeping the system cool and stable even under heavy loads, elevating both performance and reliability to new heights.
Характеристики
| Radiator Size | 240 mm |
| Radiator Dimensions (WxDxH) | 277 x 119.6 x 27mm / 10.90 x 4.69 x 1.06 inches |
| Radiator Material | Алуминий |
| Water Cooling Tube Material | EPDM |
| Number of Fans | 2 |
| Fan Dimensions (WxDxH) | 120 x 120 x 25 mm / 4.7 x 4.7 x 0.98 inches |
| Fan Air Flow | 62.6 CFM |
| Fan Bearing | Rifle Bearing |
| Fan Life Expectancy | 40,000 hrs@40℃ |
| Fan Rated Current | 0.15A(Max:0.18A) |
| Fan Power Consumption | 1.8W(Max:2.16W) |
| PWM Mode | Да |
| Cable Length (PWM Cable) | 450 mm; 17.71 inches |
| Fan Connector | 5V ARGB 3-PIN Header |
| Block Lighting | ARGB GEN2 |
| Fan Lighting | ARGB Gen2 |
| Pump Life Expectancy | 25,000 hours in typical use |
| Pump Noise Level | 20 dBA (avg.) |
| Pump Rated Current | 0.24A |
| Pump Power Consumption | 2.88W |
| Pump Speed | 3800 RPM ± 10% |
| Pump Connector | 3-PIN Header, 5V ARGB 3-PIN Header ( Female ) |
| Cold Plate Material | Copper |
| Block Dimensions (WxDxH) | 70.9 x 69.3 x 56.98 mm |
| Intel Socket Support | LGA 1700 / 1851 |
| AMD Socket Support | AM5 / AM4 |
