Видеодомофон Dahua VTO6210B

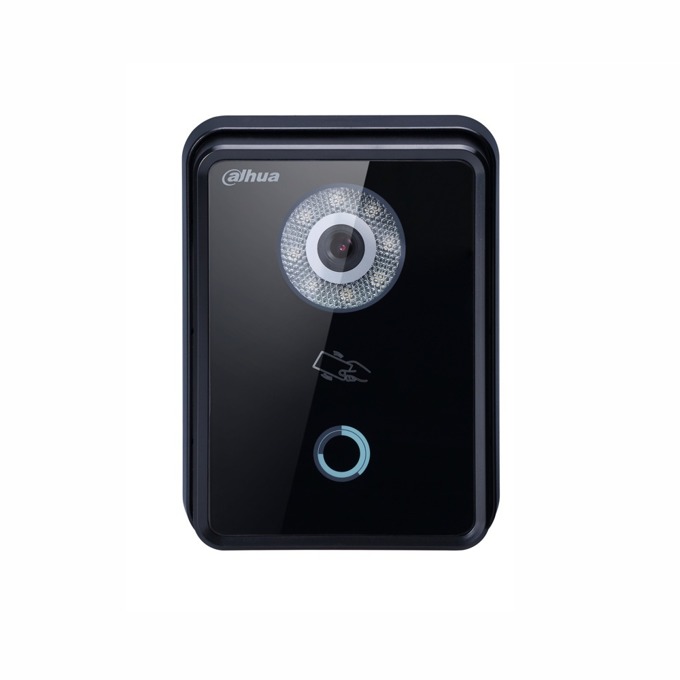

Dahua VTO6210B

IP Villa Outdoor Station
HD CMOS camera
Tempered glass panel, IP65
Night vision & Voice indication
Video & Audio messaging
Remote intercom with mobile APP
Surface mounted

Technical Specification

Model
VTO6210B/BW

System
Main Processor
Embedded Micro Processor

Operation System
Embedded LINUX OS

Video
Video Compression
H.264

Image Sensor
1/4” 1MP CMOS

Lens
3.6mm

Angle of View
D:70° H:60°

Day/Night
Color Image

Audio
Audio Compression
G.711

Audio Input
Omnidirectional Mic

Audio Output
Built-in Speaker

Bidirectional Talk
Support Dual-way Bidirectional talk

Operation Mode
Keypad

Single Touch Button
Reader

Mifare Card
Interface

Door Control
2(1 relay out for main lock, 1 extended by access control module)

Alarm In
2(1ch unlock button, 1ch feedback)

RS485
1

Network
Ethernet
10M/100Mbps Self-adaptive

Network Protocol
TCP/IP

General

Ingress Protection
IP65

Tamper Switch
1

Installation
Surface

Material
Tempered Glass

Power
DC 12V

Power Consumption
Standby ≤1W, Work ≤10W

Working Temperature
﹣30°C~+60°C

Relative Humidity
10%~90%RH

Dimensions
