Вентилатори 140mm

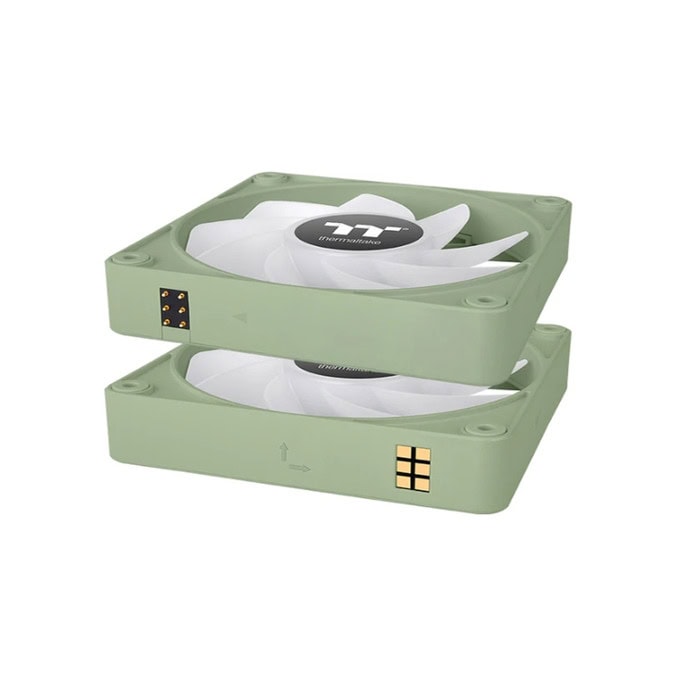

Steady Connection with MagForce 2.0:
Evolved from SWAFAN EX’s Magnetic Force Design, the new MagForce 2.0 has the Pogo pin contact pads are TWO times larger for greater tolerance. This enhancement significantly reduces the potential faulty alignment no matter you are daisy-chaining fans together or connecting fans with cable, further boosting the installation efficiency and streamlining the building experience.
Unlocks the Full Potential of RGB Lighting:
Reversed blade fan enables airflow from rear to front while fully showing lighting effects. No more sacrificing aesthetics for your airflow direction!
Remarkably Improved Performance:
After extensive research and testing, the CT140 EX ARGB Sync Hydrangea Blue can generate 94.95 CFM of airflow and 2.54 mm-H2O static pressure while maintaining a 32.8 dBA noise level, pushing ARGB fans to their limits.
Solid Structure for Better Performance:
The new CT Series fan frames are crafted to be steady and robust so the fan won’t deform easily. We have also modified the exterior design to allow the fans to fit the chassis or radiator even better, so there won’t be gaps for air to slip through.
A little Surprise for Extra Security:
CT Series Fans are equipped with round anti-vibration rubber pads on each of the fan’s corners. They are designed to be stable and dampen the fan’s vibration, allowing the fans to spin at a higher speeds under certain noise levels.
Характеристики
| 140 x 140 | x 25 mm |
| Интерфейс | Да |
| Pin - PWM 12 V | 4 |
| Pin - ARGB Sync 5 V | 3 |
| Started Voltage | Да |
| 5 V | Да |
| Fan Rated Voltage | Да |
| V & 5 V | 12 |
| Rated Current | Да |
| A & 0.32 A (one fan) | 0.25 |
| Power Input | Да |
| W & 1.6 W (one fan) | 3 |
| Fan Speed | Да |
| PWM | 500 ~ 1800 R.P.M |
| Max. Air Pressure | Да |
| Mm-H2O | 2.54 |
| Max Air Flow | Да |
| CFM | 94.95 |
| Ниво на шум | Да |
| DB-A | 32.8 |
| Bearing Type | Да |
| Hydraulic Bearing | Да |
| Life Expectation | Да |
| Hrs, 25℃ | 40,000 |
