Noctua

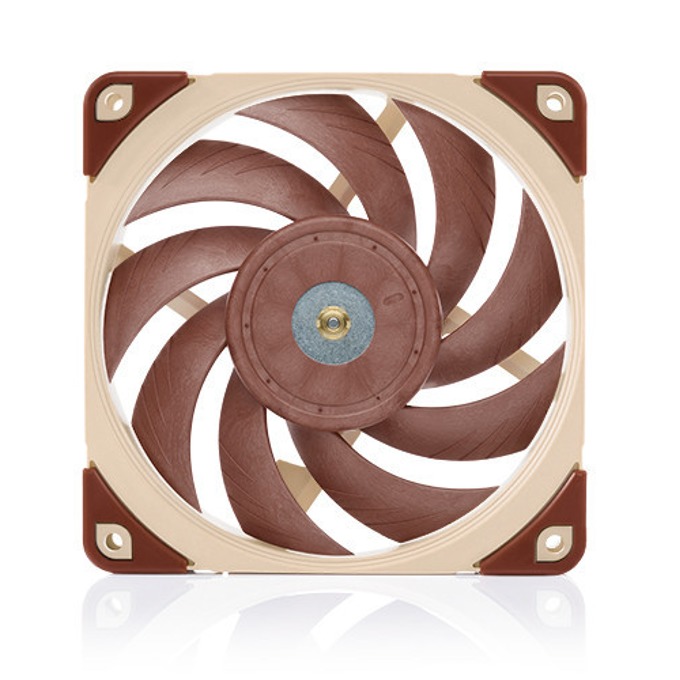

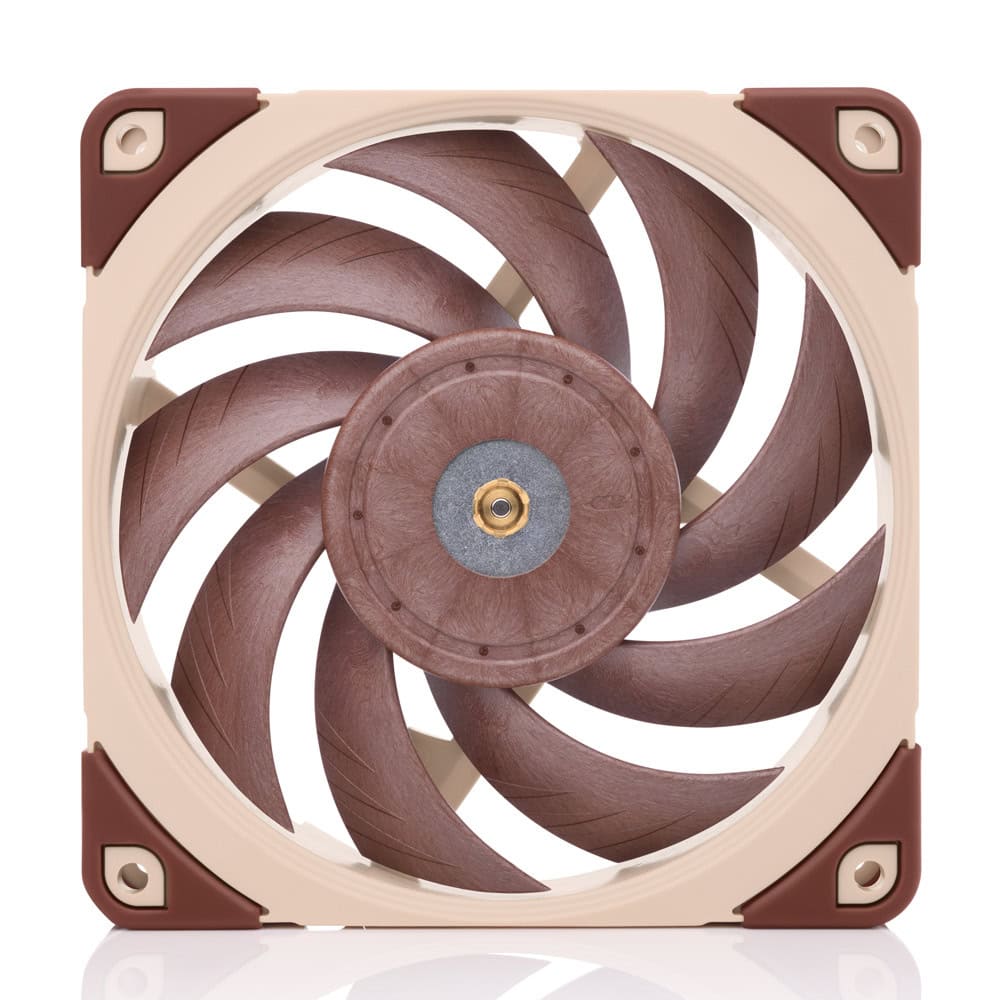

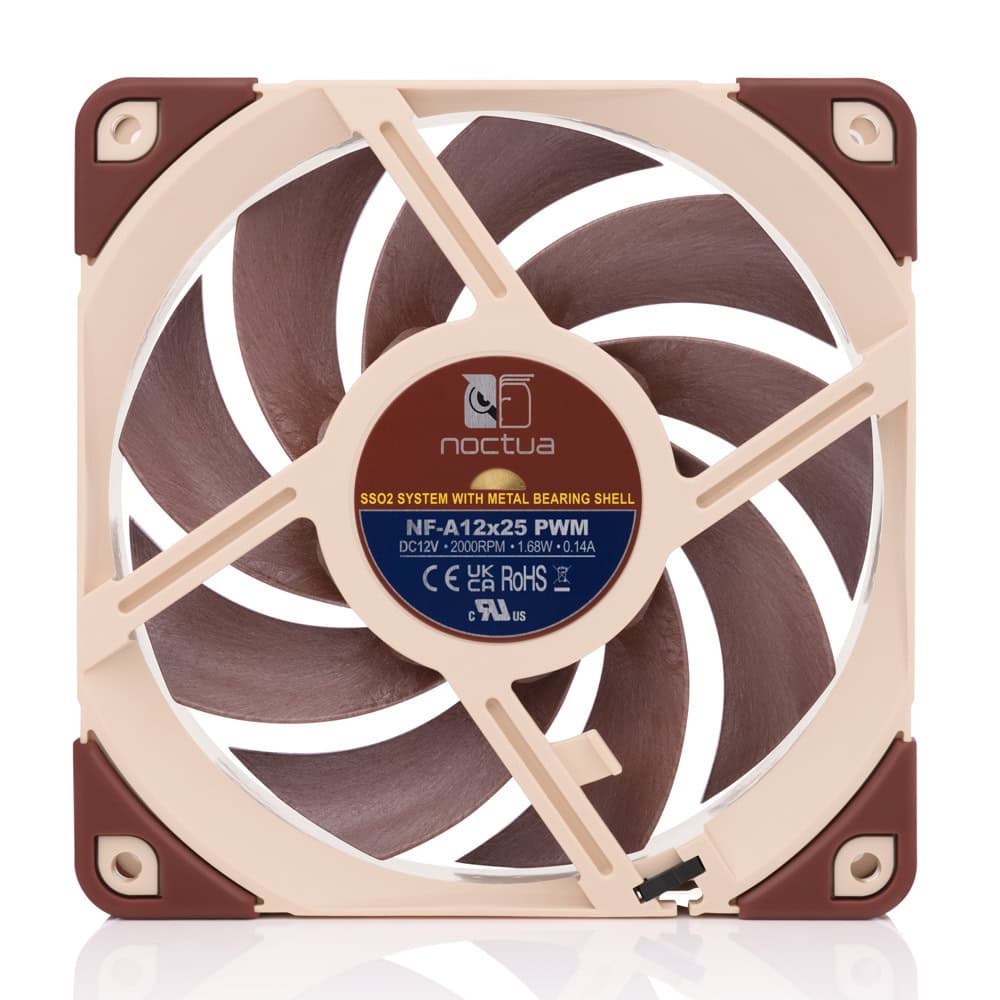

Вентилатор Noctua NF-A12x25-PWM
Артикул №: 1000146475
Категория:
Вентилатори
32,99 €
✓ Налично във външен склад
Характеристики
| Размер | 120x120x25 mm |
| Mounting hole spacing | 105x105 mm |
| Connector & pin-configuration | 4-pin PWM |
| Cable lengthо | 20cm + 30cm NA-EC1 extension cable |
| Bearing | SSO2 |
| Blade geometry | A-Series with Flow Acceleration Channels |
| Frame technology | AAO (Advanced Acoustic Optimisation) |
| Материал | Sterrox® LCP |
| Rotational speed (+/- 10%) | 2000 RPM |
| Rotational speed with L.N.A. (+/- 10%) | 1700 RPM |
| Min. rotational speed (PWM, +/-20%) | 450 RPM |
| Airflow | 102,1 m³/h |
| Airflow with L.N.A | 84,5 m³/h |
| Acoustical noise | 22,6 dB(A) |
| Acoustical noise with L.N.A | 18,8 dB(A) |
| Static pressure | 2,34 mm H₂O |
| Static pressure with L.N.A | 1,65 mm H₂O |
| Max. input power | 68 W |
| Max. input current | 0.14 A |
| Operating voltage | 12 V |
| Voltage PWM signal | 5 V |
| MTTF> | 150.000 h |
