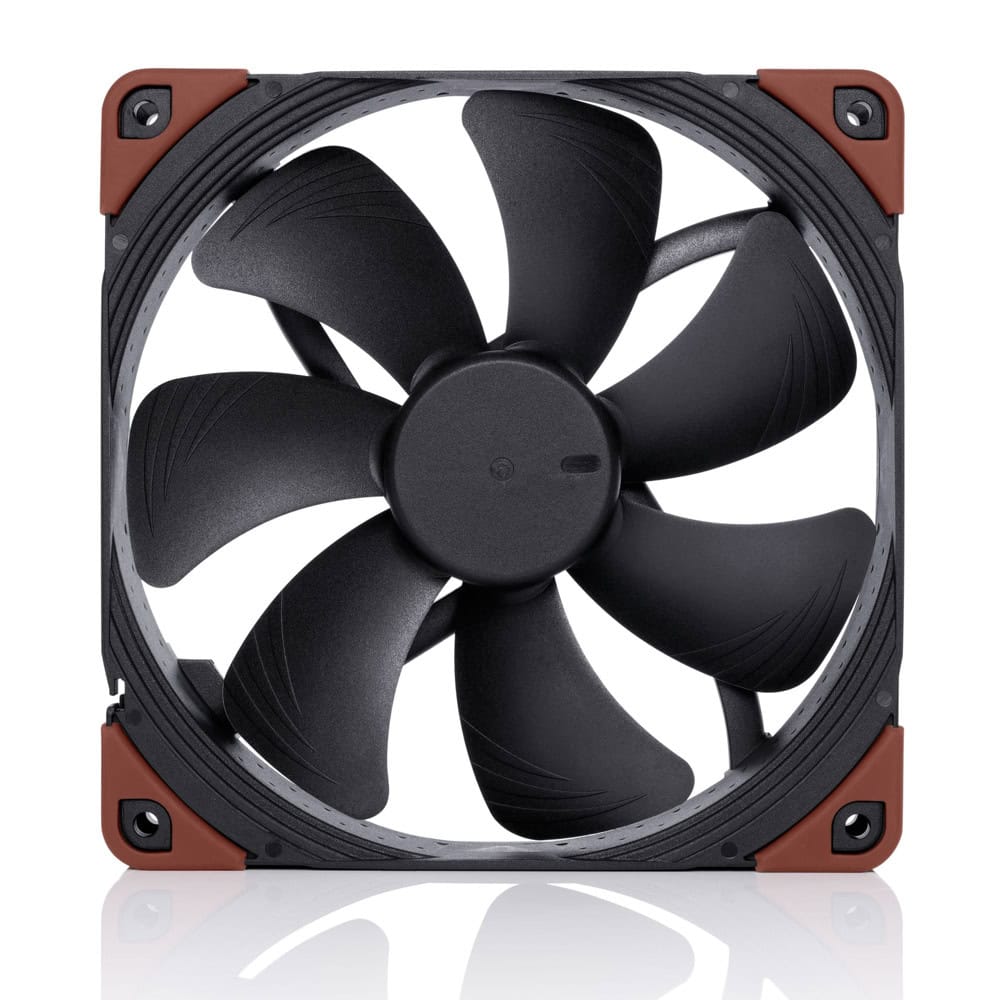

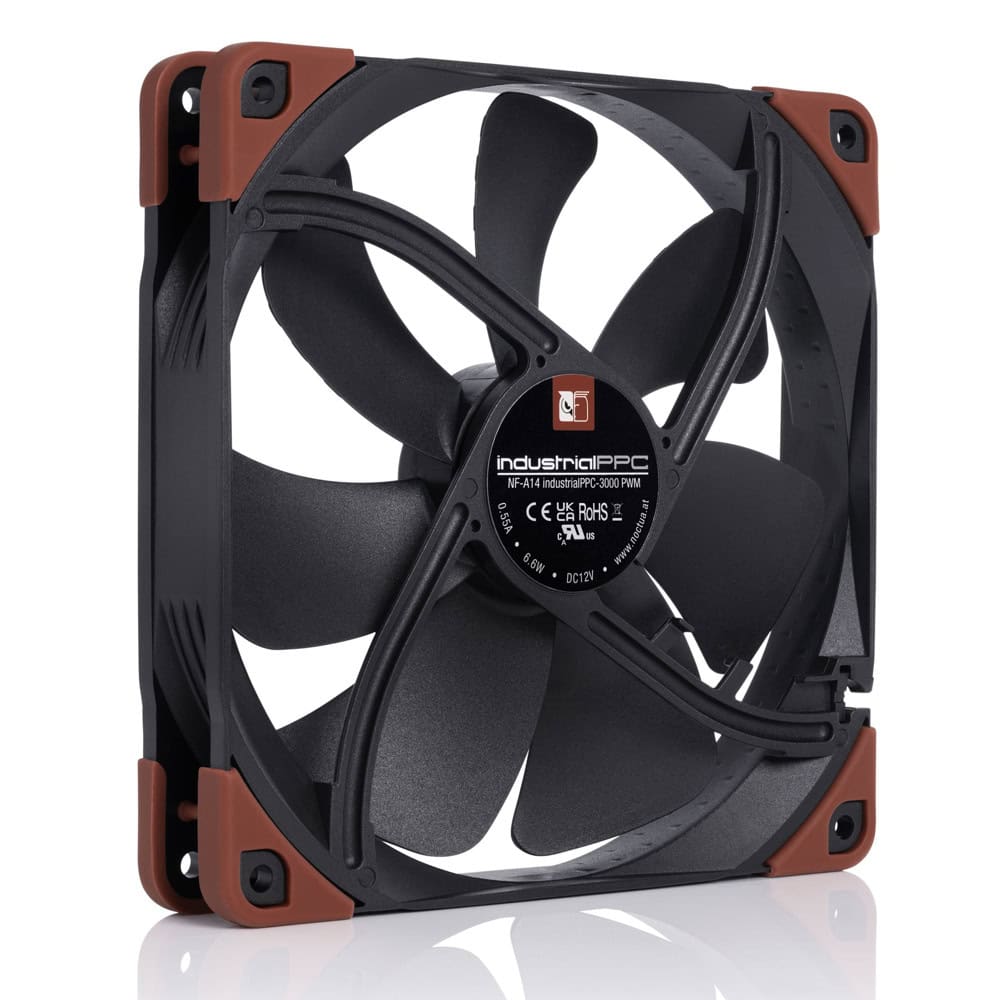

Вентилатор 140mm
the award-winning retail model. Thanks to the outstanding aerodynamic
against comparable high-speed fans. While its fibre-glass reinforced
bearing technology guarantees an MTBF of over 150.000hrs. Topped off
dependability.SpecificationsSize140x140x25 mmConnector4-pin PWM BearingSSO2 Blade GeometryA series with Flow Acceleration Channels Frame TechnologyAAO Rotational Speed (+/- 10%)3000 RPMMin. Rotational Speed (PWM, +/-20%)800 RPMAirflow269,3 m³/hAcoustical Noise41,3 dB(A)Static Pressure10,52 mm H2OMax. Input Power6,6 WMax. Input Current0,55 AVoltage12 VMTBF> 150.000 hScope of DeliveryFan4 Fan Screws Warranty6 years Ingress ProtectionIP52 MaterialFibre-glass reinforced polyamide Motor typeThree-phase
for 140mm cooling needs. Its renowned efficiency has convinced tens of
industrialPPC-3000 provides extreme airflow and pressure performance.
entirely from fibre-glass reinforced polyamide. This material can
and break-proof than Noctua’s standard fibre-glass reinforced PBT fans.
industrialPPC complies with the ingress protection rating IP52. This
NF-A14 impeller features suction side Flow Acceleration Channels. By
suction capacity, especially in space restricted environments.
blade passing noise and improved airflow and pressure efficiency.
with all standard mounting systems and fan clips used on heatsinks.
of Noctua’s renowned, time-tested SSO bearing. With SSO2, the rear
Noctua’s custom designed NE-FD2 PWM IC for three-phase motors. The
longevity. Like all Noctua fans, the NF-A14 industrialPPC features an
accessories can be customised on requests. For example, we can provide
UL and TÜV certification. Please feel free to contact us for customised
Характеристики
| Conceived for industrial heavy duty applications that require enhanced | |
| cooling performance and advanced ingress protection, the NF-A14 industrialPPC | |
| (Protected Performance Cooling) is a ruggedised high-speed version of | |
| efficiency of the NF-A14 design and the use of a novel three-phase motor | |
| the industrialPPC version provides superior airflow and pressure | |
| capacity while keeping noise levels and power consumption moderate as | |
| polyamide construction and certified water and dust protection make the | |
| NF-A14 industrialPPC suitable for operation in challenging environments | |
| the renowned SSO2 | |
| with Noctua’s trusted reliability and 6 years manufacturer’s warranty | |
| the NF-A14 industrialPPC is an ideal choice for highly demanding | |
| applications that require superior flow rates and ultimate | |
| Details | |
| Award-winning NF-A14 designHaving | |
| received more than 100 awards and recommendations from the | |
| international press, Noctua’s NF-A14 has become a proven premium choice | |
| thousands of customers all over the world. | |
| 3000rpm industrialPPC versionRunning | |
| twice as fast as the 1500rpm retail version, the NF-A14 | |
| Combined with the industrialPPC series’ robust polyamide construction | |
| and advanced protection features, this makes the fan ideal for | |
| challenging industrial applications. | |
| Three-phase motor designWhile | |
| most axial fans use single-phase motors with 4 slots, Noctua’s | |
| industrialPPC fans feature a three-phase design with 6 slots, which | |
| provides smoother transitions between the slots and thus allows for even | |
| higher running smoothness, further reduced vibrations and unprecedented | |
| energy efficiency. | |
| Class-leading energy efficiencyWhile | |
| the standard NF-A14 is one of the most energy efficient 1500rpm 140mm | |
| fans on the market, the industrialPPC version’s three-phase motor | |
| provides a further 10% reduction in power consumption when compared at | |
| 2000rpm. | |
| Fibre-glass reinforced polyamide constructionBoth | |
| the impeller and the frame of Noctua’s industrialPPC fans are made | |
| withstand temperatures up to 140°C and makes the fans even more robust | |
| Certified IP52 water- and dust protectionThanks | |
| to a special varnish coating that covers the motor and PCB, the NF-A14 | |
| means that it is not only highly dust resistant but also withstands | |
| dripping water equivalent to 3mm rainfall per minute. | |
| Flow Acceleration ChannelsThe | |
| speeding up the airflow at the crucial outer blade regions, this measure | |
| reduces suction side flow separation and thus leads to better | |
| efficiency and lower vortex noise. | |
| AAO FrameNoctua’s | |
| AAO (Advanced Acoustic Optimisation) frames feature integrated | |
| anti-vibration pads as well as Noctua’s proprietary Stepped Inlet Design | |
| and Inner Surface Microstructures, both of which further refine the | |
| fan’s performance/noise efficiency. | |
| Stepped Inlet DesignNoctua’s | |
| Stepped Inlet Design adds turbulence to the influx in order to | |
| facilitate the transition from laminar flow to turbulent flow, which | |
| reduces tonal intake noise, improves flow attachment and increases | |
| Inner Surface MicrostructuresWith | |
| the tips of the fan blades ploughing through the boundary layer created | |
| by the Inner Surface Microstructures, flow separation from the suction | |
| side of the blades is significantly suppressed, which results in reduced | |
| Integrated Anti-Vibration PadsIntegrated | |
| Anti-Vibration Pads made from extra-soft silicone minimise the | |
| transmission of minute vibrations while maintaining full compatibility | |
| SSO2 BearingThe | |
| NF-A14 industrialPPC features the further optimised second generation | |
| magnet is placed closer to the axis to provide even better | |
| stabilisation, precision and durability. | |
| Metal bearing shellIn | |
| order to guarantee the highest possible degree of manufacturing | |
| precision, minimum tolerance and excellent long-term stability, the | |
| NF-A14 industrialPPC sports a CNC milled bearing shell made entirely | |
| from brass. | |
| Custom designed PWM IC with SCDSupporting | |
| fully automatic PWM speed control, the NF-A14 industrialPPC uses | |
| NE-FD2 integrates Noctua’s proprietary Smooth Commutation Drive (SCD) | |
| technology, which suppresses PWM switching noises and thus makes the fan | |
| quieter at lower speeds. | |
| 6 years manufacturer’s warrantyNoctua | |
| fans are renowned for their impeccable quality and outstanding | |
| MTBF rating of more than 150.000 hours and comes with a full 6 years | |
| manufacturer’s warranty. | |
| Customisable for industry clientsFor | |
| industry clients, various features, certificates, packaging options and | |
| 24V versions, different connectors and speeds, different cable length or | |
| offers! |
