Noctua
Вентилатор 120mm
Артикул №: 1000044405
Категория:
Вентилатори
28,99 €
✓ Налично във външен склад
FAN Specification
Size: 120x120x25 mm
Mounting hole spacing: 105x105 mm
Connector & pin-configuration: 4-pin PWM
Cable length: 40cm
Bearing: SSO2
Blade geometry: Heptaperf
Frame technology: FocusedFlow
Material: Fibre-glass reinforced polyamide

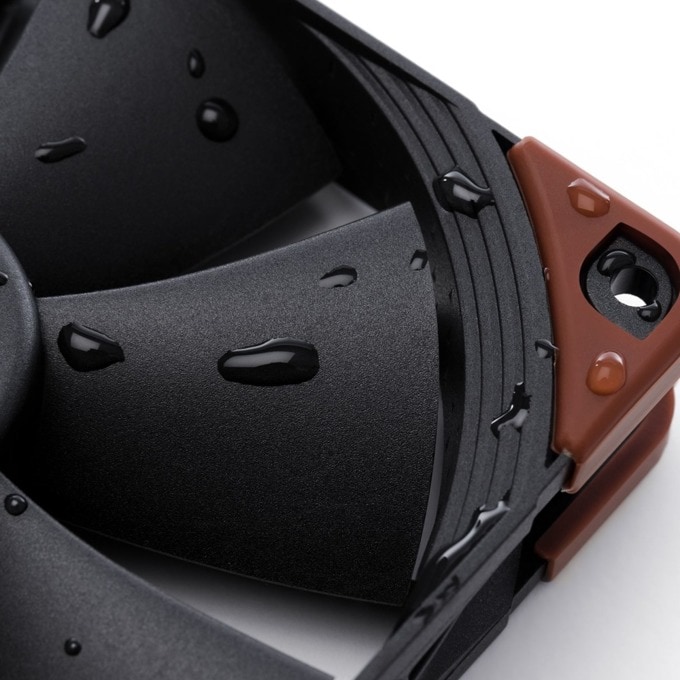

Ingress protection: IP52
Motor type: Three-phase
Rotational speed (+/- 10%): 3000 RPM
Min. rotational speed (PWM, +/-20%): 750 RPM
Airflow: 186,7 m³/h
Acoustical noise: 43,5 dB(A)
Static pressure: 7,63 mm H₂O
Max. input power: 3,6 W
Max. input current: 0,3 A
Operating voltage: 12 V
MTTF: > 150.000 h
Size: 120x120x25 mm
Mounting hole spacing: 105x105 mm
Connector & pin-configuration: 4-pin PWM
Cable length: 40cm
Bearing: SSO2
Blade geometry: Heptaperf
Frame technology: FocusedFlow
Material: Fibre-glass reinforced polyamide
Ingress protection: IP52
Motor type: Three-phase
Rotational speed (+/- 10%): 3000 RPM
Min. rotational speed (PWM, +/-20%): 750 RPM
Airflow: 186,7 m³/h
Acoustical noise: 43,5 dB(A)
Static pressure: 7,63 mm H₂O
Max. input power: 3,6 W
Max. input current: 0,3 A
Operating voltage: 12 V
MTTF: > 150.000 h
Технически характеристики
| Размер | 120x120x25 mm |
| Mounting hole spacing | 105x105 mm |
| Connector & pin-configuration | 4-pin PWM |
| Дължина на кабела | 40cm |
| Bearing | SSO2 |
| Blade geometry | Heptaperf |
| Frame technology | FocusedFlow |
| Материал | Fibre-glass reinforced polyamide |
| Ingress protection | IP52 |
| Motor type | Three-phase |
| Rotational speed (+/- 10%) | 3000 RPM |
| Min. rotational speed (PWM, +/-20%) | 750 RPM |
| Airflow | 186,7 m³/h |
| Acoustical noise | 43,5 dB(A) |
| Static pressure | 7,63 mm H₂O |
| Max. input power | 3,6 W |
| Max. input current | 0,3 A |
| Operating voltage | 12 V |
| MTTF | > 150.000 h |
