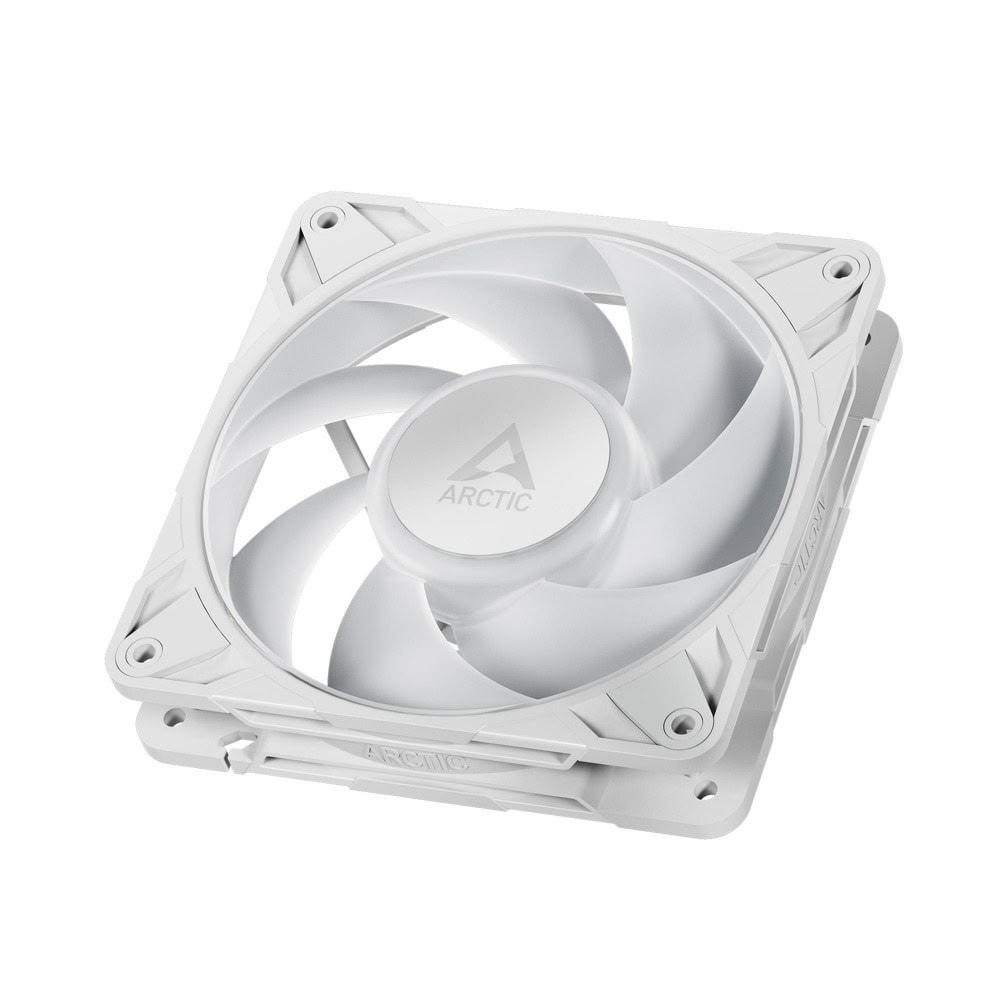

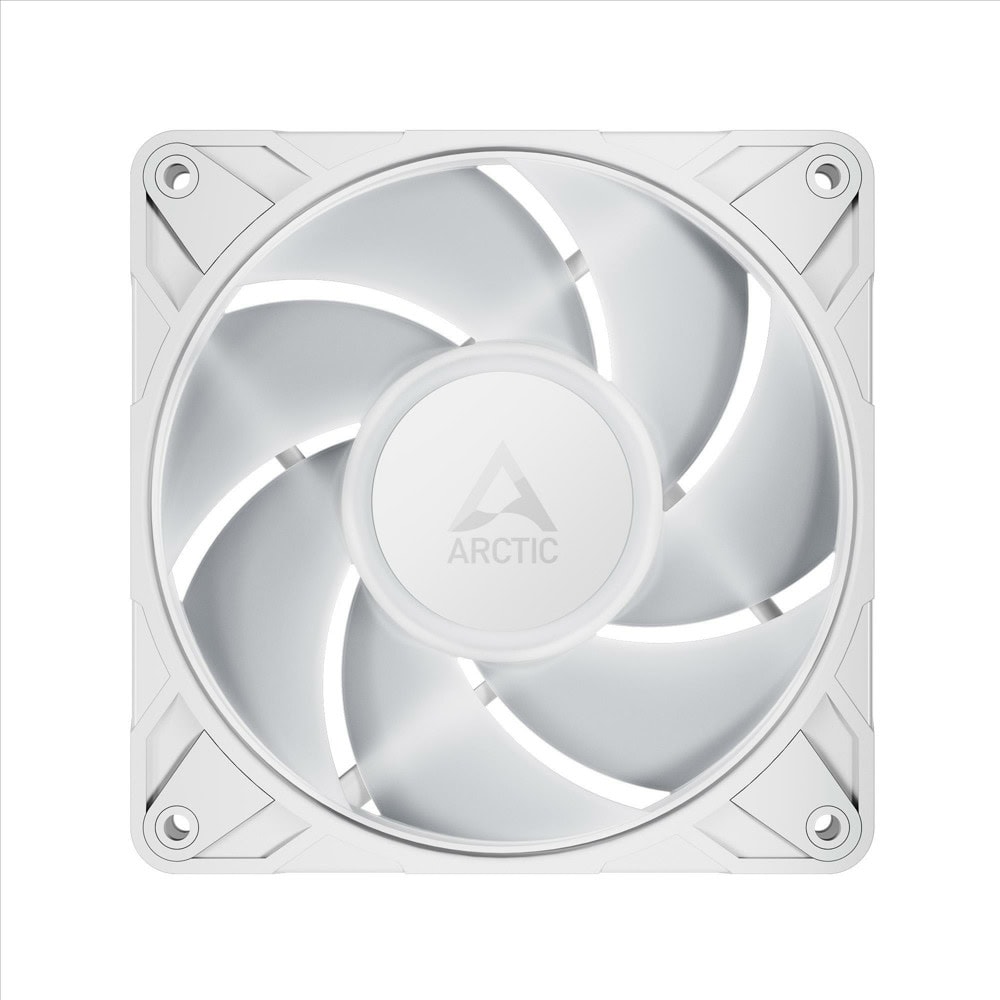

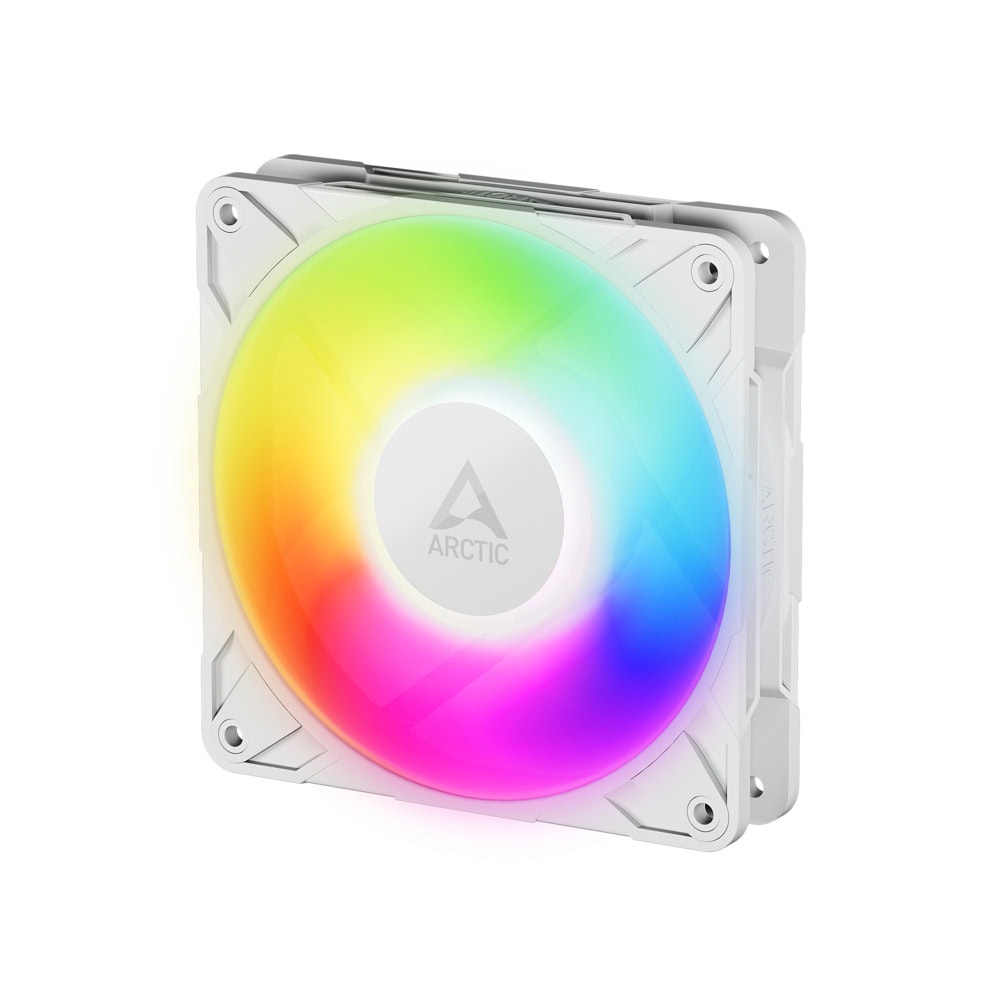

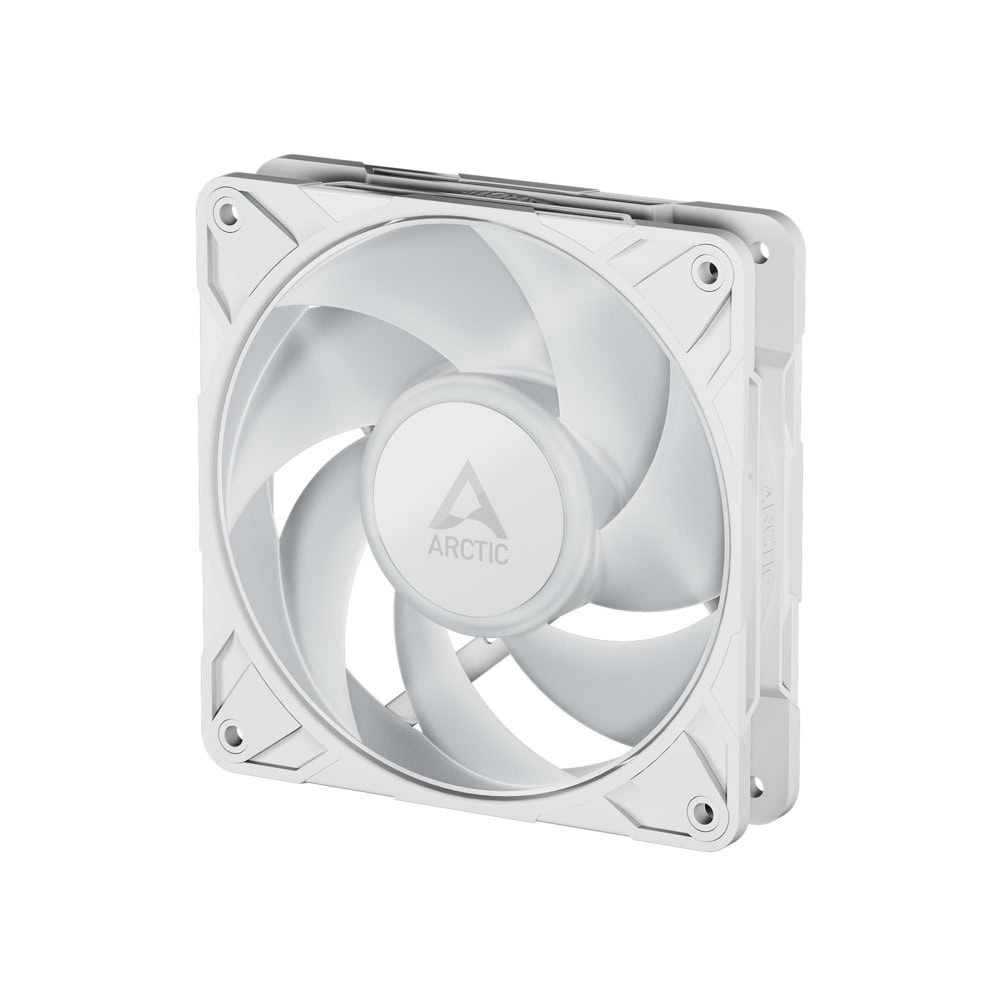

Вентилатор 120mm
Efficient Performance at High Air Resistance
Thanks to high static pressure, the Pro fans move air effectively through tight spaces. This makes them ideal for radiators, perforated panels, and mesh filters.
Maximum Performance, Redefined
Revised fan blade design for an optimal balance of performance and smooth operation.
Optimized Bearing-Shaft Design (FDB)
A hydrodynamic bearing combined with an extended shaft ensures quieter operation by improving pressure distribution and minimizing vibrations.
Automated Balancing
An automated measuring and balancing process ensures exceptional precision and smooth performance by applying the balancing compound with pinpoint accuracy.
More Power – Less Noise
The fan delivers more performance at low speeds with higher airflow and static pressure at just 25 dB(A) – ideal for quiet, powerful cooling.
Category:
Operating Ambient Temperature0–40 °C
Dimensions120 (L) x 120 (W) x 25 (H) mm
Характеристики
| Net Weight185 g | Fan Speed600–3000 rpm, PWM controlled; 0 rpm below 5% PWM |
| Airflow77 cfm | 131 m³/h | Static Pressure6.9 mmH₂O |
| Fan BearingFluid Dynamic Bearing | Typical Voltage12 V DC |
| Start Up Voltage3.3 V DC | Current (Fan)0.33 A |
