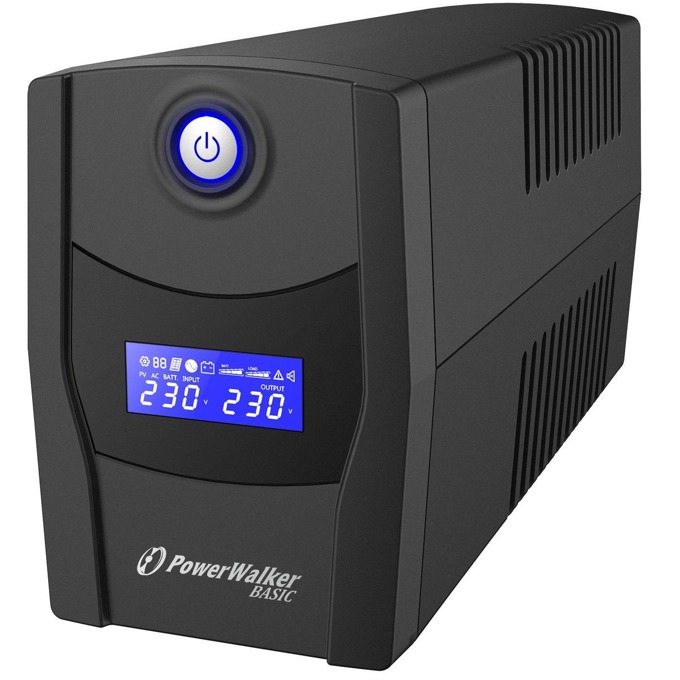

UPS PowerWalker VI 800 STL
- Human Interface Device (HID) compatible USB connection (no additional drivers needed)
- Multi-purpose button (single-click, double-click or hold to control different functions)
- Equipped with Boost and Buck AVR to stabilize output voltage
- Cold (DC) Start Function
- Auto dimming screen (UPS is woken up with single button click)
he PowerWalker Basic VI 600/800/1000/1200/1500/2200 STL series is designed to answer the essential market needs. This line interactive UPS will protect your load from power failures and voltage disturbances, while remaining affordable and compact. It is equipped with a USB port with HID support allowing easy and immediate communication with any O/S.

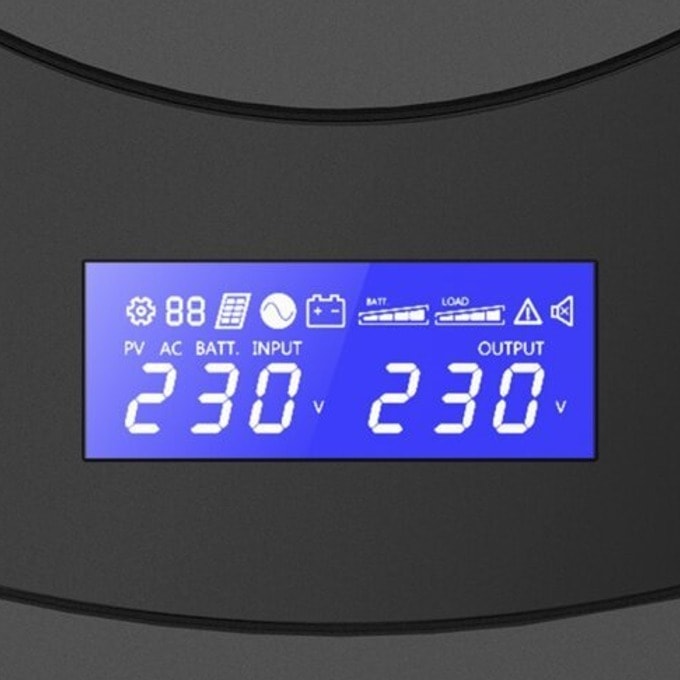

Additionally this series offers an advanced auto-dimming LCD panel with a smart multi-functional button (a single click will illuminate the LCD panel, a double click will mute the alarm and a long-press will control the output).
General features
Type Line-Interactive
Power capacity 800VA / 480W
Output Power Factor 0.60
Input
Input Voltage Range 162-290 VAC
Frequency (Synchronized Range) 50Hz or 60Hz
Output
Характеристики
| Nominal Output Voltage 230 VAC | Frequency (Battery Mode) ±1% |
| Technical details | Transfer Time [AC to Battery] 4ms |
| Charger 0.7A | Efficiency |
| LINE mode full Load 96.0% | Batteries and autonomy time |
| Batteries 1x 12V/7,2Ah | DC Voltage 1 x 12V |
| Recharge Time 8h to 90% | Half Load Backup Time 5min |

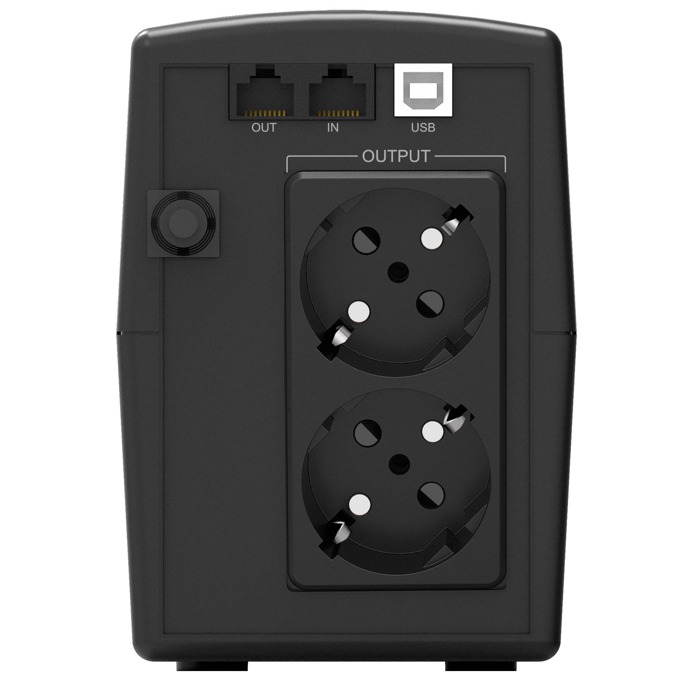

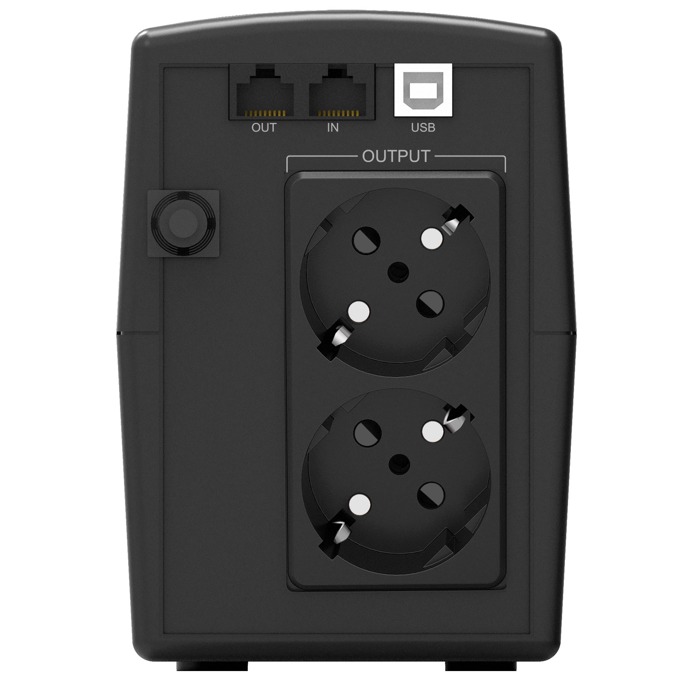

| Connections and communication | CEE 7/3 (Type F) Outlet 2 |
| Input CEE 7/7 | Software PowerMaster |
| USB port Yes | HID Support Yes |
| RJ-45/RJ-11 protection Yes | Environment |
| Noise Level No Fan | Temperature 0°C – 40°C |
