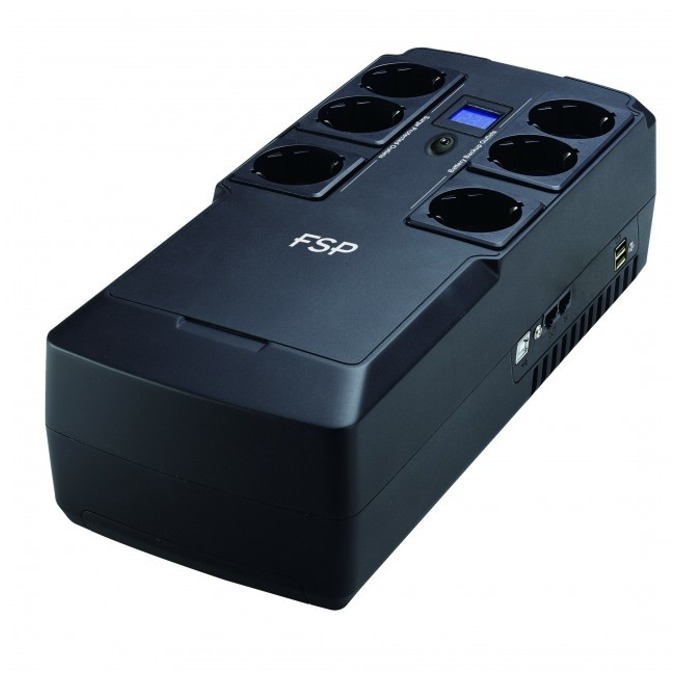

UPS Fortron NanoFit 600

INPUT:
Voltage
220/230/240 Vac

Acceptable Voltage Range
180-270 Vac

Frequency Range
60Hz / 50Hz (Auto sensing)

OUTPUT:
Voltage
220/230/240 Vac

AC Voltage Regulation (Batt. Mode)
±10%

Frequency Range (Batt. Mode)
60Hz or 50Hz ±1Hz

Transfer Time
Typical 2-6 ms, Max. 10ms

Waveform (Batt. Mode)
Simulated Sinewave

Battery Type & Number
12V / 4.5Ah x 1

Typical Recharge Time
8 hours recover to 90% capacity

INDICATORS:
Line Mode
Green lighting

Battery Mode
Yellow flashing

Fault
Red lighting

ALARM:
Battery Mode
Beeps every 10 seconds

Low Battery
Beeps every second

Overload
Beeps every 0.5 second

Fault
Continuously beeping

PROTECTION:
Full Protection
Overload, discharge, and overcharge protection

PHYSICAL:
Dimension, D X W X H (mm)
305 x 158.5 x 95

Net Weight (kg)
2.6

ENVIRONMENT:
Humidity
0-90 % RH @ 0- 40°C (non-condensing)

Noise Level
Less than 40dB
