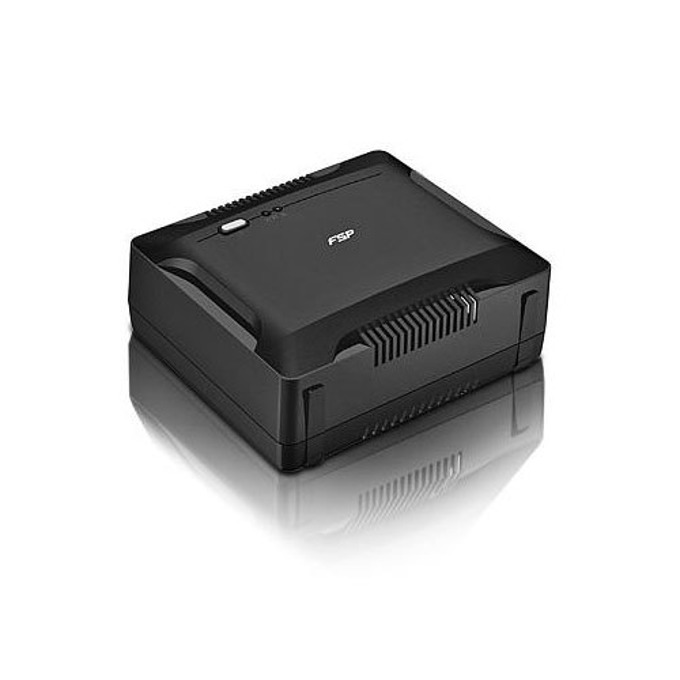

UPS Fortron NANO 600 UPS

Fortron Nano 600 • Model Nano 600 • Capacity 600 VA / 360W • Input Voltage 110 / 120 VAC or 220 / 230 / 240 VAC • Input Voltage Range 90~145 VAC or 180~270 VAC • Input Frequence 50Hz or 60Hz • Output Voltage 120 VAC or 230 VAC ± 10% • Output / Frequence Range 50 Hz or 60 Hz ±1 Hz • Output / Transfer Time (Typical) Typical 2-6 ms • Output / Waveform (Batt. Mode) Simulated Sine Wave • Battery / Battery Type & Number 12 V / 7 AH x 1 • Battery / Backup Time (One PC load@120W) 10~15 min. • Battery / Typical Recharge Time 8 hours recover to 90% capacity • Indicators / Ac Mode Green lighting • Indicators / Battery Mode Green flashing every 10 seconds • Indicators / Fault Red lighting • Protection / Full Protection Overload, discharge and overcharge protection • Alarm / Battery Mode Sounding every 10 seconds • Alarm / Low Battery Sounding every second (Batt. Mode) • Alarm / Fault Continuously sounding • Outlet sockets 2 x schuko • Physical Dimension, D x W x H (mm) 228 x 82.5 x 207 (@vertical stand) • Physical Net Weight (kg) 2.7 • Operating Environment / Humidity 0-90% • Warranty 24 months for product 12 months for batteries

FORTRON Nano 600

• Model Nano 600
