UPS Eaton 9E 2000i

Eaton 9E 2000i

Reliability and performance

• The Eaton 9E constantly monitors power conditions and regulates voltage and frequency due to the online double conversion topology.

• Power more servers than most similar UPSs due to a 0.8 power factor.

• Trust a leading manufacturer with decades of experience and high quality standards: CE compliance certified by external agency (CB report from the TUV).

Manageability

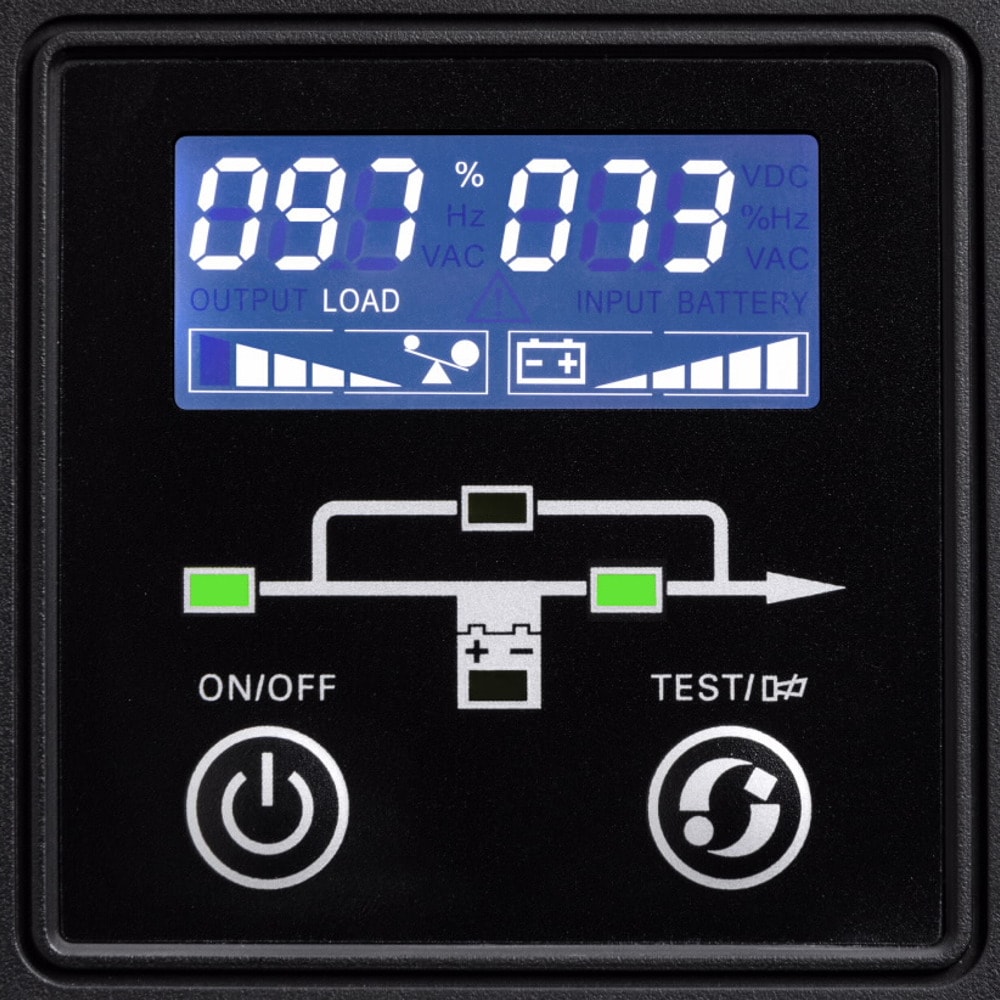

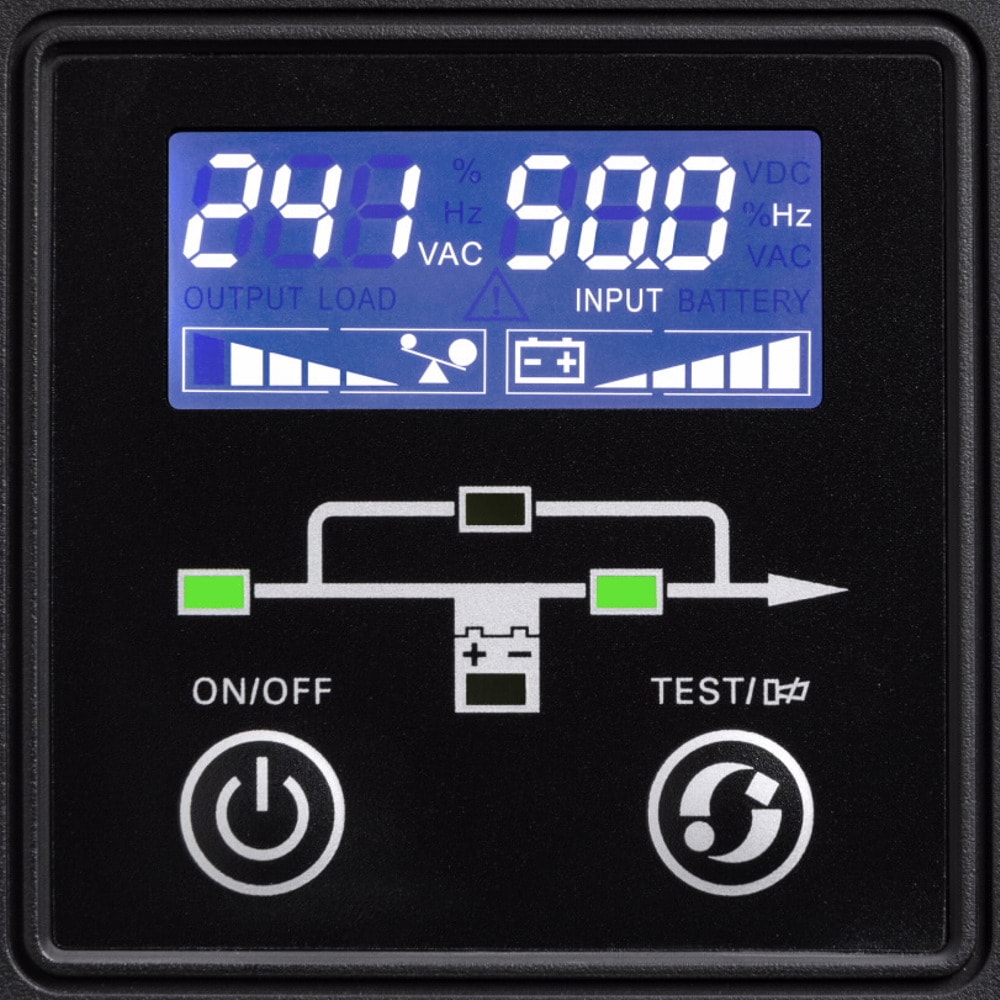

• Get clear information on the UPS’ status and measurements (load level, battery level, input/output voltage and frequency) on a single screen with the new LCD interface.

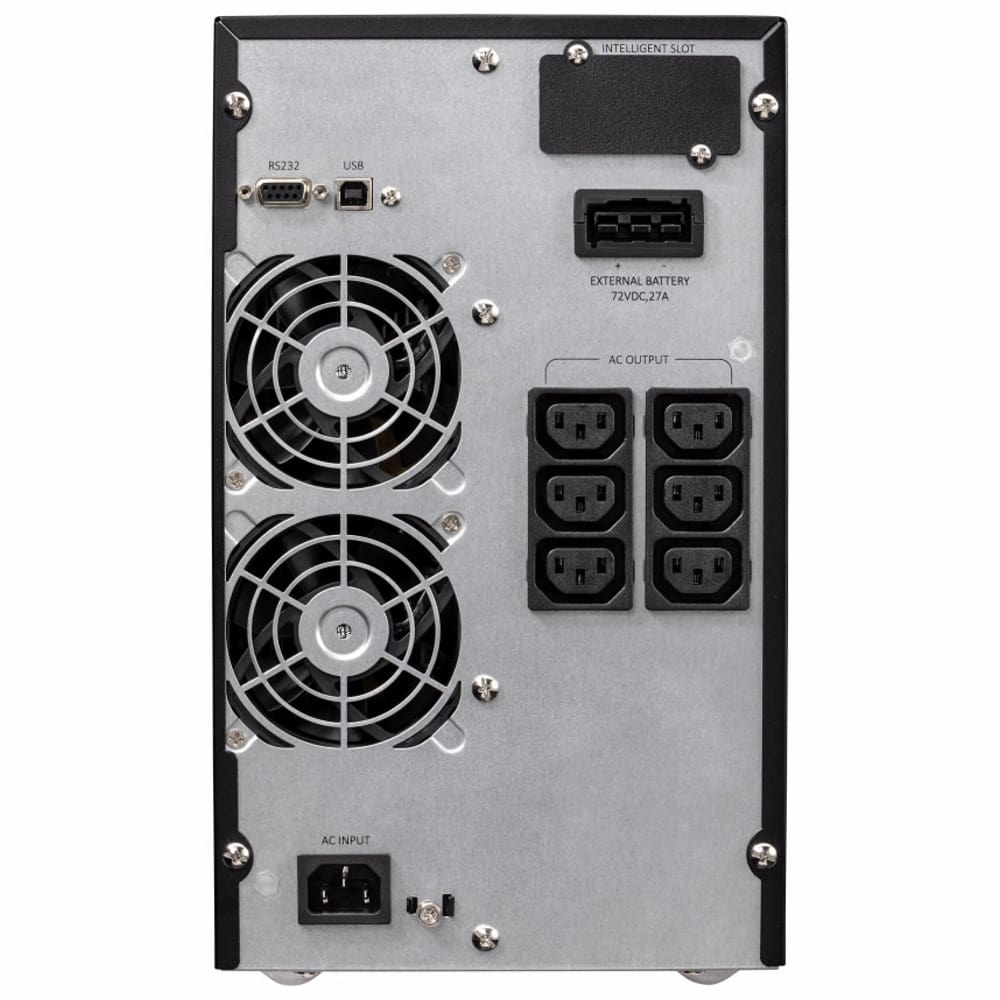

• Easily communicate with the UPS through USB, RS232 serial or over the network with the optional network card (Network-M2). Relay cards or ModBus cards are also available.

• Eaton 9E is compatible with Eaton IPM Editions Software which permits to integrate all major operating systems, leading virtualisation environments and cloud orchestrations tools.

Flexibility

• The internal bypass allows service continuity in case of an internal fault. A maintenance bypass is also available as standard for easy maintenance of the UPS without powering down critical systems.

• Make your installation more flexible with a combo input (3:1 and 1:1) on the 10kVA, 15kVA, and 20kVA.

• Extend runtime as you like by adding up to 4 external battery modules (EBM). For extra-long runtime, XL models with internal supercharger are also available at 3kVA, 10kVA and 20kVA.

General specifications

Product Length/Depth

450 mm

Product Height

86.5 mm

Product Width

440 mm

Product Weight

15.8 kg

Compliances

CE Marked

TUV

Certifications

IEC/EN 62040-1

IEC/EN 62040-2

CE

EAC

Battery

Battery type

Sealed, lead-acid

Runtime graph

View runtime graph

Battery replacement

Replacable batteries

Battery quantity

6

Battery management

Automatic battery test

Deep discharge protection

Battery rating

12 V / 7 Ah

Extended battery capability

Yes

Electrical output

Receptacle

(6) C13

Voltage
