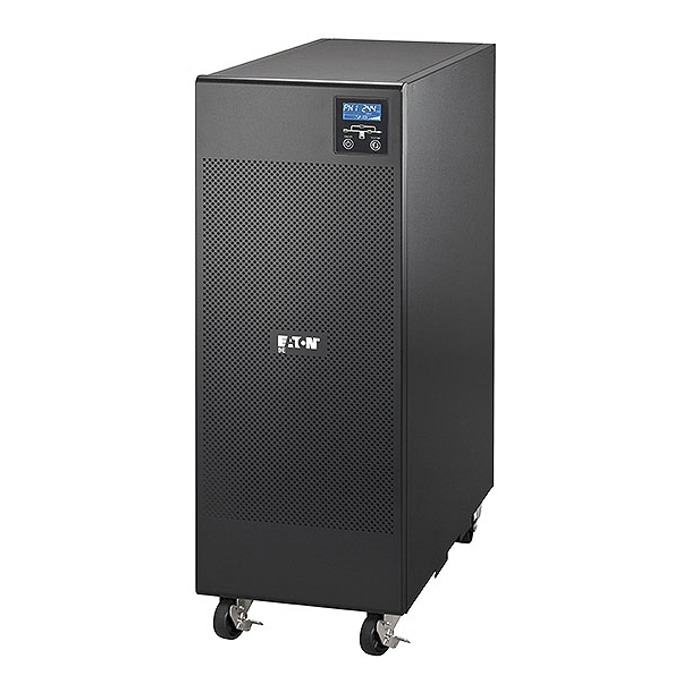

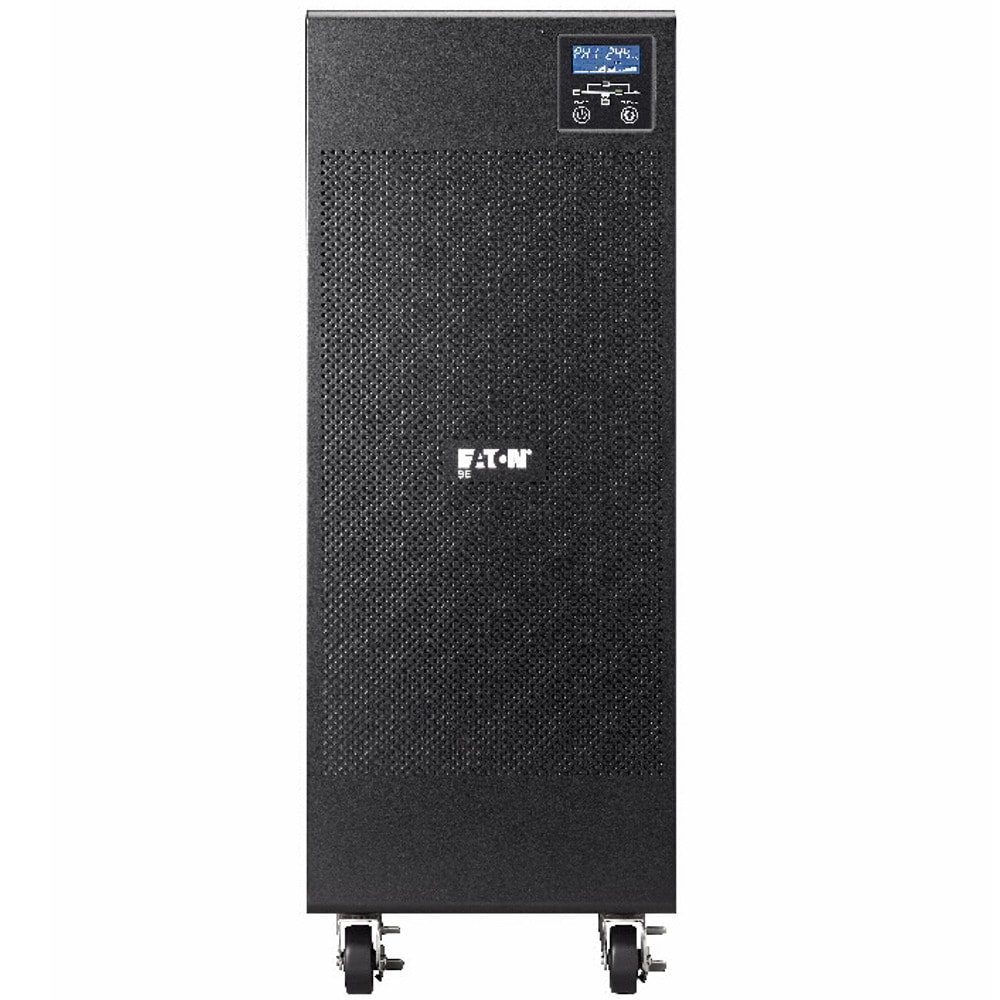

UPS Eaton 9E 10000i

Eaton 9E 10000i

Reliability and performance

• The Eaton 9E constantly monitors power conditions and regulates voltage and frequency due to the online double conversion topology

• Power more servers than most similar UPSs due to a 0.8 power factor

• Trust a leading manufacturer with decades of experience and high quality standards: CE compliance certified by external agency (CB report from the TUV)

Manageability

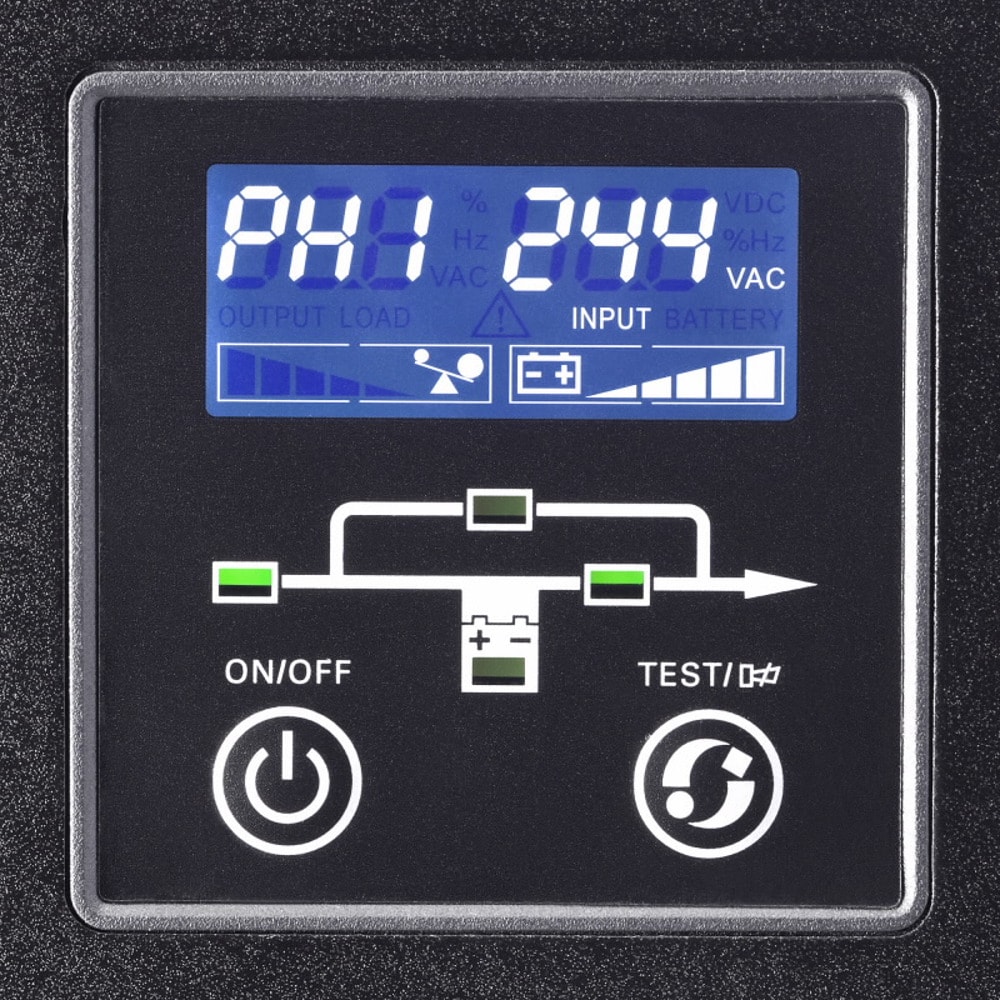

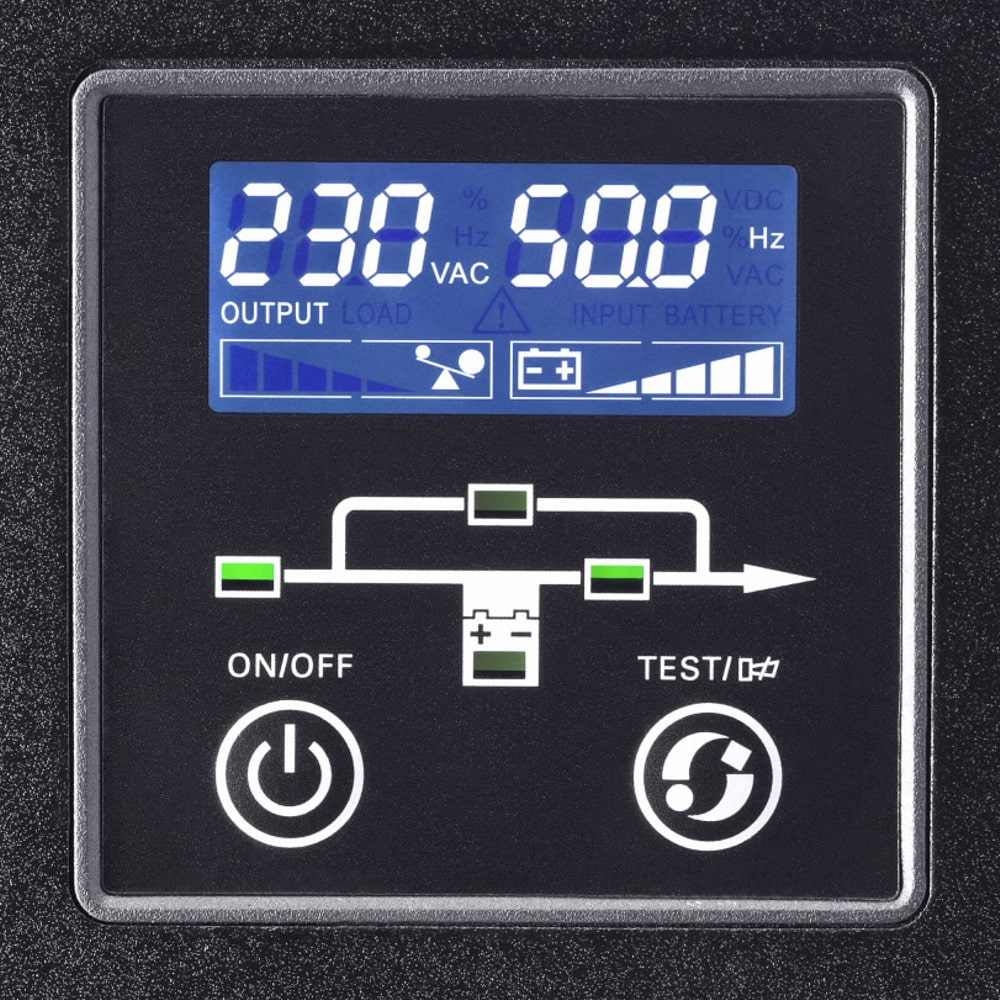

• Get clear information on the UPS’ status and measurements (load level, battery level, input/output voltage and frequency) on a single screen with the new LCD interface

• Easily communicate with the UPS through USB, RS232 serial or over the network with the optional network card (Network-MS). Relay cards or ModBus cards are also available.

• Integrate 9E into all software environments. The Eaton 9E is delivered with Eaton’s Intelligent Power™ Software and is compatible with all major OS including advanced integration in VMware vCenter and Microsoft Hyper-V.

Flexibility

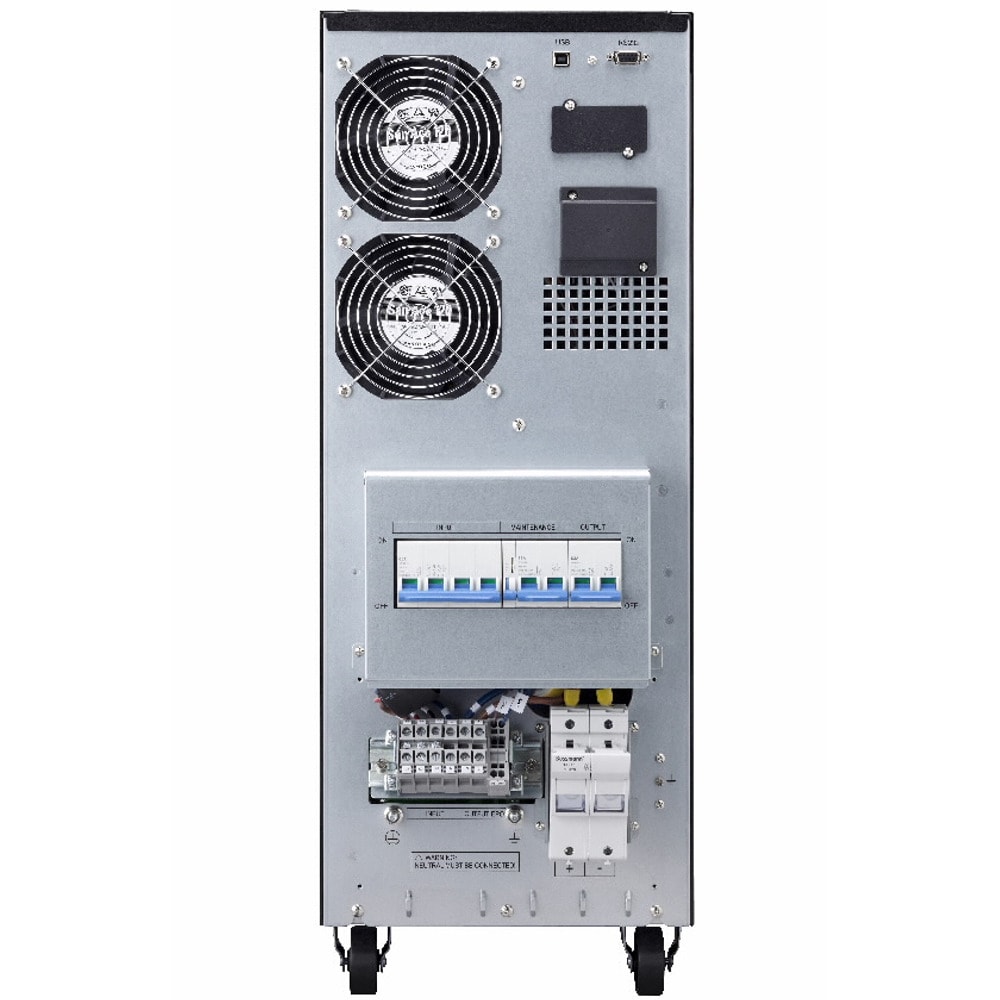

• The internal bypass allows service continuity in case of an internal fault. A maintenance bypass is also available as standard for easy maintenance of the UPS without powering down critical systems.

• Make your installation more flexible with a combo input (3:1 and 1:1) on the 10kVA, 15kVA, and 20kVA

• Extend runtime as you like by adding up to 4 external battery modules (EBM). For extra-long runtime, XL models with internal supercharger are also available at 10kVA and 20kVA.

General specifications

Product Length/Depth

61.29 cm

Product Height

70.85 cm

Product Width

26.24 cm

Product Weight

85.39 kg

Compliances

CE Marked
