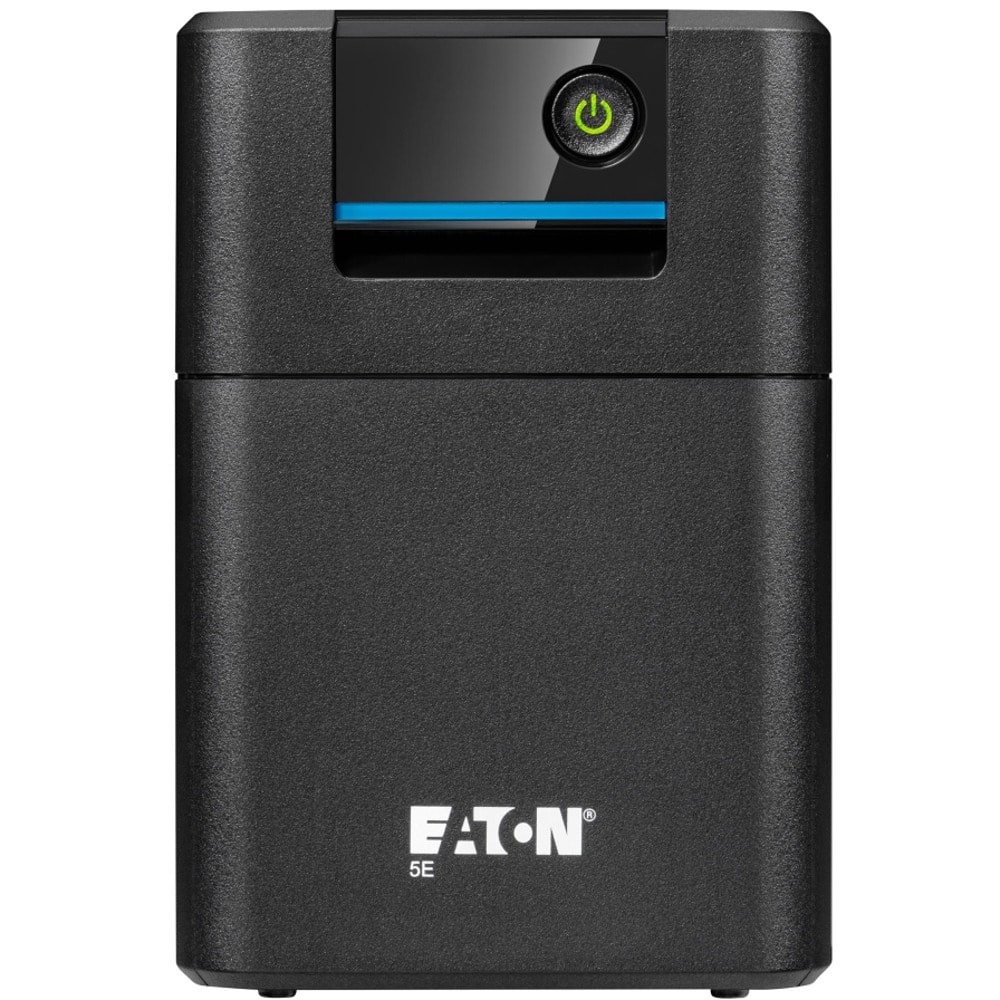

UPS Eaton 5E Gen2 5E550I
Eaton 5E Gen2
The Eaton 5E Gen2 UPS combines proven high performance and quality with affordable pricing to offer cost-effective, reliable protection against power outages and bad power quality. Suitable for home use or for equipment in small business and professional environments, this latest version of our 5E line interactive UPS now also offers national outlets flexibility plus the convenience of permanently recharged batteries (even when off) and the ability to start without mains power (cold start).
Easy application connection and protection
A perfect fit for any local plug type thanks to national outlet formats (4 or 6 IEC and 2 or 4 for FR, DIN/IT, BS). Eaton's 5E Gen2 UPS offers single-product simplicity in multiple residential and commercial environments.
Greater tolerance of grid fluctuations
All kinds of influences can upset grid voltage at any time. Features double-boost line interactive topology (AVR) for wider input voltage window (under and overvoltage: 140 – 300 V) to save battery power in the event of power outage.
Характеристики
| Mm | 288 |
| Product Height | Да |
| Mm | 148 |
| Product Width | Да |
| Mm | 100 |
| Product Weight | Да |
| Kg | 3.75 |
| Compliances | Да |
| CB | Да |
| LVD Directive | Да |
| EMC Directive | Да |
| RoHS Directive | Да |
| Packaging Directive | Да |
| WEEE Directive | Да |
| Batteries Directive | Да |
| Certifications | Да |
| IEC/EN | 62040-1 |
| IEC/EN | 62040-2 |
| CE | Да |
| EAC | Да |
| UKCA | Да |
| Cm | Да |
| Ukr | Да |
| IEC/EN | 62040-3 |
Product specifications
| Secondary frequency - max | Да |
| Hz | 60 |
| Wattage | Да |
| 300W | Да |
| Form factor | Да |
| Tower | Да |
| Input connection | Да |
| C14 | Да |
| Input voltage - min | Да |
| 140 V | Да |
| Output voltage - max | Да |
| 257 V | Да |
| Secondary frequency - min | Да |
| Hz | 50 |
| Тип батерия | Да |
| Sealed, lead-acid | Да |
| Efficiency | Да |
| 95 | Да |
| Special features | Да |
| Automatic Voltage Regulation (AVR) | Да |
| Saves space with a compact tower design | Да |
| Construction type | Да |
| Free standing model | Да |
| Output voltage - min | Да |
| 195 V | Да |
| Цвят | Да |
| Черен | Да |
| Output voltage range | Да |
| 195-257 V | Да |
| Topology | Да |
| Line-interactive | Да |
| Surge protection | Да |
| Да | Да |
| Input nominal voltage | Да |
| 230V default (220/230/240V) | Да |
| Input frequency range | Да |
| 45-63 Hz | Да |
| Input voltage - max | Да |
| 300 V | Да |
| Voltage type | Да |
| AC | Да |
| Phase (output) | Да |
| 1 | Да |
| Battery management | Да |
| Number of Outputs C13 | Да |
| 4 | Да |
| Operating temperature - min | Да |
| 0 °C | Да |
| VA rating | Да |
| VA | 550 |
| Potential free switch contact | Да |
| Не | Да |
| Receptacle | Да |
| 4) C13 | Да |
| Phase (input) | Да |
| 1 | Да |
| Съдържание на пакета | Да |
| 2) IEC-IEC output cables | Да |
| Quick start | Да |
| Safety instructions | Да |
| Feed type | Да |
| 1 | Да |
| User interface | Да |
| LEDs | Да |
| Battery quantity | Да |
| 1 | Да |
| Operating temperature - max | Да |
| 40 °C | Да |
| Напрежение | Да |
| 230V | Да |
| Temperature range | Да |
| 0° to 40°C (32° to 104°F) | Да |
| Relative humidity | Да |
| 0-90% non-condensing | Да |
| Output apparent power | Да |
| VA | 550 |
| Output frequency | Да |
| 50/60 Hz | Да |
| Primary frequency - min | Да |
| Hz | 45 |
| Battery rating | Да |
| V / 4.5 Ah | 12 |
| Тип | Да |
| UPS | Да |
| Output nominal voltage | Да |
| 230V | Да |
| Input voltage range | Да |
| 140-300 V | Да |
| Nominal frequency | Да |
| 50/60 Hz | Да |
| Primary frequency - max | Да |
| Hz | 63 |
