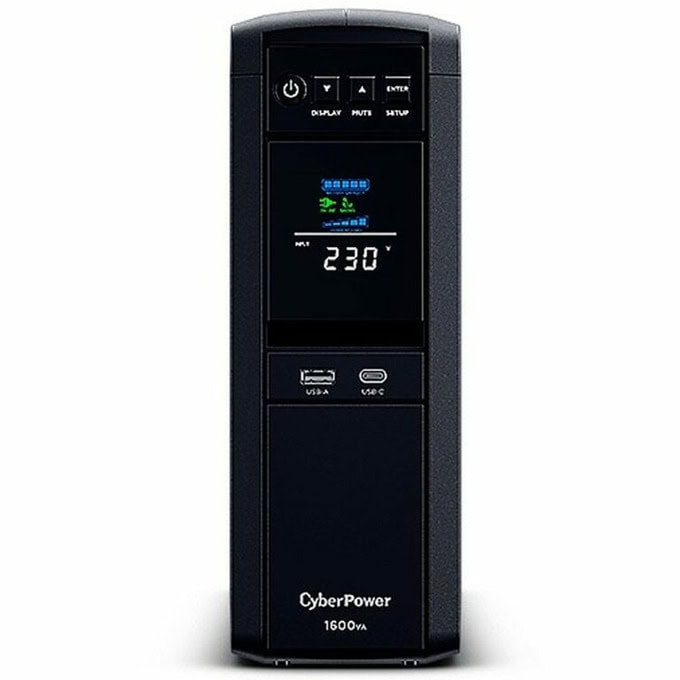

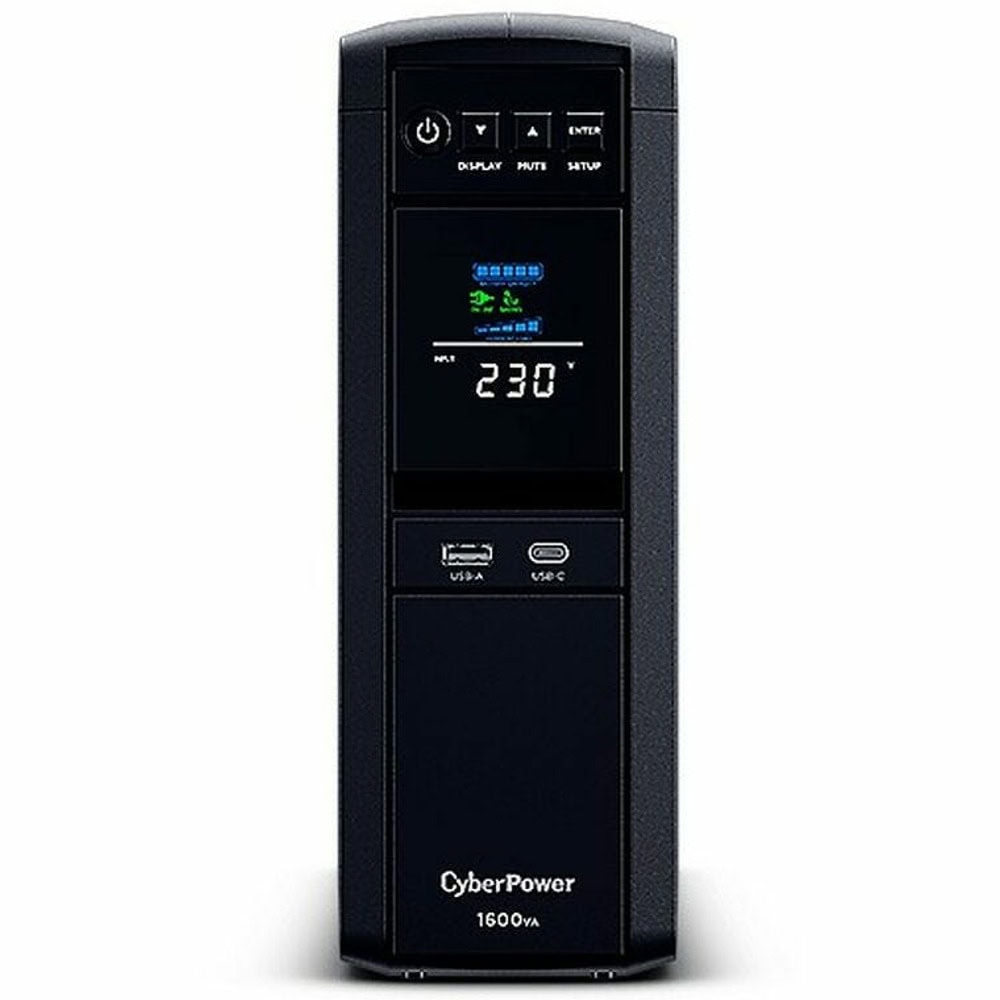

UPS CyberPower CP1600EPFCLCD

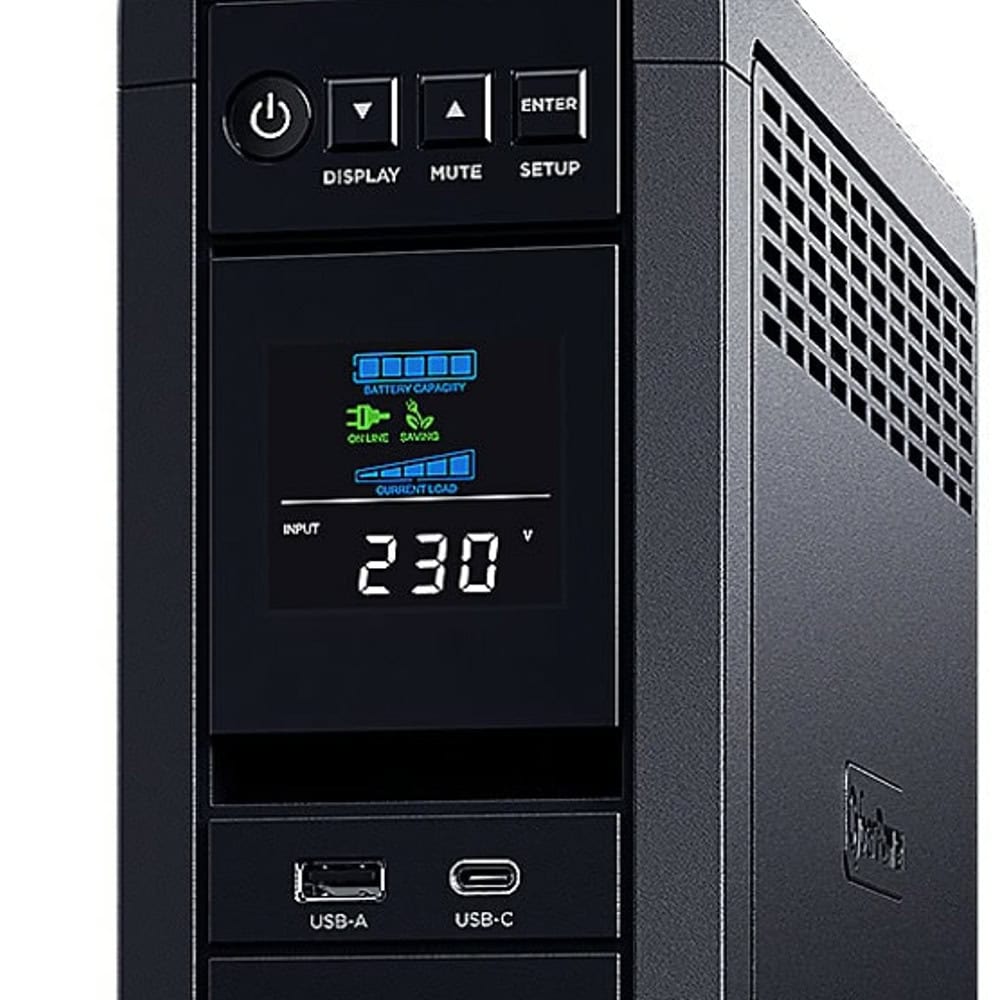

CyberPower CP1600EPFCLCD with Pure Sine Wave output safeguards mid- to high-end computer systems, servers and networking hardware that use conventional and Active Power Factor Correction (PFC) power supplies. Designed with GreenPower UPS™ Technology to improve UPS operating efficiency and to minimize its energy consumption, this UPS delivers significant energy cost savings over conventional UPS systems. The UPS provides Automatic Voltage Regulation (AVR) to maintain stable voltage for connected equipment. The product features data line protection with high-speed transmission to safeguard communication equipment against surges/spikes as well as supply 1Gbps speed to transmit data. With tiltable color LCD panel , users can monitor key power and battery information at a glance. The PowerPanel Power Management Software allows user to perform real-time monitoring and configuration.
General
Form Factor
Tower
UPS Topology
Line-interactive
Energy Saving Technology
GreenPower UPS™ Bypass Technology
Active PFC Compatibility
Yes
Input
Nominal Input Voltage ( Vac )
220
Характеристики
| 230 | 240 |
| Input Voltage Range ( Vac ) | 169 ~ 271 |
| Input Frequency ( Hz ) | 50 ± 3 |
| 60 ± 3 | Input Frequency Detection |
| Auto-sensing | Rated Input Current ( A ) |
| 10 | Input Connector Type |
| IEC C14 | Detachable Power Cord Plug Type |
| Schuko x | Power Cord Length (ft.) |
| 6 | Power Cord Length (m.) |
| 1.83 | Output |
| Капацитет (VA) | 1600 |
| Капацитет (Watts) | 1000 |
| On Battery Waveform | Pure Sine Wave |
| On Battery Voltage(s) ( Vac ) | 230 ± 5 % (Under a test load of＜60%. When the load＞60%, the output voltage range may＞5%.) |
| On Battery Frequency ( Hz ) | 50 ± 1% |
| 60 ± 1% | Automatic Voltage Regulation (AVR) |
| Single Boost | Overload Protection |
| Internal Current Limiting | Outlet(s) - Total |

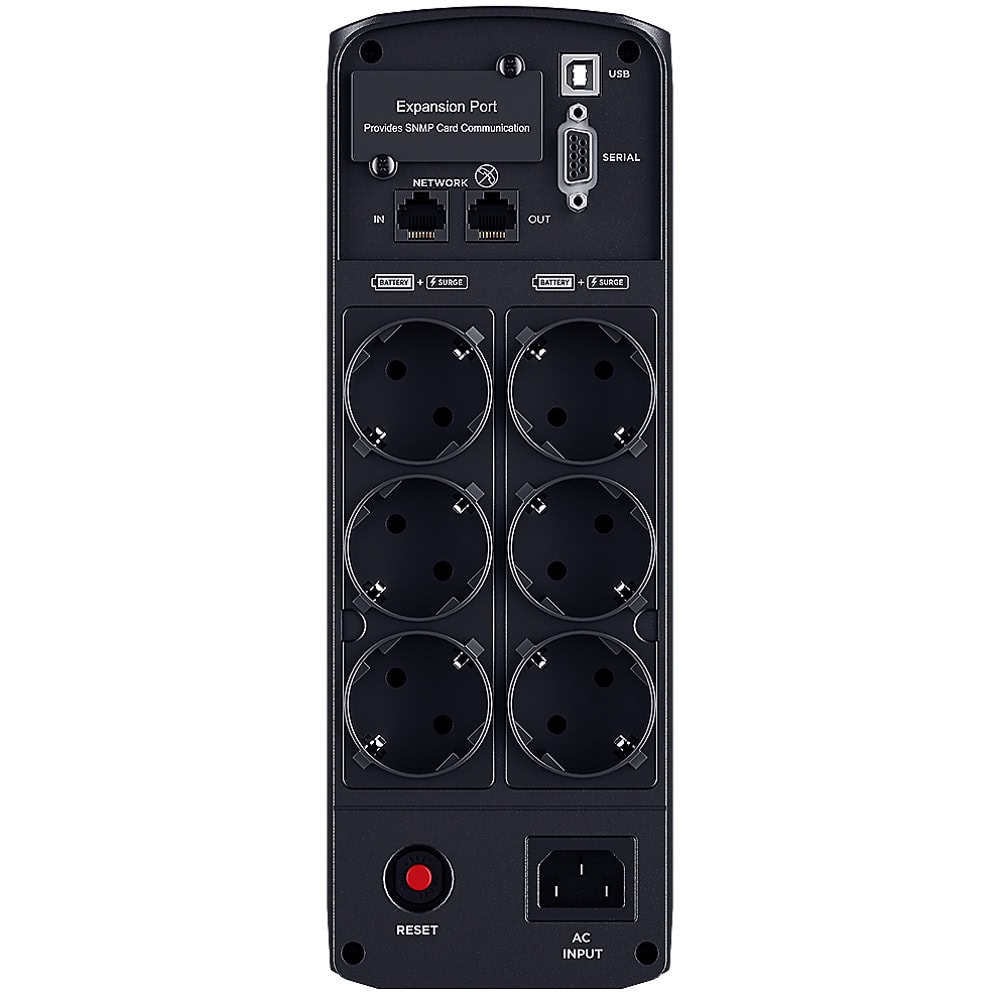

| 6 | Outlet Type |
| Schuko x 6 | Outlet(s) - Battery & Surge Protected |
| 6 | Typical Transfer Time ( ms ) |
| 8 (At normal sensitivity) | USB Charging Port(s) |
| USB-A x 1 | USB-C x 1 |
