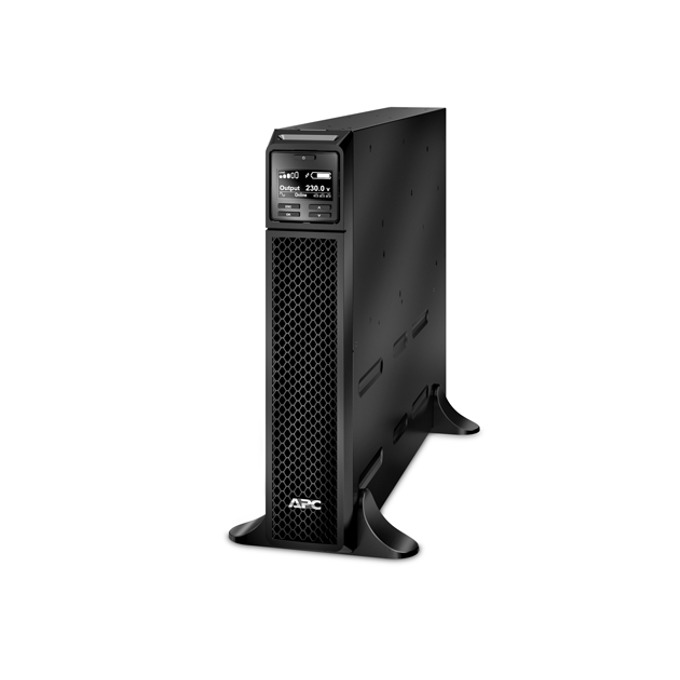

UPS APC Smart-UPS SRT SRT3000XLI

APC Smart-UPS SRT 3000VA 230V

SRT3000XLI

SRT3000XLIFeatures

APC Smart-UPS SRT 3000VA 230V

High density, double-conversion on-line power protection with scalable runtime

Includes : CD with software , Country-specific detachable power cord , Documentation CD , Installation guide , Removable support feet , USB cable , Warranty card

Battery failure notification

Provides early-warning fault analysis on batteries enabling timely preventive maintenance

ECO Mode

Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection

Green mode

Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.

LCD graphics display

Text and mimic diagrams that display modes of operation, system parameters and alarms.

Rack/Tower convertible

Protects the initial investment in the UPS when migrating from tower to rack-mount environment.

Output

Output power capacity

2.7 KWatts / 3.0 kVA

Max Configurable Power (Watts)

2.7 KWatts / 3.0 kVA

Nominal Output Voltage

230V

Output Voltage Note

Configurable for 220 : 230 or 240 nominal output voltage

Output Voltage Distortion

Less than 2%

Output Frequency (sync to mains)

50/60Hz +/- 3 Hz

Other Output Voltages

220, 240

Load Crest Factor

3 : 1

Topology

Double Conversion Online

Waveform type

Sine wave

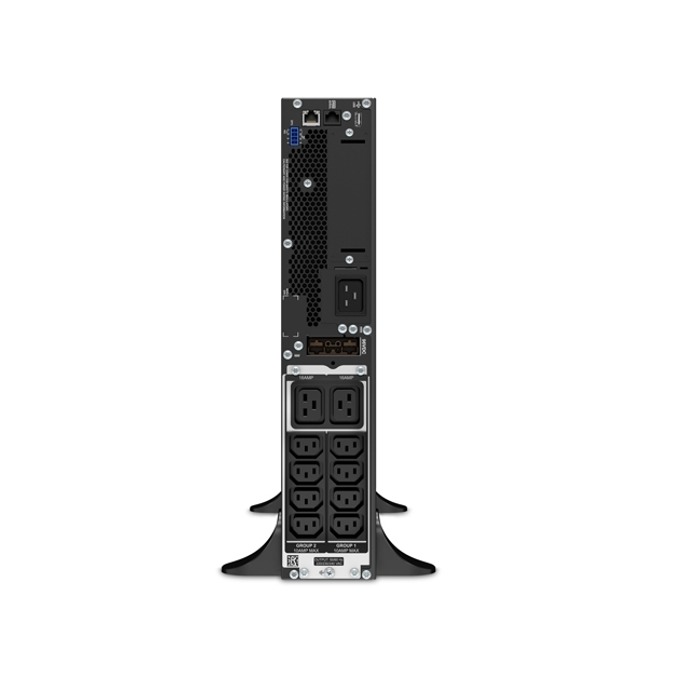

Output Connections

(8) IEC 320 C13 (Battery Backup)

(2) IEC Jumpers (Battery Backup)

(2) IEC 320 C19 (Battery Backup)

Bypass

Internal Bypass (Automatic and Manual)

Input

Nominal Input Voltage

230V

Input frequency

40 - 70 Hz (auto sensing)

Input Connections

British BS1363A, IEC-320 C20, Schuko CEE 7/EU1-16P

Cord Length

2.44meters

Input voltage range for main operations

160 - 275V

Input voltage adjustable range for mains operation

100 - 275 (half load)V

Number of Power Cords

3

Other Input Voltages

220, 240

Batteries & Runtime

Battery type

Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

Typical recharge time

3hour(s)

Replacement Battery

APCRBC152

Expected Battery Life (years)

3 - 5

RBC Quantity

1

Extendable Run Time

1

Extended Run Options

APC-Smart-UPS-SRT-3000VA-230V

Runtime

View Runtime Graph

View Runtime Chart

Efficiency

View Efficiency Graph

Communications & Management

Interface Port(s)

RJ-45 Serial , Smart-Slot , USB

Control panel

Multi-function LCD status and control console

Audible Alarm

Audible and visible alarms prioritized by severity

Emergency Power Off (EPO)

Yes

Available SmartSlot™ Interface Quantity

1
