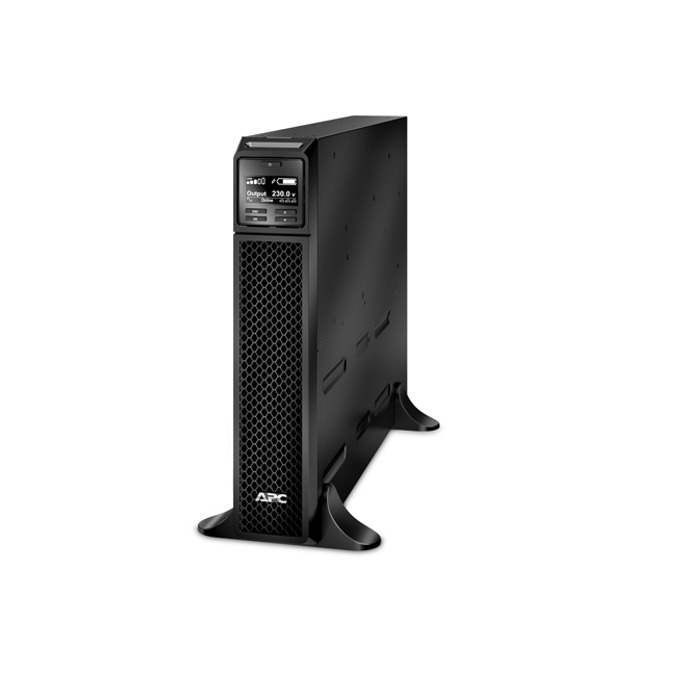

UPS APC Smart-UPS SRT SRT2200XLI

APC Smart-UPS SRT 2200VA 230V
SRT2200XLI

SRT2200XLI Features

APC Smart-UPS SRT 2200VA 230V

Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance
ECO Mode
Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
LCD graphics display
Text and mimic diagrams that display modes of operation, system parameters and alarms.
Rack/Tower convertible
Protects the initial investment in the UPS when migrating from tower to rack-mount environment.

Output

Output power capacity
1.98 KWatts / 2.2 kVA

Max Configurable Power (Watts)
1.98 KWatts / 2.2 kVA

Nominal Output Voltage
230V

Output Voltage Note
Configurable for 220 : 230 or 240 nominal output voltage

Output Voltage Distortion
Less than 2%

Output Frequency (sync to mains)
50/60Hz +/- 3 Hz

Other Output Voltages
220, 240

Load Crest Factor
3 : 1

Topology
Double Conversion Online

Waveform type
Sine wave

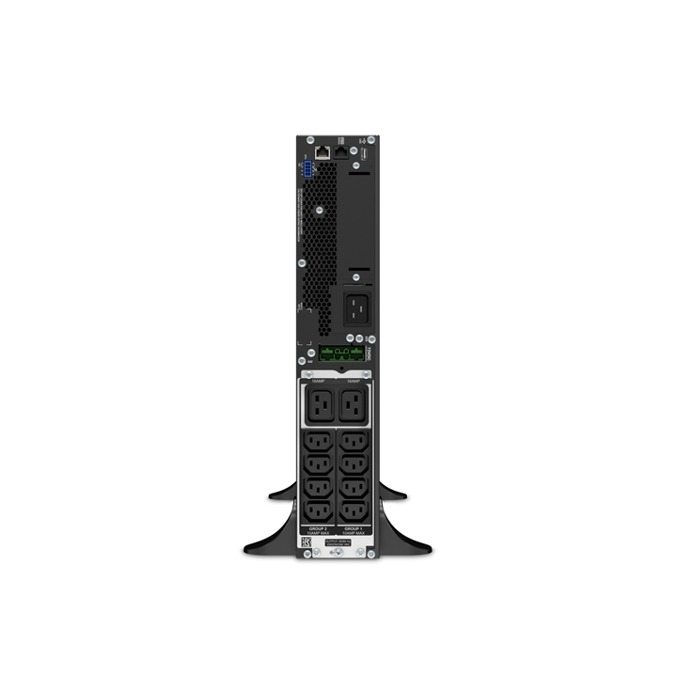

Output Connections
(8) IEC 320 C13 (Battery Backup)
(2) IEC 320 C19 (Battery Backup)
(2) IEC Jumpers (Battery Backup)

Bypass
Internal Bypass (Automatic and Manual)

Input

Nominal Input Voltage
230V

Input frequency
40 - 70 Hz (auto sensing)

Input Connections
IEC-320 C20, Schuko CEE 7 / EU1-16P, British BS1363A

Cord Length
2.44meters

Input voltage range for main operations
160 - 275V

Input voltage adjustable range for mains operation
100 - 275 (half load)V

Number of Power Cords
1

Other Input Voltages
220, 240

Batteries & Runtime

Battery type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

Included Battery Modules
1

Typical recharge time
3hour(s)

Replacement Battery
APCRBC141

Expected Battery Life (years)
3 - 5

RBC Quantity
1

Extendable Run Time
1

Extended Run Options
APC-Smart-UPS-SRT-2200VA-230V

Runtime
View Runtime Graph
View Runtime Chart

Efficiency
View Efficiency Graph

Communications & Management

Interface Port(s)
RJ-45 Serial , Smart-Slot , USB

Control panel
Multi-function LCD status and control console

Audible Alarm
Audible and visible alarms prioritized by severity

Emergency Power Off (EPO)
Yes

Available SmartSlot™ Interface Quantity
1

Surge Protection and Filtering

Surge energy rating
340Joules

Physical

Maximum Height
