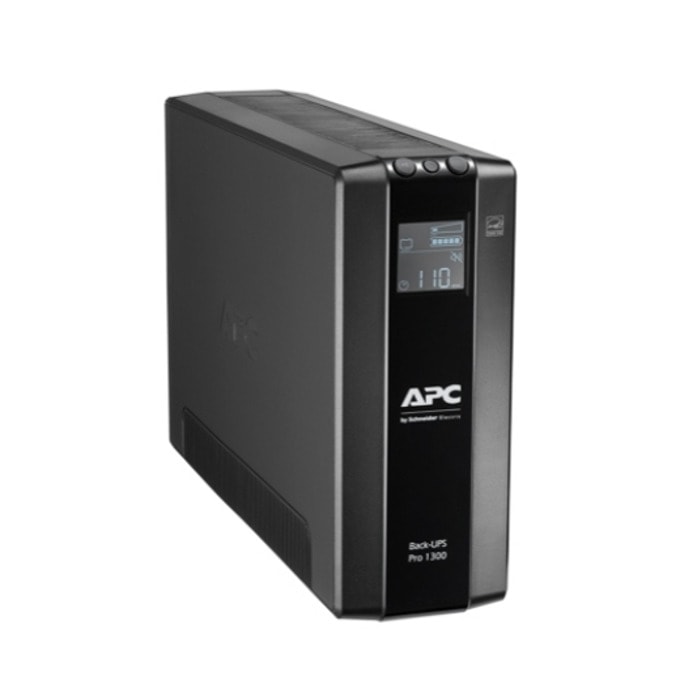

APC Back UPS Pro BR 1300VA 8 Outlets AVR LCD Interface
Output
Max Configurable Power (Watts)
780 Watts / 1.3kVA
Output Frequency (sync to mains)
50/60 Hz +/- 1 Hz Sync to mains
Topology
Line interactive
Input
Input frequency
50/60 Hz +/- 3 Hz Auto-sensing
Input voltage range for main operations
176 - 294V
Batteries & Runtime
Battery type
Lead-acid battery
Typical recharge time
16hour(s)
Nominal Battery Voltage
24 V
Replacement Battery
APCRBC165
Expected Battery Life (years)
3 - 5
RBC Quantity
1
Battery Charge Power (Watts)
11 Watts
Communications & Management
Interface Port(s)
USB
Control panel
Multifunction LCD status and control console
Audible Alarm
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Surge Protection and Filtering
Surge energy rating
509Joules
Data Line Protection
RJ45 10/100/1000 Base-T Ethernet protection
Filtering
Full time multi-pole noise filtering : 10% of IEEE surge let-through : zero clamping response time: instantaneous
Physical
Maximum Height
Output
Max Configurable Power (Watts)
780 Watts / 1.3kVA
Output Frequency (sync to mains)
50/60 Hz +/- 1 Hz Sync to mains
Topology
Line interactive
Input
Input frequency
50/60 Hz +/- 3 Hz Auto-sensing
Input voltage range for main operations
176 - 294V
Batteries & Runtime
Battery type
Lead-acid battery
Typical recharge time
16hour(s)
Nominal Battery Voltage
24 V
Replacement Battery
APCRBC165
Expected Battery Life (years)
3 - 5
RBC Quantity
1
Battery Charge Power (Watts)
11 Watts
Communications & Management
Interface Port(s)
USB
Control panel
Multifunction LCD status and control console
Audible Alarm
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Surge Protection and Filtering
Surge energy rating
509Joules
Data Line Protection
RJ45 10/100/1000 Base-T Ethernet protection
Filtering
Full time multi-pole noise filtering : 10% of IEEE surge let-through : zero clamping response time: instantaneous
Physical
Maximum Height
Характеристики
| Surge energy rating | 509Joules |
| Data Line Protection | RJ45 10/100/1000 Base-T Ethernet protection |
| Filtering | Full time multi-pole noise filtering : 10% of IEEE surge let-through : zero clamping response time: instantaneous |
| Physical | Maximum Height |
| 100MM, 10.0CM | Maximum Width |
| 250MM, 25.0CM | Maximum Depth |
| 382MM, 38.2CM | Нето тегло |
| 10.2KG | Shipping weight |
| 11.85KG | Shipping Height |
| 330MM, 33.0CM | Shipping Width |
| 485MM, 48.5CM | Shipping Depth |
| 225MM, 22.5CM | Цвят |
| Черен | Master Carton Dimensions (Length x Width x Height) |
| 356 x 51 x 254MM | Master Carton Units |
| 1.0 | Master Carton Weight |
| 12.7 | Environmental |
| Работна температура | 0 - 40 °C |
| Operating Relative Humidity | 0 - 95 (Non-condensing) % |
| Operating Elevation | 0 - 3048meters |
| Температура на съхранение | -15 - 45 °C |
| Storage Relative Humidity | 0 - 95 (Non-condensing) % |
| Storage Elevation | 0 - 15240meters |
