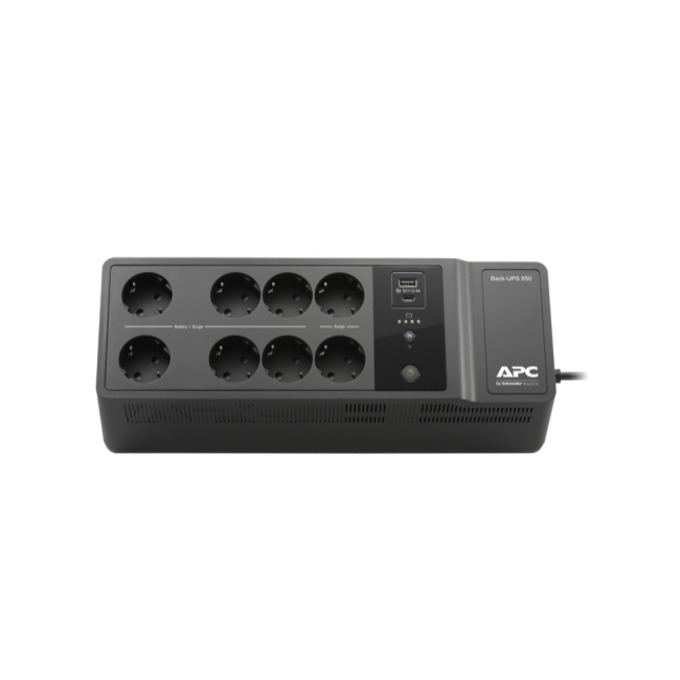

UPS APC BE850G2-GR

Technical Specifications

Output
Max Configurable Power (Watts):  520Watts / 850VA
Output Frequency (sync to mains):  47 - 63 Hz
Output Frequency:  220 Hz
Topology:  Standby
Waveform type:  Stepped approximation to a sinewave
Transfer Time:  6ms typical : 10ms maximum

Input
Input frequency:  47 - 63 Hz
Input voltage range for main operations:  220

Batteries & Runtime
Battery type:  Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Battery Charge Power (Watts):  6kWatts
Battery Volt-Amp-Hour Capacity:  93

Communications & Management
Interface Port(s):  USB
Control panel:  LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators, LED status display with On Line : On Battery : Replace Battery and Overload indicators
Audible Alarm:  Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Surge Protection and Filtering
Surge energy rating:  310JoulesControl panel
LED status display with On Line : On Battery : Replace Battery and Overload indicators

Physical
Maximum Height:  120MM, 12.0CM
Maximum Width:  130MM, 13.0CM
Maximum Depth:  365MM, 36.5CM
Net Weight:  4.5KG
Shipping weight:  5.0KG
Shipping Height:  190MM, 19.0CM
Shipping Width:  186MM, 18.6CM
Shipping Depth:  441MM, 44.1CM
Color:  Black
Master Carton Weight:  16.0

Environmental
Operating Temperature:  0 - 40 °C
Operating Relative Humidity:  0 - 90 %
Operating Elevation:  0-900meters
Storage Temperature:  -15 - 45 °C
Storage Relative Humidity:  0 - 95 %
Storage Elevation:  0-4500meters
Audible noise at 1 meter from surface of unit:  45.0dBA
