Output
Output Power Capacity - 400 Watts / 650 VA
Max Configurable Power - 400 Watts / 650 VA
Nominal Output Voltage - 230V

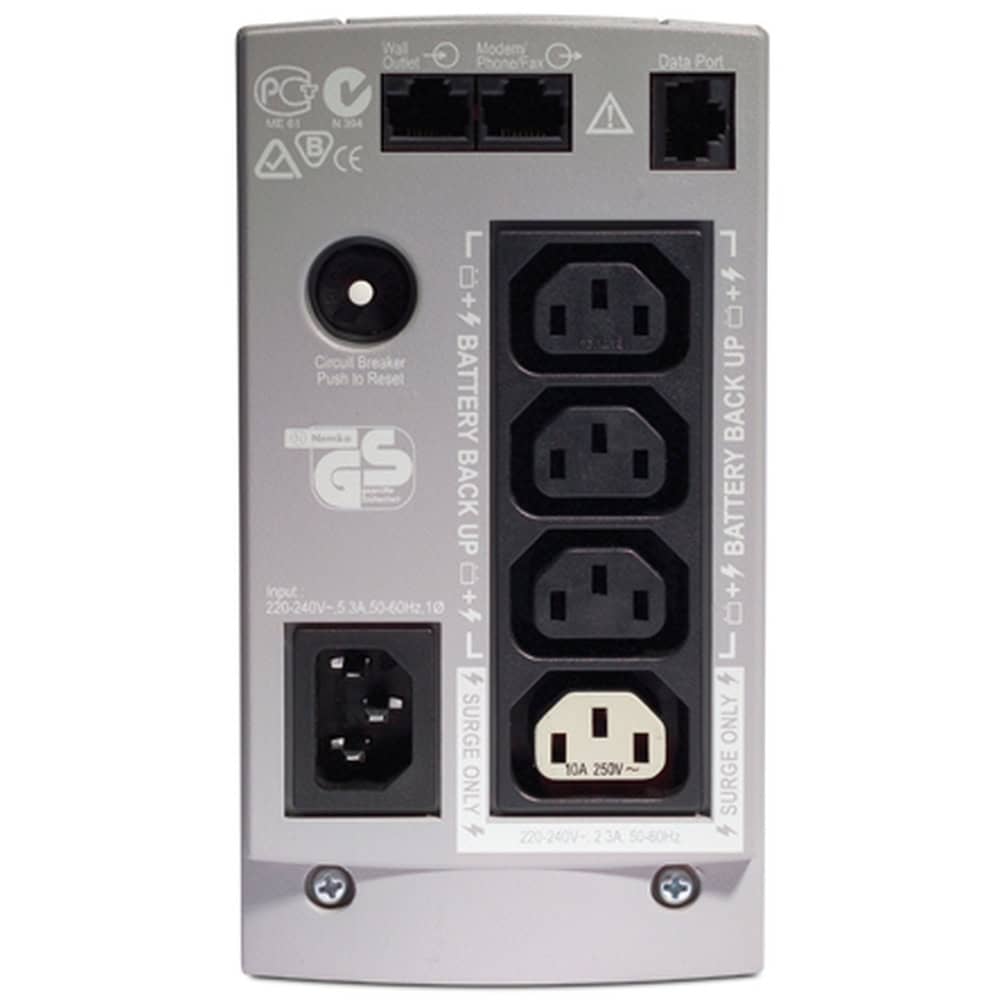

Output Connections
(1) IEC 320 C13 (Surge Protection)
(3) IEC 320 C13 (Battery Backup)
Input
Nominal Input Voltage - 230V
Input Frequency - 50/60 Hz +/- 3 Hz (auto sensing)
Input Connections - IEC-320 C14
Cord Length - 2 meters
Input voltage range for main operations - 180 - 260V
Input voltage adjustable range for mains operation - 160 - 282V
Batteries & Runtime
Battery Type - Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time - 8 hour(s)
Replacement battery cartridge - RBC17
RBC™ Quantity - 1
Typical Backup Time at Half Load - 11.4 minutes (200 Watts)
Typical Backup Time at Full Load - 2.4 minutes (400 Watts)
Communications & Management
Interface Port(s) - DB-9 RS-232,USB

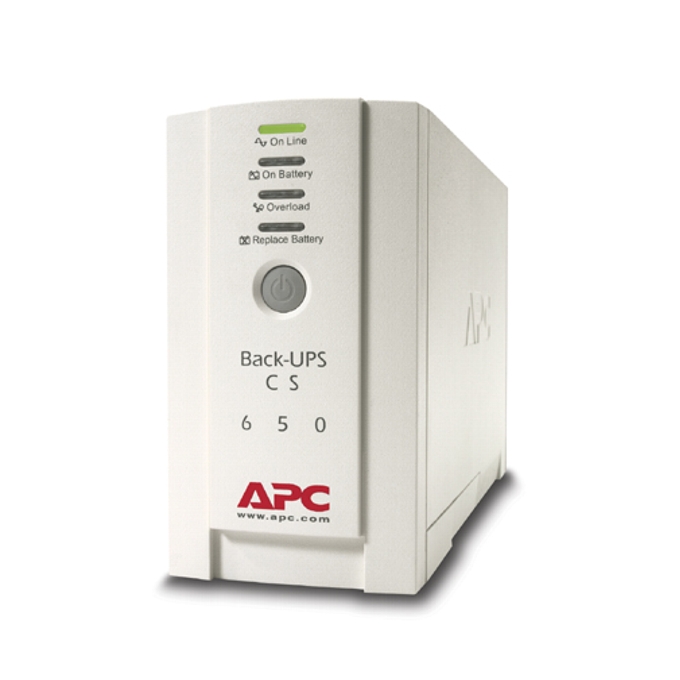

Control panel - LED status display with On Line : On Battery : Replace Battery and Overload indicators
Audible Alarm - Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Surge Protection and Filtering
Surge energy rating - 320 Joules
Physical
Output Power Capacity - 400 Watts / 650 VA
Max Configurable Power - 400 Watts / 650 VA
Nominal Output Voltage - 230V
Output Connections
(1) IEC 320 C13 (Surge Protection)
(3) IEC 320 C13 (Battery Backup)
Input
Nominal Input Voltage - 230V
Input Frequency - 50/60 Hz +/- 3 Hz (auto sensing)
Input Connections - IEC-320 C14
Cord Length - 2 meters
Input voltage range for main operations - 180 - 260V
Input voltage adjustable range for mains operation - 160 - 282V
Batteries & Runtime
Battery Type - Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time - 8 hour(s)
Replacement battery cartridge - RBC17
RBC™ Quantity - 1
Typical Backup Time at Half Load - 11.4 minutes (200 Watts)
Typical Backup Time at Full Load - 2.4 minutes (400 Watts)
Communications & Management
Interface Port(s) - DB-9 RS-232,USB
Control panel - LED status display with On Line : On Battery : Replace Battery and Overload indicators
Audible Alarm - Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Surge Protection and Filtering
Surge energy rating - 320 Joules
Physical
Характеристики
| Output Connections | (1) IEC 320 C13 (Surge Protection) |
| 3) IEC 320 C13 (Battery Backup) | Input |
| Nominal Input Voltage - 230V | Input Frequency - 50/60 Hz +/- 3 Hz (auto sensing) |
| Input Connections - IEC-320 C14 | Cord Length - 2 meters |
