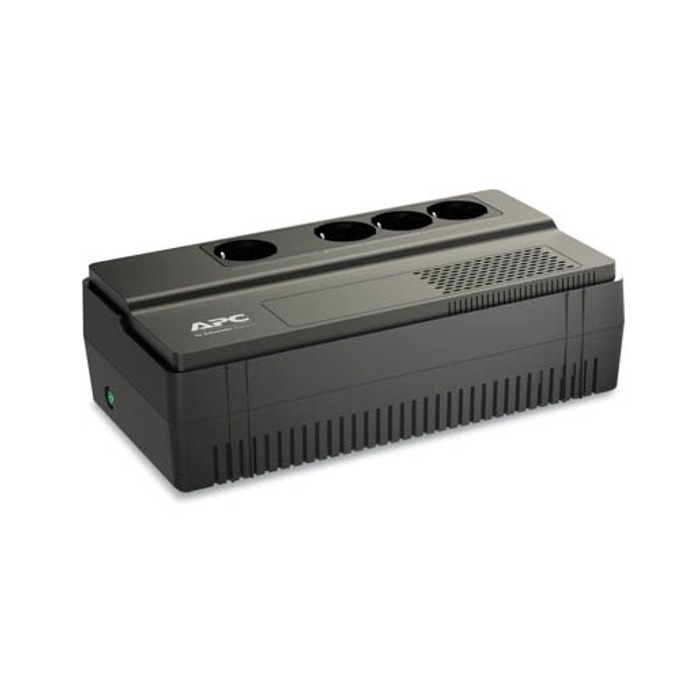

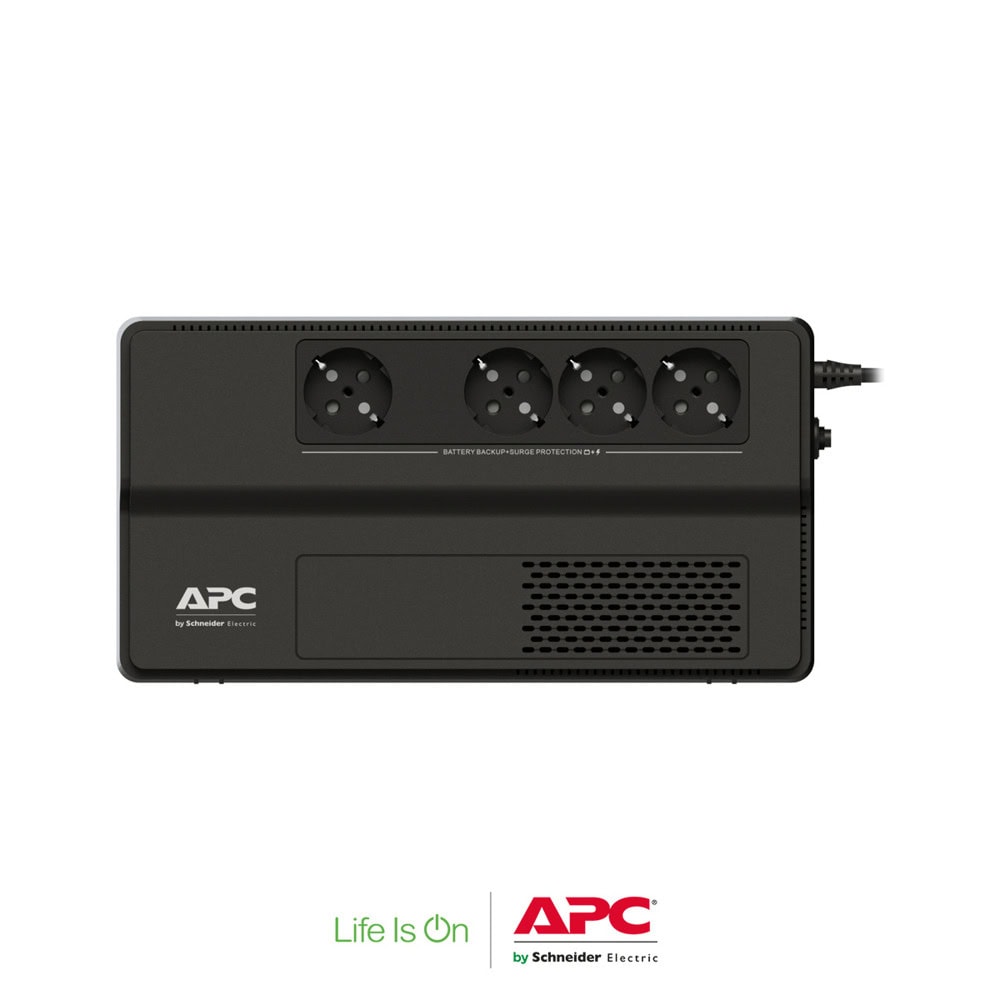

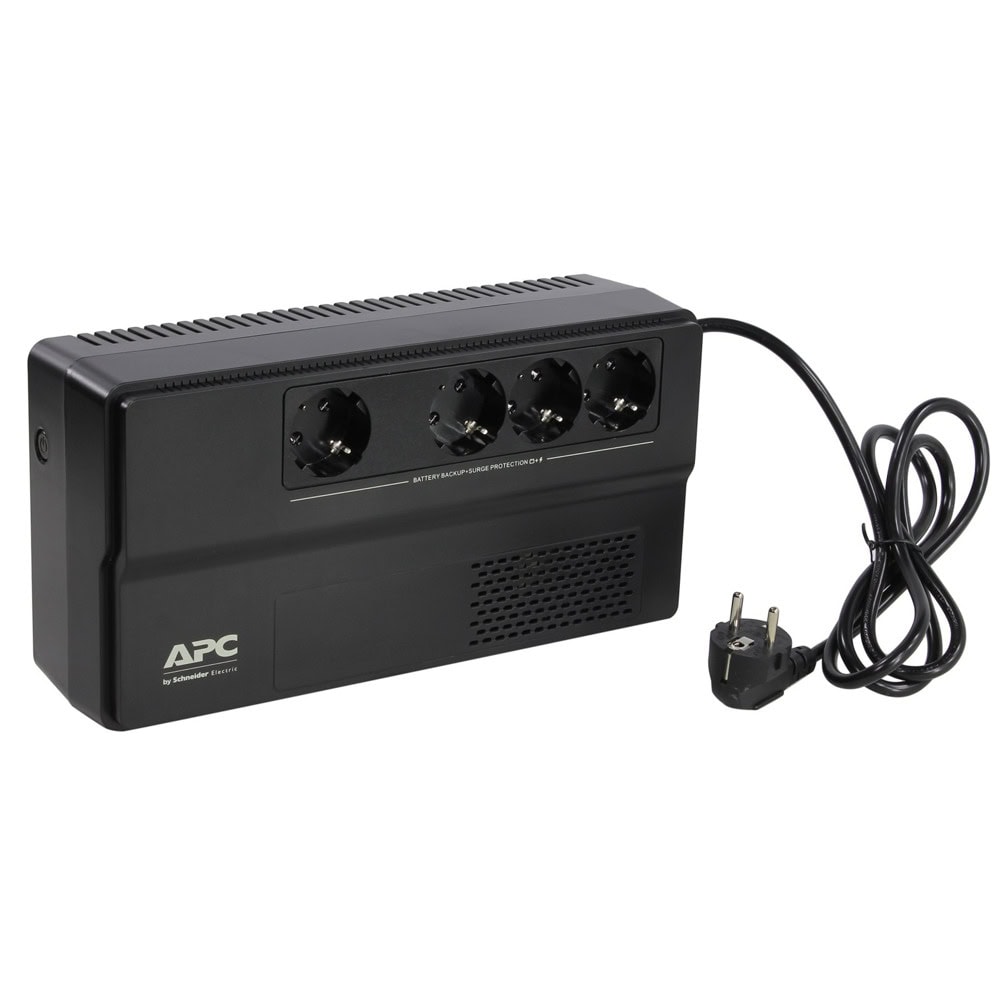

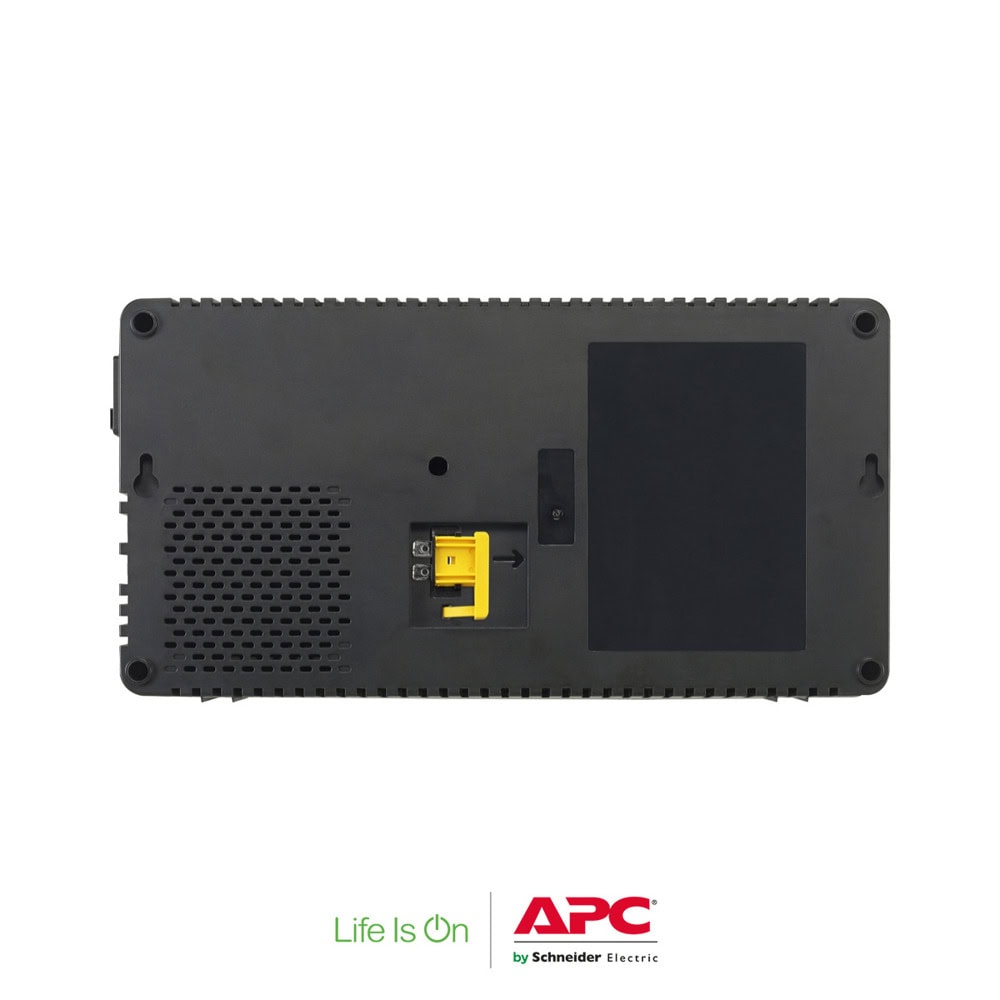

APC EASY UPS BV 1000VA, AVR, Schuko Outlet, 230V
BV1000I-GR
Output
Output power capacity
600Watts / 1.0 kVA
Max Configurable Power (Watts)
600Watts / 1.0 kVA
Nominal Output Voltage
230V
Output Frequency (not synced)
50/60 Hz +/-1 Hz
Topology
Line Interactive
Waveform type
Stepped approximation to a sinewave
Output Connections
(4) Schuko CEE 7 (Battery Backup)
Transfer Time
6ms typical : 10ms maximum
Input
Nominal Input Voltage
230V
Input frequency
50/60 Hz +/- 5 Hz (auto sensing)
Input Connections
Schuko CEE 7/7P
Cord Length
1.52meters
Number of Power Cords
1
Batteries & Runtime
Battery type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte :
leakproof
Expected Battery Life (years)
3 - 5
Communications & Management
Control panel
LED Status display with On Line : On Battery
Audible Alarm
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Physical
Maximum Height
92mm , 9.25CM
Maximum Width
160mm , 16.05CM
Maximum Depth
305mm , 30.5CM
Net Weight
5.7KG
Shipping weight
6.0KG
Shipping Height
237mm , 23.7CM
Shipping Width
143mm , 14.3CM
Shipping Depth
373mm , 37.3CM
SCC Codes
1073130433824 3
Environmental
Operating Temperature
0 - 40 °C
Operating Relative Humidity
0 - 90 %
Operating Elevation
0-1968.3meters
Audible noise at 1 meter from surface of unit
40.0dBA
BV1000I-GR
Output
Output power capacity
600Watts / 1.0 kVA
Max Configurable Power (Watts)
600Watts / 1.0 kVA
Nominal Output Voltage
230V
Output Frequency (not synced)
50/60 Hz +/-1 Hz
Topology
Line Interactive
Waveform type
Stepped approximation to a sinewave
Output Connections
(4) Schuko CEE 7 (Battery Backup)
Transfer Time
6ms typical : 10ms maximum
Input
Nominal Input Voltage
230V
Input frequency
50/60 Hz +/- 5 Hz (auto sensing)
Input Connections
Schuko CEE 7/7P
Cord Length
1.52meters
Number of Power Cords
1
Batteries & Runtime
Battery type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte :
leakproof
Expected Battery Life (years)
3 - 5
Communications & Management
Control panel
LED Status display with On Line : On Battery
Audible Alarm
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Physical
Maximum Height
92mm , 9.25CM
Maximum Width
160mm , 16.05CM
Maximum Depth
305mm , 30.5CM
Net Weight
5.7KG
Shipping weight
6.0KG
Shipping Height
237mm , 23.7CM
Shipping Width
143mm , 14.3CM
Shipping Depth
373mm , 37.3CM
SCC Codes
1073130433824 3
Environmental
Operating Temperature
0 - 40 °C
Operating Relative Humidity
0 - 90 %
Operating Elevation
0-1968.3meters
Audible noise at 1 meter from surface of unit
40.0dBA
Характеристики
| BV1000I-GR | Output |
| Output power capacity | 600Watts / 1.0 kVA |
| Max Configurable Power (Watts) | 600Watts / 1.0 kVA |
| Nominal Output Voltage | 230V |
| Output Frequency (not synced) | 50/60 Hz +/-1 Hz |
| Topology | Line Interactive |
| Waveform type | Stepped approximation to a sinewave |
| Output Connections | (4) Schuko CEE 7 (Battery Backup) |
| Transfer Time | 6ms typical : 10ms maximum |
| Input | Nominal Input Voltage |
| 230V | Input frequency |
| 50/60 Hz +/- 5 Hz (auto sensing) | Input Connections |
| Schuko CEE 7/7P | Cord Length |
| 1.52meters | Number of Power Cords |
| 1 | Batteries & Runtime |
| Тип батерия | Maintenance-free sealed Lead-Acid battery with suspended electrolyte : |
| leakproof | Expected Battery Life (years) |
| 3 - 5 | Communications & Management |
| Control panel | LED Status display with On Line : On Battery |
| Audible Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
| Physical | Maximum Height |
| 92mm , 9.25CM | Maximum Width |
| 160mm , 16.05CM | Maximum Depth |
| 305mm , 30.5CM | Нето тегло |
| 5.7KG | Shipping weight |
| 6.0KG | Shipping Height |
| 237mm , 23.7CM | Shipping Width |
| 143mm , 14.3CM | Shipping Depth |
| 373mm , 37.3CM | SCC Codes |
| 1073130433824 3 | Environmental |
| Работна температура | 0 - 40 °C |
| Operating Relative Humidity | 0 - 90 % |
| Operating Elevation | 0-1968.3meters |
