Точка за достъп Ubiquiti U7-Lite

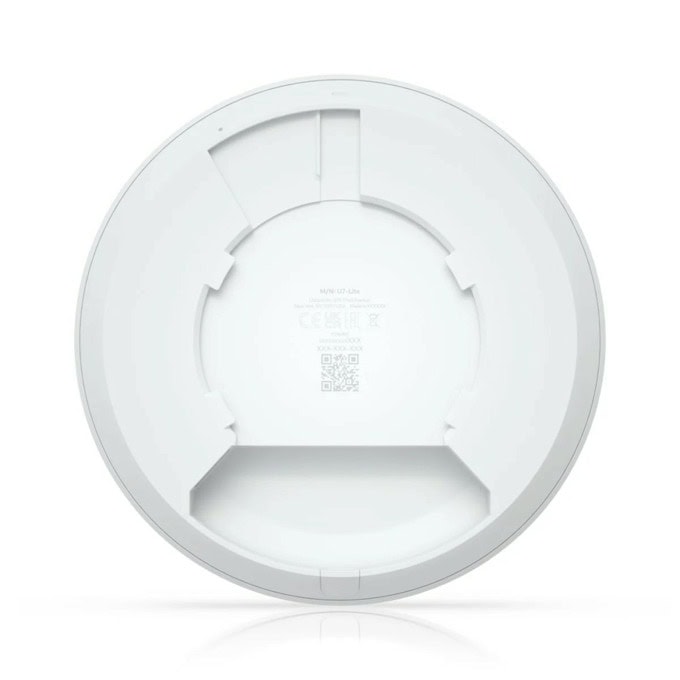

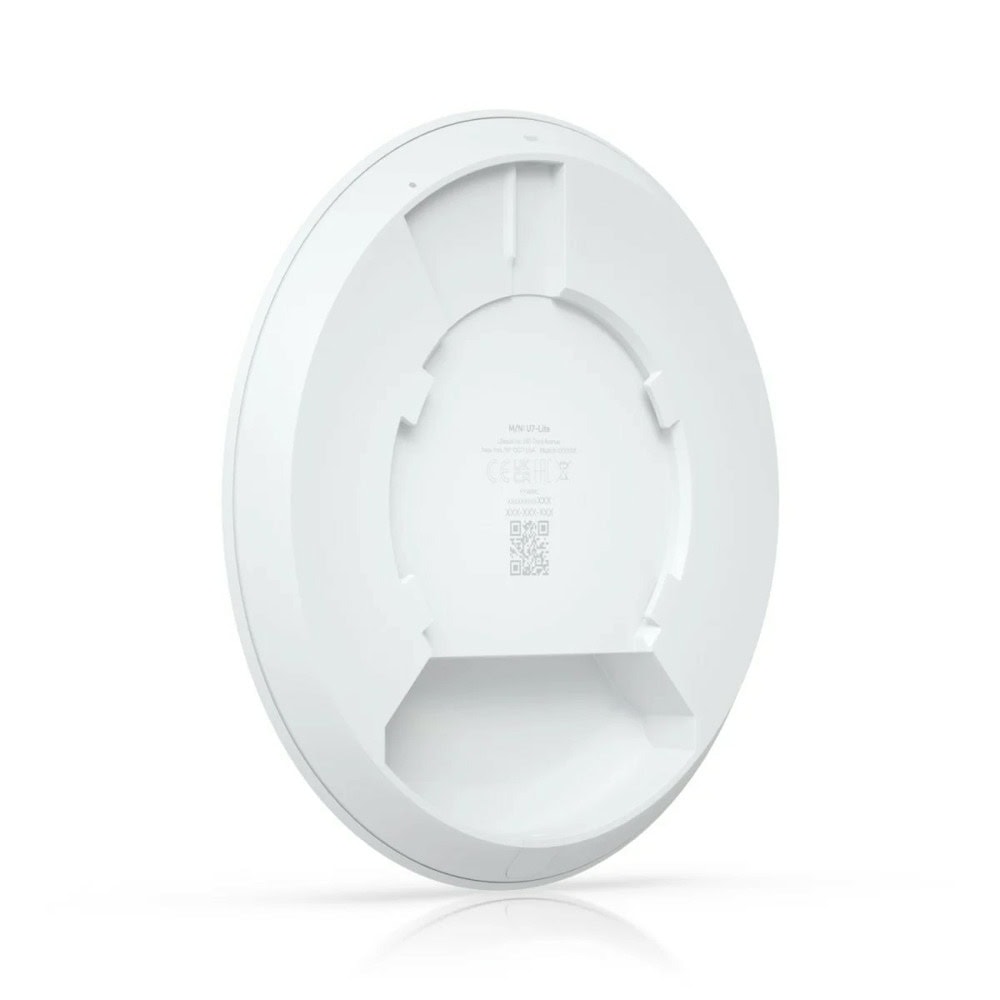

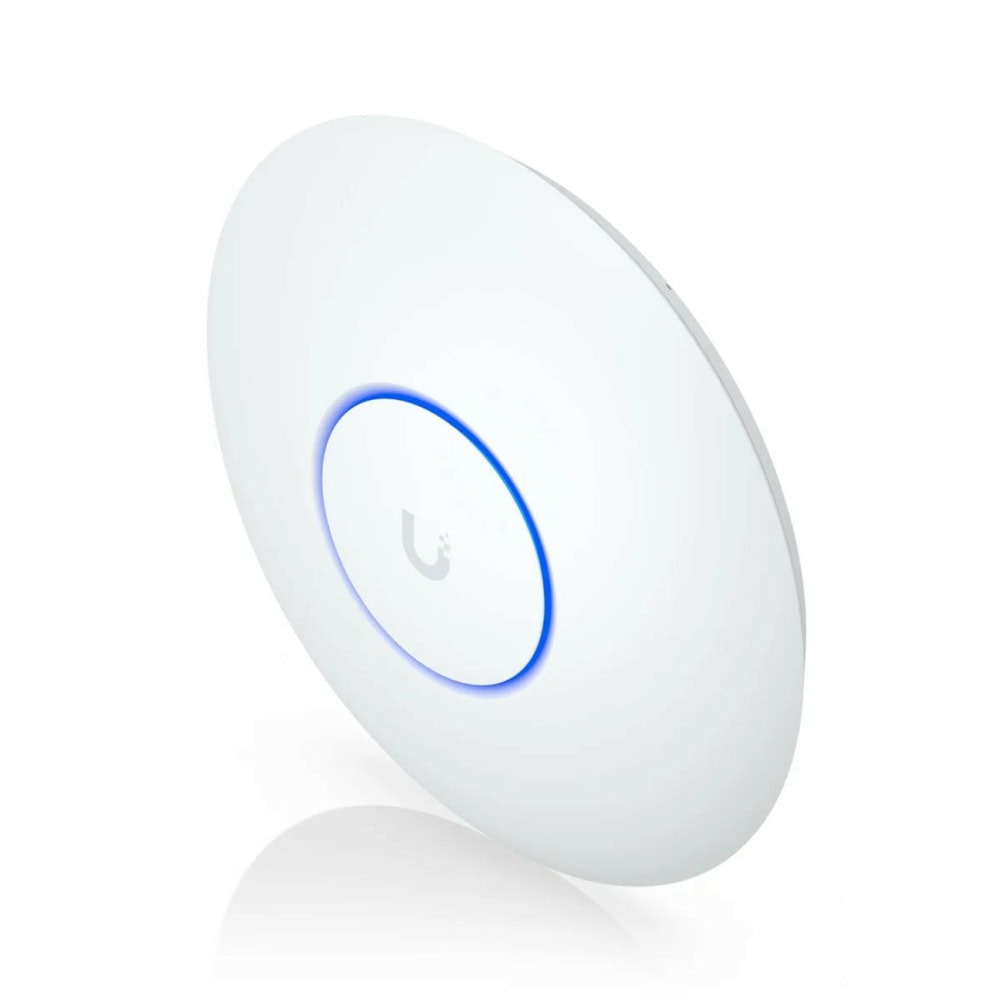

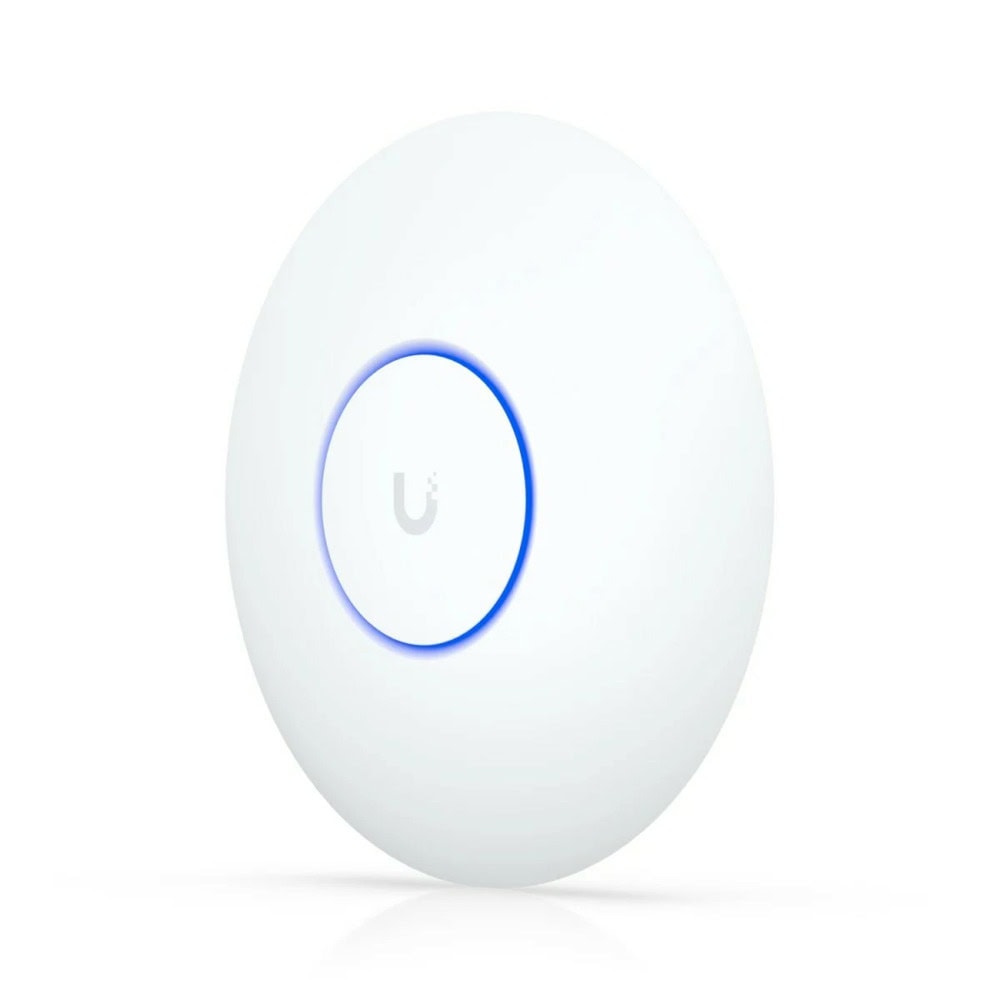

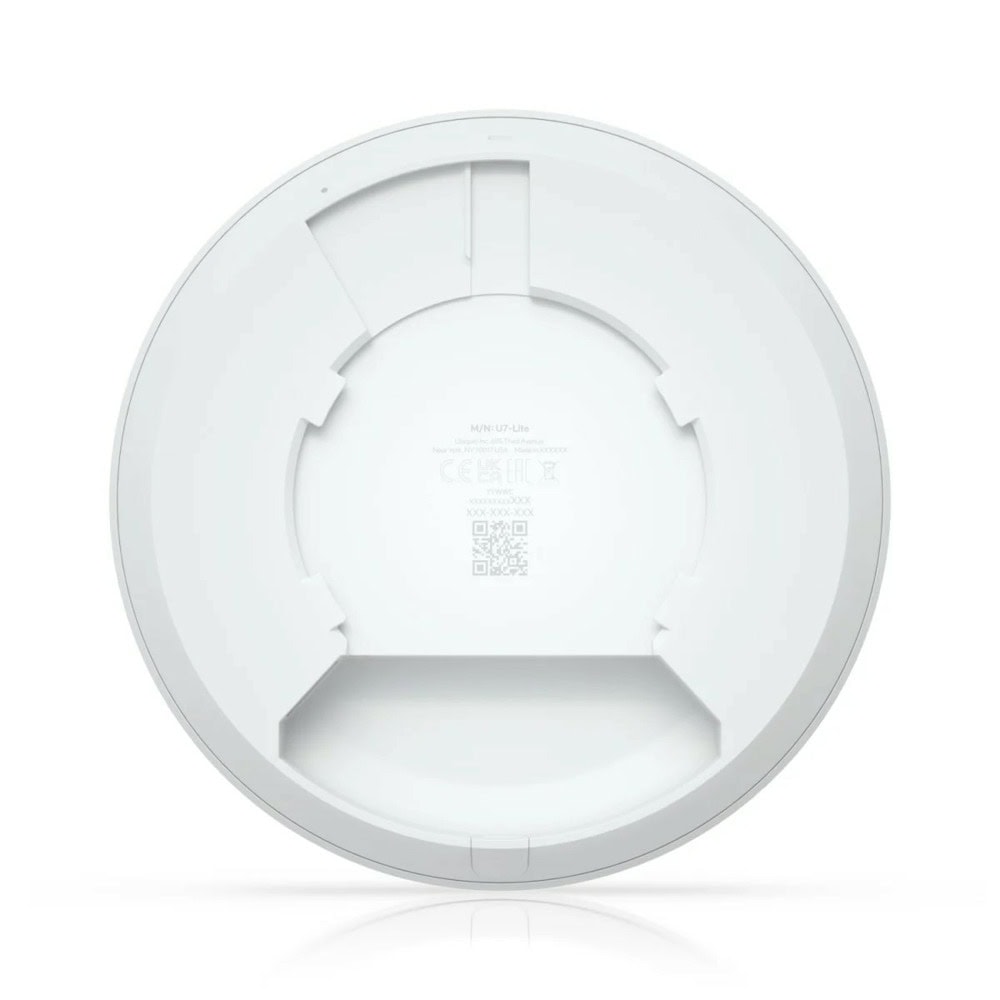

Ubiquiti U7-Lite

Category:

DimensionsØ171.5 x 33 mm (Ø6.8 x 1.3")

WiFi StandardWiFi 7

Spatial Streams4

Coverage Area115 m² (1,250 ft²)

Max. Client Count200+

Uplink2.5 GbE

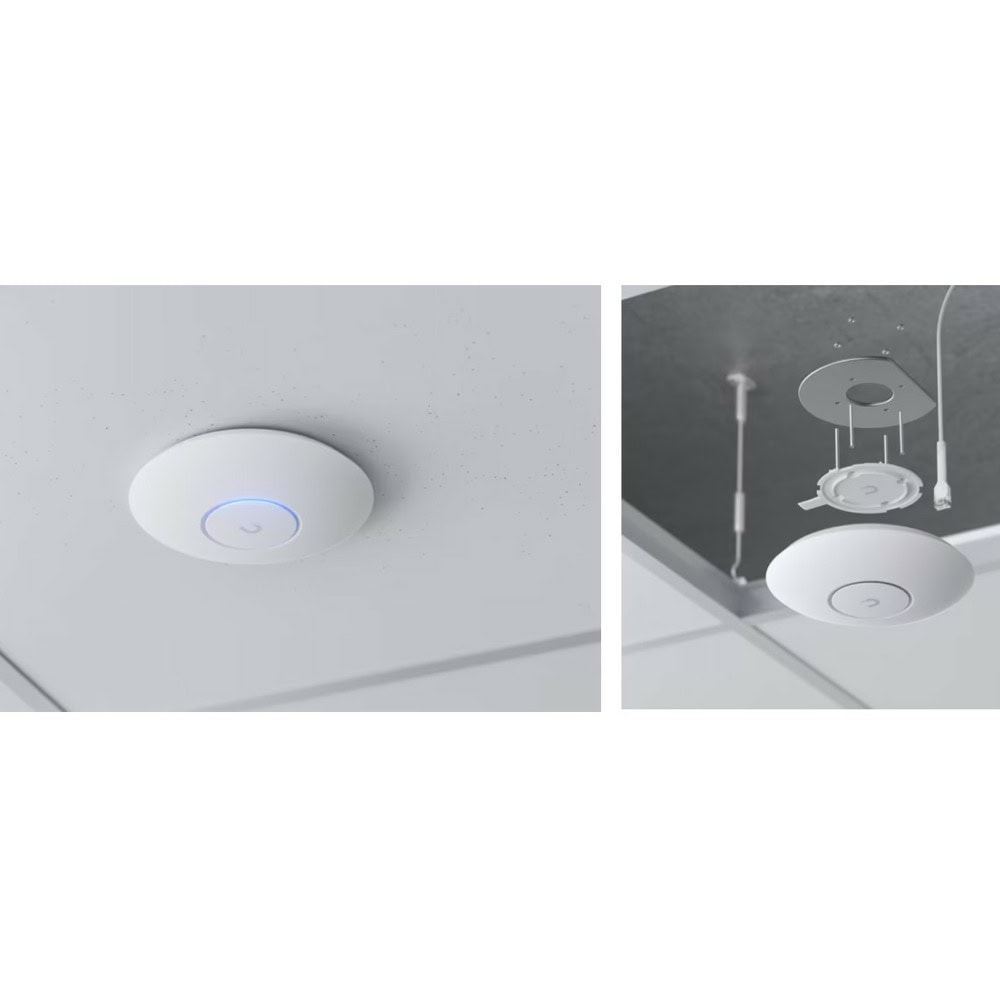

MountingCeiling, Wall (Lite Mount Included)

Power MethodPoE

Max. Power Consumption13W

Supported Voltage Range42.5–57V DC

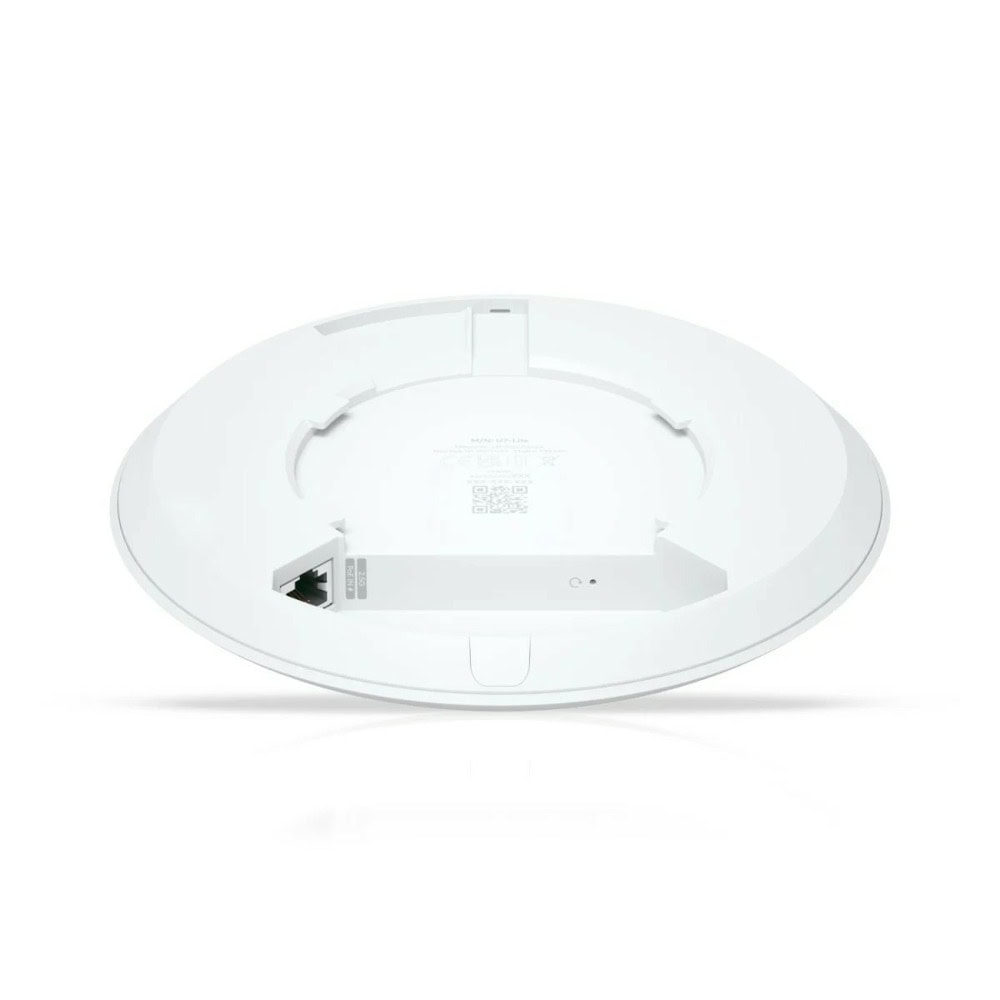

Networking Interface(1) 2.5 GbE RJ45 port

Weight313 g (11 oz)

ManagementEthernet

Enclosure MaterialUV-stabilized polycarbonate

Mount MaterialUV-stabilized polycarbonate, galvanized steel (SGCC)

LEDsSystem (White/Blue)

Channel BandwidthHT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 MHz

CertificationsCE, FCC, IC

NDAA CompliantYes

Ambient Operating Temperature-30 to 40° C (-22 to 104° F)

Ambient Operating Humidity5 to 95% noncondensing

5 GHz MIMO2 x 2 (DL/UL MU-MIMO)

2.4 GHz MIMO2 x 2 (DL/UL MU-MIMO)

5 GHz Max. Data Rate4.3 Gbps (BW240)

2.4 GHz Max. Data Rate688 Mbps (BW40)

5 GHz Antenna Gain5 dBi

2.4 GHz Antenna Gain4 dBi

5 GHz Max. TX Power24 dBm

2.4 GHz Max. TX Power23 dBm

Max. BSSIDs8 per Radio

802.11be (WiFi 7)7.3 Mbps – 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240)

802.11ax (WiFi 6)7.3 Mbps – 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)

802.11ac (WiFi 5)6.5 Mbps – 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)

802.11n6.5 Mbps – 300 Mbps (MCS0 - MCS15, HT 20/40)

Wireless MeshingYes

Band SteeringYes

802.11v BSS Transition ManagementYes

802.11r Fast RoamingYes
