Ubiquiti

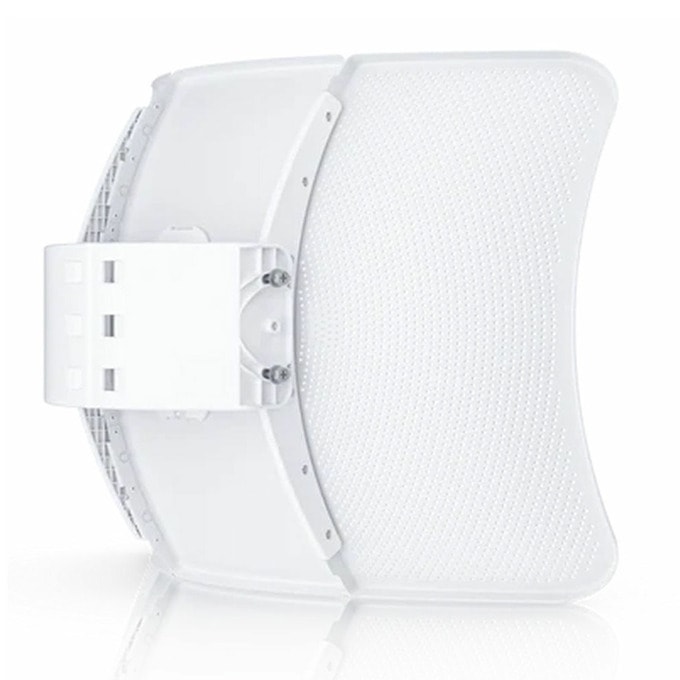

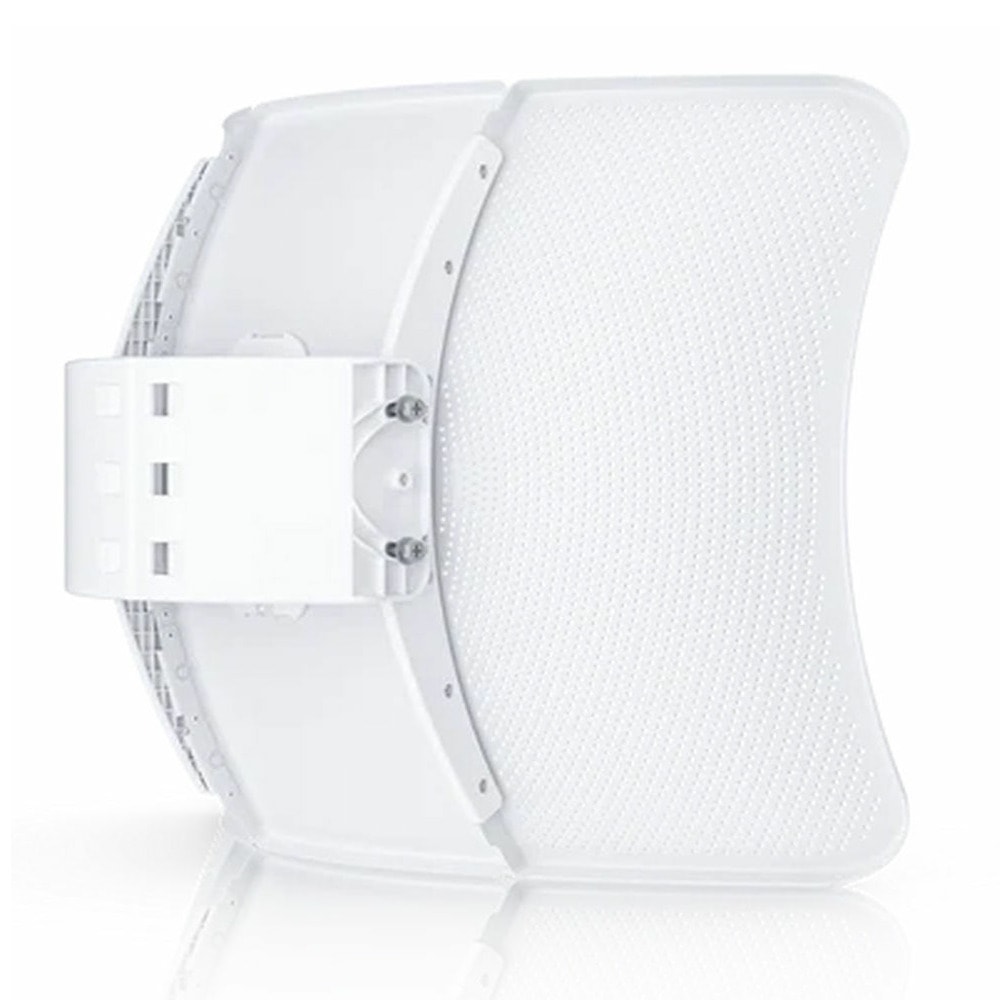

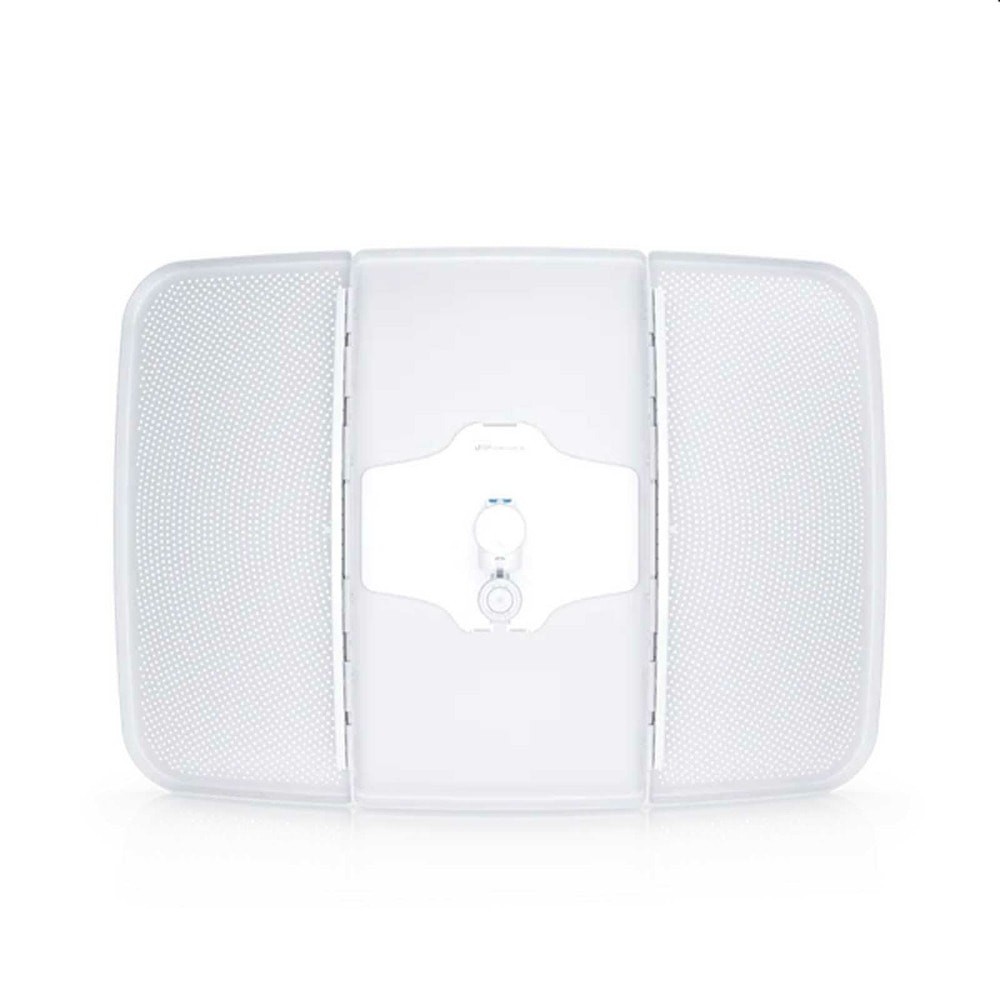

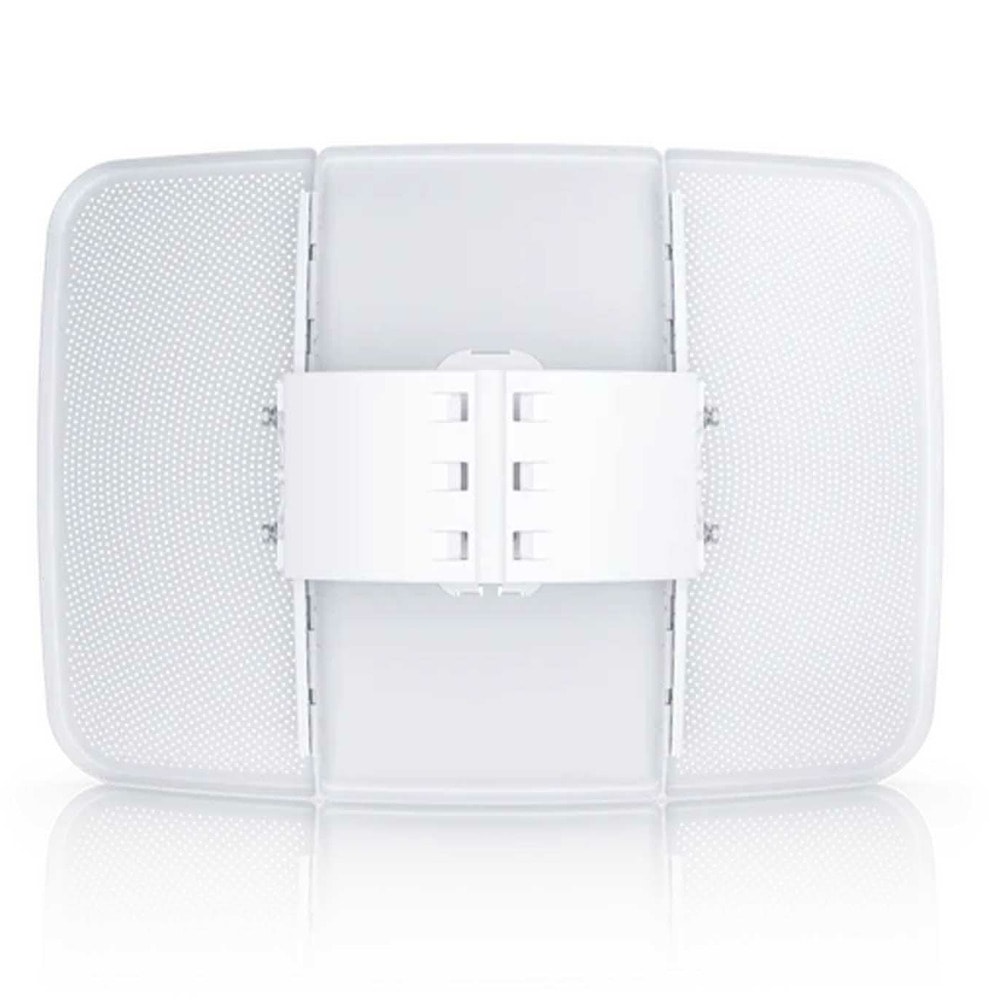

Точка за достъп Ubiquiti LBE-5AC-XR
Артикул №: 1000128399
Категория:
Мрежови адаптери
215,99 €
✓ Ограничена наличност
Ultra-lightweight, outdoor, wireless station designed to create extremely long-distance links.
- 5 GHz, 30+ km link range
- 450+ Mbps throughput
- Easy to assemble
Характеристики
| Mechanical | Да |
| Hardware | Да |
| System | Да |
| Софтуер | Да |
| RF | Dimensions747 x 525 x 347 mm (29.41 x 20.67 x 13.66") Weight3.2 kg (7.06 lb) Enclosure materialsAluminum alloy, UV stabilized polycarbonate Mount materialUV stabilized polycarbonate MountingIntegrated pole mount (included) Pole compatibility: Ø35 to 60 mm (Ø1.38 to 2.36") Wind loading1100 N at 200 km/h (247.29 lbf at 125 mph) WeatherproofingIPX6 Networking interface(1) GbE RJ45 port Power methodPassive PoE 2-pair (4, 5+; 7, 8-) Power supply24V DC, 0.5A Gigabit PoE adapter (included) Supported voltage range22—26V DC Max. power consumption7W RF connectionsInternal LEDsPower/ethernet ButtonFactory reset Operating temperature-40 to 70° C (-40 to 158° F) Operating humidity5 to 95% non-condensing CertificationsFCC, IC, CE Maximum throughput450+ Mbps EncryptionWPA2-PSK (AES) ModesPtMP, PtP ServicesSNMP, SSH, dynamic DNS, webserver, remote log, ping watchdog UtilitiesairView®, speed test, alignment, discovery, ping, traceroute, constellation Management interfaceDedicated management radio for quick device setup via the UISP™ Mobile app WEB UI Minimum software requirementsModern Web browser or Android/iOS smartphone Operating frequency*5.15 to 5.85 GHz * Depends on regulatory region. Max. conducted TX power25 dBm Management radio2400 - 2483.5 MHz Channel bandwidth10/20/30/40/50/60/80 MHz Antenna Gain29 dBi Isolation20 dB BeamwidthHPOL: 3 dB: 5.5°, 6 dB: 7.5° VPOL: 3 dB: 5.5°, 6 dB: 7.5° Elevation: 3 dB: 5.5°, 6 dB: 7.5° Electrical downtilt0° |
