Точка за достъп TRENDnet TEW-821DAP

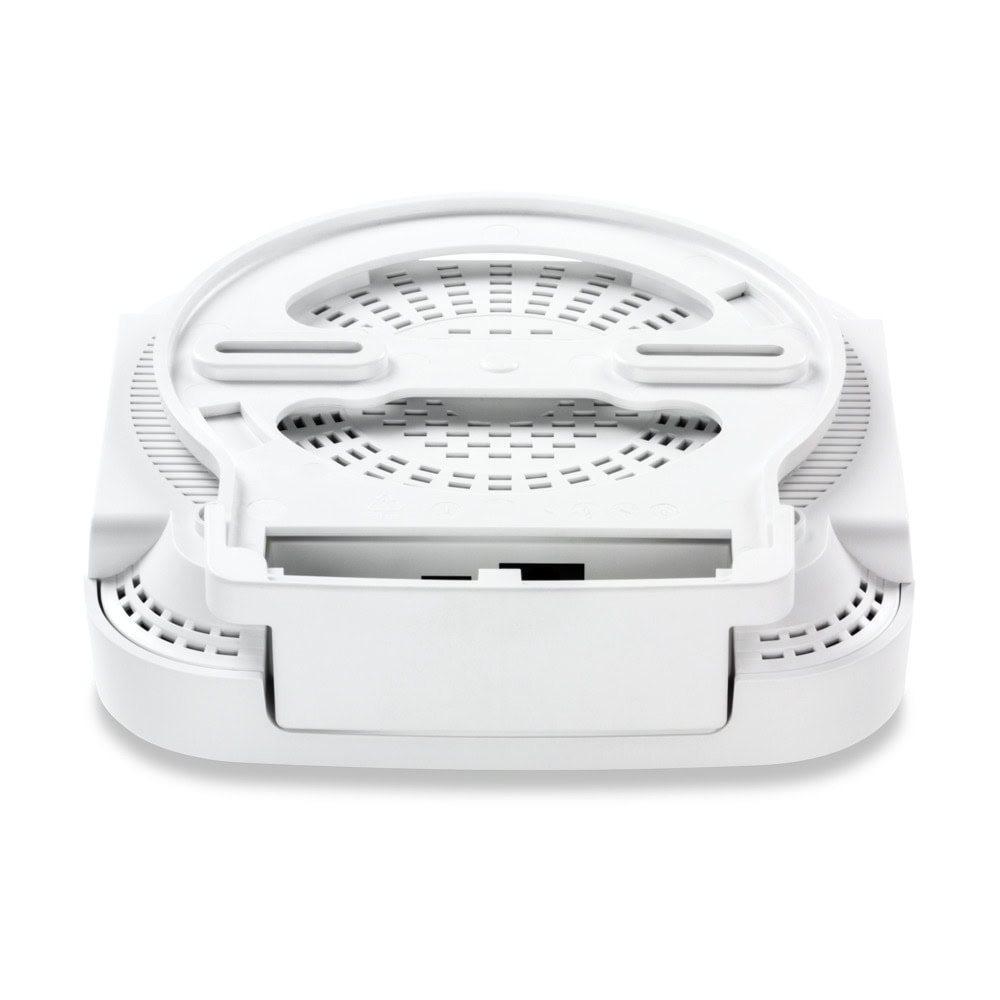

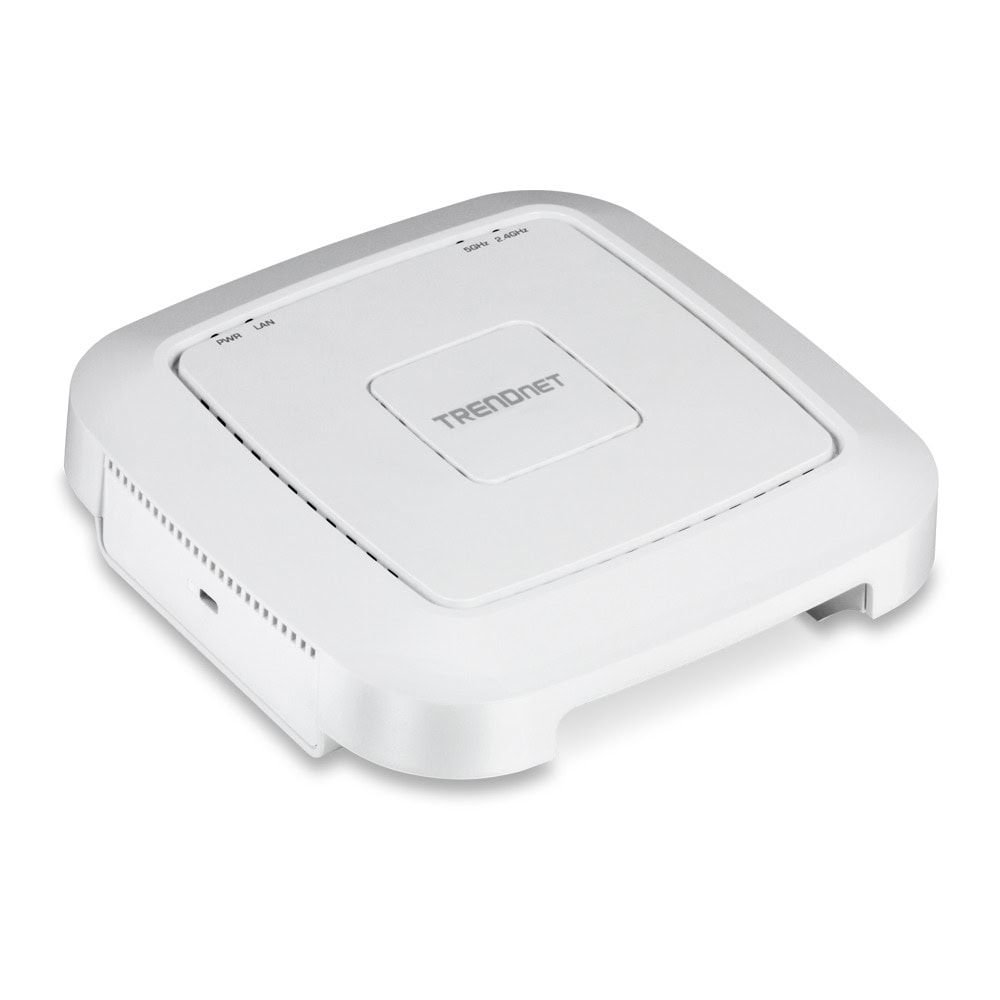

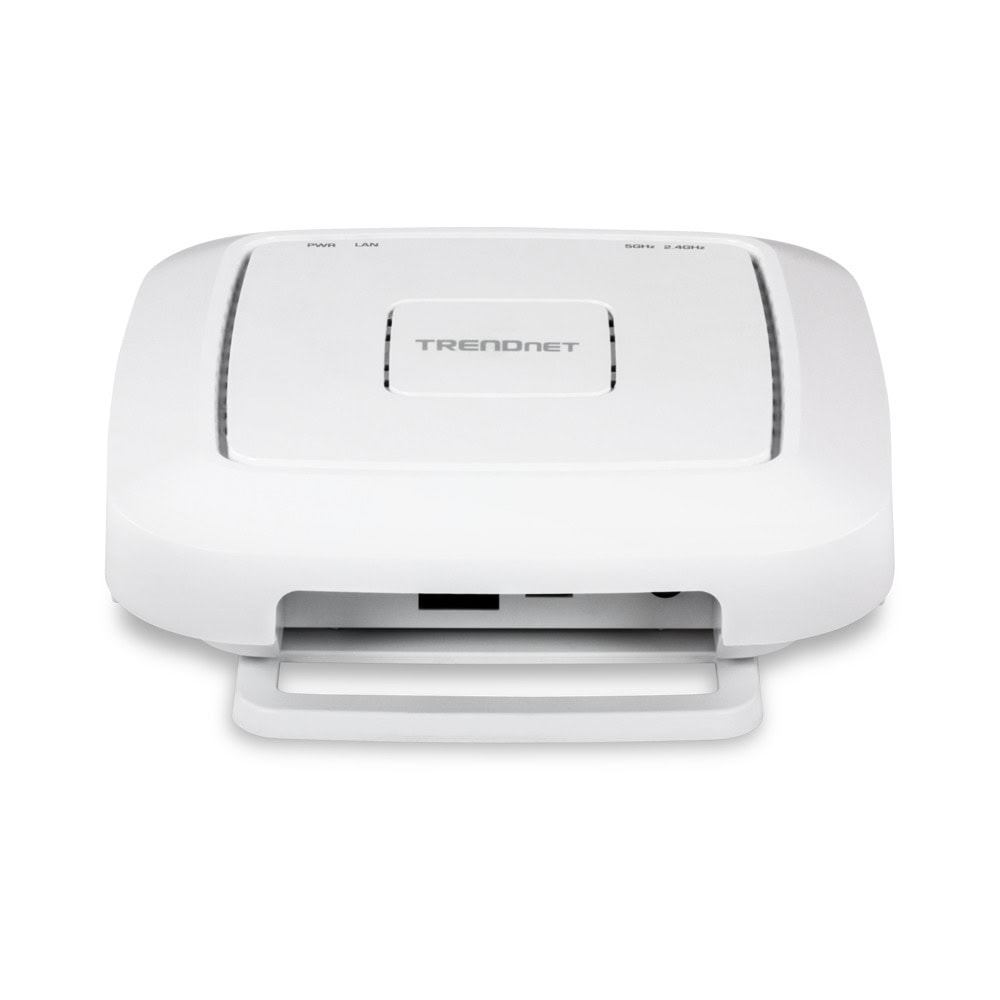

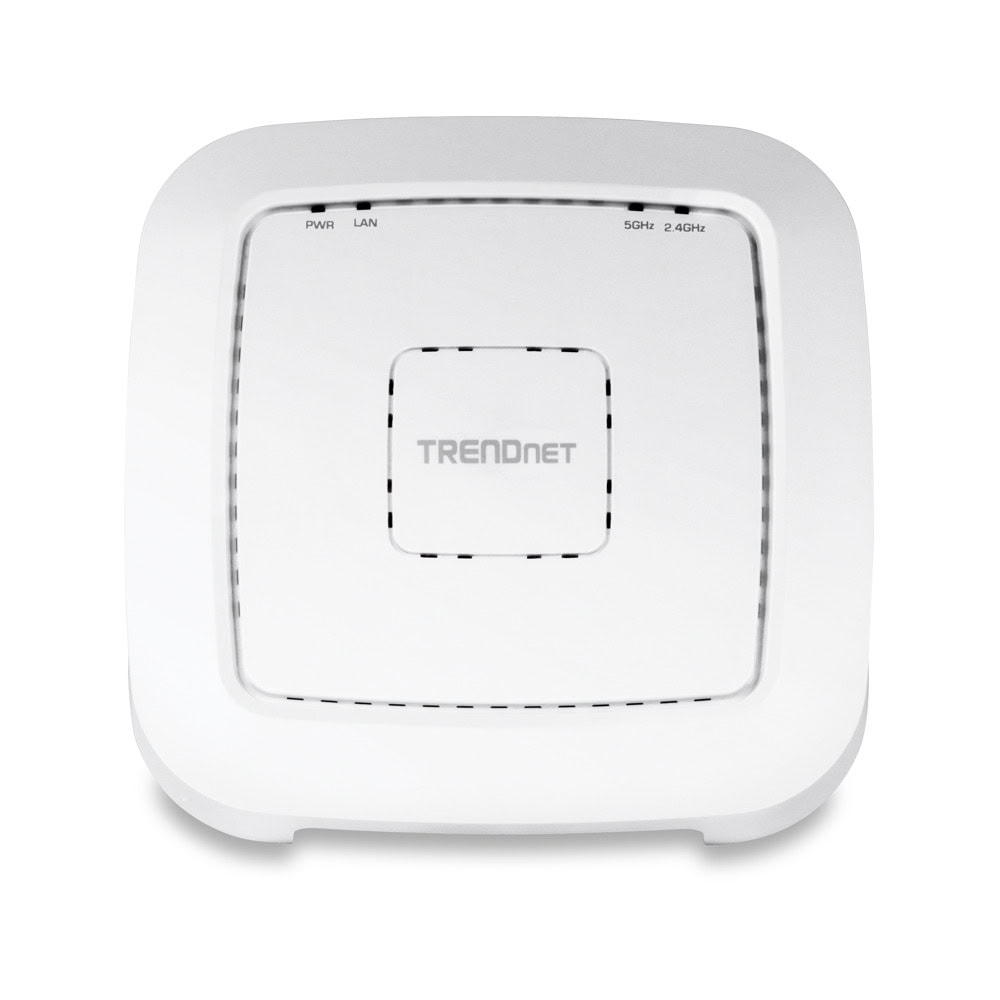

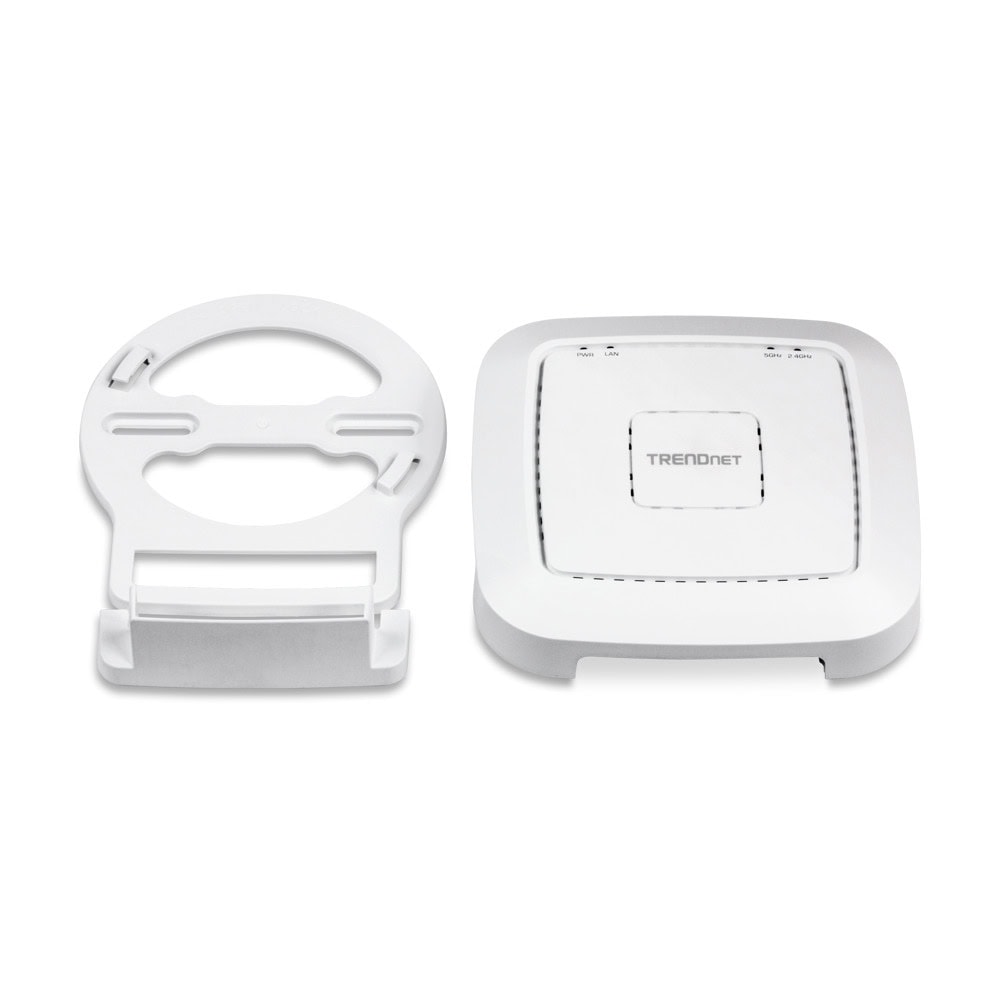

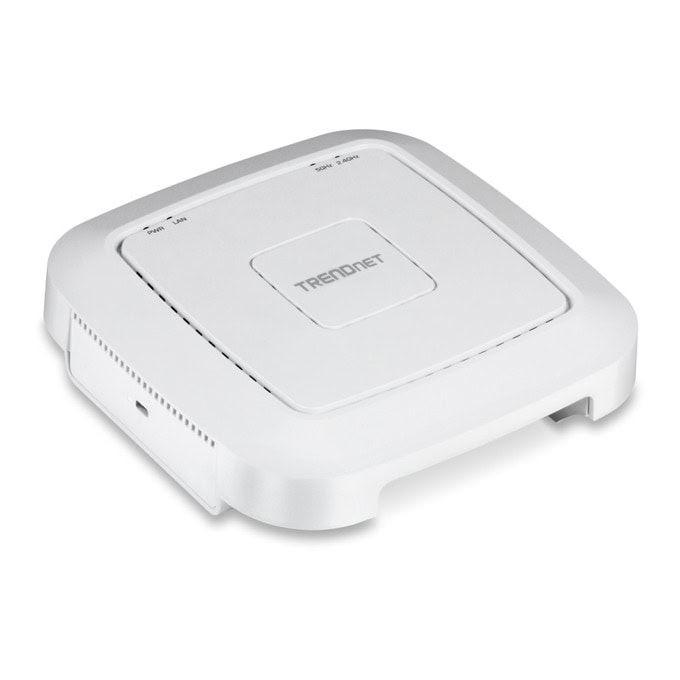

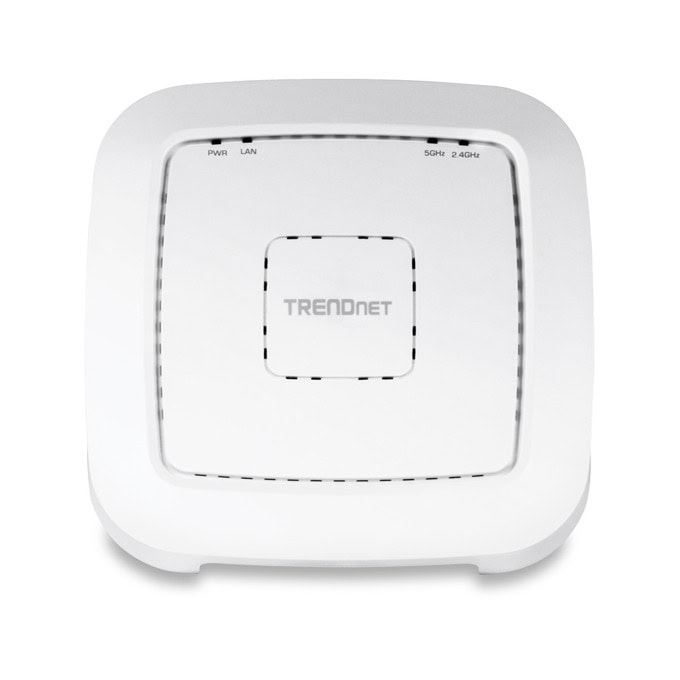

TRENDnet's high performance AC1200 Dual Band Wireless PoE Access Point, model TEW-821DAP, supports Access Point (AP), Client, Wireless Distribution System (WDS) AP, WDS Bridge, WDS Station, and Repeater modes. It generates concurrent 867 Mbps WiFi AC and 300 Mbps WiFi N networks. The included Windows-based software utility manages multiple TEW-821DAPs and reduces WiFi management and troubleshooting time. It features advanced access control, QoS, traffic management, band steering, and captive portal support. The low profile blends into most environments and a mounting plate eases installation.
_chart_2.png)
_1.png)
Multi-Language
Multi-Language Interface: English, Spanish, French, German, and Russian
Power over Ethernet (PoE)
Saves remote location installation time and costs with Gigabit PoE support (Optional power port for non-PoE installations)
Multi-Mode Support
Технически характеристики
| Standards | IEEE 802.1QIEEE 802.3IEEE 802.3uIEEE 802.3xIEEE 802.3abIEEE 802.3afIEEE 802.11aIEEE 802.11bIEEE 802.11gIEEE 802.11n (up to 300 Mbps)IEEE 802.11ac (up to 867 Mbps) |

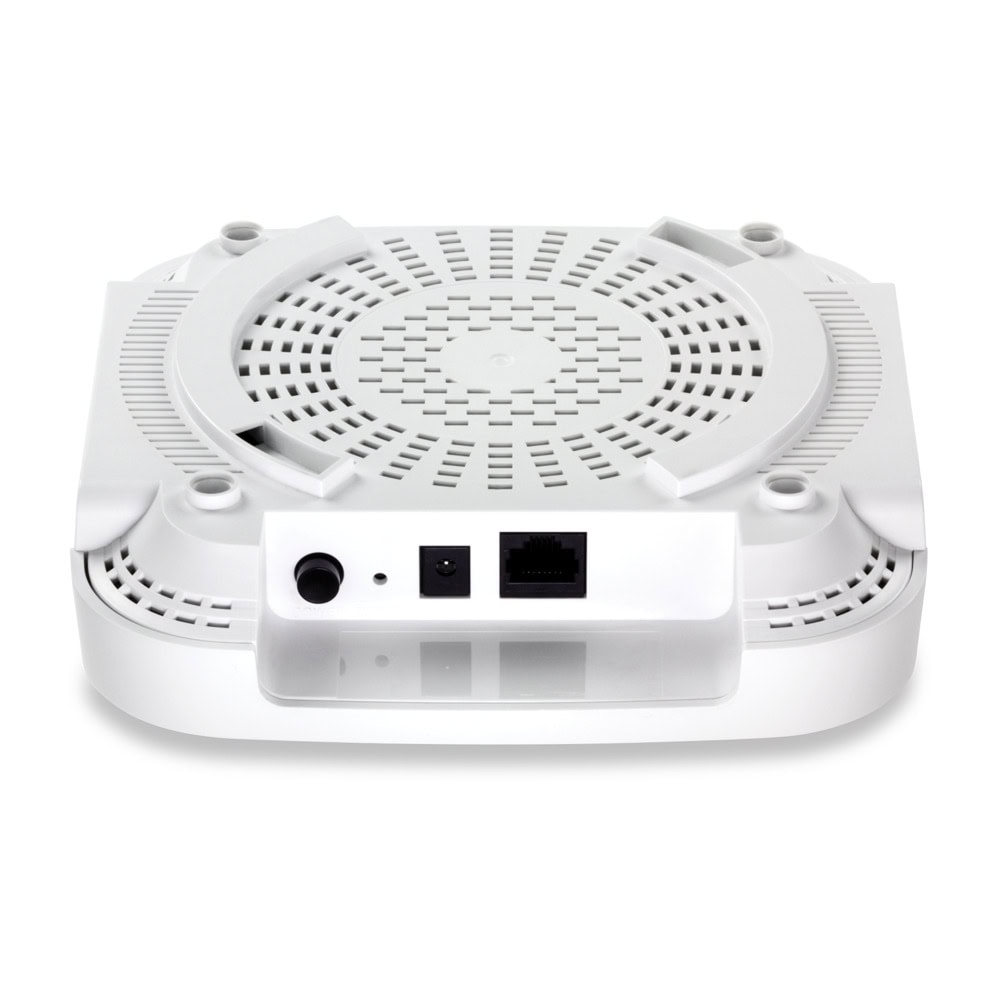

| Hardware Interface | 1 x PoE Gigabit LAN portPower port (optional non-PoE installation)Reset buttonLED indicatorsMounting plate |
| Special Features | IP30 rated housing (with mounting plate installed)Concurrent Dual bandBand SteeringWiFi traffic shaping802.1Q VLAN assignment per SSIDIPv6 support (Link-Local, Static IPv6, Auto-Configuration (SLAAC/DHCPv6)Multi-Language interface, English, French, Spanish, German, RussianLEDs on/offCaptive Portal (External Coovachilli server authentication)Internal Captive Portal (Local user account authentication and customizable portal page)802.11k roaming assistance supportRSSI Scanner (Client signal strength and tolerance)Airtime Fairness |
| Operation Modes | Access PointClientWDS APWDS BridgeWDS StationRepeater |
| Management/Monitoring | Web based managementSoftware utilitySNMP v1/v3STPEvent loggingPing testTracerouteCLI |
| Utility OS Compatibility | Windows 10, 8.1, 8, 7, Vista, XP |
| Access Control | Wireless encryption: WEP, WPA/WPA2-PSK, WPA/WPA2-RADIUSMAC filterMaximum client limit |
| QoS | WMMTraffic shaping per SSID |
| SSID | Up to 8 SSIDs per wireless band (16 total) |
| Честота | 2.4 GHz: 2.412 – 2.472 GHz5 GHz: 5.180 – 5.8525 GHz |
| Wireless Channels | 2.4 GHz: FCC: 1 – 11, ETSI: 1 – 135 GHz: FCC: 36, 40, 44, 48, 149, 153, 157, 161 and 165 ETSI: 36, 40, 44, 48 (52, 56, 60, 64, 100,104,108,112,116, 132,136,140)** |
| Modulation | DBPSK/DQPSK/CCK for DSSS techniqueBPSK/QPSK/16-QAM/64-QAM/256-QAM for OFDM technique |
| Antenna Gain | 2.4 GHz: 2 x 4 dBi5 GHz: 2 x 4 dBi |
| Wireless Output Power/Receiving Sensitivity | 802.11a: FCC: 24 dBm (Max.), CE: 22 dBm (Max.), IC: 24 dBm (Max.) / -65 dBm (typical) @ 54 Mbps802.11b: FCC: 23 dBm (Max.), CE: 10 dBm (Max), IC: 23 dBm (Max.) / -83 dBm (typical) @ 11 Mbps802.11g: FCC: 19 dBm (Max.), CE: 12 dBm (Max.), IC: 19 dBm (Max.) / -65 dBm (typical) @ 54 Mbps802.11n: FCC: 19 dBm (Max.), CE: 12 dBm (Max.), IC: 19 dBm (Max.) / -64 dBm (typical) @ 300 Mbps 2.4 GHz802.11n: FCC: 24 dBm (Max.), CE: 22 dBm (Max.), IC: 24 dBm (Max.) / -61 dBm (typical) @ 300 Mbps 5 GHz802.11ac: FCC: 15 dBm (Max.), CE: 22 dBm (Max.), IC: 19 dBm (Max.) / -51 dBm (typical) @ 866 Mbps |
| Мощност | 12 V / 1 A consumption: 9.6 Watts Max |
| Работна температура | 0 – 40 °C (32 – 104 °F) |
| Operating Humidity | Max. 95 % non-condensing |
| Certifications | CEFCC |
| Размери | 187 x 187 x 46 mm (7.3 x 7.3 x 1.8 in.) |
| Тегло | 408 g (14.4 oz.) |
