Точка за достъп TP-Link Omada EAP773
EAP773
BE9300 Ceiling Mount Tri-Band Wi-Fi 7 Access Point
BE9300 Tri-Band Wi-Fi 7: 5760 Mbps (6 GHz) + 2880 Mbps (5 GHz) + 574 Mbps (2.4 GHz). Buffering will no longer be a problem.
1× 10G Port: Unlock the full potential of Wi-Fi 7.
Clear 6 GHz Band: Brings cleaner and wider band resources to your Wi-Fi.
320 MHz Bandwidth: Up to 320 MHz bandwidth enables many more simultaneous transmissions at the fastest possible speeds.
Low Latency and Interference: Multi-Link Operation, and Multi-RUs ensure high performance of your network.
Advanced Functions：Supports centralized management, mesh, and AI roaming.
Supersized Throughput for Better Experiences
With the brand-new 6 GHz band open to applications, WiFi 7 supports extending channel width to 320 MHz. Compared to WiFi 6/6E, the doubled channel bandwidth of 6 GHz offers many more simultaneous transmissions at the fastest possible speeds. Making full use of these new resources, the throughout of EAP773 reaches up to 9214 Mbps.

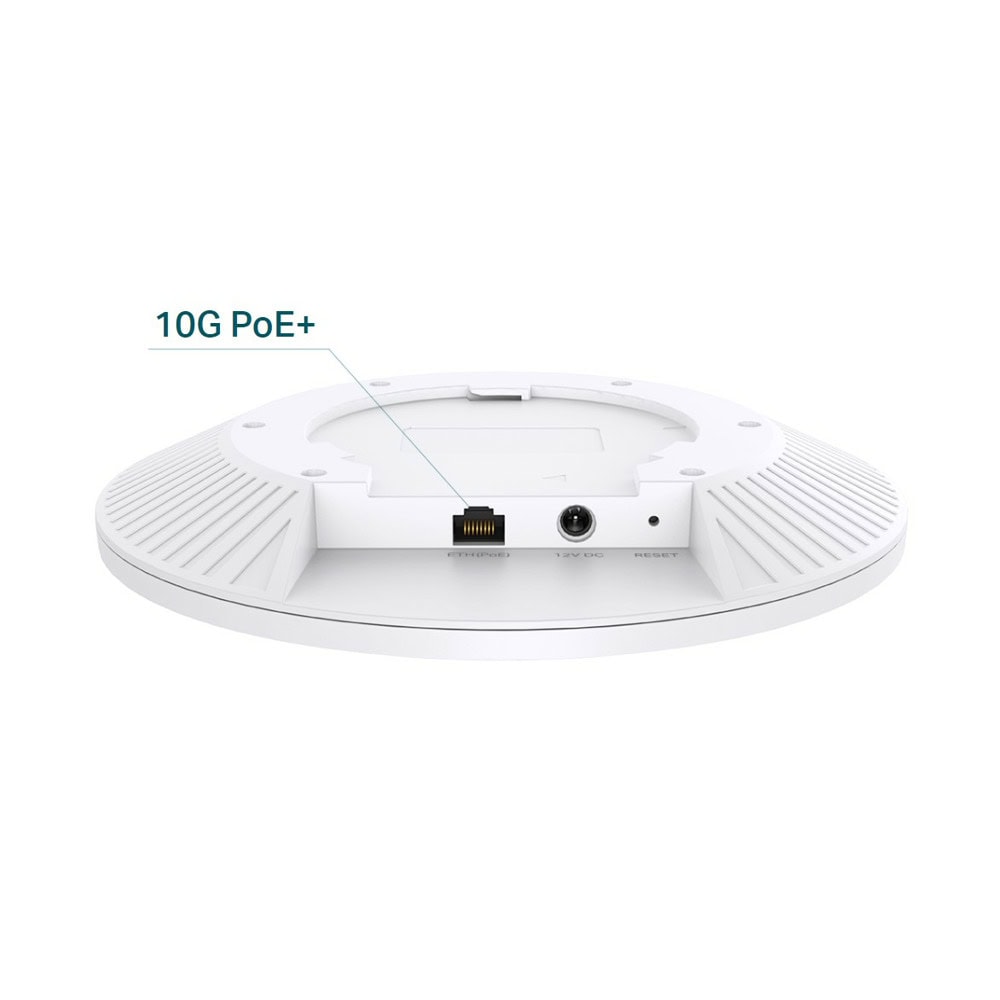

Optimized Wired Performance with 10G PoE Port
With a 10 Gigabit Ethernet Port, EAP773 delivers remarkable multi-gigabit performance for higher bandwidth and faster WiFi. Compatibility with 802.3at PoE is ideal for flexible deployment in large-scale scenes such as offices, schools, and hotels.
Seamless Integration into Omada SDN
The Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches, and routers to provide 100% centralized cloud management and create a highly scalable network—all controlled from a single interface. Experience total control at your fingertips.
HARDWARE FEATURES
| Интерфейс | 1× 10G Ethernet Port |
| Button | Reset |
| Захранване | 802.3bt PoE or 12V/2.5A DC |
| Консумация на енергия | Support Smart Power Comsuption Management · • 25.94 W (802.3bt, full functionality); · • 22.57 W (12/2.5A, full functionality); · • 23.4 W (802.3at decrease 6GHz Power); · • 10.1 W (802.3af, radio off, only main chip and LAN working) |

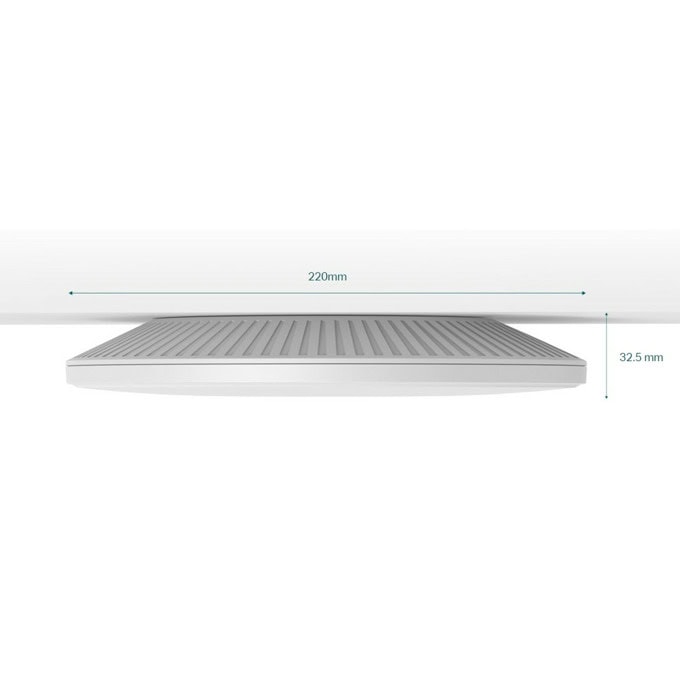

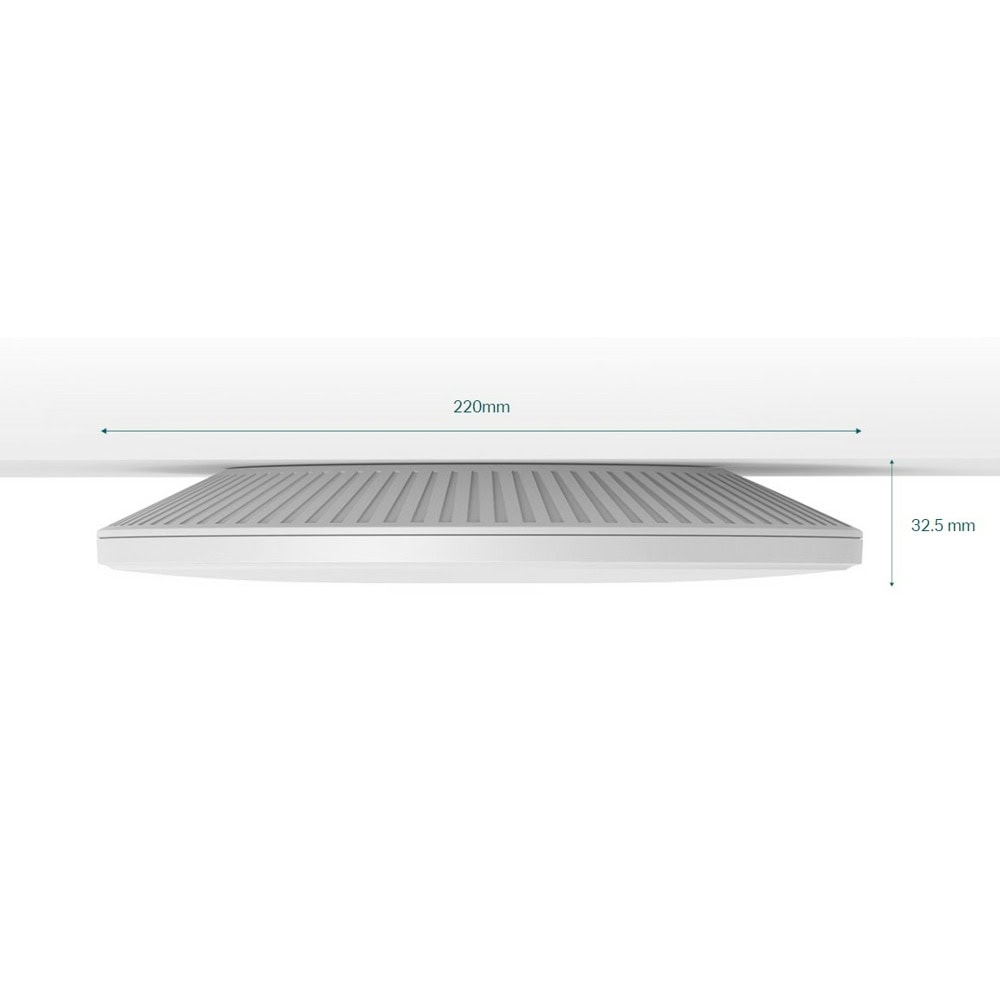

| Dimensions ( W x D x H ) | 8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm) |
| Antenna Type | • 2.4 GHz: 2× 3.0 dBi · • 5 GHz: 2× 3.0 dBi · • 6 GHz: 2× 3.0 dBi |
| Bluetooth | 1 × 4.0 dBi, Bluetooth 5.2 · *Firmware update may be required |

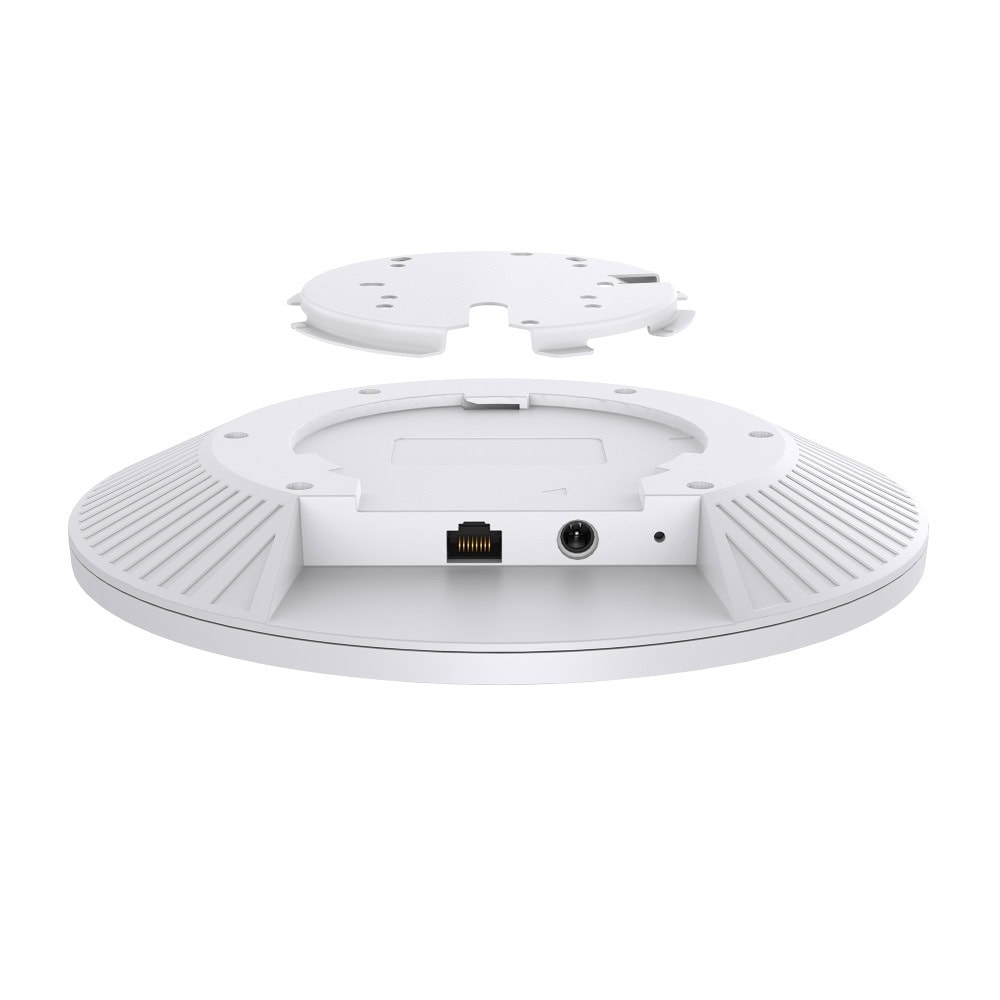

| Монтаж | Ceiling / Wall Mounting (Kits Included) |
WIRELESS FEATURES
| Wireless Client Capacity | 2 GHz: 128** · 5 GHz: 128** · 6 GHz: 128** |
| Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax/be |
| Честота | 6 GHz, 5 GHz, and 2.4 GHz |
| Signal Rate | 574 Mbps (2.4 GHz) + 4320 Mbps (5 GHz) + 5760 Mbps (6 GHz) |
| Wireless Functions | • MLO · • 4K-QAM · • MU-MIMO · • HE320 · • Mesh · • BSS Coloring · • OFDMA · • Load Balance · • Band Steering · • Beamforming · • Airtime Fairness · • Multiple SSIDS:24(8 on each band) · • Wireless Schedule · • Reboot Schedule · • QoS(WMM) · • Rate Limit · • Static IP/Dynamic IP · • RADIUS Accounting · • MAC Authentication |
| Wireless Security | • Captive Portal Authentication · • Access Control · • Maximum number of MAC Filter: 4,000 · • Wireless Isolation Between Clients · • VLAN · • Rogue AP Detection · • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Transmission Power | < 25 dBm (2.4 GHz) · < 25 dBm (5 GHz) · < 23 dBm (6 GHz) |
MANAGEMENT
| Omada App | Да |
| Centralized Management | • Omada Cloud-Based Controller · • Omada Hardware Controller (OC300) · • Omada Hardware Controller (OC200) · • Omada Software Controller |
| Cloud Access | Yes. Require the use of an OC300, OC200, Omada Software Controller, or an Omada Cloud-Based Controller |
| Email Alerts | Да |
| LED ON/OFF Control | Да |
| Management MAC Access Control | Да |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | Да |
| Web-based Management | Да |
