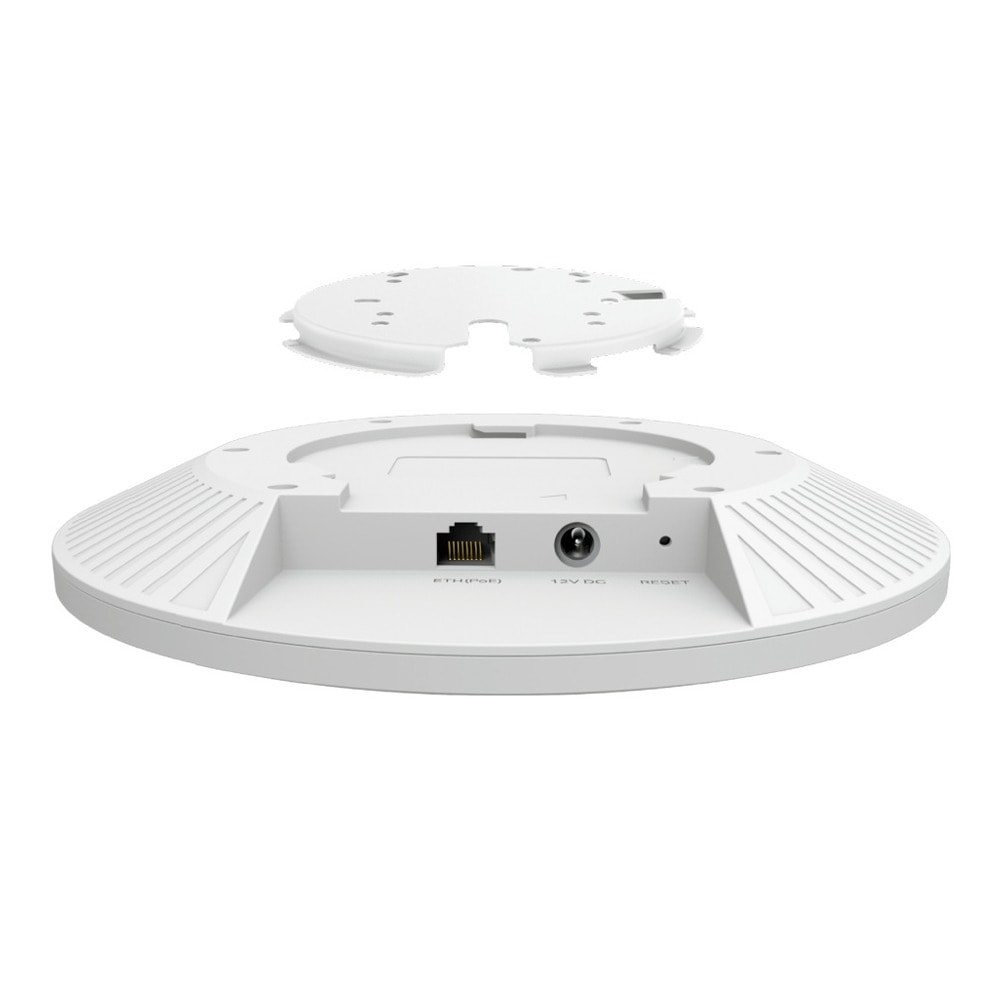

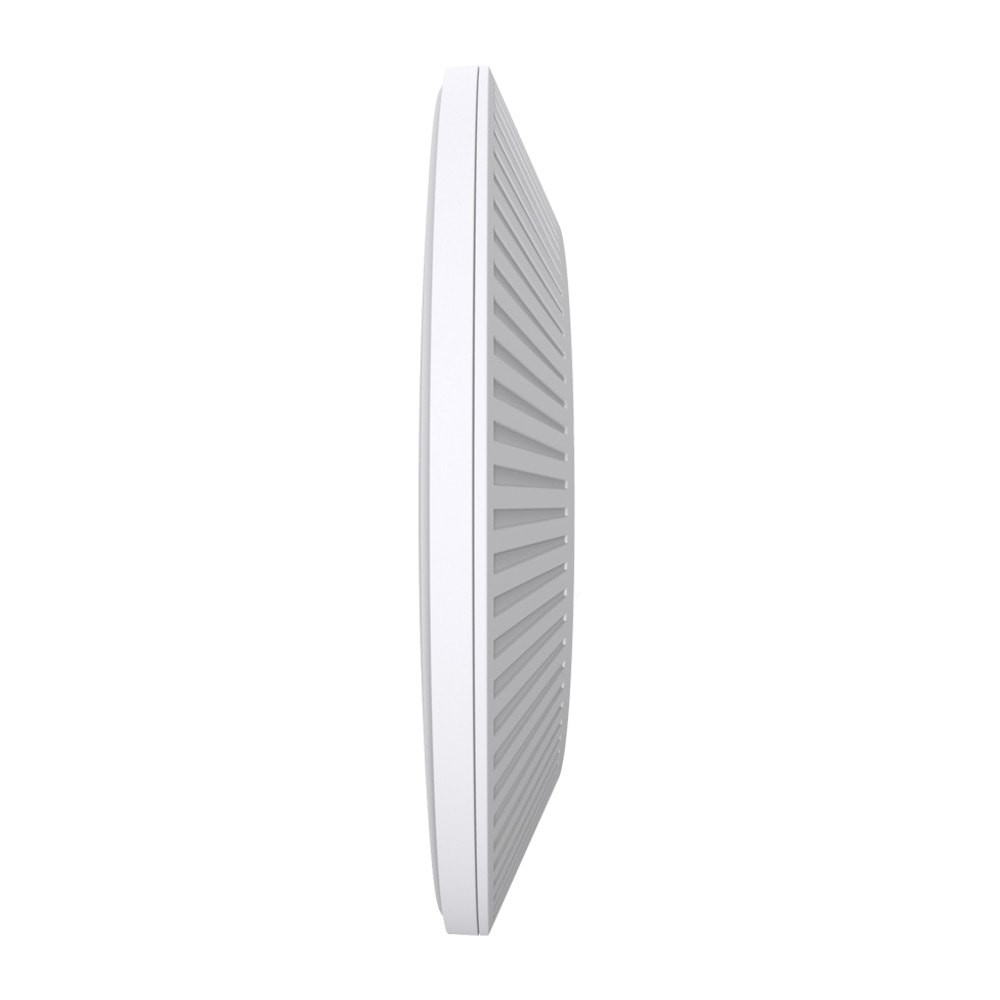

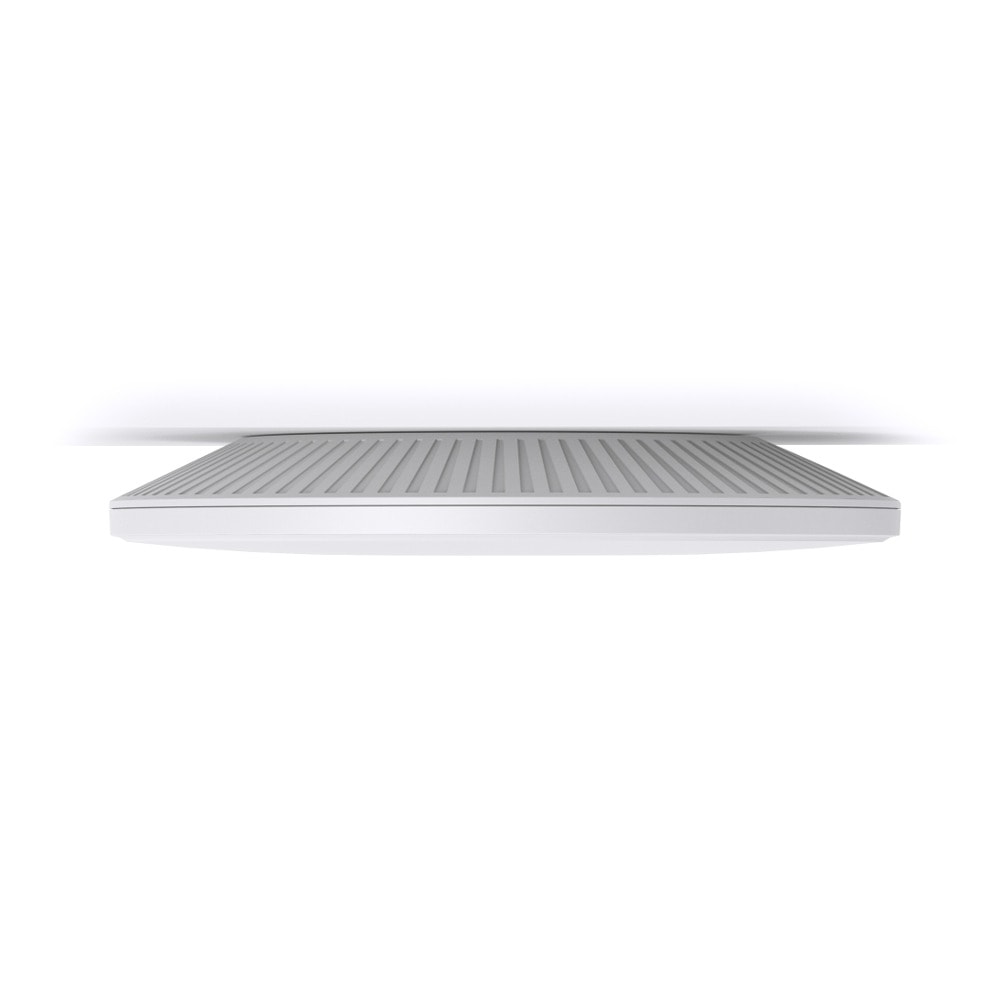

Точка за достъп TP-Link EAP673
AX5400 WiFi 6 Speed
4804 Mbps on 5 GHz + 574 Mbps on 2.4 GHz
High-Efficiency WiFi 6
More connected devices can enjoy faster speeds
Centralized Cloud Management
Manage the whole network locally or from the cloud
2.5GE Wired Performance
Boosts overall throughput with a 2.5 Gbps Ethernet port
160 MHz Channel
Double the data at peak transmission times on a single stream with HE160‡
Auto Channel Selection and Power Adjustment*
Optimize overall performance by reducing WiFi interference
Omada Mesh Technology
More flexible and convenient wireless deployment§
Seamless Roaming
Uninterrupted streaming when moving between APs§
PoE+ Powered
Supports both DC (adapter not included) and 802.3at PoE+ for flexible installations
HospitalityHigh-quality and full coverage Guest WiFi
EducationHigh-security WiFi to connect more devices
Shopping MallSeamless marketing WiFi coverage to boost business
Meeting RoomFaster streaming, downloading, video conferencing, and more
OfficeStable, seamless, and high-security WiFi coverage
Higher Efficiency for More Devices
Wi-Fi 6 features such as OFDMA and MU-MIMO handle multiple clients across congested environments like typical office spaces, lodging, and hospitals. Enjoy faster speeds on more devices with less lag.‡ Enjoy faster speeds on more devices with less lag.
Easy Deployment & Higher Performance by Omada Mesh§
Easy Pairing, Less Wiring
With Mesh technology, Omada EAPs save you from extra wires by wirelessly extending your WiFi signal further and more flexibly to hard-to-wire areas.
Boosted Network Security and Efficiency
Security
- Secure Guest Network with Up to 16 SSIDs Guest network access provides enhanced security to guests. Different SSIDs also enable flexible access management.
- Boost Business with SMS Login Captive portal (including SMS and Voucher) and 802.1x authentication help maintain authorized guests to use the network. Boost your business with a customized marketing page.§
- WPA3 for Worry-Free Open Public Networks With advanced enterprise security, WPA3 provides more data security for previously unsecured and open WiFi hotspots.
Efficiency
- Band Steering Automatically moves dual band devices onto the wider 5GHz band for faster connections.
- Load Balance Ensures large numbers of users have smooth network experiences in high-density business networks
- Airtime Fairness Increases average network throughput in heavily congested environments
Характеристики
| Button | Да |
| Reset | Да |
| Мощност | Да |
| 802.3at PoE | Да |
| V / 2 A DC (Power adapter not included) | 12 |
| Energy consumption | Да |
| EU | 20.8 W |
| US | 22.3 W |
| Dimensions (W x D x H ) | Да |
| 220 × 220 × 32.5 mm) | Да |
| Antenna type | Да |
| Internal Omni | Да |
| 2.4 GHz | 2× 4 dBi |
| 5 GHz | 4× 5 dBi |
| Bluetooth | Да |
| Да | Да |
| WIRELESS FEATURES | Да |
| Coverage | Да |
| 140㎡(1500 ft²)*** | Да |
| Wireless Client Capacity | Да |
| 250+** | Да |
| Concurrent Clients | Да |
| 250+** | Да |
| Wireless standards | Да |
| IEEE | 802.11ax/ac/n/g/b/a |
| Честота | Да |
| GHz and 5 GHz | 2.4 |
| Signal speed | Да |
| 5 GHz | Up to 4804 Mbps |
| 2.4 GHz | Up to 574 Mbps |
| Wireless Features | Да |
| 1024-QAM | Да |
| 4× Longer OFDM Symbol | Да |
| OFDMA | Да |
| Multiple SSIDs (Up to | 16 SSIDs, 8 for each band) |
| Enable/Disable Wireless Radio | Да |
| Automatic Channel Assignment | Да |
| Transmit Power Control (Adjust Transmit Power on dBm) | Да |
| QoS(WMM) | Да |
| MU-MIMO | Да |
| HE160 (160 MHz Bandwidth)‡ | Да |
| Seamless Roaming § | Да |
| Omada Mesh§ | Да |
| Band Steering | Да |
| Load Balance | Да |
| Airtime Fairness | Да |
| Beamforming | Да |
| Rate Limit | Да |
| Reboot Schedule | Да |
| Wireless Schedule | Да |
| Wireless Statistics based on SSID/AP/Client | Да |
| Wireless Security | Да |
| Captive Portal Authentication§ | Да |
| Access Control | Да |
| Wireless Mac Address Filtering | Да |
| Wireless Isolation Between Clients | Да |
| SSID to VLAN Mapping | Да |
| Rogue AP Detection | Да |
| 802.1X Support | Да |
| Transmission power | Да |
| CE | MANAGEMENT Omada App Yes Centralized Management Omada Hardware Controller (OC300) Omada Hardware Controller (OC200) • Omada Software Controller • Omada Cloud-Based Controller Cloud Access Yes. Requires the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. Email alerts Yes LED On/Off control Yes Access control management by MAC address Yes SNMP v1, v2c, v3 Logging into the system Local/Remote Local/Remote Syslog SSH Yes Web-based HTTP/HTTPS management L3 management Yes Manage multiple sites Yes VLAN management Yes Zero-Touch Provisioning Yes. Require the use of Omada Cloud-Based Controller. OTHERS Certificates CE, FCC, RoHS System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux Environment • Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
