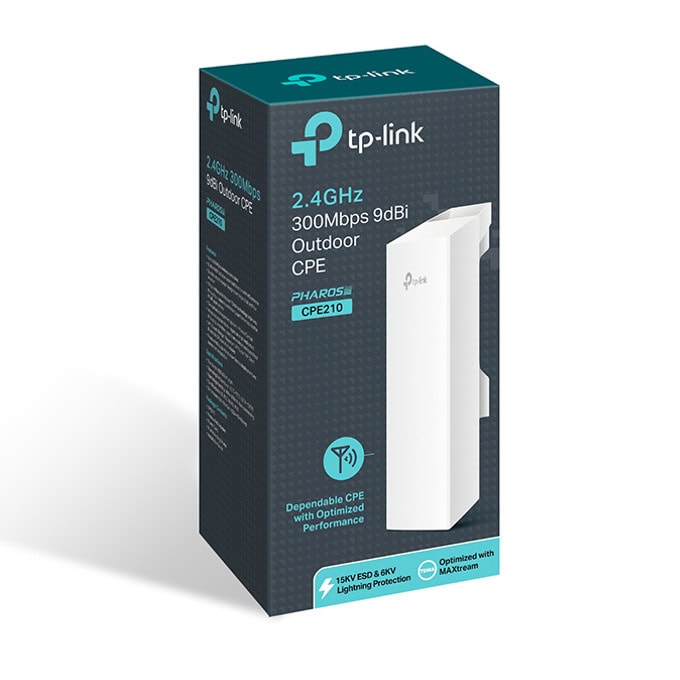

Точка за достъп TP-Link CPE210

2.4GHz 300Mbps 9dBi Outdoor CPE

CPE210

• Built-in 9dBi 2x2 dual-polarized directional MIMO antenna

• Adjustable transmission power from 0 to 27dBm/500mw

• System-level optimizations for more than 5km long range wireless transmission

• TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency performance, ideal for PTMP applications

• Centralized Management System – Pharos Control

• AP / Client / Bridge / Repeater / AP Router / AP Client Router (WISP) operation modes

• Passive PoE Adapter supports up to 60 meter (200 feet) Power over Ethernet deployment and allows the device to be reset remotely

Features

• Built-in 9dBi 2x2 dual-polarized directional MIMO antenna

• Adjustable transmission power from 0 to 27dBm/500mw

• System-level optimization for more than 5km long range wireless transmission

• TP-LINK Pharos MAXtream TDMA(Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency, ideal for PTMP applications

• Centralized Management System – Pharos Control

• AP / Client / Bridge / Repeater / AP Router / AP Client Router (WISP) operation modes

• Outdoor stabilized enclosure with IPX5 waterproof certification

• Dual Ethernet ports and grounding terminal integrated

• 6KV Lightning Protection, 15KV ESD Protection

• Passive PoE Adapter supports up to 60 meters (200 feet) power over Ethernet deployment and allows for device reset remotely

• Provides WEP, WPA/WPA2, WPA-PSK/WPA2-PSK data security

• Selectable bandwidth of 5/10/20/40MHz

• Provides Throughput Monitor, Spectrum Analyzer, Speed Test and Ping tools

• Easy antenna alignment with wireless signal quality indicators via Web interface

HARDWARE FEATURES

Processor Qualcomm Atheros 560MHz CPU, MIPS 74Kc

Memory 64MB DDR2 RAM, 8MB Flash

Interface 1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in)

1 10/100Mbps Shielded Ethernet Port (LAN1, Passive PoE

Passthrough)

1 Grounding Terminal

1 Reset Button

Dimensions (W X D X H) 224 x 79 x 60 mm

Antenna Type Built-in 9dBi 2x2 Dual-polarized Directional Antenna

Beam Width: 65° (H-Plane) / 35° (E-Plane)

Note: For more details, please refer to datasheet

Protection 15KV ESD Protection

6000V Lightning Protection

Power Consumption 10.5 Watts Max

Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable.

Power Supply Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins)

Voltage range: 16-27VDC

Enclosure Outdoor ASA stabilized plastic material

IPX5 waterproof Certification

WIRELESS FEATURES

Wireless Standards IEEE 802.11b/g/n (with Pharos MAXtream disabled)

Proprietary Protocol TDMA Mode (with Pharos MAXtream enabled)

Wireless Speeds

Up to 300Mbps (40MHz,Dynamic)

Up to 144.4Mbps (20MHz,Dynamic)

Up to 72.2Mbps (10MHz,Dynamic)

Up to 36.1Mbps (5MHz,Dynamic)

Frequency 2.4~2.483GHz

Note: Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used.

Reception Sensitivity • 802.11b:

11M: -95dBm, 5.5M: -96dBm, 2M: -96dBm, 1M: -96dBm

• 802.11g:

54M: -79dBm, 48M: -80dBm, 36M: -84dBm, 6-24M: -88dBm

• 802.11n:

MCS15: -76dBm, MCS14: -78dBm, MCS13: -80dBm,

MCS12: -84dBm, MCS11: -87dBm, MCS10: -91dBm,

MCS9: -93dBm, MCS8: -96dBm, MCS7: -76dBm,

MCS6: -78dBm, MCS5: -80dBm, MCS4: -84dBm,

MCS3: -87dBm, MCS2: -91dBm, MCS1: -93dBm, MCS0: -96dBm

Transmission Power 27dBm/500mw (Adjustable power by 1dBm)

Note: Maximum transmission power may vary across different channels depending on the limitations of the countries or regions in which the device is used.

SOFTWARE FEATURES

Wireless Configurations Pharos MAXtream TDMA Technology

802.11b/g/n Modes

Selectable Channel Width: 5/10/20/40MHz

Automatic Channel Selection

Transmission Power Control

Dynamic Frequency Selection (DFS)

WDS Enable/Disable

Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption

SSID Broadcast Enable/Disable

Multi-SSID with VLAN Tagging (AP mode only)

Distance/ACK Timeout Setting

Wireless MAC Address Filter

Wireless Advanced:

> Beacon Interval/RTS Threshold/Fragmentation

>Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia

Management Discovery and Remote Management via Pharos Control application

HTTP/HTTPS Web-based management

System Log

SNMP Agent(v2c)

Ping Watch Dog

Dynamic DDNS

SSH Server

System Tools Wireless Signal Quality Indicators:

Signal Strength/Noise/Transmit CCQ/CPU/Memory

Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP

Spectrum Analyzer

Speed Test

Ping

Traceroute

System-level Optimizations Optimized IGMP Snooping/Proxy for multicast applications

Hardware watch dog
