Ruijie RG-AP180

Recommended for indoor scenarios such as dormitories, offices, hotels, stores, and classrooms

Highlight Features

• Multi-service Linkage, All-in-One for Office Scenarios
• 1.775 Gbps Ultra-Fast Speed with Wi-Fi 6
• Full-Scenario Enterprise-class Authentication for Enhanced Security
• Ruijie Cloud Management, Intelligent Optimization, and Easy O&M

1.775 Gbps Ultra-Fast Speed with Wi-Fi 6

Hardware Specifications

Dimensions and WeightRG-AP180

Unit dimensions(W x H x D)In-wall: 86 mm x 116 mm x 19 mm (3.39 in. x 4.57 in. x 0.75 in.)Above-wall: 86 mm x 116 x mm x 24 mm (3.39 in. x 4.57 in. x 0.94 in.)

Shipping dimensions(W x D x H)508 mm x 390 mm x 152 mm (20.00 in. x 15.35 in. x 5.98 in.)

Unit weight0.19 kg (0.42 lbs)

Shipping weight9.67 kg (21.32 lbs)

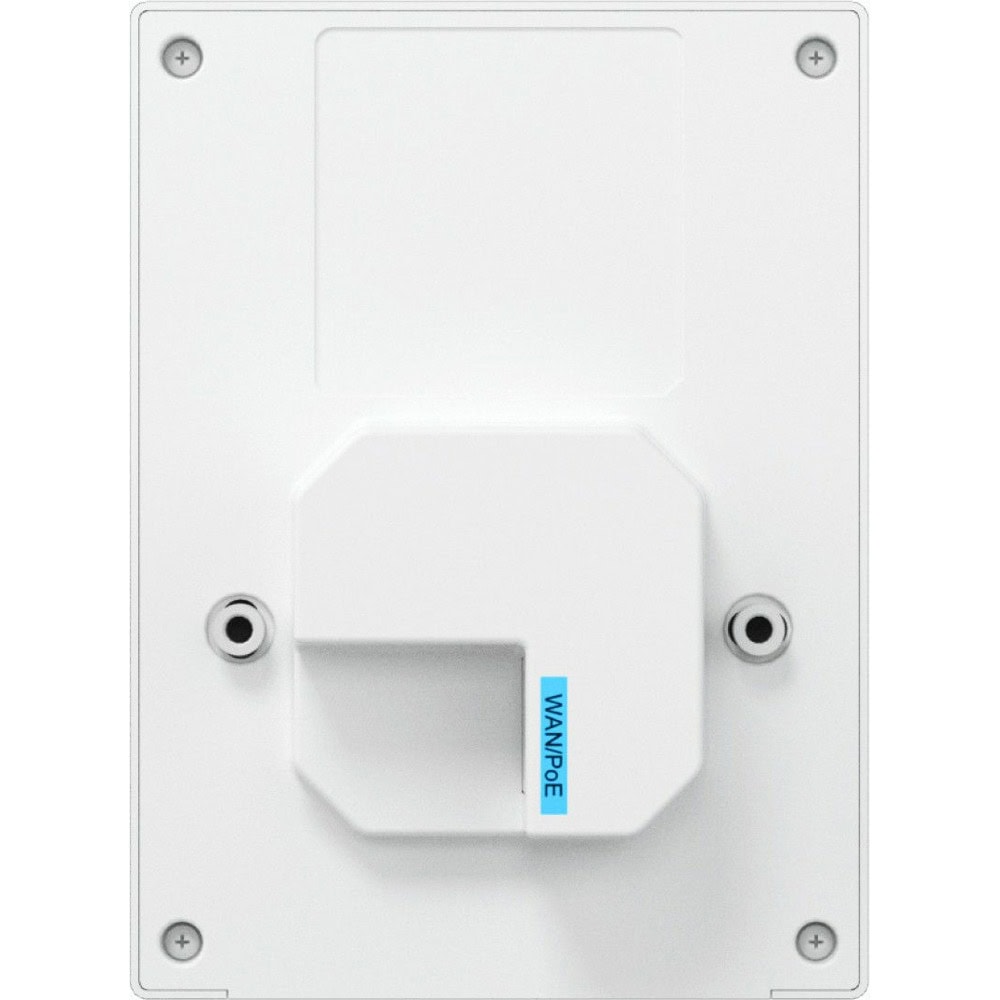

MountingWall-mountJunction box-mount (86 mm/European-standard junction box)Note: If you want to use an American-standard junction box, purchase an RG-AP180-MNT mounting bracket separately.

ColorElegant white

Wi-Fi RadioRG-AP180

Radio designDual-radio and up to four spatial streams:● Radio 1: 2.4 GHz, two spatial streams, 2x2 MU-MIMO● Radio 2: 5 GHz, two spatial streams, 2x2 MU-MIMO

Operating frequenciesRadio 1: 802.11b/g/n/ax● 2.400 GHz to 2.4835 GHz, ISM, channels 1 to 13Radio 2: 802.11a/n/ac/ax● 5.150 GHz to 5.250 GHz, U-NII-1, channels 36, 40, 44, and 48● 5.250 GHz to 5.350 GHz, U-NII-2A, channels 52, 56, 60, and 64● 5.470 GHz to 5.725 GHz, U-NII-2C, channels 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, and 140● 5.725 GHz to 5.850 GHz, U-NII-3/ISM, channels 149, 153, 157, 161, and 165 Country-specific restrictions apply:EgyptRadio 1: 802.11b/g/n: 2.400 GHz to 2.4835 GHzRadio 2: 802.11a/n/ac: 5.150 GHz to 5.350 GHz

Data ratesCombined peak data rate: 1.775 GbpsRadio 1: 2.4 GHz, 574 Mbps● Two spatial stream Single User (SU) MIMO for up to 574 Mbps wireless data rate to individual 2SS HE40 802.11ax client devices (maximum)● Two spatial stream Single User (SU) MIMO for up to 287 Mbps wireless data rate to individual 2SS HE20 802.11ax client devices (typical)Radio 2: 5 GHz, 1.201 Gbps● Two spatial stream Single User (SU) MIMO for up to 1.201 Gbps wireless data rate to individual 2SS HE80 802.11ax client devices (maximum)● Two spatial stream Single User (SU) MIMO for up to 574 Mbps wireless data rate to individual 2SS HE40 802.11ax client devices (typical)● Two spatial stream Multi-User (MU) MIMO for up to 1.201 Gbps wireless data rate to up to two 1SS HE80 802.11ax DL-MU-MIMO capable client devices simultaneously (maximum)● Two spatial stream Multi-User (MU) MIMO for up to 574 Mbps wireless data rate to up to two 1SS HE40 802.11ax DL-MU-MIMO capable client devices simultaneously (typical)

Data rate setThe following 802.11-compliant data rates in Mbps are supported:2.4 GHz radio● 802.11b: 1, 2, 5.5, 11● 802.11g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54● 802.11n: 6.5 to 300 (MCS0 to MCS15, HT20 to HT40)● 802.11ac: 6.5 to 400 (MCS0 to MCS9, NSS = 1 to 2, VHT20 to VHT40)● 802.11ax: 8.6 to 574 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE40)5 GHz radio● 802.11a: 6, 9, 12, 18, 24, 36, 48, 54● 802.11n: 6.5 to 300 (MCS0 to MCS15, HT20 to HT40)● 802.11ac: 6.5 to 867 (MCS0 to MCS9, NSS = 1 to 2, VHT20 to VHT80)● 802.11ax: 8.6 to 1,201 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE80)

Packet aggregation802.11n/ac/ax: A-MPDU and A-MSDU

Antenna typeBuilt-in intelligent antennas (two 2.4 GHz antennas and two 5 GHz antennas)

Antenna gain2.4 GHz: 2.5 dBi5 GHz: 5.5 dBi

Maximum transmit power2.4 GHz radio: 20 dBm (17 dBm per chain)5 GHz radio: 20 dBm (17 dBm per chain) Thailand2.400 GHz to 2.4835 GHz, EIRP ≤ 20 dBm5.150 GHz to 5.350 GHz, EIRP ≤ 23 dBm5.470 GHz to 5.725 GHz. EIRP ≤ 30 dBm5.725 GHz to 5.825 GHz, EIRP ≤ 30 dBm Egypt2.400 GHz to 2.4835 GHz, EIRP ≤ 20 dBm5.150 GHz to 5.350 GHz, EIRP ≤ 23 dBm

Power incrementConfigurable in increments of 1 dBm

Radio technologies802.11b: Direct-Sequence Spread-Spectrum (DSSS)802.11a/g/n/ac: Orthogonal Frequency-Division Multiplexing (OFDM)802.11ax: Orthogonal Frequency Division Multiple Access (OFDMA)

Modulation types802.11b: BPSK, QPSK, CCK802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM

The following table lists the radio frequency performance of Wi-Fi including different frequency bands, protocols, and date rates. It is country-specific, and Ruijie Networks reserves the right of interpretation.

Wi-Fi Radio Frequency PerformanceRG-AP180

Frequency Band and ProtocolData RateMaximum Transmit Power per Transmit ChainMaximum Receive Sensitivity per Receive Chain

2.4 GHz, 802.11b1 Mbps18 dBm–91 dBm
