Mimosa

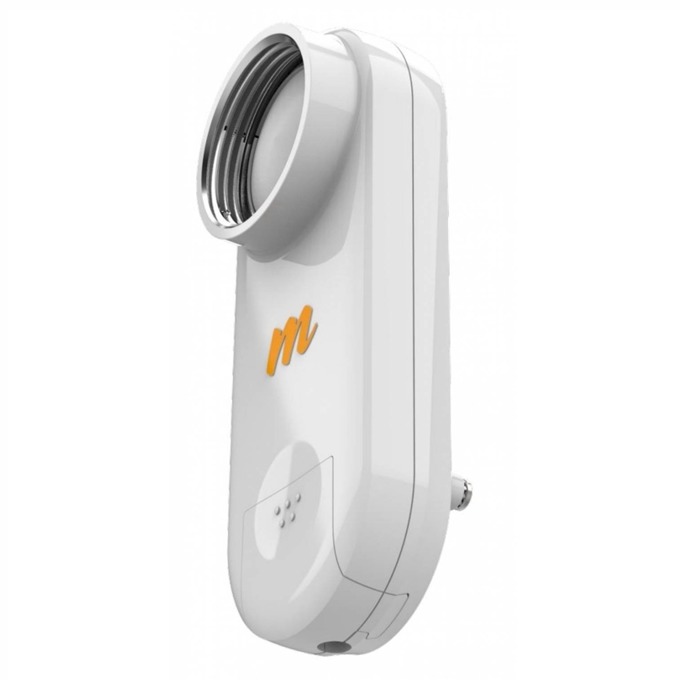

Точка за достъп Mimosa C5x
Артикул №: 1000102253
Категория:
Мрежови адаптери
119,99 €
✓ Налично във външен склад
Mimosa C5x представлява гъвкаво решение за индустрията, притежаващо интегрирано радио с четири модулна навиваща се антена.
Характеристики
| Max Throughput | PTP: 700 Mbps IP (866 PHY) (requires PTP feature key) PTMP: 500 Mbps IP (866 PHY) (requires PTMP speed feature key to go faster than 100BASE-T) • Wireless Protocols: Mimosa SRS; WiFi Interop • Modes: PTP Backhaul (requires feature key); PTMP Client Radio • MIMO and Modulation: 2x2:2 MIMO OFDM, up to 256 QAM • Bandwidth: 20/40/80 MHz channels, tunable to 5 MHz increments for Mimosa SRS and WiFi Interop mode • Frequency Range: PTP/PTMP: 4900–6400 MHz (restricted by country of operation) • Max Output Power: 27 dBm |
| Sensitivity (MCS0) | -87 dBm @ 80 MHz -90 dBm @ 40 MHz -93 dBm @ 20 MHz Power • Max Power Consumption: 9.2 W average; 12.9 W max • System Power Method: Passive POE (24-56 VDC) • PoE Power Supply: Passive POE compliant, 24-56 V Power over Ethernet supply (not included) Physical |
| Размери | Height: 175 mm (6.89”) Width: 70 mm (2.75”) Depth: 61 mm (2.40”) • Weight: 0.37 kg (0.82 lbs) • RF Connector Type: Mimosa N5-X twist-on |
| Enclosure Characteristics | Outdoor, die-cast aluminum, UV stabilized paint • Mounting: Dual attached pole mount straps • Grounding: Ground lug • Wind Survivability: 200 km/h (125 mph) Environmental • Outdoor Ingress Protection Rating: IP55 • Operating Temperature: -40°C to +55°C (-40°F to 131°F) • Operating Humidity: 5 to 100% condensing • Operating Altitude: 4,420 m (14,500’) max • Shock & Vibration: ETS 300-019-2-4 class 4M5 Features • Gigabit Ethernet: 10/100/1000-Base-T • Management Services: Mimosa cloud monitoring and management; SNMPv2 & Syslog monitoring; HTTPS; HTML5-based web UI C5x with No Antenna • Smart Spectrum Management: Active scan monitors/logs ongoing RF interference across channels with no service impact; Dynamic auto-optimization of channel and bandwidth use • Security: WPA2 PSK and Enterprise 802.1x, Radius provisioning, COA, DM (from A5); 128-bit AES with hardware acceleration • VLANs: Per subscriber, VLAN, Q-in-Q, triple tagging, management VLAN • QoS: Supports 4 pre-configured QoS levels Regulatory and Compliance • Approvals: FCC Part 15.405 and Part 90Y CE/ETSI |
| EMI/Safety | FCC Part 15 Class B EN 55022 Class B IEC61000 UL/IEC 60950-2 IEC/EN 60905-1 • WEEE/ROHS Compliance: Yes |
