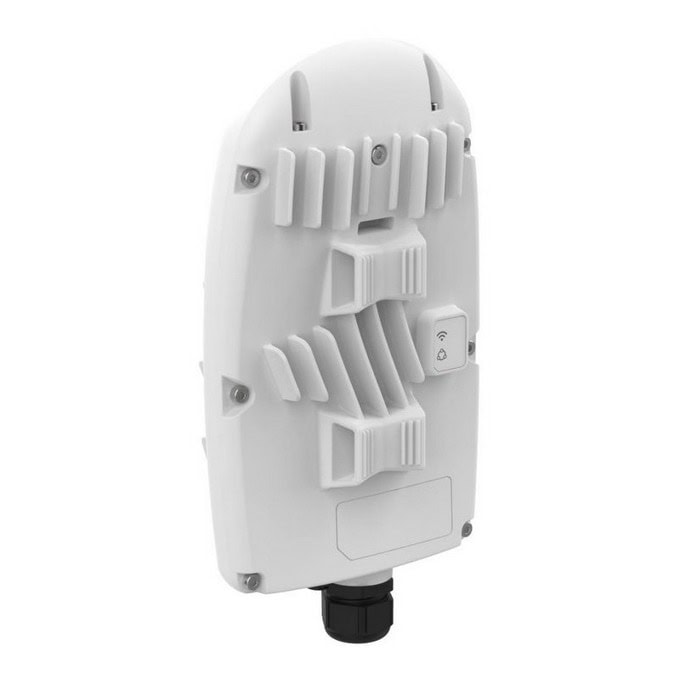

Точка за достъп Mimosa B5x
B5x
Unmatched Performance and Versatility

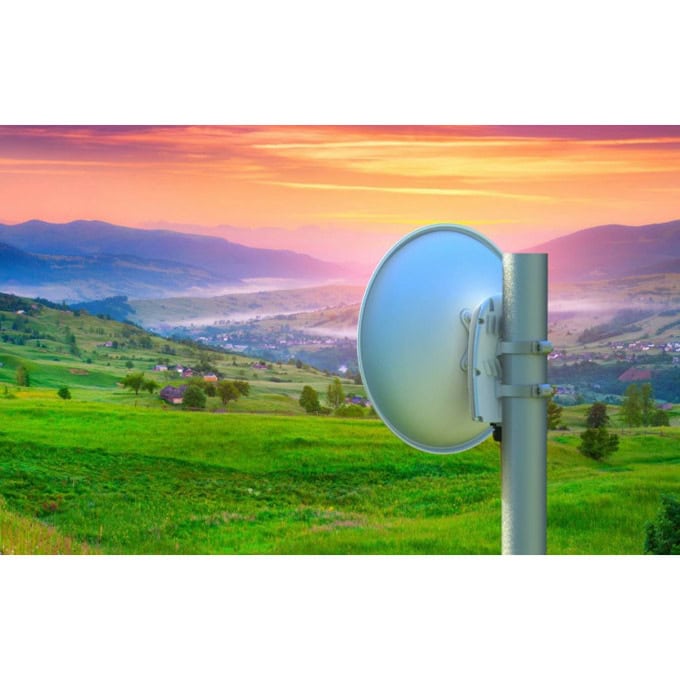

The Mimosa B5x is one of the industry’s fastest unlicensed, point-to-point (PTP), backhaul solutions. It’s ideal for short to medium range relay and tower links, custom-engineered co-location, and licensed 4.9 GHz spectrum. It’s modular, with the ability to connect X-series compatible twist-on antennas (12 dBi horn, 16 dBi horn, 20 dBi dish, 25 dBi dish, or 30 dBi dish).
Exceptional Speed and Flexibility
The Mimosa B5x stands out as one of the industry's fastest unlicensed backhaul solutions, capable of delivering up to 1.5 Gbps (IP). With 160 MHz of aggregate channel capacity and GPS Sync mode, it offers unparalleled flexibility and performance for short to medium-range relay and tower links, as well as licensed 4.9 GHz spectrum applications. This makes it an ideal choice for high-capacity, reliable connections in various network environments at a fraction of the cost of fiber.
Link Planning
Going the Distance
The Mimosa Design Tool streamlines planning and validating PTP and PTMP deployments with a few clicks on a map. This intuitive tool simplifies connectivity evaluation by using visual aids like terrain elevation to estimate performance and reliability, automatically accounting for factors such as weather and tree clutter.
Характеристики
| Category | Performance Max ThroughputUp to 1.5 Gbps IP aggregate UL/DL (1.7 Gbps PHY) Low Latency Wireless ProtocolsFixed TDMA and TDMA-FD (Frequency Diversity) with 75:25, 67:33, or 50:50 traffic ratios with 2, 4, or 8 ms timeslots; Auto-TDMA Radio MIMO & Modulation4x4:4 MIMO OFDM up to 256QAM BandwidthSingle or dual 20/40/80 MHz channels; Regulations vary by region Frequency Range4.90–6.40 GHz; Restricted by country of operation Max Output Power30 dBm (1x mode, i.e. single freq), 27 dBm (2x mode, i.e. dual freq) Sensitivity (MCS 0)-87 dBm @ 80 MHz, -90 dBm @ 40 MHz, -93 dBm @ 20 MHz Integrated Antenna Gain8 dBi (with no optional antenna accessory attached) Flexible Antenna OptionsN5-X compatible twist on antennas—12 dBi horn, 16 dBi horn, 20 dBi dish, 25 dBi dish Power Max Power Consumption20 W System Power Method48 VDC passive isolated PoE injector System Lightning & ESD Protection6 kV Recommended Power Supply50 VDC passive Gigabit PoE injector Physical Dimensions (HxWxD)Height: 241 mm (9.5”), Width: 139 mm (5.5”), Depth: 76 mm (3.0”) Weight1.4 kg (3.1 lbs) without mount Enclosure CharacteristicsDie-cast aluminum Wind Survivability200 km/h (125 mph) Mounting2 standard pole straps required (not included); Compatible with FlexiMount XL Environmental Outdoor Ingress ProtectionIP67 Operating Temperature-40°C to +55°C (-40°F to 131°F) Operating Humidity5 to 100% condensing Operating Altitude4,420 m (14,500’) maximum Shock and VibrationETS 300-019-2-4 class 4M5 Features Gigabit Ethernet10/100/1000-BASE-T Dual Link Operation2 independent dual-stream radios operating on non-contiguous frequencies; Automatic load balancing of traffic across 4 total MIMO streams with individual stream encoding up to 256 QAM Management ServicesMimosa management; SNMPv2 & Syslog legacy monitoring; HTTPS; HTML 5 based Web UI Smart Spectrum ManagementActive scan monitors/logs ongoing RF interference across channels (no service impact); Dynamic auto-optimization of channel and bandwidth use Security128-bit AES PSK with hardware acceleration QoS4 classes of QoS, with user configurable priority queuing, weighted fair queuing, MIR, CIR, and rate limiting GPS LocationGNSS-1 (GPS + GLONASS) Collocation Synchronization1PPS GPS TX/RX synchronization for collocated co-channel radios; Adjustable up/downstream bandwidth ratio |
