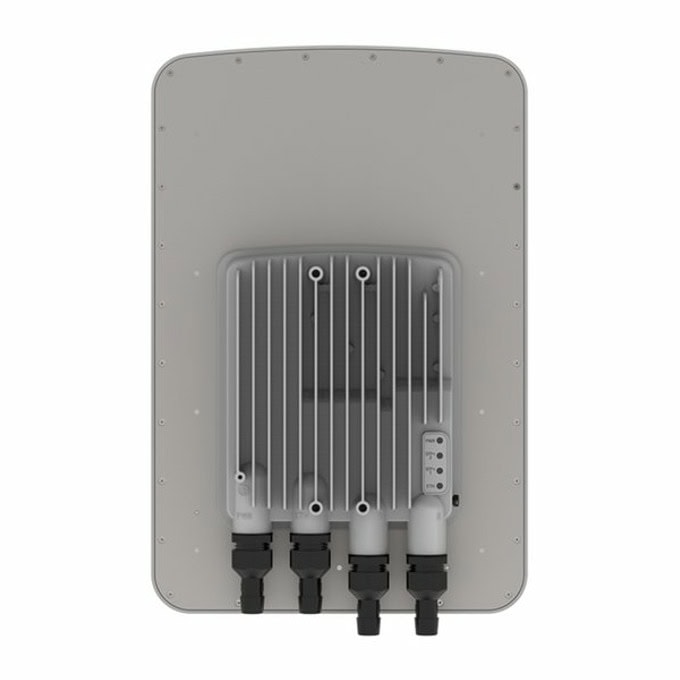

Точка за достъп Mimosa А6

Mimosa А6 100-00113

A6

High Throughput

The A6 redefines efficiency, performance, capacity, and interference handling for unlicensed PTMP deployments. With advanced features like 1024-QAM, 8-stream beamforming, and support for up to 160 MHz of bandwidth, it delivers significant improvements in reliability and performance for the unlicensed 5/6 GHz band.

Improved Link Budget

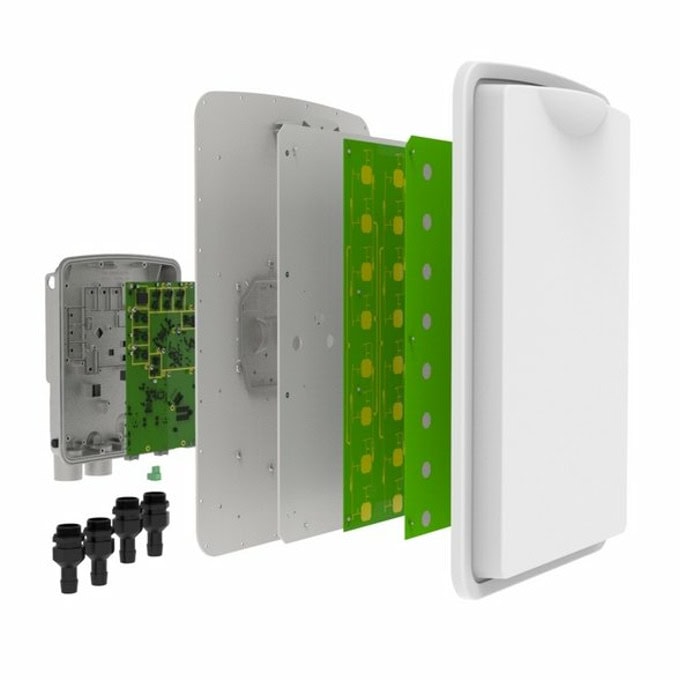

Whether it’s overcoming noise or punching through a bit more near-LOS foliage, who wouldn’t want an improved link-budget? The A6 uses a series of integrated antennas and introduces a set of new baseband features that provide 10 dB signal improvement without an increase in the device form-factor.

Speed and Capacity for Dense Markets and Crowded Towers

Th A6 competes with fiber speed offerings in both urban and rural tower sites. Wi-Fi 6E technologies included within the A6 offer 60 bps/Hz spectral efficiency and high capacity 8x8 multi-user MIMO technology, ensuring sufficient AP capacity to handle large populations at almost any rural tower location, or even in the most dense city urban environments

Category:

Radio

MIMO & Modulation8x8 MU-MIMO; OFDMA (future release), BPSK-1024QAM

BandwidthSingle or dual 20/40/80/160 MHz channels

Frequency Range5150–6425 MHz (Restricted by country)

Max Output Power24 dBm (Restricted by country)

Rx Sensitivity @ 1024 QAM-47 dBm @ 160 MHz, -50 dBm @ 80 MHz, -53 dBm @ 40 MHz, -56 dBm @ 20 MHz

Physical

DimensionsHeight: 490 mm (19”), Width: 295 mm (11.6”), Depth: 75 mm (3”)

Weight3.95 kg (8.7 lbs)

Enclosure CharacteristicsOutdoor UV-stabilized, engineered polymer with integrated metal mounting back

Wind Survivability200 km/h (125 mph)

Wind Loading39 kg @ 160 km/h (86 lbs @ 100 mph)

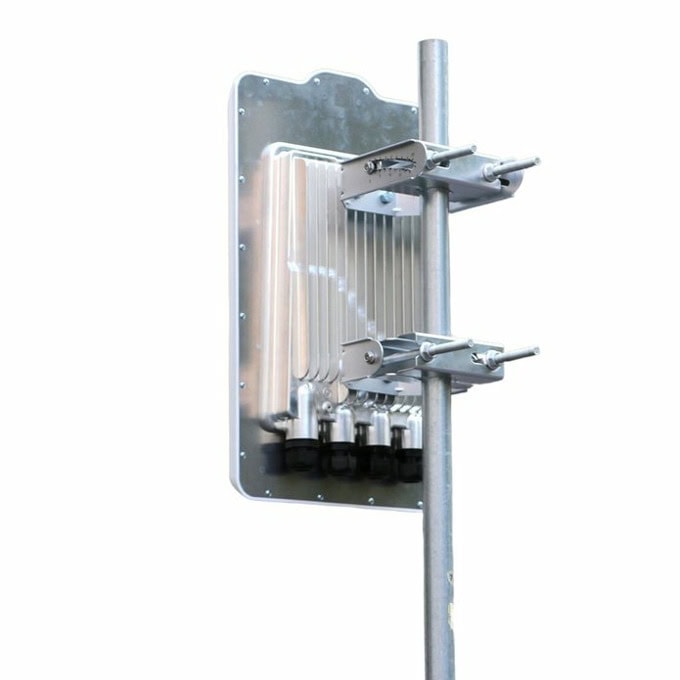

MountingIncludes dual adjustable mounting brackets for 30 mm (1.18”) to 90 mm (3.54”) OD pipes

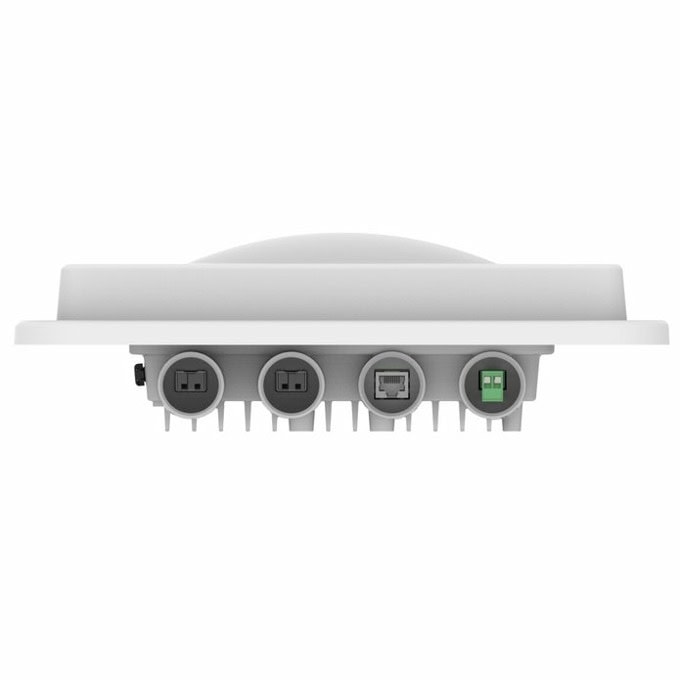

Network Interface(1) GbE copper PoE, (2) 10 GbE SFP+ (optical)

Antenna
