Точка за достъп Mikrotik wAPGR-5HaxD2HaxD&R11e-LTE7
wAP ax LTE7 kit
The new wAP LTE7 kit is an evolution of the popular wAP ac LTE6. Now – with Wi-Fi 6, CAT7 LTE, a stronger ARM platform, and improved antenna gain. The unit comes in our improved next-gen IP66 weatherproof enclosure.
Enhanced Hardware
for Uninterrupted Connectivity and Simple Management

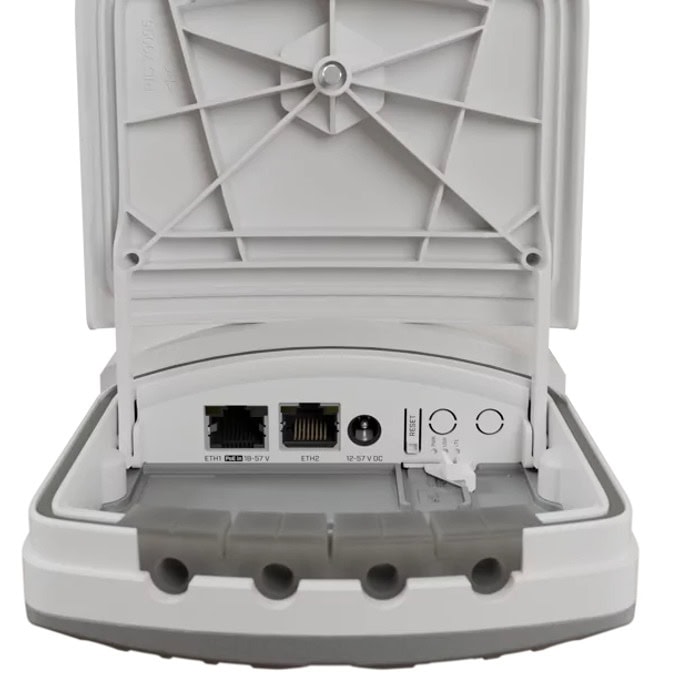

This compact access point is equipped with a modern dual-core ARM CPU and runs on RouterOS v7, ensuring stable internet and excellent VPN performance across your property. The wAP ax LTE7 kit also supports our new CAPsMAN for easy centralized management of multiple devices with just a few clicks. The device features two Gigabit Ethernet ports, with PoE-in on one for flexible powering options. You can also use the standard DC jack – because we believe in giving you options.
.png)
Specifications
- Architecture ARM 64bit
- CPU IPQ-5010
- CPU core count 2
- CPU nominal frequency 800 MHz
- CPU Threads count 2
- RouterOS license 4
- Operating System RouterOS v7
Характеристики
| Architecture ARM | 64bit |
| CPU core count | 2 |
| CPU nominal frequency | 800 MHz |
| CPU Threads count | 2 |
| RouterOS license | 4 |
| Size of RAM | 256 MB |
| Storage size | 128 MB |
| MTBF Approximately | 200'000 hours at 25C |
| Tested ambient temperature -30°C to | 70°C |
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 12-57 V |
| Max power consumption | 13 W |
| PoE in | 802.3af/at |
| PoE in input Voltage | 18-57 V |
| 3G Category R8 (DL | 42.2 Mbps; UL: 5.76 Mbps) |
| LTE Category 7 (DL | 300 Mbps; UL: 100 Mbps) |
| MIMO DL | 2x2 |
| MIMO UL | 1x1 |
| LTE TDD bands | 38 (2600 MHz) 40 (2300 MHz) 41 (2500 MHz) |
| TAC | 35312597 |
| Безжична | 2.4 GHz Max data rate 574 Mbit/s |
| Безжична | 2.4 GHz Number of chains 2 |
| Безжична | 2.4 GHz standards 802.11b/g/n/ax |
| Antenna gain dBi for | 2.4 GHz 6.9 |
| Безжична | 2.4 GHz chip model IPQ-5010 |
| Безжична | 2.4 GHz generation Wi-Fi 6 |
| Безжична | 5 GHz Max data rate 1200 Mbit/s |
| Безжична | 5 GHz Number of chains 2 |
| Безжична | 5 GHz standards 802.11a/n/ac/ax |
| Antenna gain dBi for | 5 GHz 7 |
| Безжична | 5 GHz chip model QCN-6102 |
| Безжична | 5 GHz generation Wi-Fi 6 |
| Number of SIM slots | 1 Modem (Micro SIM) |
| MiniPCI-e slots | 1 |
| CPU temperature monitor | Да |
| PCB temperature monitor | Да |
| Voltage Monitor | Да |
