Точка за достъп Mikrotik wAPGR-5HacD2HnD&EC200A-EU
Mikrotik wAPGR-5HacD2HnD&EC200A-EU

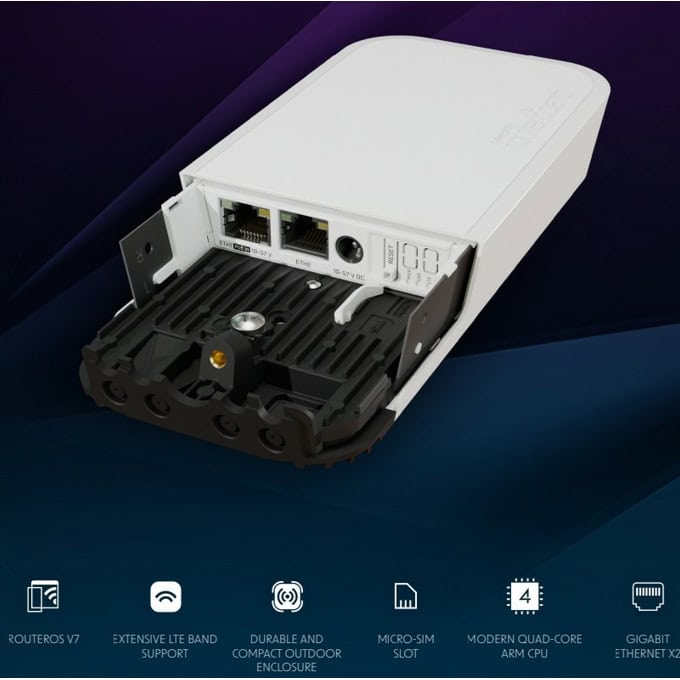

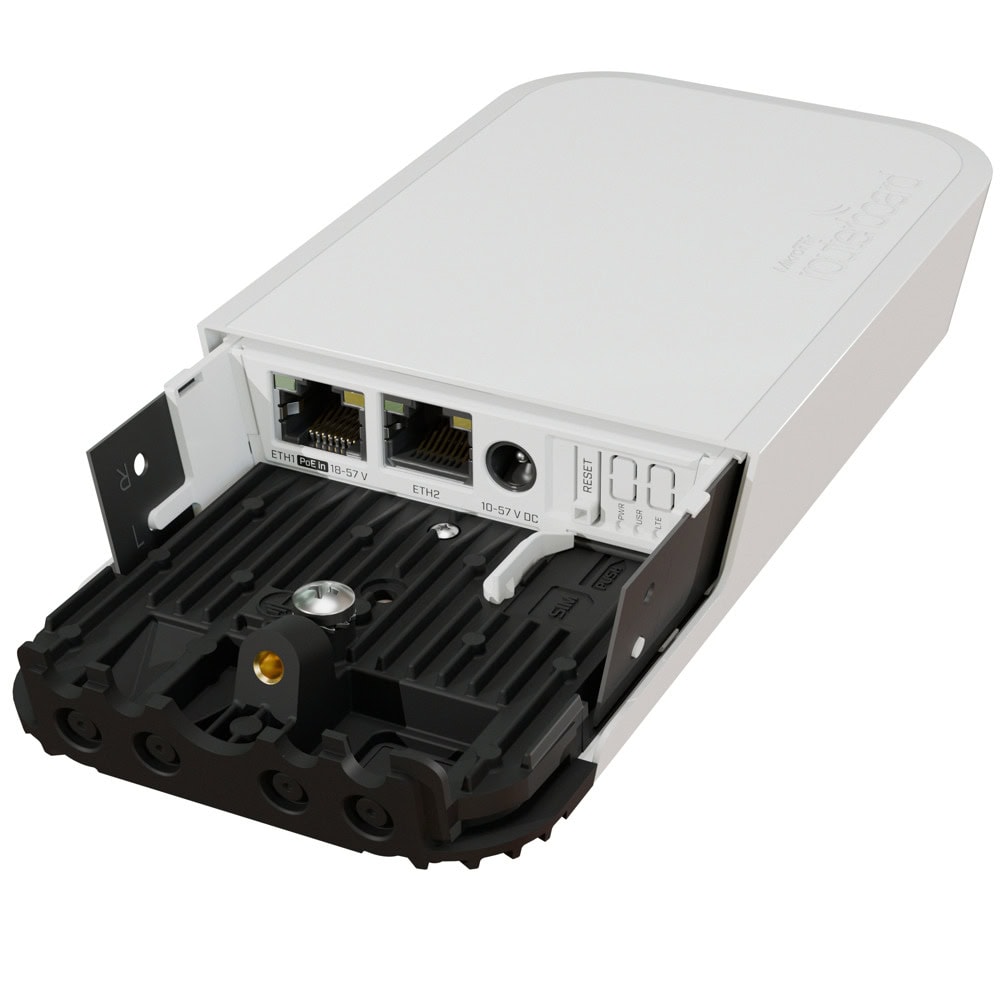

wAP ac LTE kit is a tiny dual-band weatherproof wireless access point for installation outside your house, in the garden, on your porch, or in any other challenging environment where you need a capable wireless connection on a tight budget. Two Gigabit ports allow using the speedy built-in LTE modem as a mobile internet backup connection, in case you already have a wired ISP.
The new revision features a new LTE modem that offers improved connectivity, the addition of the popular B28 band, and a serious price drop!
wAP ac LTE kit is weatherproof and can be fixed to any external wall from the inside of the case – for extra security and less visible attachments. The bottom part can also be secured with a special anti- vandal screw, which can only be opened by the owner.
There is an opening in the back of the case, allowing you to run the Ethernet cable directly behind the unit and through the wall. This way the wAP attracts less attention and blends into any environment.
Характеристики
| Details | Product codewAPGR-5HacD2HnD&EC200A-EU ArchitectureARM 32bit CPUIPQ-4018 CPU core count4 CPU nominal frequency488-896 (auto) MHz Switch chip modelIPQ-4018 RouterOS license4 Operating SystemRouterOS v7 Size of RAM128 MB Storage size16 MB Storage typeFLASH MTBFApproximately 200'000 hours at 25C Tested ambient temperature-30°C to 60°C IPsec hardware accelerationYes |
Powering
| Details | Number of DC inputs2 (PoE-IN, DC jack) DC jack input Voltage10-57 V Max power consumption12 W Cooling typePassive PoE in802.3af/at PoE in input Voltage18-57 V |
Mobile
| Details | 2G CategoryClass12 2G bands8 (900MHz) / 3 (1800MHz) 3G CategoryR7 (21Mbps Downlinks, 5.76Mbps Uplink) 3G bands5 (850MHz) / 8 (900MHz) / 1 (2100MHz) LTE Category4 (150Mbps Downlink, 50Mbps Uplink) LTE FDD bands20 (800MHz) / 3 (1800MHz) / 1 (2100MHz) / 7 (2600MHz) / 8 (900 MHz) / 5 (850MHz) / 28 (700MHz) LTE TDD bands40 (2300MHz) / 38 (2600MHz) / 41n (2500MHz) TAC86314105 |
Wireless specifications
| Details | Wireless 2.4 GHz Max data rate300 Mbit/s Wireless 2.4 GHz number of chains2 Wireless 2.4 GHz standards802.11b/g/n Antenna gain dBi for 2.4 GHz2.5 Wireless 2.4 GHz chip modelIPQ-4018 Wireless 2.4 GHz generationWi-Fi 4 Wireless 5 GHz Max data rate867 Mbit/s Wireless 5 GHz number of chains2 Wireless 5 GHz standards802.11a/n/ac Antenna gain dBi for 5 GHz2.5 Wireless 5 GHz chip modelIPQ-4018 Wireless 5 GHz generationWi-Fi 5 |
Ethernet
| Details | 10/100/1000 Ethernet ports2 |
Peripherals
| Details | Number of SIM slots1 Modem (Micro SIM) MiniPCI-e slots1 |
Other
| Details | PCB temperature monitorYes Voltage MonitorYes |
