MikroTik
Точка за достъп MikroTik OmniTIK UPA-5HnD
Артикул №: 1000009848
Категория:
Аксеспойнт/Репитер Безжични
91,99 €
✓ Налично във външен склад
OmniTIK UPA-5HnD
OmniTIK is a weatherproof outdoor AP with dual-polarized omni antennas - the perfect companion for our SXT, or for any other 5GHz 802.11a/n standard device.

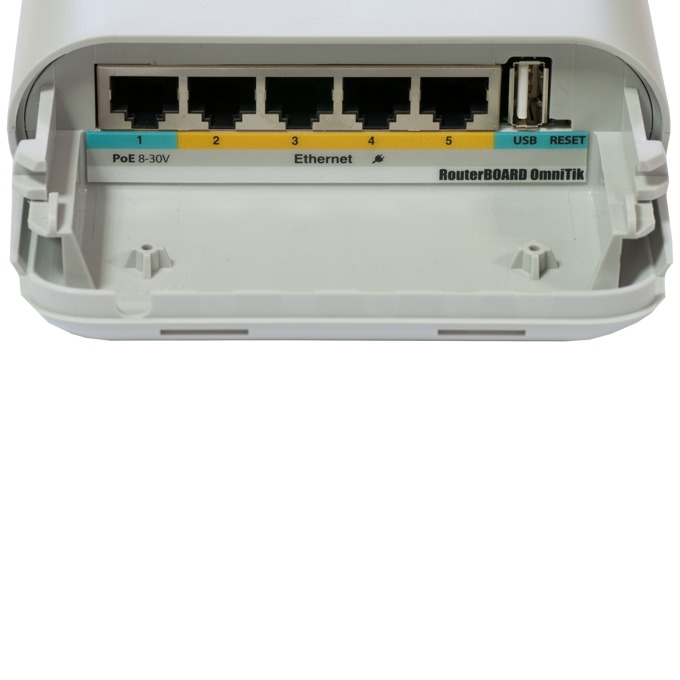

Weatherproof, durable and ready to use. It has five 10/100 Ethernet ports, PoE support and a built-in 400mW 802.11a/n wireless radio. It supports Nv2 TDMA technology with up to 200Mbit aggregate throughput.
LED signal indicators on it’s back are fully customisable, show Ethernet activity or wireless signal - or any other information from RouterOS. The USB port gives the ability to connect a 3G modem or a storage drive.
The OmniTIK UPA also features power output on it’s ethernet ports. Ports 2-5 can power other PoE capable devices (like SXT-5HPnD) with the same voltage as applied to the unit. Less power adapters to worry about!
OmniTIK is a weatherproof outdoor AP with dual-polarized omni antennas - the perfect companion for our SXT, or for any other 5GHz 802.11a/n standard device.
Weatherproof, durable and ready to use. It has five 10/100 Ethernet ports, PoE support and a built-in 400mW 802.11a/n wireless radio. It supports Nv2 TDMA technology with up to 200Mbit aggregate throughput.
LED signal indicators on it’s back are fully customisable, show Ethernet activity or wireless signal - or any other information from RouterOS. The USB port gives the ability to connect a 3G modem or a storage drive.
The OmniTIK UPA also features power output on it’s ethernet ports. Ports 2-5 can power other PoE capable devices (like SXT-5HPnD) with the same voltage as applied to the unit. Less power adapters to worry about!
Характеристики
| CPU core count 1 | Architecture MIPS-BE |
| Size of RAM 64 MB | 10/100 Ethernet ports 5 |
| 10/100/1000 Ethernet ports 0 | MiniPCI slots 0 |
| MiniPCI-e slots 0 | Wireless chip model AR9280-AL1A |
| Wireless standards 802.11a/n | Number of USB ports 1 |
| Memory Cards No | Power Jack 0 |
| 802.3af support No | PoE in Yes |
| Voltage Monitor Yes | PCB temperature monitor Yes |
| CPU temperature monitor No | Dimensions 368x125x55mm |
| Operating System RouterOS | Operating temperature range -30 .. +70C |
| License level 5 | Antenna gain DBI 7.5 |
| Current Monitor Yes | CPU AR7241-AH1A |
| SFP ports 0 | SFP+ ports 0 |
| USB slot type USB type A | Number of chains 2 |
| Serial port None | Wireless specifications |
| 5 GHz | TX/RX |
| 6MBit/s - 26/-96 | 54MBit/s - 22/-80 |
| MCS0 - 25/-96 | MCS7 - 19/-77 |
